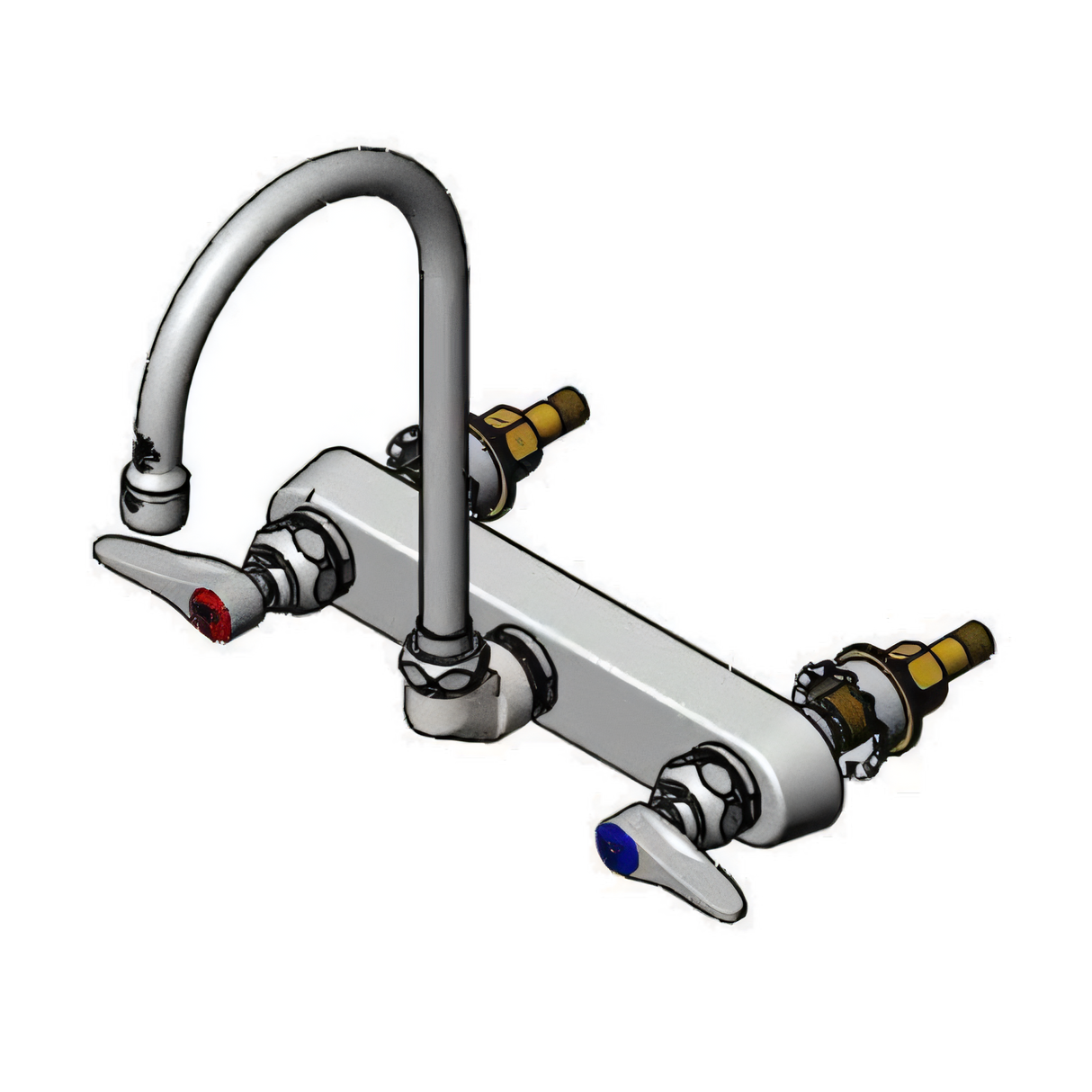

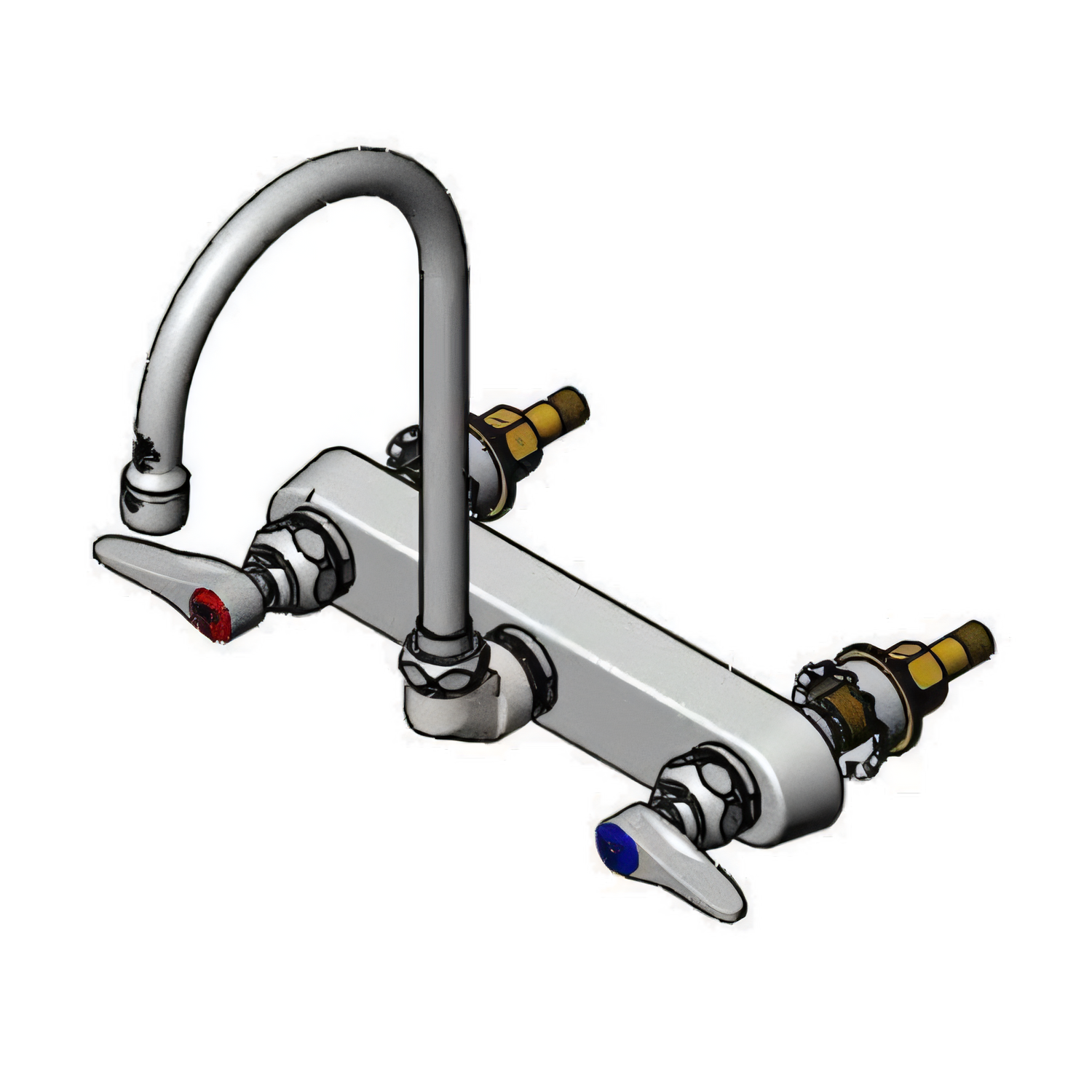

T&S Brass B-1147-XS Wall-Mount Workboard/Bar Sink Faucet, 8-Inch Centers, 5-3/4-Inch Swivel Gooseneck

Quarter-Turn Eterna Cartridges, Low Lead, ADA Compliant

A wall-mount workboard faucet with quarter-turn Eterna control, flexible gooseneck reach, and low-lead ADA-compliant performance.

  • Wall-mount workboard/bar sink faucet with 8-inch centers and 1/2-inch NPSM extended male inlets.
  • 5-3/4-inch swivel gooseneck nozzle and 2.2 GPM aerator deliver controlled reach and flow.
  • Quarter-turn Eterna cartridges with spring checks and lever handles provide smooth, reliable operation.
  • Swivel joint can be converted to rigid with the included anti-rotation lock washer.
  • Low-lead NSF 372 content and ANSI A117.1 ADA compliance support commercial installations.

Product Weight:

3.08 lb

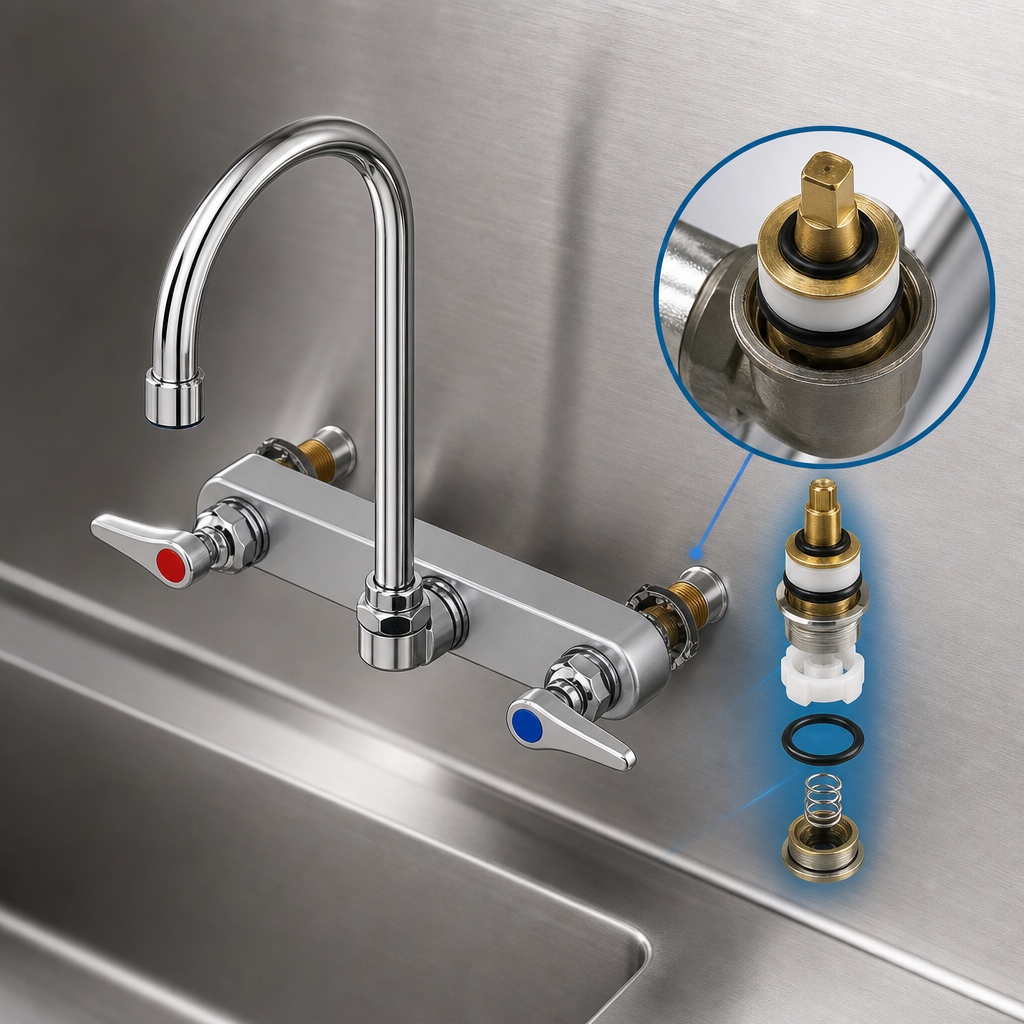

Quarter-Turn Eterna Cartridges

Spring-check cartridges provide dependable shutoff and smooth operation.

Lever Handles with Color-Coded Indexes

Easy hot/cold identification and comfortable control.

5-3/4-Inch Swivel Gooseneck Nozzle

Flexible reach over the sink for workboard use.

2.2 GPM Aerator / Stream Regulator Tip

Delivers a steady stream with reduced splash.

Wall-Mount 8-Inch Centers

Built for two-hole wall installations with 8-inch center spacing.

1/2-Inch NPSM Extended Male Inlets

Provides the wall-mount water connection specified in the cut sheet.

Convertible Swivel Joint

Can be locked rigid using the included anti-rotation washer.

Low-Lead and ADA Compliance

NSF 372 low-lead content and ANSI A117.1 ADA compliance are listed.

Included 1/4-Inch NPT Tailpieces and Nuts

Tailpieces and nuts are included for alternate connection use.

Type Workboard Faucet
Mounting Type Wall Mount
Spout Length 5 3/4 Inches
Nozzle Type Swivel Gooseneck
Handle Type Lever
Controls Quarter-Turn
Flow Rate 2.2 GPM
Water Inlet Size 1/2 Inch NPSM Extended Male Inlets
Shipping Weight 3.08 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

Limited one-year warranty

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It requires two 1-inch mounting holes and supports a maximum mounting surface thickness of 1-1/8 inches.
It includes a 5-3/4-inch swivel gooseneck nozzle with a 2.2 GPM aerator.
The faucet uses quarter-turn Eterna cartridges with spring checks.
Yes. The documentation lists ANSI A117.1 ADA compliance.
Yes. NSF 372 low-lead content compliance is listed.
Yes. The swivel joint can be converted to rigid with the included lock washer.
