T&S Brass

T&S Brass B-1140-WH4 Deck Mount Workboard Mixing Faucet, 3-1/2" Centers, 5-3/4" Swivel Gooseneck, 2.2 GPM, 4" Wrist Handles

SKU: B-1140-WH4
GTIN: 671262785365
$194.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies Manual Faucets New Arrivals Restaurant Equipment Sinks & Handwashing Stations T&S Brass

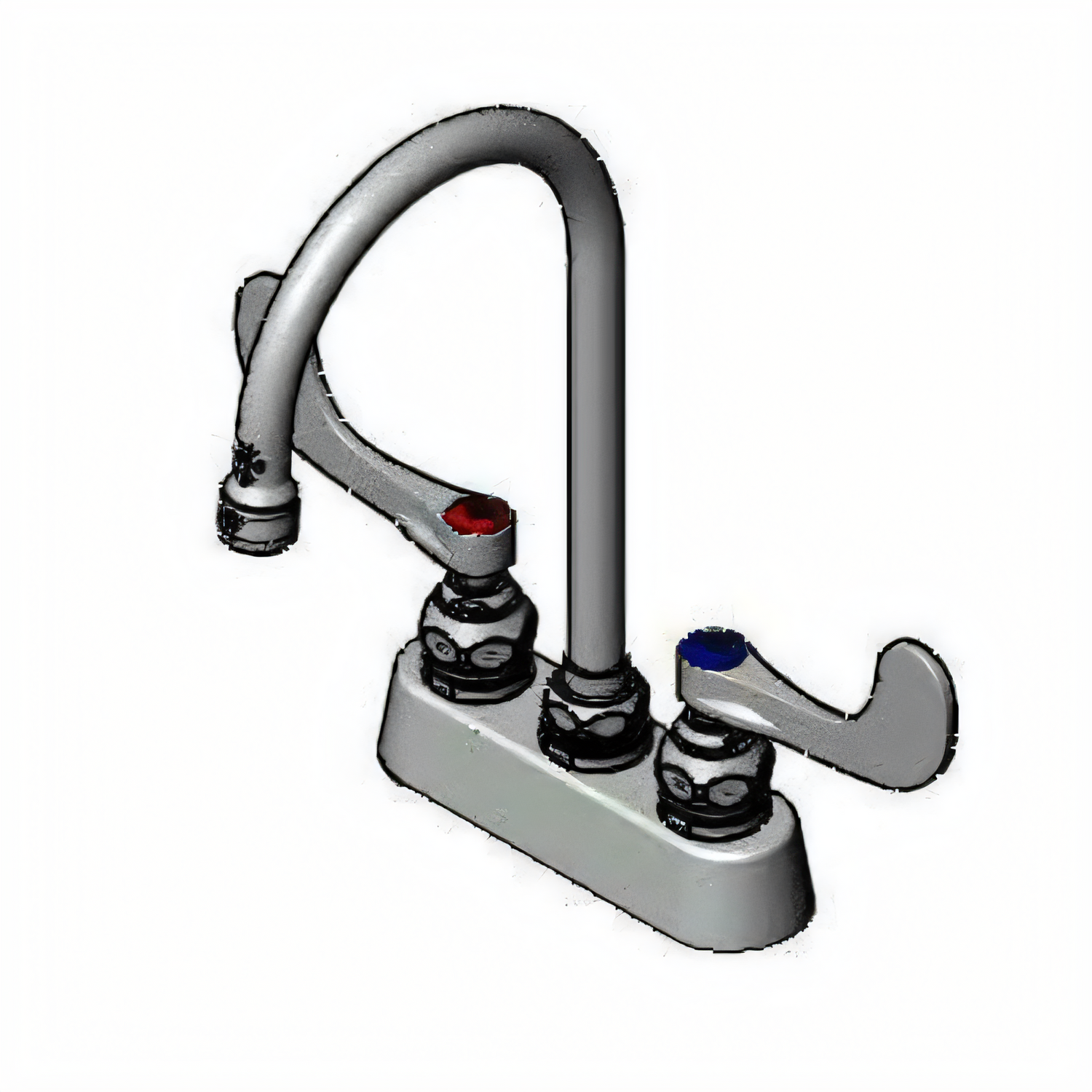

T&S Brass B-1140-WH4 Deck Mount Workboard Mixing Faucet, 3-1/2" Centers, 5-3/4" Swivel Gooseneck, 2.2 GPM, 4" Wrist Handles

Chrome-Plated Brass, Low Lead, ADA Compliant

A durable deck-mount workboard faucet with a 5-3/4" swivel gooseneck, quarter-turn Eterna cartridges, and 4" wrist handles for smooth, controlled sink-side mixing.

  • 3-1/2" deck-mount workboard faucet designed for sink or countertop installation.
  • 5-3/4" swivel gooseneck nozzle with a 2.2 GPM aerator for controlled flow.
  • Quarter-turn Eterna cartridges with spring checks help prevent cross flow.
  • 4" wrist action handles with color-coded indexes simplify hot and cold identification.
  • Chrome-plated brass body, tubular spout, handles, and escutcheon for a clean commercial look.
  • Meets low-lead and ADA requirements for commercial plumbing applications.

Product Weight:

4.19 lb

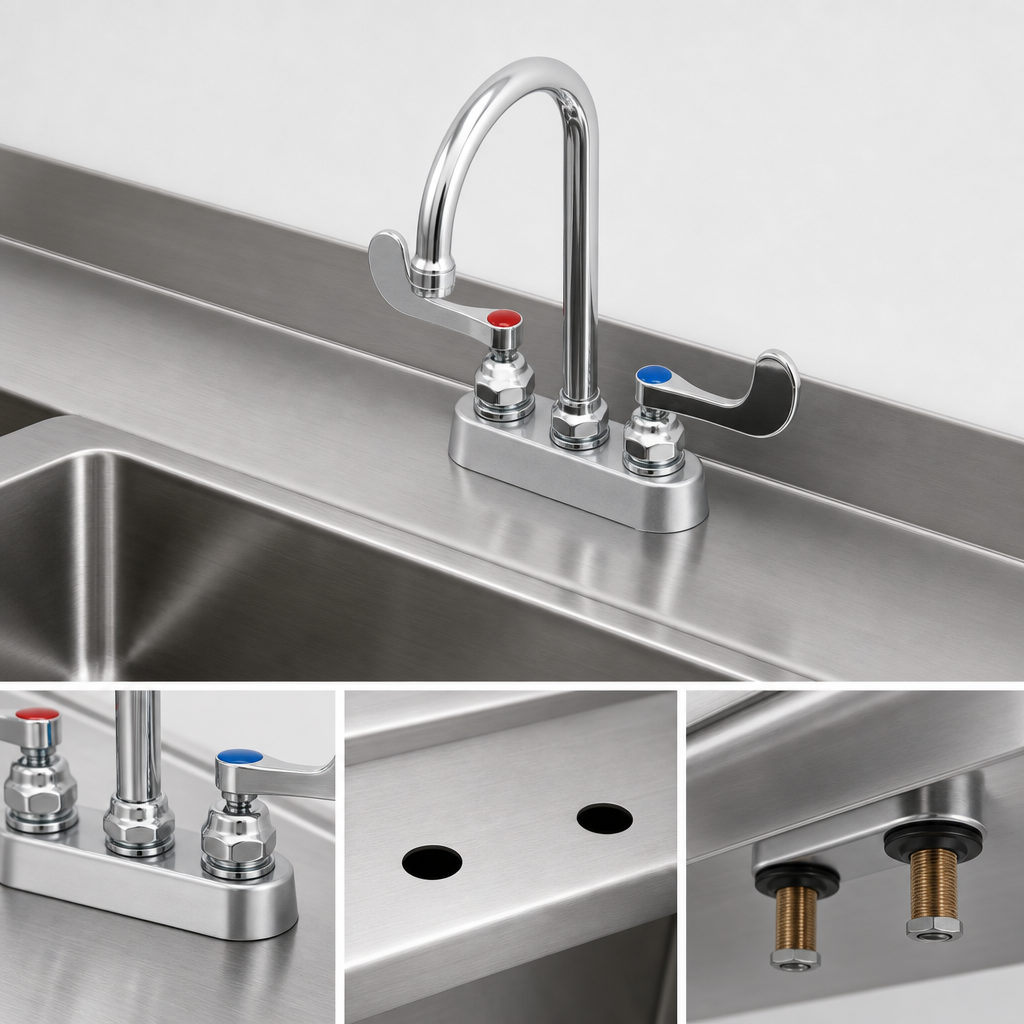

3-1/2" Deck-Mount Workboard Design

Installs on sinks or countertops with 3-1/2" center spacing and (2) 1" mounting holes.

5-3/4" Swivel Gooseneck Nozzle

Provides added reach and flexibility, and includes a 2.2 GPM aerator.

Quarter-Turn Eterna Cartridges

Spring checks help prevent cross flow of water for smoother operation.

4" Wrist Action Handles

Color-coded blue and red indexes make hot and cold identification easy.

Chrome-Plated Brass Construction

Features a chrome-plated brass body, tubular spout, metal handles, and chrome-plated escutcheon.

Low-Lead and ADA Compliance

Meets NSF 372 low lead content requirements and ANSI A117.1 ADA standards.

1/2" NPT Male Inlets

Uses 1/2" NPT male inlets and includes tailpieces and nuts for 1/4" NPT connection.

Convertible Swivel Joint

The swivel joint can be converted to rigid with the included lock washer.

Type Workboard Mixing Faucet
Style Manual
Mounting Type Deck Mount
Material Brass
Finish Chrome Plated
Faucet Centers 3-1/2 Inches
Nozzle Type Swivel Gooseneck
Spout Length 5-3/4 Inches
Flow Rate 2.2 GPM @ 60 PSI
Handle Type Wrist Action
Valve Type Quarter-Turn Eterna
Water Inlet Size 1/2 Inch NPT Male
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It is designed for 3-1/2" center-to-center spacing and requires (2) 1" mounting holes.
The faucet includes a 2.2 GPM aerator and is rated at 2.2 GPM @ 60 psi.
It uses 4" wrist action handles with quarter-turn Eterna cartridges and spring checks.
Yes. The documentation states NSF 372 low lead content compliance and ANSI A117.1 ADA compliance.
Yes. The swivel joint can be converted to a rigid outlet with the included lock washer.
