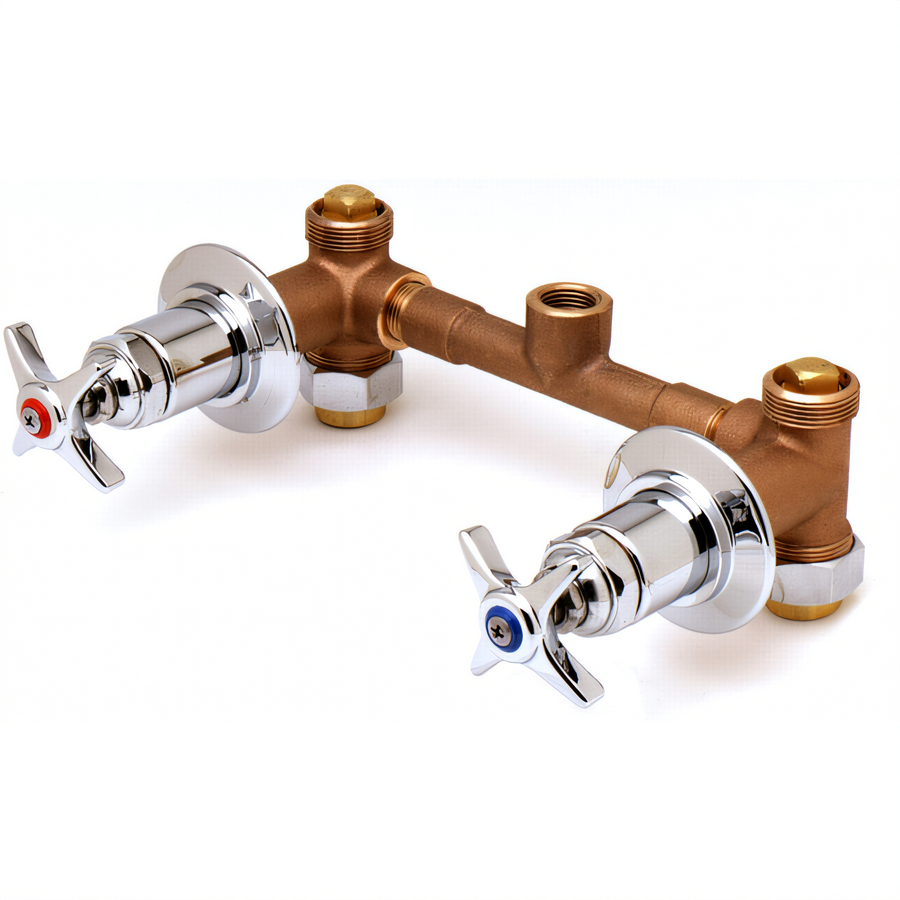

T&S Brass 8-Inch Concealed Bypass Mixing Valve with Quarter-Turn Eterna Cartridges

SKU: B-1035
GTIN: 671262008808
$407.63
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Faucet Components New Arrivals Restaurant Equipment Restaurant Equipment Parts T&S Brass

T&S Brass 8-Inch Concealed Bypass Mixing Valve with Quarter-Turn Eterna Cartridges

4-Arm Handles, Adjustable Wall Flanges, 1/2-Inch NPT Connections

A concealed bypass mixing valve built for flexible installation, smooth quarter-turn control, and reliable in-wall performance.

  • Concealed bypass mixing valve designed for in-wall installation.
  • May be supplied from above or below for added rough-in flexibility.
  • Quarter-turn Eterna cartridges with spring checks support smooth, dependable operation.
  • 4-arm handles with color-coded indexes make hot and cold identification easy.
  • Adjustable wall flanges with set screws help simplify alignment during installation.
  • Includes 1/2-inch NPT inlet and outlet connections with removable plugs for unused openings.

Product Weight:

6.9 lb

Concealed Bypass Design

Installs behind the wall and may be supplied from above or below.

Quarter-Turn Eterna Cartridges

Spring checks are built in for smooth operation and dependable valve control.

4-Arm Handles With Color-Coded Indexes

Provides an easy-to-grip handle design with clear hot and cold identification.

Adjustable Wall Flanges

2-3/16-inch adjustable wall flanges with set screws help make installation and alignment easier.

1/2-Inch NPT Connections

Features 1/2-inch NPT female inlet and outlet connections, plus removable NPT plugs for unused openings.

Type Bypass Mixing Valve
Style Concealed
Controls Quarter-Turn
Mounting Type Wall Mounted
Inlet Connection 1/2 Inch NPT Female
Outlet Connection 1/2 Inch NPT Female
Shipping Weight 6.9 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

It is an 8-inch concealed bypass mixing valve with quarter-turn Eterna cartridges and spring checks.
Yes. The cut sheet states that the concealed bypass mixing valve may be supplied from above or below.
It uses 1/2-inch NPT female inlet and outlet connections, and the inlet threads include a male 1 1/4-14 thread for a T&S union coupling nut.
The document specifies two 1 1/2-inch mounting holes and a 2 1/2-inch minimum to 3 1/2-inch maximum rough-in.
No. The product is not designed or intended for bath or shower applications.
