T&S Brass

T&S Brass Wall-Mount Single-Temperature Pot Filler Faucet with 24-Inch Double-Joint Swing Nozzle

SKU: B-0594-CR
GTIN: 671262808637
$279.79
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Pot Fillers Restaurant Equipment Sinks & Handwashing Stations T&S Brass

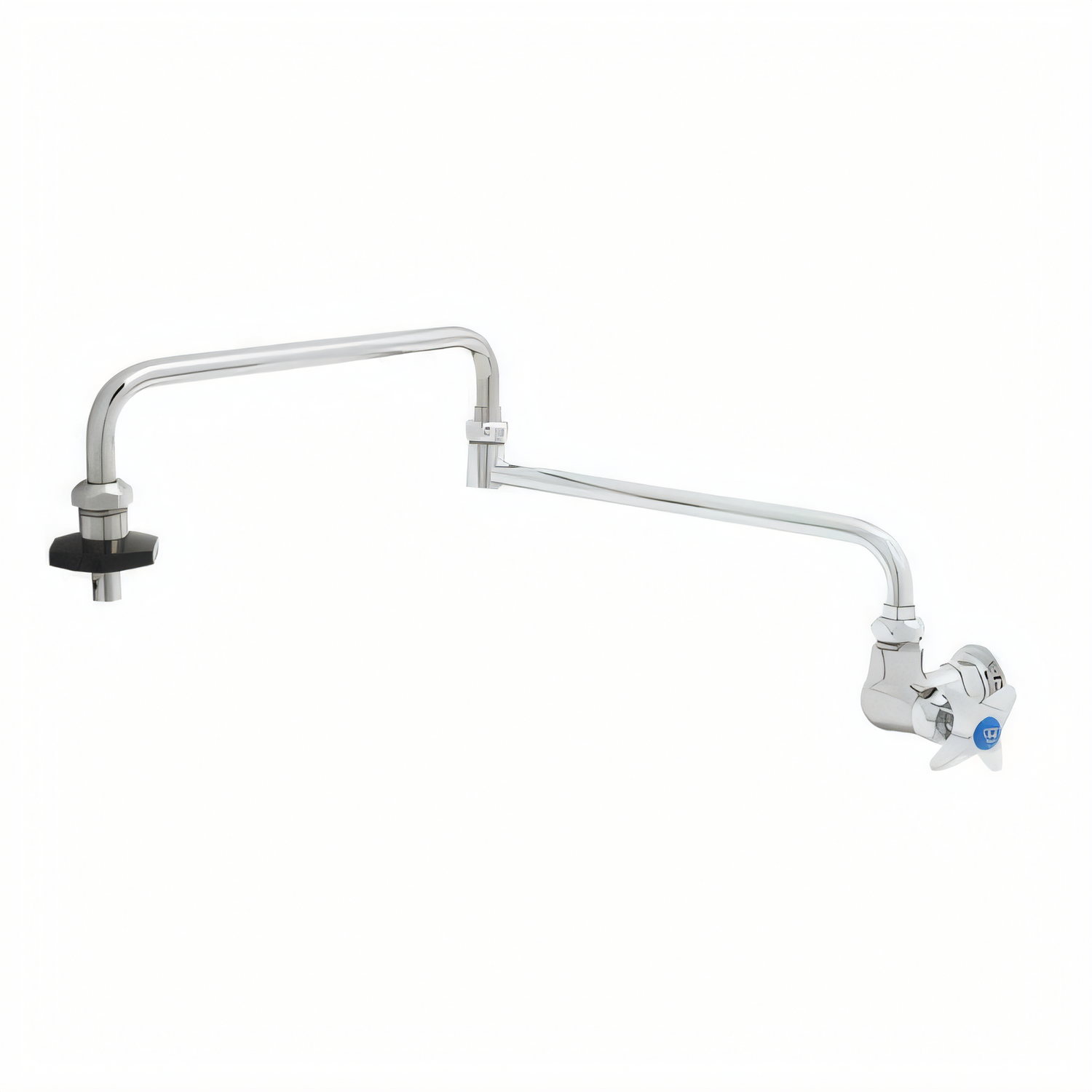

T&S Brass Wall-Mount Single-Temperature Pot Filler Faucet with 24-Inch Double-Joint Swing Nozzle

Low-Lead, Chrome-Plated Brass, 1/2-Inch NPT Female Inlet

The long-reach double-joint nozzle and insulated on-off grip make this wall-mounted pot filler a practical choice for fast, comfortable filling at the range.

  • Single-temperature wall-mounted pot filler faucet for fast fill-ups at the range or prep area.
  • 24-inch double-joint swing nozzle provides extended reach over large pots and kettles.
  • Insulated on-off volume control grip and heat-resistant handle help improve comfort during use.
  • Quarter-turn Cerama cartridge with check valve supports smooth operation and controlled flow.
  • Chrome-plated brass body with 1/2-inch NPT female inlet and 2-inch wall flange.
  • Low-lead construction with lock washer included for rigid installation.

Product Weight:

4.5 lb

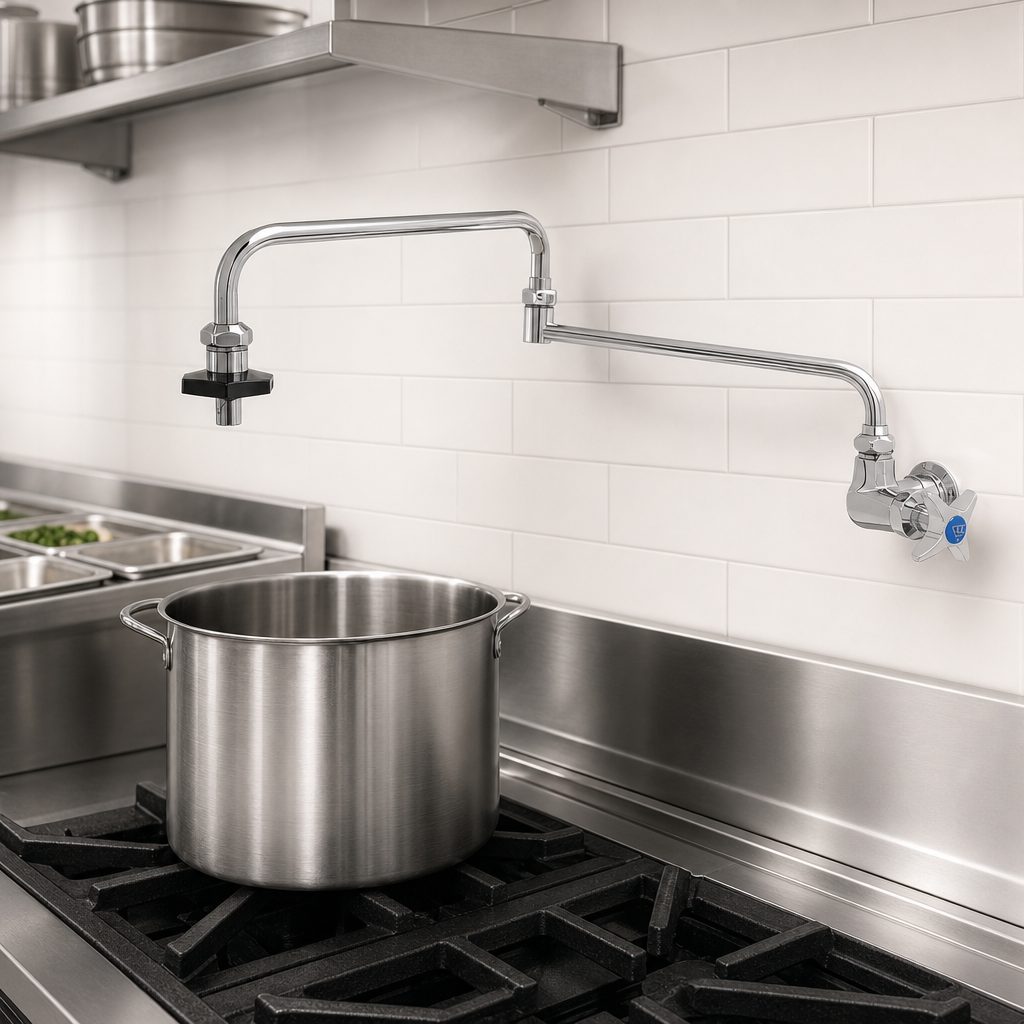

Single-Temperature Wall Mount

Designed for fixed-temperature wall-mounted pot filling over a range or prep area.

24-Inch Double-Joint Swing Nozzle

Provides long reach and flexible positioning for filling large cookware.

Insulated On-Off Volume Control Grip

Comfortable grip at the nozzle tip for easy flow control.

Quarter-Turn Cerama Cartridge With Check Valve

Smooth quarter-turn operation with check-valve protection.

4-Arm Handle With Blue Index

Standard handle style with simple visual indexing.

Chrome-Plated Brass Construction

Polished brass body and tubular nozzle with a heat-resistant thermoplastic handle.

1/2-Inch NPT Female Inlet With Wall Flange

Includes a 2-inch flange and lock washer for rigid wall installation.

Low-Lead Design

Built for applications that require low-lead materials.

Type Pot Filler Faucet
Style Single Temperature
Installation Type Wall Mounted
Controls Single Control
Nozzle Type Double Joint Swing Nozzle
Spout Length 24 Inches
Handle Type 4-Arm
Material Brass
Finish Chrome-Plated
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 4.02 GPM @ 60 PSI
Temperature Range 40°F - 140°F
Shipping Weight 4.5 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. It is a single-temperature wall-mounted pot filler faucet.
It uses a 24-inch double-joint swing nozzle.
Yes. It comes with a quarter-turn Cerama cartridge with check valve.
It uses a 1/2-inch NPT female inlet.
The standard handle is 4-arm, with optional 4-inch wrist action or lever handles.
The documented flow rate is 4.02 GPM at 60 psi.
