T&S Brass
T&S Brass Chinese Range Pot Filler Faucet with Swing Nozzle and 2.2 GPM Aerator
SKU: B-0577
$171.30
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?

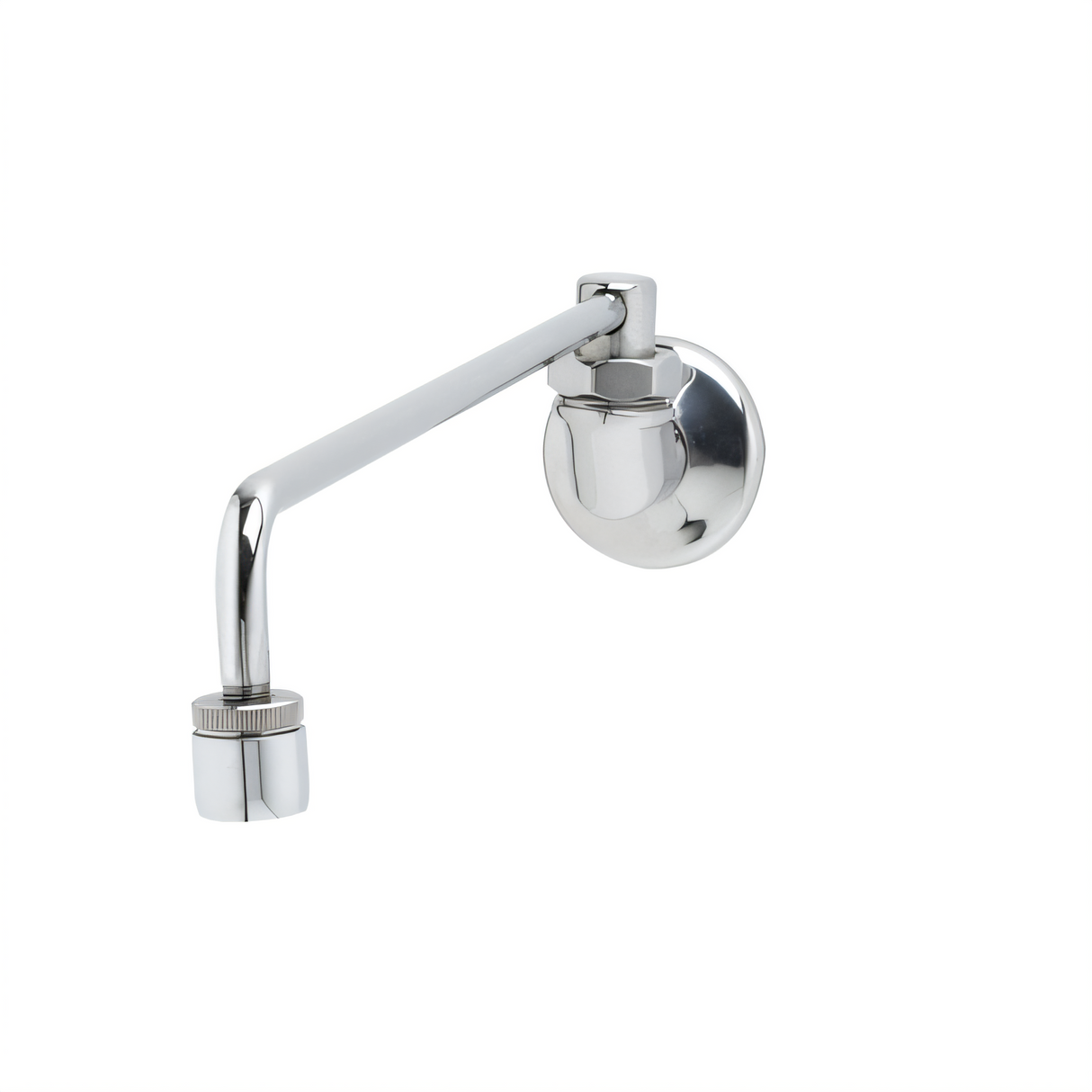

T&S Brass Chinese Range Pot Filler Faucet with Swing Nozzle and 2.2 GPM Aerator
Back-Mounted, Polished Chrome, 1/2" NPSM Male Inlet
A back-mounted Chinese range faucet that swings to control water flow and makes filling large pots simple.
- Swing nozzle actuates the on/off control when moved to the right or left.
- 13-3/4-inch nozzle includes a 2.2 GPM aerator outlet.
- Back-mounted design suits Chinese range and splash-mount applications.
- 1/2-inch NPSM male inlet simplifies water connection.
- Polished chrome finish provides a clean, professional look.
- Requires a 1-inch mounting hole with up to 3/8-inch maximum thickness.
Product Weight:

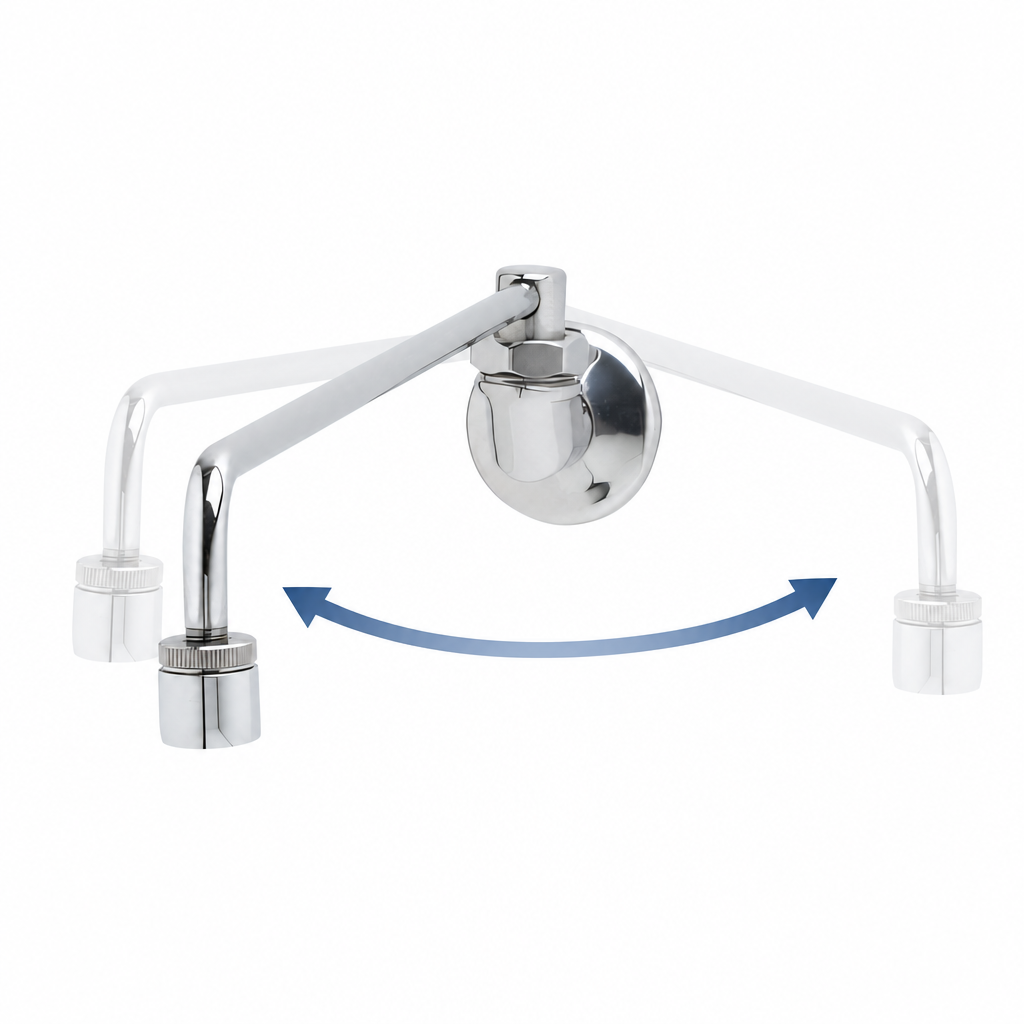

2.11 lbSwing-Actuated On/Off Control
The faucet turns on and off as the nozzle is swung to the right or left.
2.2 GPM Aerator Outlet
Provides controlled flow for filling and rinsing tasks.
13-3/4-Inch Nozzle
Long-reach nozzle is sized for Chinese range applications.
1/2-Inch NPSM Male Inlet
Standard male inlet connection for installation.
Back-Mounted Design
Mounts at the back of the range or splash area for convenient pot filling.
Polished Chrome Finish
Bright finish that offers a clean, professional appearance.
Mounting Requirements
Requires a 1-inch mounting hole and accepts up to 3/8-inch maximum thickness.
Type
Range Faucet
Style
Chinese Range
Installation Type
Wall Mounted
Nozzle Type
Swing / Swivel Spout
Spout Length
14 Inches
Flow Rate
2.2 GPM
Water Inlet Size
1/2 Inch NPSM Male
Finish
Polished Chrome
Shipping Weight
2.11 Pounds
Selling Unit
Each
Units Per Case
1
Documents
Frequently Asked Questions
The on/off control is actuated when the nozzle swings to the right or left.
It uses a 1/2-inch NPSM male inlet.
The faucet is equipped with a 2.2 GPM aerator outlet.
The rough-in requires a 1-inch mounting hole and supports up to 3/8-inch maximum thickness.
It has a polished chrome finish.
