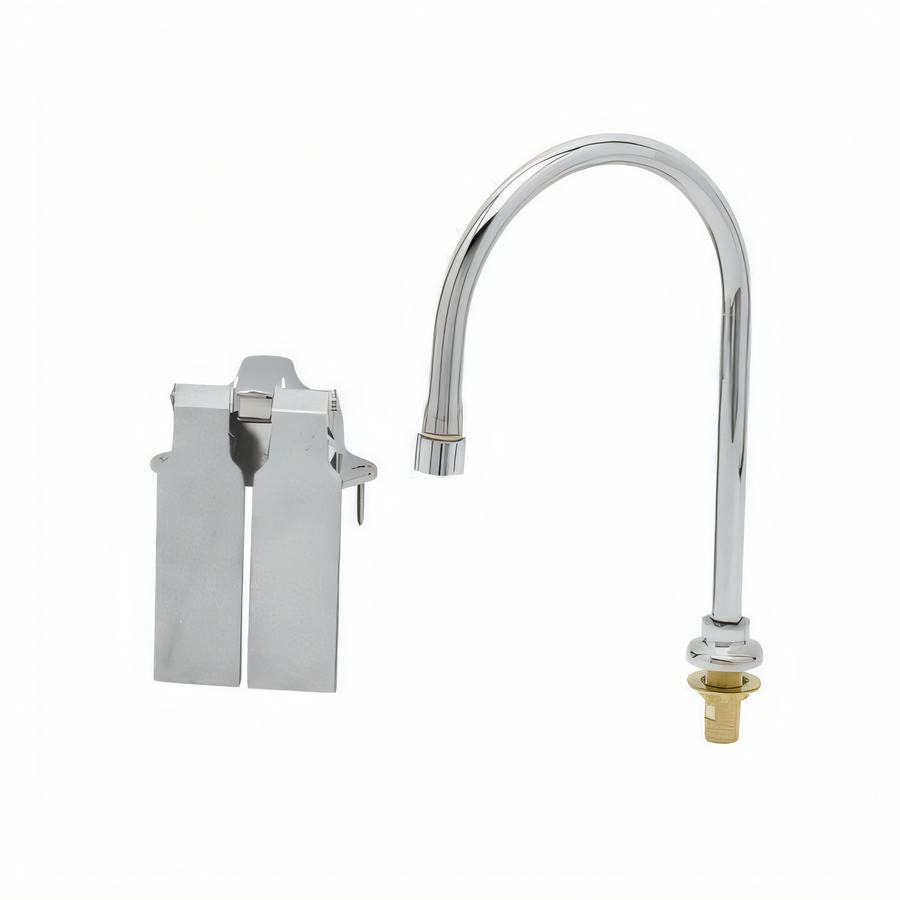

T&S Brass Ledge-Mounted Double Knee Pedal Valve with Dummy Rigid/Swivel Gooseneck and 1.2 GPM VR Aerator

Polished Chrome-Plated Brass, Low-Lead, 1/2 Inch NPT Connections

Hands-free knee operation and a vandal-resistant aerator help deliver controlled flow with cleaner, more sanitary use.

  • Hands-free double knee pedal control supports sanitary operation in busy prep areas.
  • Ledge-mounted, horizontal surface design keeps knee pedals accessible outside cabinetry.
  • Includes a dummy rigid/swivel gooseneck with 1.2 GPM vandal-resistant aerator.
  • Chrome-plated brass body with aluminum pedals offers durable everyday service.
  • Self-closing valves help conserve water after each use.
  • Ships with mounting screws and a 1/4 inch NPT tailpiece and nut for alternate connection.
  • Low-lead construction is suited for potable-water applications.

Product Weight:

7.2 lb

Double Knee Pedal Operation

Two knee pedals provide hands-free control and help keep hands away from the water stream.

Ledge-Mounted Surface Installation

Designed for horizontal surface mounting with the knee pedals hanging outside cabinetry for easy access.

Dummy Rigid/Swivel Gooseneck

Deck-mounted dummy gooseneck provides a finished spout appearance and is intended for remote locations.

1.2 GPM Vandal-Resistant Aerator

The Series 7 VR aerator delivers a controlled 1.2 GPM flow for water-conscious performance.

Chrome-Plated Brass and Aluminum Construction

Polished chrome-plated brass body, flange, and tubular spout pair with aluminum knee pedals for durability.

Self-Closing Valves

Self-closing action helps stop flow after use and supports water conservation.

Included Connection Hardware

Includes mounting screws and a 1/4 inch NPT tailpiece and nut for alternate connection.

Low-Lead Design

Built for potable-water applications with low-lead construction.

Type Pedal Valve
Style Double Knee Pedal
Mounting Type Ledge-Mounted
Material Brass
Finish Polished Chrome Plated
Flow Rate 1.2 GPM
Water Inlet Size 1/2 Inch NPT Female
Temperature Range 40 °F to 140 °F
Shipping Weight 7.2 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It is a double knee pedal valve with a ledge-mounted design.
The valve includes a 1.2 GPM vandal-resistant aerator.
It has 1/2 inch NPT female inlets and outlet, plus a 1/2 inch NPSM male deck-mount inlet on the gooseneck base.
The valve features a polished chrome-plated brass body, flange, and tubular spout with aluminum knee pedals.
Mounting screws and a 1/4 inch NPT tailpiece and nut are included.
The maximum mounting thickness is 1 1/8 inches.
