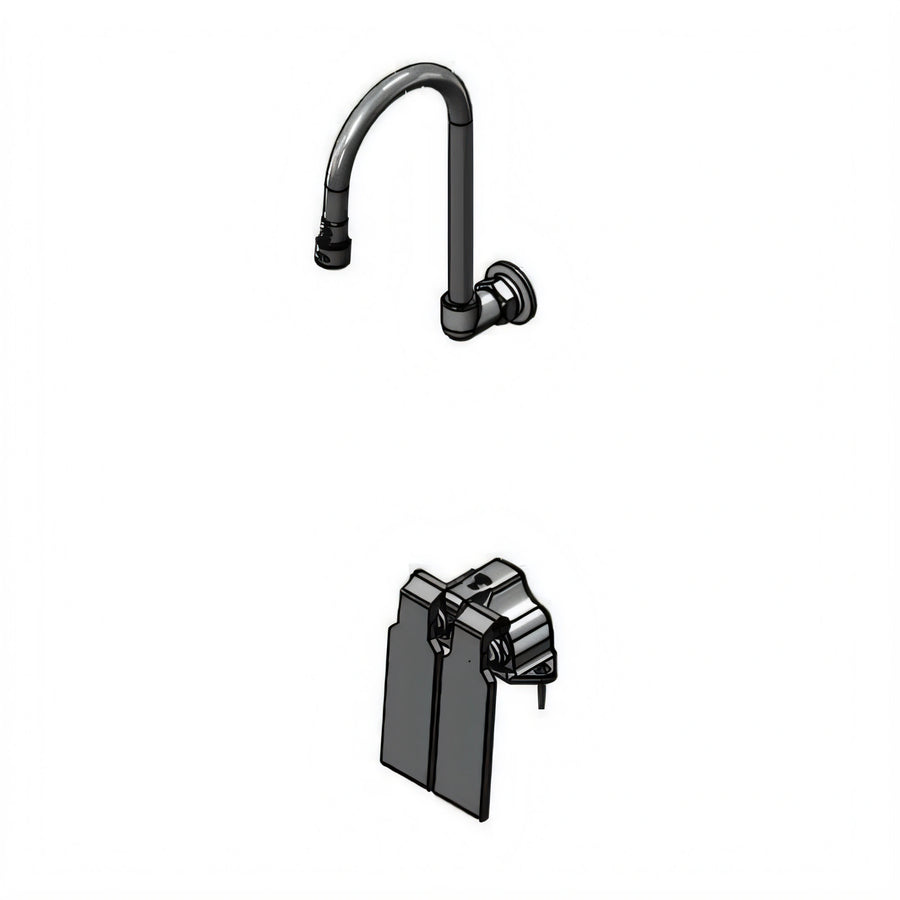

T&S Brass Double Pedal Valve with Dummy Rigid Gooseneck, 1.5 GPM Laminar Flow Device, 1/2 Inch NPT

Polished Chrome Plated Brass, Low-Lead, 1/2 Inch NPT Female Connections

A durable double pedal valve with a dummy rigid gooseneck and 1.5 GPM laminar flow device for controlled, low-lead water delivery.

  • Double pedal valve design with rigid dummy gooseneck for commercial sink applications.
  • 1.5 GPM vandal-resistant laminar flow device delivers a steady, efficient stream.
  • Polished chrome plated brass body, elbow, and tubular spout for long-lasting durability.
  • 1/2 Inch NPT female inlet and outlet connections help simplify installation.
  • Adjustable 2 inch wall flange supports secure alignment at the point of install.
  • Low lead compliant and certified to NSF 61 Section 9 and NSF 372.

Double Pedal Valve Design

Provides a dual-pedal valve setup for convenient water control in commercial installations.

Dummy Rigid Gooseneck

Includes a rigid dummy gooseneck for remote placement and a cleaner installation layout.

1.5 GPM Vandal-Resistant Laminar Flow Device

The included laminar flow device delivers a smooth 1.5 GPM stream and is designed for durability.

Polished Chrome Plated Brass Construction

Brass body, gooseneck, elbow, and tubular spout are polished chrome plated for a professional finish and durability.

1/2 Inch NPT Female Connections

Features 1/2 Inch NPT female inlet and outlet connections for compatibility with matching plumbing.

Adjustable Wall Flange

A 2 inch adjustable wall flange helps support installation and alignment.

Low Lead Compliance

Documented as low lead compliant and certified to NSF 61 Section 9 and NSF 372.

Operating Performance Range

Rated for 20 to 125 psi pressure and 40 °F to 140 °F temperature conditions.

Type Pedal Valve
Style Double
Controls Pedal
Material Brass
Finish Polished Chrome Plated
Flow Rate 1.5 GPM @ 60 PSI
Pressure Range 20 to 125 PSI
Temperature Range 40 °F to 140 °F
Connection Size 1/2 Inch NPT Female Inlet and Outlet
Shipping Weight 4 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It uses a 1.5 GPM vandal-resistant laminar flow device and is rated at 1.5 GPM at 60 psi.
The valve has 1/2 Inch NPT female inlet and outlet connections.
The body, gooseneck, elbow, and tubular spout are polished chrome plated brass.
Yes. The documentation states that it is low lead compliant and certified to NSF 372.
It includes a one-year limited warranty.
