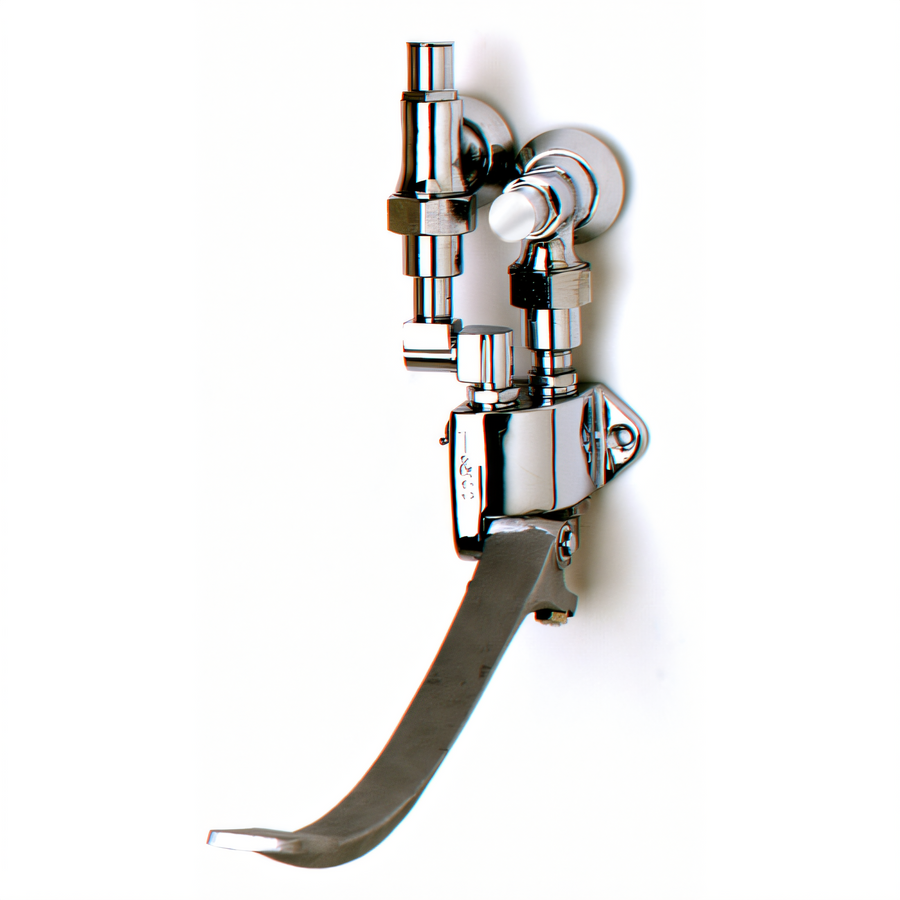

Single Wall-Mounted Pedal Valve with Loose Key Angle Stop and Volume Control
Single Wall-Mounted Pedal Valve with Loose Key Angle Stop and Volume Control
Hot or Cold Pedal, 1/2 in. Female Inlet
A compact, hands-free pedal valve built for hot or cold water control with integrated shutoff and flow adjustment.
- Hands-free single pedal operation for hot or cold service.
- Wall-mounted design helps keep the sink area clear.
- Loose key angle stop on the inlet supports shutoff and servicing.
- Built-in volume control valve provides flow adjustment.
- Compact geometry measures about 1 in. from wall to inlet center and approximately 13-3/4 in. from wall to pedal tip.
Product Weight:
6.6 lbHot or Cold Service
Designed for hot or cold water use as a single pedal valve.
Single Pedal Operation
Foot-actuated control provides convenient hands-free operation.
Wall-Mounted Design
Mounts to the wall to help save space around the sink area.
Loose Key Angle Stop
Integrated inlet stop supports shutoff and service access.
Volume Control Valve
Built-in loose key volume control allows the water flow to be adjusted.
Adjustable Pedal Height
The pedal height can be adjusted during installation to suit the application.
1/2 in. NPT Female Inlet
The volume control valve uses a 1/2 in. NPT female inlet connection.
Compact Operating Reach
The cutsheet shows approximately 1 in. from wall to center of inlet and about 13-3/4 in. from wall to pedal tip.
