T&S Brass

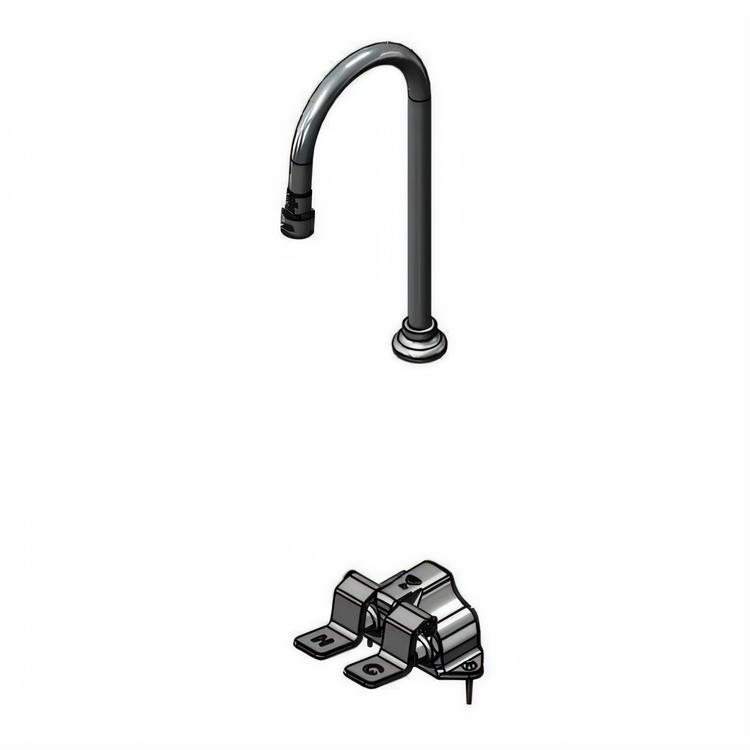

T&S Brass Floor-Mounted Double Pedal Valve with 5-9/16 Inch Rigid Gooseneck and 1.5 GPM VR Laminar Flow Device

SKU: B-0502-03-VL15
GTIN: 671262815413
$464.26
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Faucet Components New Arrivals Parts & Accessories Pedal Valves Restaurant Equipment Restaurant Equipment Parts T&S Brass Warewashing & Plumbing Parts

T&S Brass Floor-Mounted Double Pedal Valve with 5-9/16 Inch Rigid Gooseneck and 1.5 GPM VR Laminar Flow Device

Low-Lead Brass, 1/2 Inch NPT Inlets/Outlet

Hands-free floor-mounted control with a polished chrome plated brass body, included check valves, and a 1.5 GPM VR laminar outlet for reliable commercial performance.

  • Floor-mounted double pedal design supports sanitary hands-free operation.
  • 5-9/16 inch rigid gooseneck includes a 1.5 GPM vandal-resistant laminar flow device.
  • Polished chrome plated brass construction is built for commercial durability.
  • Includes 1/2 inch check valves to help prevent backflow.
  • Uses standard 1/2 inch NPT inlets and outlet for installation flexibility.
  • Low-lead construction meets NSF 372 requirements.

Hands-Free Double Pedal Control

Separate hot and cold foot pedals support sanitary, hands-free operation.

Rigid Gooseneck Outlet

5-9/16 inch rigid gooseneck with a 1.5 GPM vandal-resistant laminar flow device.

Chrome-Plated Brass Construction

Polished chrome plated brass body is built for commercial durability.

Check Valves Included

Includes 1/2 inch check valves to help prevent backflow.

Standard Plumbing Connections

Uses 1/2 inch NPT inlets and outlet; includes tailpiece and nut for 1/4 inch NPT connection.

Low-Lead Compliance

Meets NSF 372 low lead content requirements and is certified to ASME A112.18.1/CSA B125.1 and NSF 61 Section 9.

Type Pedal Valve
Style Double Pedal
Installation Type Floor Model
Material Brass
Finish Polished Chrome Plated
Controls Foot Pedal
Nozzle Type VR Laminar
Flow Rate 1.5 GPM
Temperature Range 40 °F to 140 °F
Connection Size 1/2 Inch NPT
Selling Unit Each
Units Per Case 1
Shipping Weight 4 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. The product is a floor-mounted double pedal valve.
It includes a 5-9/16 inch rigid gooseneck with a 1.5 GPM vandal-resistant laminar flow device.
Yes. Two 1/2 inch check valves are included.
The product uses 1/2 inch NPT inlets and outlet.
The documented performance range is 20-125 psi and 40 °F to 140 °F, with 1.5 GPM flow at 60 psi.
The documentation lists optional outlet choices in aerated, non-aerated (laminar), VR aerated, and VR non-aerated (VR laminar) styles across multiple flow rates.
