T&S Brass | SKU:
B-0490-01
T&S Brass B-0490-01 Commercial Faucets & Plumbing
$1,211.92
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
T&S Brass B-0490-01 Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-0490-01 Commercial Faucets & Plumbing
$1,211.92
Unit price
/
Unavailable
Description

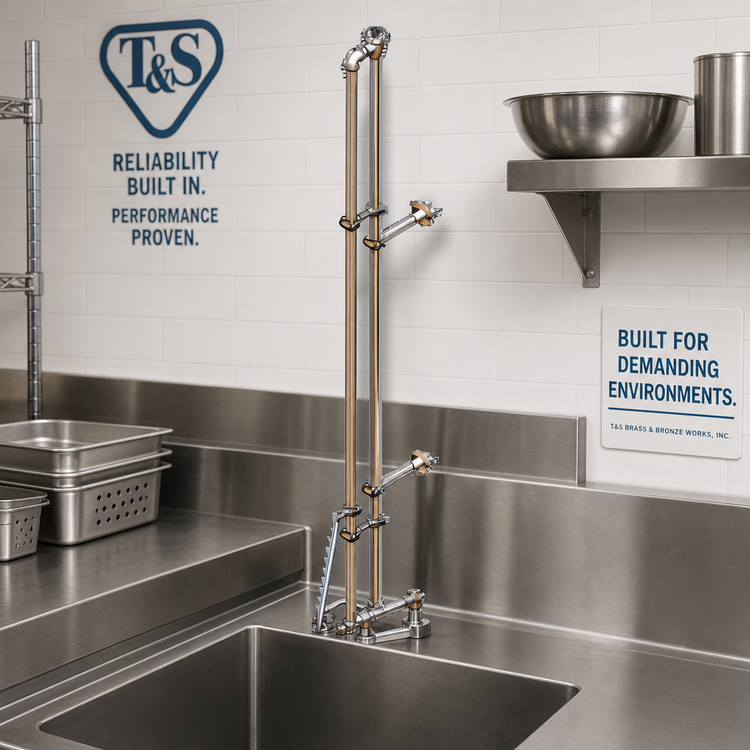

T&S Brass B-0490-01 Service Sink Faucet
8" deck-mount • braced nozzle • elevated vacuum breaker • ADA compliantBuilt for the toughest janitorial and commercial maintenance rooms, the B-0490-01 delivers rock-solid performance, reliable backflow protection and easy, quarter-turn operation – all in a lead-free, ADA-compliant package.
Key features

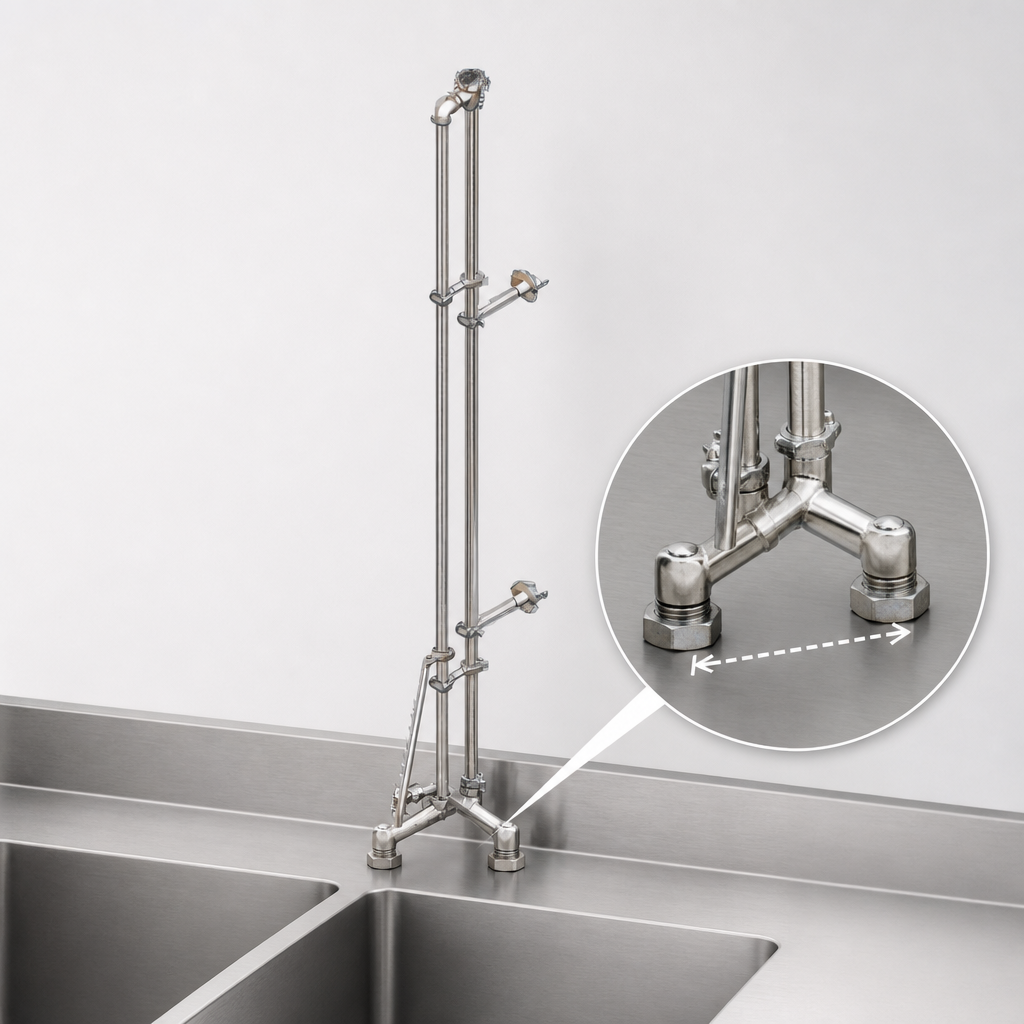

- 8" deck-mount mixing faucet; centers adjust from 7 ¾" – 8 ¼" for retrofit flexibility
- Elevated 1/2" NPT vacuum breaker (ASSE 1001) safeguards against back-siphonage
- Two 60" rigid risers with 6" wall brackets keep the assembly stable on tall installations
- Braced clevis-type nozzle with 3/4" garden-hose male outlet for quick hose hook-ups
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross-flow
- Heavy-duty 4-arm handles with color-coded indexes; easy to grip and ADA compliant
- All-brass, chrome-plated construction resists corrosion in demanding environments
- Lead-free certified to NSF 61/372 for potable water safety
Technical specifications
| Model | B-0490-01 |
|---|---|
| Mounting style | Deck mount, 8" centers (7 ¾"–8 ¼" adjustable) |
| Inlet connection | 1/2" NPT female flanges |
| Outlet connection | 3/4" GHT (garden-hose) male thread |
| Cartridge type | Quarter-turn Eterna compression w/ spring checks |
| Handle type | 4-arm, red/blue indexed (ADA compliant) |
| Vacuum breaker | 1/2" NPT elevated, ASSE 1001 |
| Supplied risers | 2 × 60" rigid brass risers |
| Wall support | 4 × 6" wall brackets (2 upper, 2 at inlets) |
| Overall height | 66 11/16" (1694 mm) from deck to top of riser |
| Body material / finish | Chrome-plated brass |
Certifications & compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 – Section 9 (lead-free)
- NSF 372 (low-lead content)
- ASSE 1001 (vacuum breaker)
- ADA compliant handle design
Specifications are subject to change without notice. Always verify rough-in dimensions and local code requirements before installation.
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Certifications
ADA Compliant
Shipping Weight
14.2lbs
Spout Length (overall)
6"
Spout / Nozzle Type
bucket/pail hook
Wall or Deck Mount
deck mount
Spout Mount
rigid with wall bracket
Specifications
Service Sink Faucet, deck mount, 8" centers, braced nozzle, 4-arm handle, quarter-turn compression cartridge, 6" wall brackets, elevated vacuum breaker, 1/2" NPT, ADA Compliant
