T&S Brass

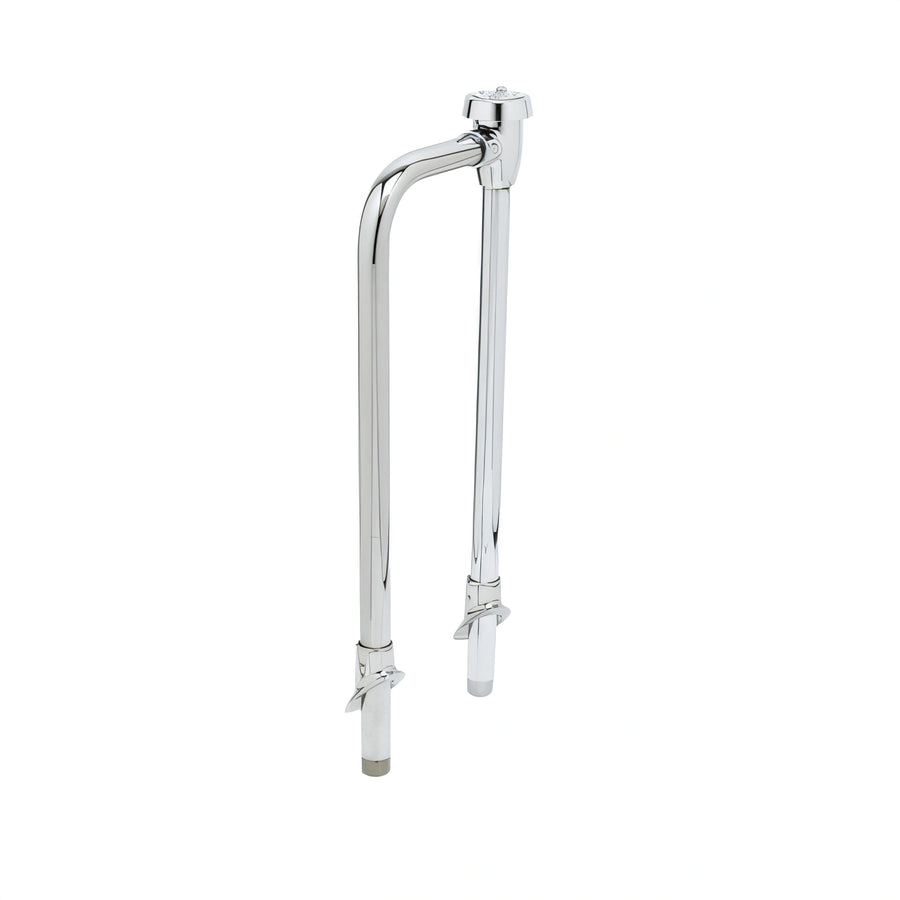

T&S Brass B-0455-M Vacuum Breaker Unit, 1/2 Inch IPS, 45 Degree Surface Mount
SKU: B-0455-M
$1,416.16
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
T&S Brass B-0455-M Vacuum Breaker Unit, 1/2 Inch IPS, 45 Degree Surface Mount
Slip Flanges, 6 Inch Centers, 6 Each per Master Pack
Designed for backflow protection on 1/2-inch IPS piping, this vacuum breaker mounts cleanly to 45-degree surfaces with slip flanges.
- Vacuum breaker unit for backflow protection in plumbing and faucet applications.
- Designed for 1/2-inch IPS piping with 6-inch center-to-center spacing.
- Slip flanges allow mounting on a 45-degree surface.
- Rough-in requires two 1-1/4-inch holes in the mounting surface.
- Packaged 6 each per master pack.
Product Weight:
32.88 lb1/2 Inch IPS Piping
Sized for 1/2-inch IPS piping used in the installation.
45 Degree Surface Mount
Slip flanges are designed to mount the unit on a 45-degree surface.
6 Inch Center-To-Center Spacing
The piping is spaced 6 inches apart center-to-center.
2 Hole Rough-In
Requires two 1-1/4-inch holes in the center of the 45-degree mounting surface.
Under-Sink Support Required
Pipe must be held rigid under the sink by connection fittings, a brace, or similar support.
Master Pack of 6
Packaged 6 each per master pack.
Type
Vacuum Breaker Unit
Style
45 Degree Surface Mount
Connection Size
1/2 Inch IPS
Mounting Type
Slip Flange
Center To Center Spacing
6 Inches
Selling Unit
Each
Units Per Case
1
Shipping Weight
32.88 lb.
Documents
Frequently Asked Questions
It is designed for 1/2-inch IPS piping, and the drawing also shows 1/2-inch NPT male thread details.
The unit uses slip flanges and mounts on a 45-degree surface.
The piping is spaced 6 inches center-to-center.
The rough-in requires two 1-1/4-inch holes in the center of the 45-degree mounting surface.
Yes. The pipe must be held rigid under the sink by connection fittings, a brace, or similar support.
It is packaged 6 each per master pack.
