T&S Brass B-0330-LNM Commercial Faucets & Plumbing
$1,008.15
Unit price
/
Unavailable
Description

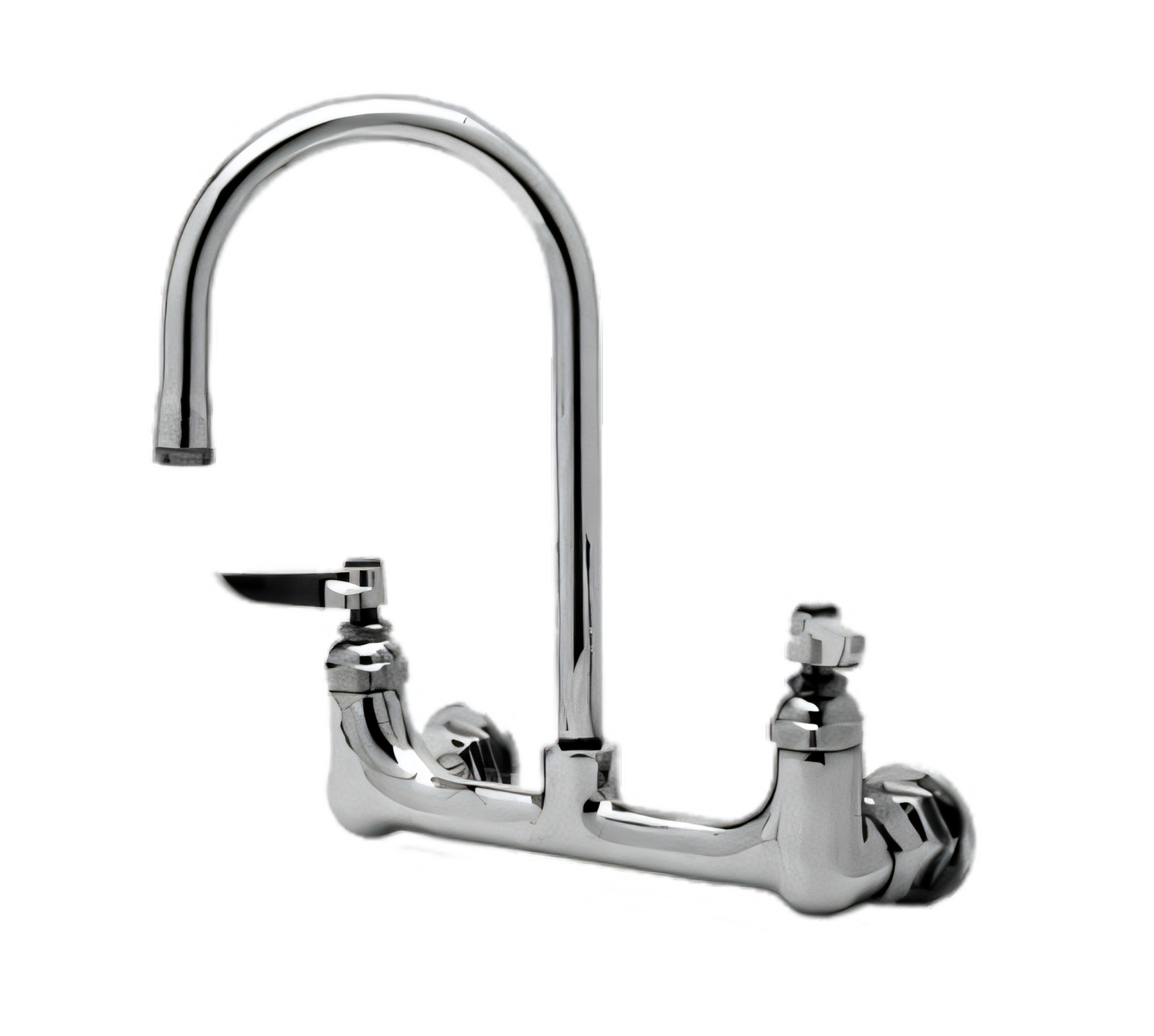

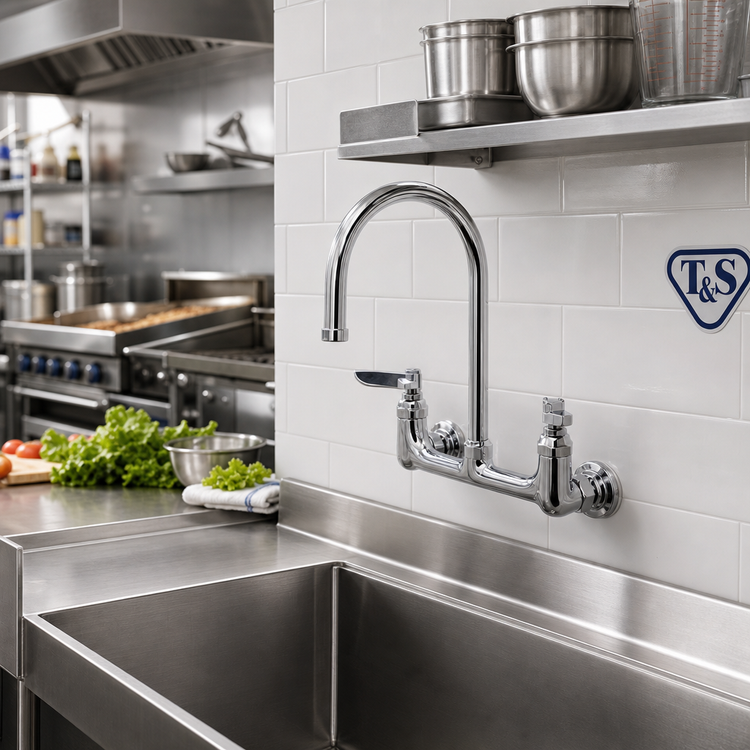

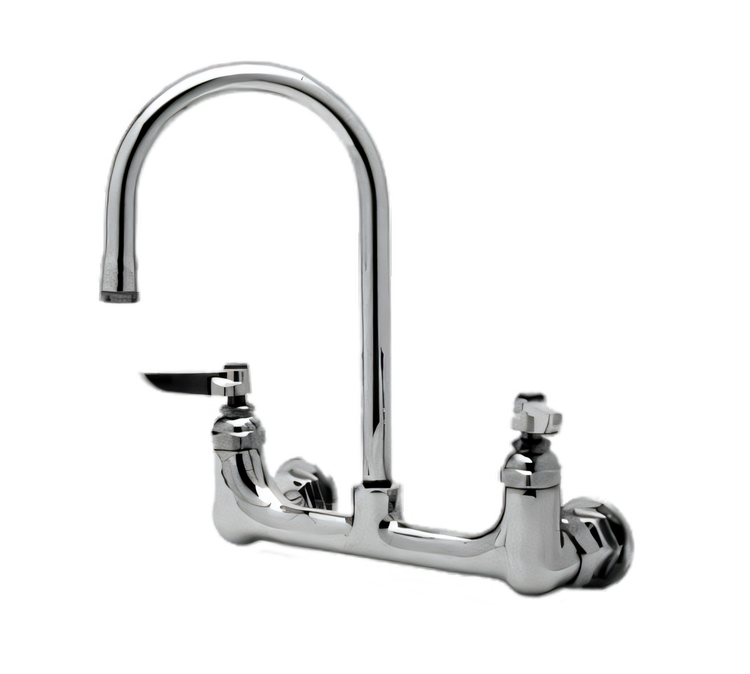

T&S Brass B-0330-LN Wall-Mount Mixing Faucet Body
8" Centers | Swivel Outlet | Less NozzleEngineered for demanding food-service, janitorial and commercial applications, the B-0330-LN delivers the rugged reliability T&S Brass is known for—ready to accept any T&S swing nozzle you choose.
Key Features
- Polished chrome-plated brass body built for long-term, high-traffic use.
- 8" adjustable centers (7 3/4"–8 1/4") simplify retrofits to existing wall supplies.
- Quarter-turn Eterna cartridges with integrated spring checks prevent hot/cold cross-flow and provide smooth, positive shut-off.
- Lever handles with red (hot) and blue (cold) color-coded indexes meet ADA requirements for ease of operation.

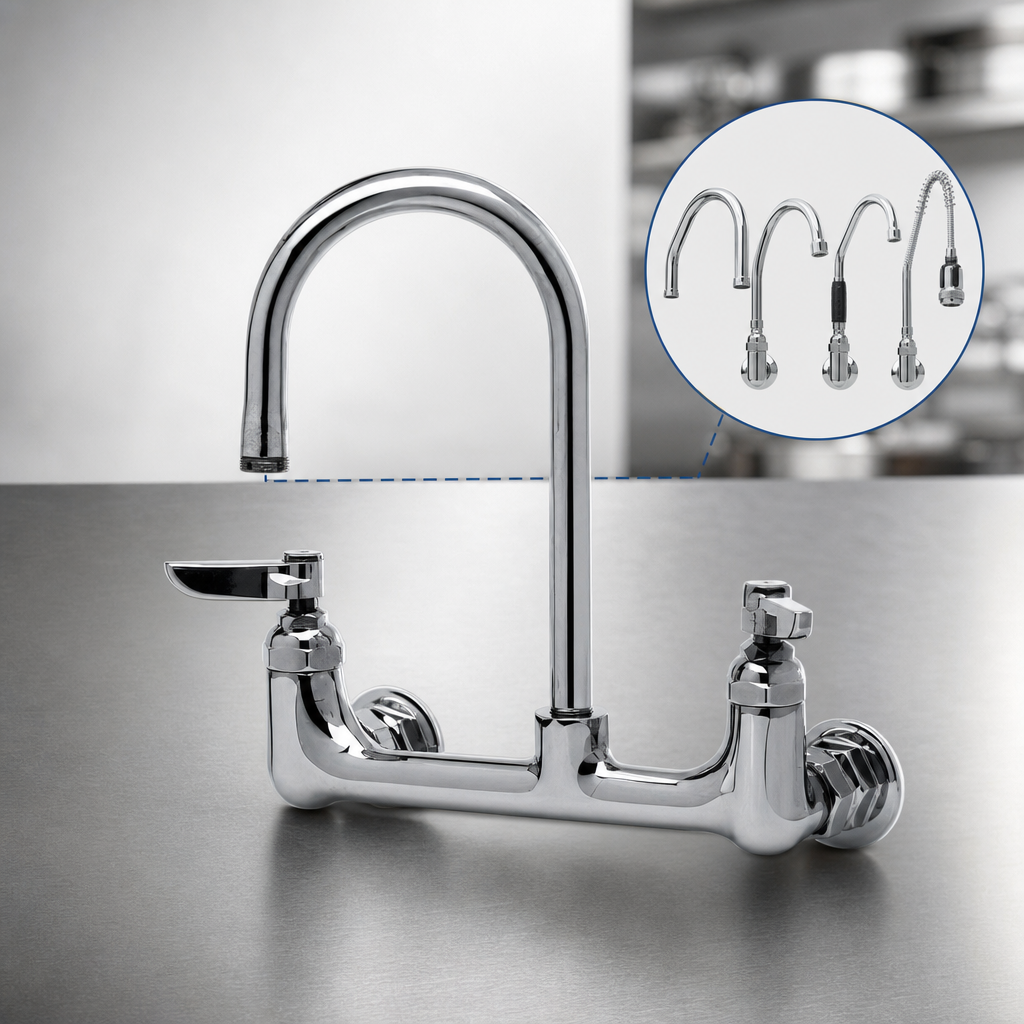

- Swivel outlet accepts all standard T&S swing nozzles and EasyInstall risers (nozzle sold separately).
- Includes EZ-K EasyInstall kit—convert rigid risers to flexible, tool-free installation in minutes.
- 1/2" NPT female eccentric inlets with coupling-nut washers ensure a secure, leak-free connection.
- Certified to ASME A112.18.1/CSA B125.1, NSF 61 & 372 (low lead), and ANSI A117.1 (ADA).
Technical Specifications
| Manufacturer / Model | T&S Brass B-0330-LN |
|---|---|
| Mounting Type | Wall mount – 2" (51 mm) flanges |
| Center Distance | 8" nominal (adjustable 7 3/4"–8 1/4") |
| Body Material & Finish | Chrome-plated brass |
| Inlet Connection | 1/2" NPT female eccentric inlets |
| Outlet Connection | Swivel base – accepts T&S swing nozzles & EasyInstall risers |
| Cartridges | Quarter-turn Eterna with spring checks |
| Handles | Lever style, color-coded indexes (red & blue) |
| Overall Width | 12 5/8" (321 mm) |
| Compliance | ASME A112.18.1 / CSA B125.1, NSF 61, NSF 372, ANSI A117.1 (ADA) |
| Lead Content | Low-lead compliant |
| Master Pack | 6 units (sold individually) |
Important: This listing includes the faucet body only. Swing nozzle, risers and additional accessories are sold separately.
Pair the B-0330-LN with any compatible T&S swing nozzle to match your sink depth and workflow.
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Certifications
CSA, ADA Compliant
Shipping Weight
24.97lbs
Spout Length (overall)
without spout
Valve Type
compression valves
Lead Compliance
low lead
Mounting
wall mount
Spout / Nozzle Type
without spout
Faucet Centers
8" adjustable centers
Specifications
Mixing Faucet Body, less nozzle, wall mount, 8" adjustable centers, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, swivel outlet accepts T&S Brass swing nozzles, includes EZ-K kit to convert rigid risers to EasyInstall, polished chrome-plated brass faucet body, 1/2" NPT female inlets, CSA, ADA Compliant (6 each per master pack)
