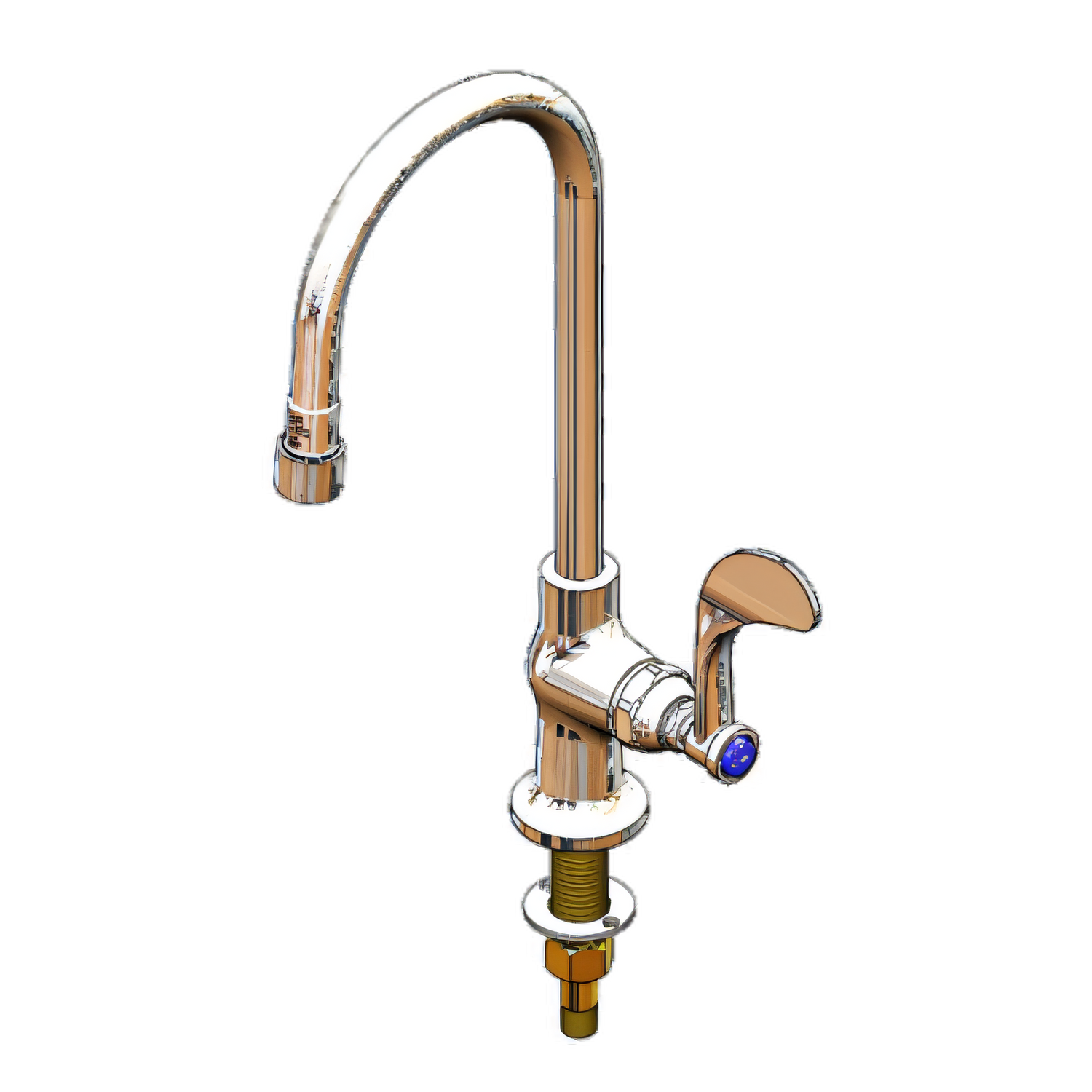

T&S Brass B-0305-VR4 Single Pantry Deck-Mount Faucet with Rigid Vandal-Resistant Gooseneck Spout, Low Lead

Single-Temperature, 5 3/4" Swivel/Rigid Spout, 2.2 GPM Aerator, 1/2" NPSM Male Inlet

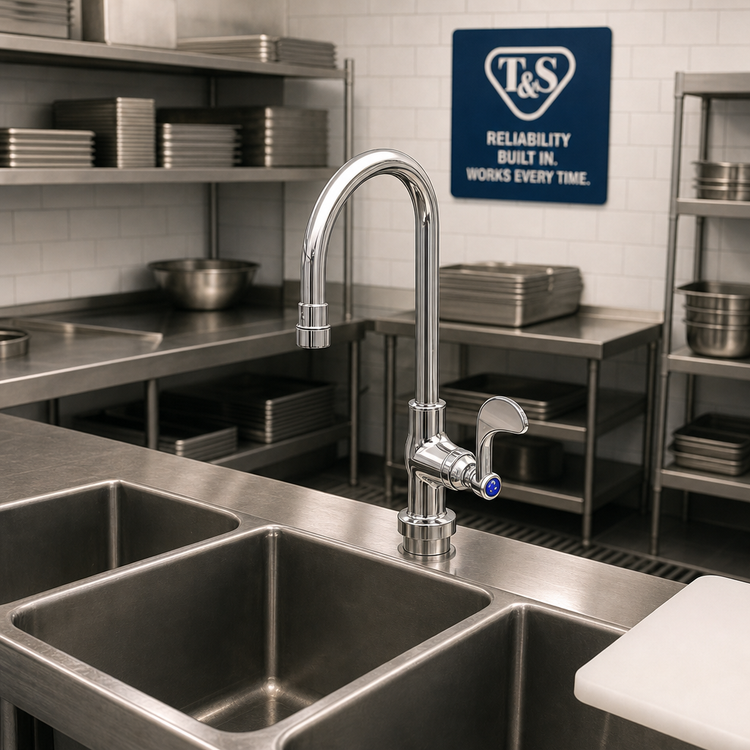

Built for busy prep sinks, this low-lead pantry faucet combines vandal-resistant construction, a rigid/swivel gooseneck, and smooth quarter-turn operation.

  • Single-hole, deck-mount pantry faucet for commercial sink installations.
  • 5 3/4" swivel/rigid gooseneck with lock washer conversion to rigid use.
  • 2.2 GPM vandal-resistant aerator helps maintain steady flow.
  • Quarter-turn Eterna compression cartridge with spring check for reliable service.
  • Chrome-plated brass body and metal handles with anti-rotation hardware.
  • Low lead and ADA compliant; 1/2" NPSM male inlet.

Product Weight:

4.2 lb

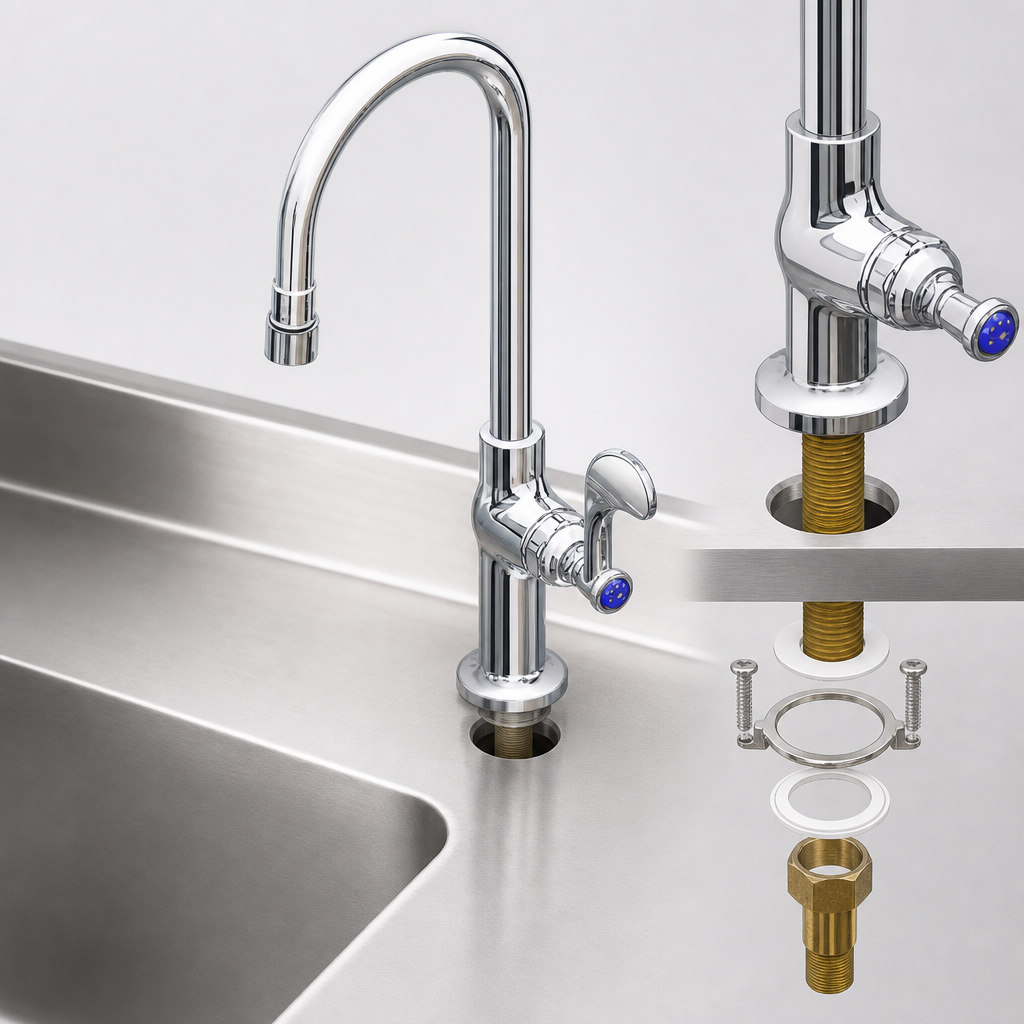

Single-Hole Deck Mount

Designed for single-hole deck installation with anti-rotation screws to help keep the faucet secure.

Swivel/Rigid Gooseneck

The 5 3/4" gooseneck includes a lock washer so it can be used as a rigid spout.

Vandal-Resistant Aerator

The included 2.2 GPM aerator is designed to resist tampering while maintaining a consistent stream.

Quarter-Turn Eterna Cartridge

Compression cartridge with spring check for smooth operation and dependable performance.

Wrist Action Handle

4" wrist action handle includes a vandal-resistant screw and color-coded index.

Chrome-Plated Brass Construction

Polished chrome plated brass body and tubular spout with chrome plated metal handles.

Low Lead and ADA Compliant

Meets low-lead requirements and ADA ANSI/ICC A117.1 requirements.

1/2" NPSM Male Inlet

Standard inlet connection with optional tailpiece and nut available for 1/4" NPT male connection.

Type Single Pantry Faucet
Style Gooseneck
Nozzle Type Fixed / Rigid
Mounting Type Deck Mounted
Handle Type Wrist Action
Material Brass
Finish Polished Chrome
Spout Length 6 Inches
Flow Rate 2.2 GPM
Water Inlet Size 1/2 Inch NPSM Male
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. The submittal states low-lead compliance and ADA ANSI/ICC A117.1 compliance.
The faucet has a 2.2 GPM flow rate at 60 psi.
It uses a 1/2" NPSM male inlet, and an optional tailpiece and nut are available for 1/4" NPT male connection.
It has a 5 3/4" swivel/rigid gooseneck, and the included lock washer can convert it to rigid use.
The performance data lists an operating pressure range of 20 to 125 psi and a temperature range of 40°F to 140°F.
The faucet includes a one-year limited warranty.
