T&S Brass B-0300-M Commercial Faucets & Plumbing
Description

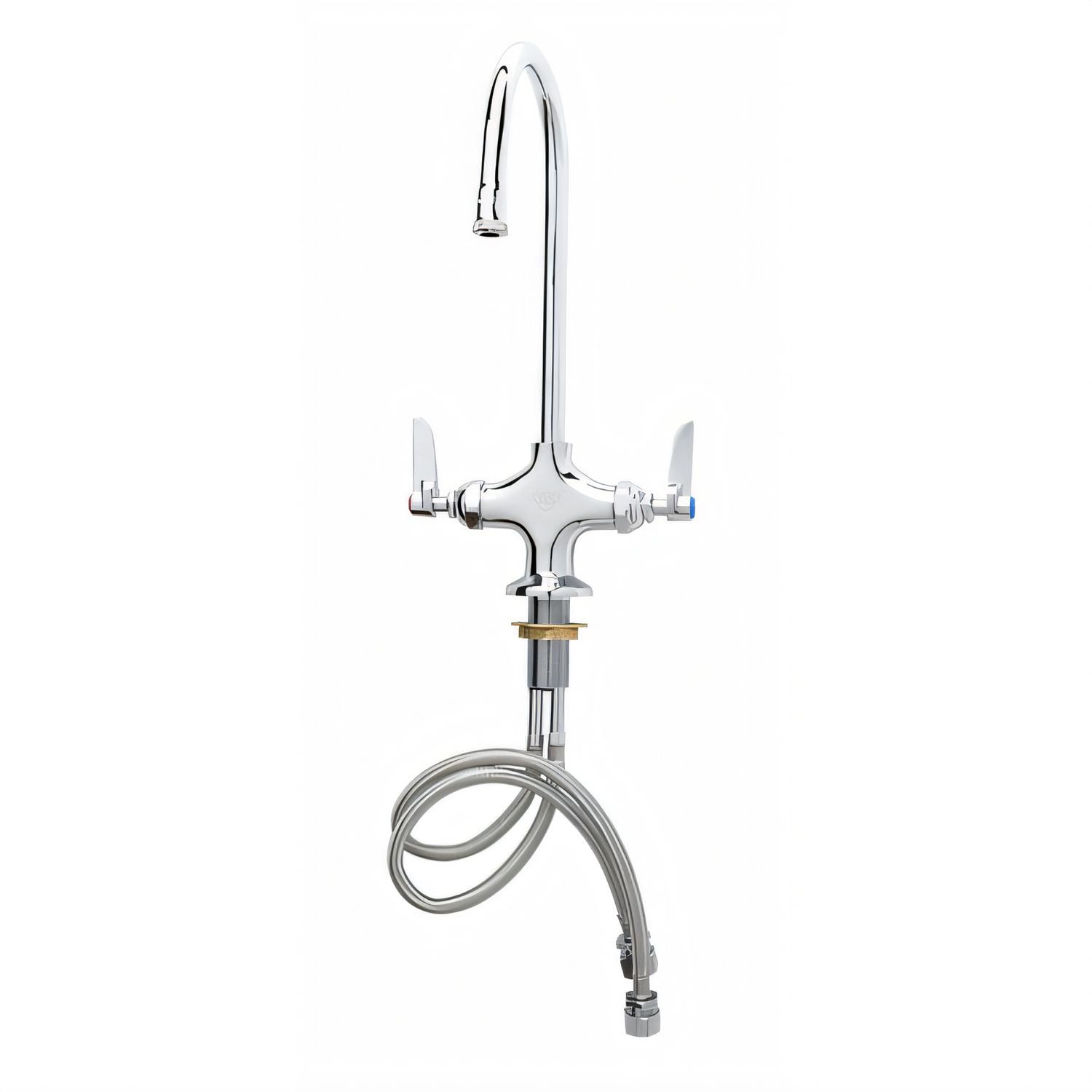

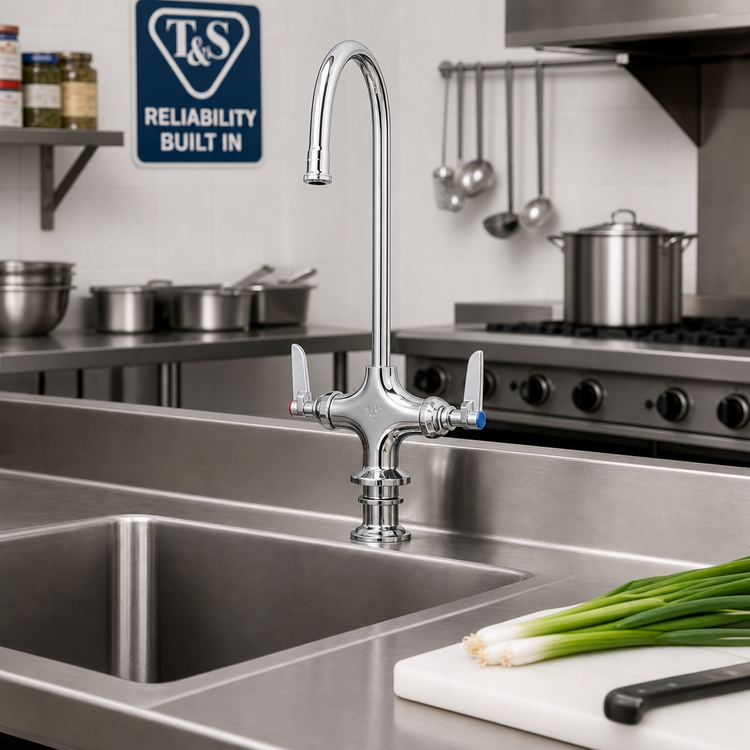

T&S Brass B-0300 Double Pantry Faucet
Deck-mount mixing faucet with 13½ in. rigid/swivel gooseneck & lever handlesEngineered for high-demand food-service, laboratory and janitorial sinks, the T&S Brass B-0300 delivers the durability professionals trust and the compliance inspectors require. A polished-chrome brass body, quarter-turn Eterna cartridges with spring checks, and a convertible swivel/rigid gooseneck make daily operation smooth while preventing cross-flow and leaks. Supplied pre-assembled with stainless-steel supply hoses, the B-0300 installs in a single 1 ½ in. deck hole and is ready for years of reliable service.
Why you’ll love it
- Single-hole deck mount keeps countertops clean and clutter-free.

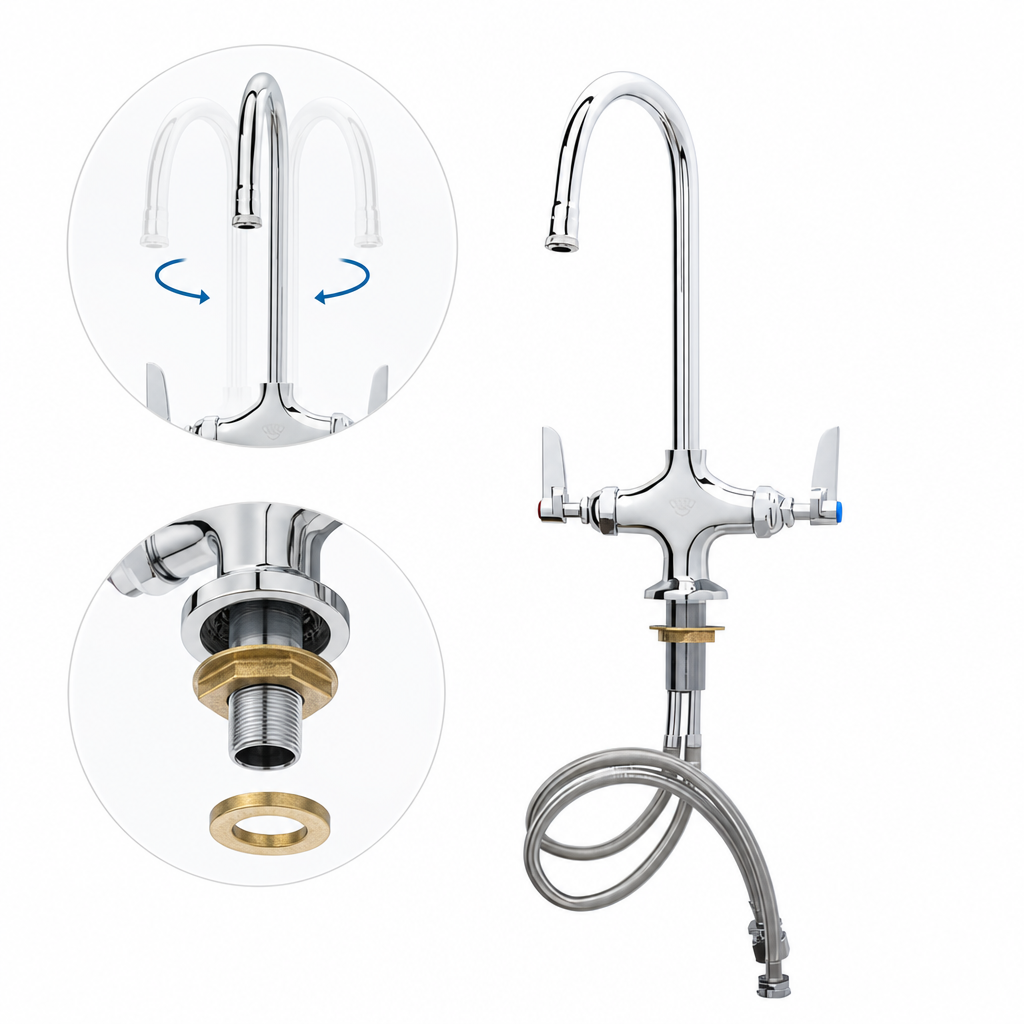

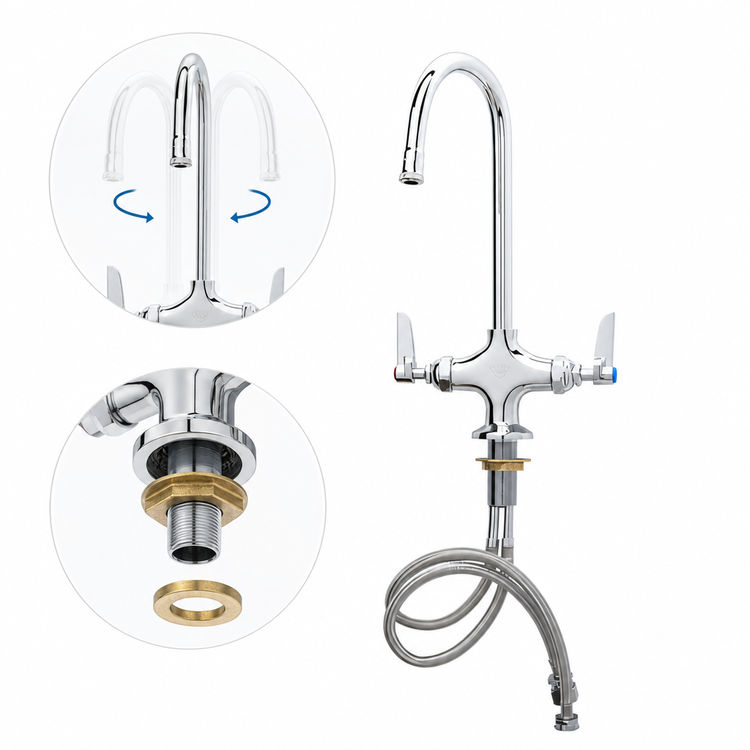

- 13 ½ in. (343 mm) swivel gooseneck converts to rigid with the included lock washer for flexible or fixed applications.
- Quarter-turn Eterna compression cartridges with built-in spring checks stop cross-flow between hot and cold lines.
- Stream-regulator Series 1 outlet delivers a generous non-aerated flow – ideal for fast pot filling.
- Color-coded lever handles provide ADA-compliant ¼-turn operation.
- 18 in. braided stainless-steel supply hoses with ½ in. NPSM / ⅝ in. O.D. compression ends included.
- Low-lead brass construction meets NSF / ANSI 61 & 372.
- Certified to ASME A112.18.1 / CSA B125.1 and ANSI A117.1 (ADA).
Technical specifications
| Mounting style | Single-hole deck mount |
|---|---|
| Body material / finish | Polished chrome plated brass |
| Gooseneck height | 13 ½ in. (343 mm) deck to top |
| Spout clearance | 9 ¹⁄₁₆ in. (230 mm) deck to outlet |
| Spout reach | 5 ¾ in. (145 mm) center of body to outlet |
| Deck flange Ø | 2 ¼ in. (57 mm) |
| Shank Ø | 1 ⅛ in. (29 mm) |
| Maximum deck thickness | 1 ⅜ in. (35 mm) |
| Required deck hole | 1 ½ in. (38 mm) |
| Flow rate with supplied outlet | 8.67 GPM @ 60 psi |
| Pressure range | 20 – 125 psi |
| Temperature range | 40 – 140 °F (4 – 60 °C) |
| Cartridges | Quarter-turn Eterna compression, hot & cold, with spring checks |
| Warranty | One-year limited, factory-backed |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61, NSF 372, ANSI A117.1 (ADA) |
| Master pack quantity | 6 faucets per carton |
Replaces legacy model B-0301-M. Optional laminar, vandal-resistant and water-saving outlets are available by special order.
