Description

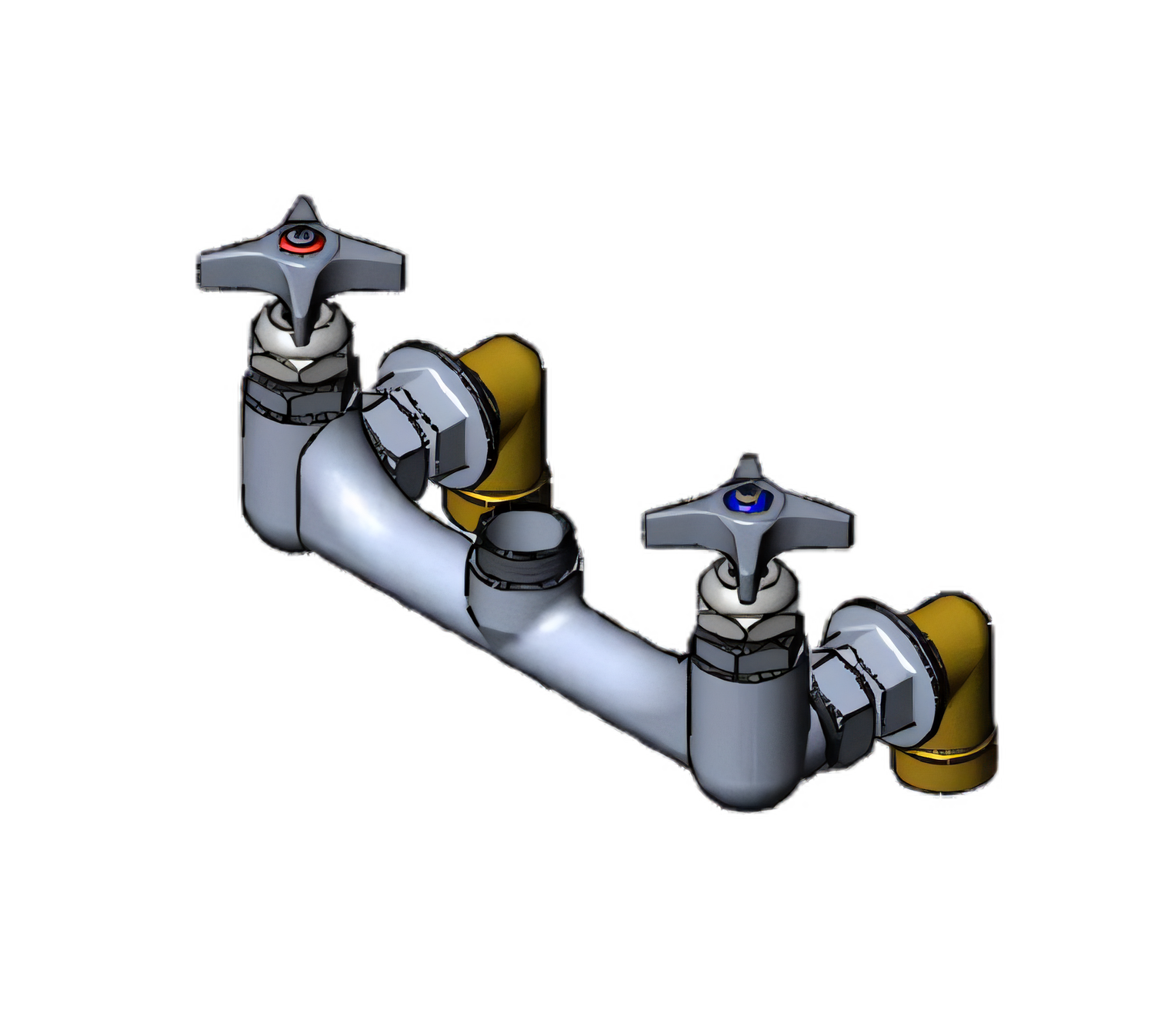

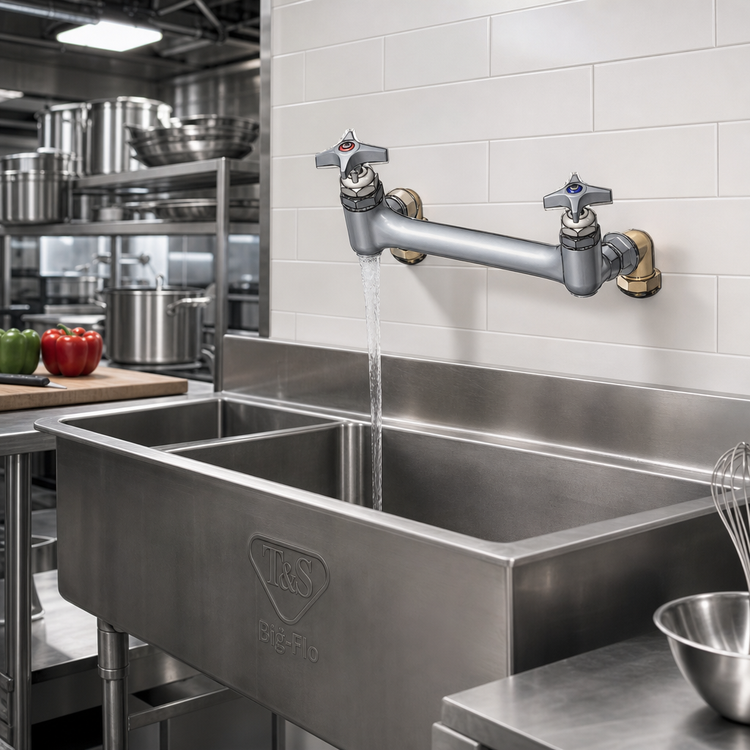

T&S Brass “Big-Flo” Wall-Mount Kettle & Pot Sink Mixing Faucet
Model B-0290 • 12" Swing Nozzle • 3/4" NPT InletsEngineered for serious volume and rugged day-to-day service, the Big-Flo B-0290 delivers a massive 44.27 GPM at 60 psi—perfect for quickly filling kettles, braising pans and oversized stock pots while fully meeting low-lead and ADA requirements.
Key Features

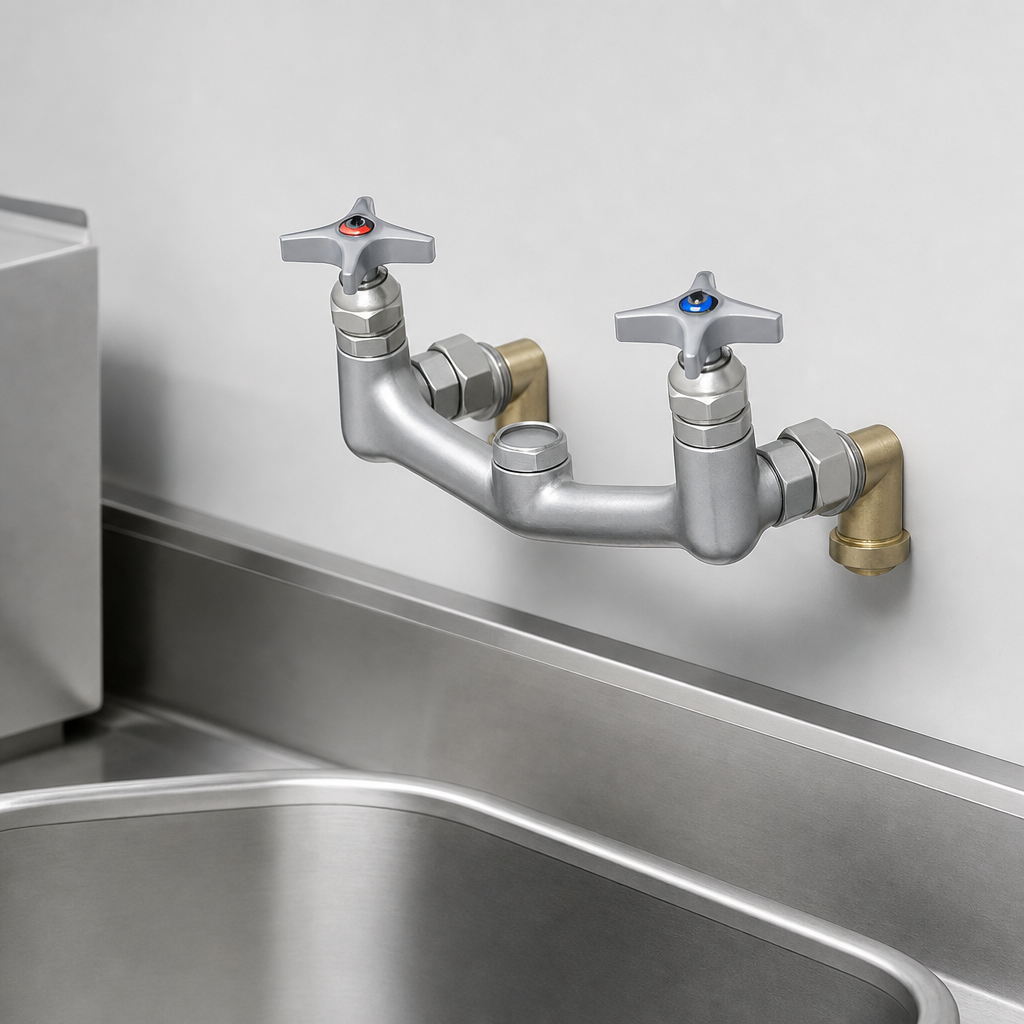

- 8" wall-mount mixing faucet with adjustable centers (7 3/4" – 8 1/4")
- 12" Big-Flo swing nozzle, plain-end outlet; lock washer included to convert to rigid spout
- High-capacity Big-Flo compression cartridges for long service life
- 4-arm metal handles with red/blue color-coded index buttons—easy-grip & ADA compliant
- 3/4" NPT female eccentric flanges and 3/4" NPT short street elbows included
- Heavy-duty polished chrome-plated brass body and tubular spout
- Field-serviceable design with readily available T&S replacement parts
Ideal For
- Kettle and tilt-skillet fill stations
- High-volume pot and stock-pot sinks
- Institutional, restaurant and food-processing facilities
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF/ANSI 61, Section 9 – Drinking-water system components
- NSF/ANSI 372 – Low-lead compliant
- ANSI A117.1 – ADA compliant
Technical Specifications
| Mounting Type | Wall, 8" centers (adjustable 7 3/4" – 8 1/4") |
|---|---|
| Inlet Connection | 3/4" NPT female eccentric flanges with 00LL short street elbows |
| Spout | 12" Big-Flo swing nozzle, plain end outlet (rigid option with included lock washer) |
| Flow Rate | 44.27 GPM @ 60 psi |
| Operating Pressure | 20 – 125 psi |
| Operating Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Body Material | Polished chrome-plated brass |
| Handle Type | 4-arm, color-coded metal handles |
| Cartridges | Big-Flo compression cartridges (replaceable) |
| Overall Width | 10 11/16" (271 mm) |
| Warranty | 1-Year limited manufacturer warranty |
Ships six (6) faucets per master carton—order in multiples of six for factory-sealed packaging.
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Brand_name
Big-Flo
Certifications
ADA Compliant
Shipping Weight
48.0lbs
Mounting
wall mount
Lead Compliance
low lead
Spout Length (overall)
12 - 14" spout
Faucet Centers
8" adjustable centers
Valve Type
compression valves
Spout / Nozzle Type
standard swing / swivel spout
Specifications
Kettle & Pot Sink Mixing Faucet, wall mounted 8" adjustable centers, 12" Big-Flo swing nozzle with plain end outlet, 4-arm kitchen handles with color coded indexes, 00LL street elbows with 3/4" female NPT inlets, ADA Compliant (6 each per master pack)
