T&S Brass

Big-Flo Wall Mount Kettle and Pot Sink Mixing Faucet with 12-Inch Swing Nozzle

SKU: B-0290-0427
GTIN: 671262663977
$520.05
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Pre-rinse Faucets Restaurant Equipment Sinks & Handwashing Stations T&S Brass

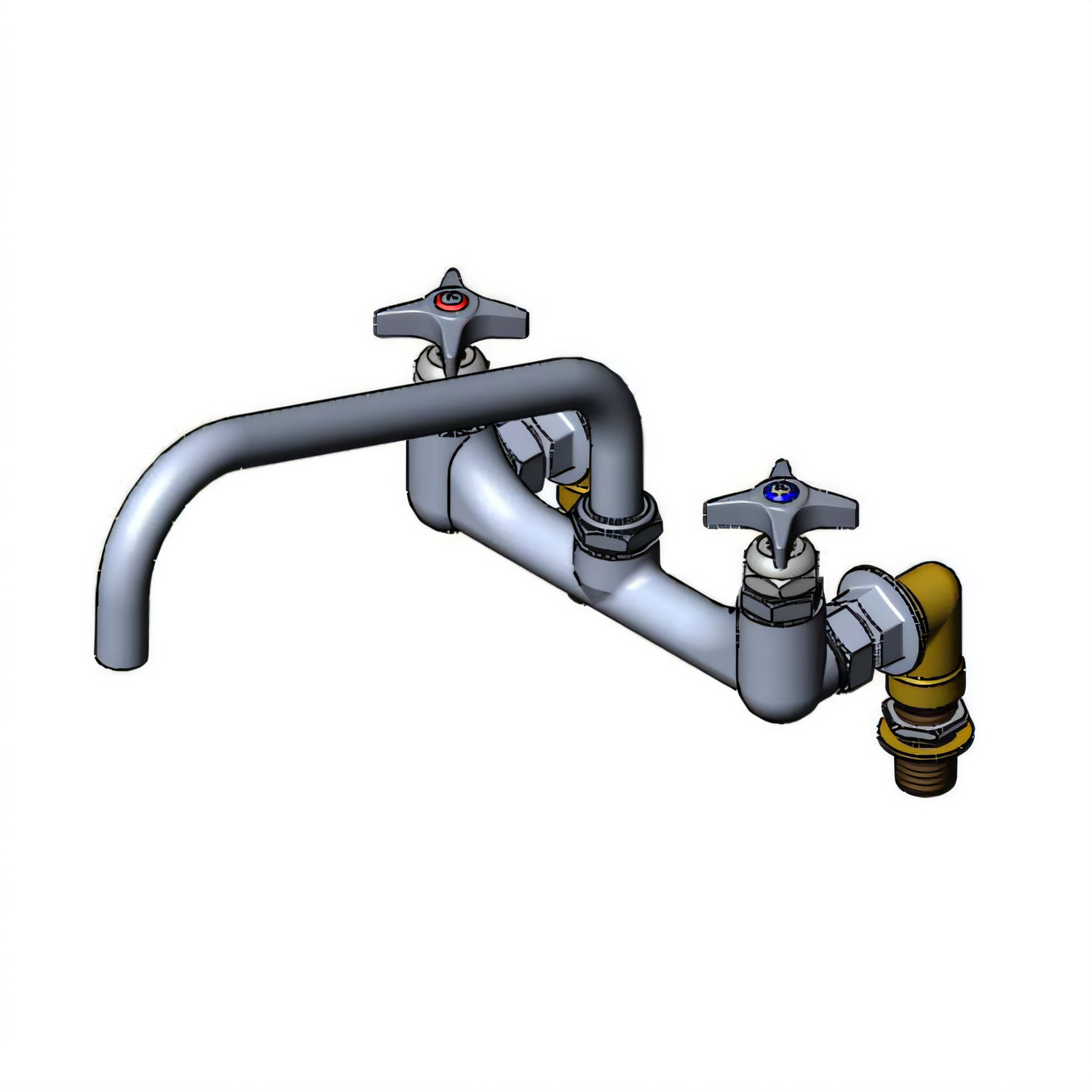

Big-Flo Wall Mount Kettle and Pot Sink Mixing Faucet with 12-Inch Swing Nozzle

8-Inch Adjustable Centers, Low-Lead, ADA Compliant

Built for heavy-duty kitchen sinks, this wall-mounted Big-Flo faucet combines a high-flow 12-inch swing nozzle with adjustable centers for easier installation and everyday commercial use.

  • Wall-mount mixing faucet designed for kettle and pot sink applications.
  • 8-inch adjustable centers fit from 7 3/4" to 8 1/4" for installation flexibility.
  • 12-inch Big-Flo swing nozzle has a plain end outlet and can be converted to rigid use with the included lock washer.
  • 4-arm handles with color-coded indexes provide easy hot and cold identification.
  • Includes 3/4" NPT female inlets, street elbows, and supply nipple kits for connection.
  • Low-lead compliant and ADA compliant for commercial kitchen requirements.
  • High-flow performance delivers 44.27 GPM at 60 psi.

Product Weight:

8.4 lb

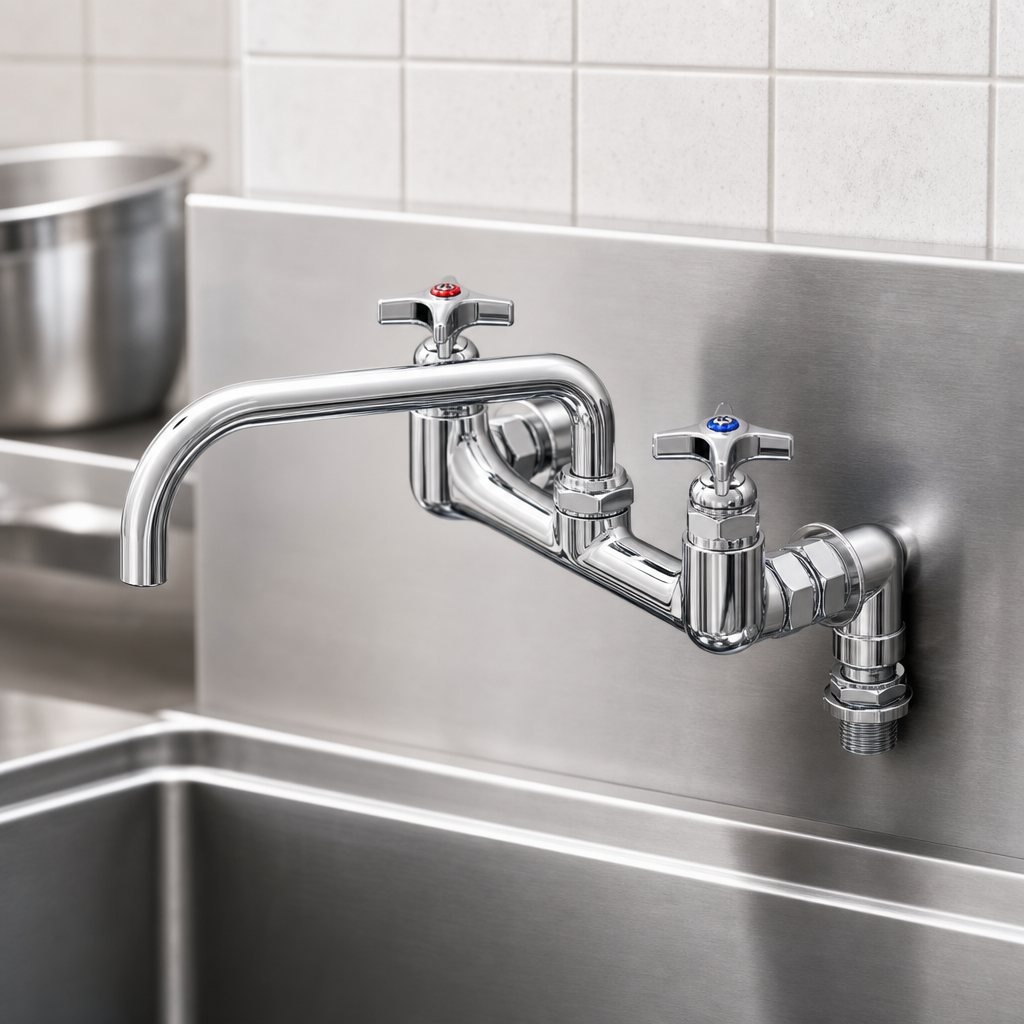

Polished Chrome Plated Brass Construction

Brass body with a polished chrome plated finish for durability and a clean commercial appearance.

12-Inch Big-Flo Swing Nozzle

Plain-end swing nozzle provides broad reach and can be converted to rigid use with the included lock washer.

Adjustable 8-Inch Centers

Centers adjust from 7 3/4" to 8 1/4" to help match existing wall rough-ins.

Compression Spindles

Big-Flo cartridges and compression spindles are built for dependable manual operation.

4-Arm Color-Coded Handles

Ergonomic handles with red and blue indexes make hot and cold operation easy to identify.

3/4-Inch NPT Female Inlets

Includes 00LL street elbows and B-0427 supply nipple kits for the inlet connection.

Commercial Performance Rating

Rated for 20 to 125 psi with a 44.27 GPM flow rate at 60 psi and 40 to 140 °F water temperature.

Low-Lead and ADA Compliant

Meets low-lead requirements and ANSI A117.1 ADA accessibility requirements.

Type Kettle and Pot Sink Mixing Faucet
Style Big-Flo
Installation Type Wall Mounted
Material Brass
Finish Polished Chrome Plated
Spout Length 12 Inches
Nozzle Type Swing / Swivel Spout
Handle Type 4-Arm
Valve Type Compression
Water Inlet Size 3/4 Inches NPT Female
Faucet Centers 7 3/4 to 8 1/4 Inches
Flow Rate 44.27 GPM @ 60 PSI
Pressure Range 20 to 125 PSI
Temperature Range 40 to 140 °F
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

The faucet has adjustable centers from 7 3/4" to 8 1/4".
It includes a 12-inch Big-Flo swing nozzle with a plain end outlet.
Yes. The included 016807-45 lock washer allows the nozzle to convert to a rigid application.
Yes, it is ANSI A117.1 ADA compliant.
It uses 3/4" NPT female inlets and includes 3/4" street elbows and 3/4" supply nipple kits.
The faucet includes a one-year limited warranty.
