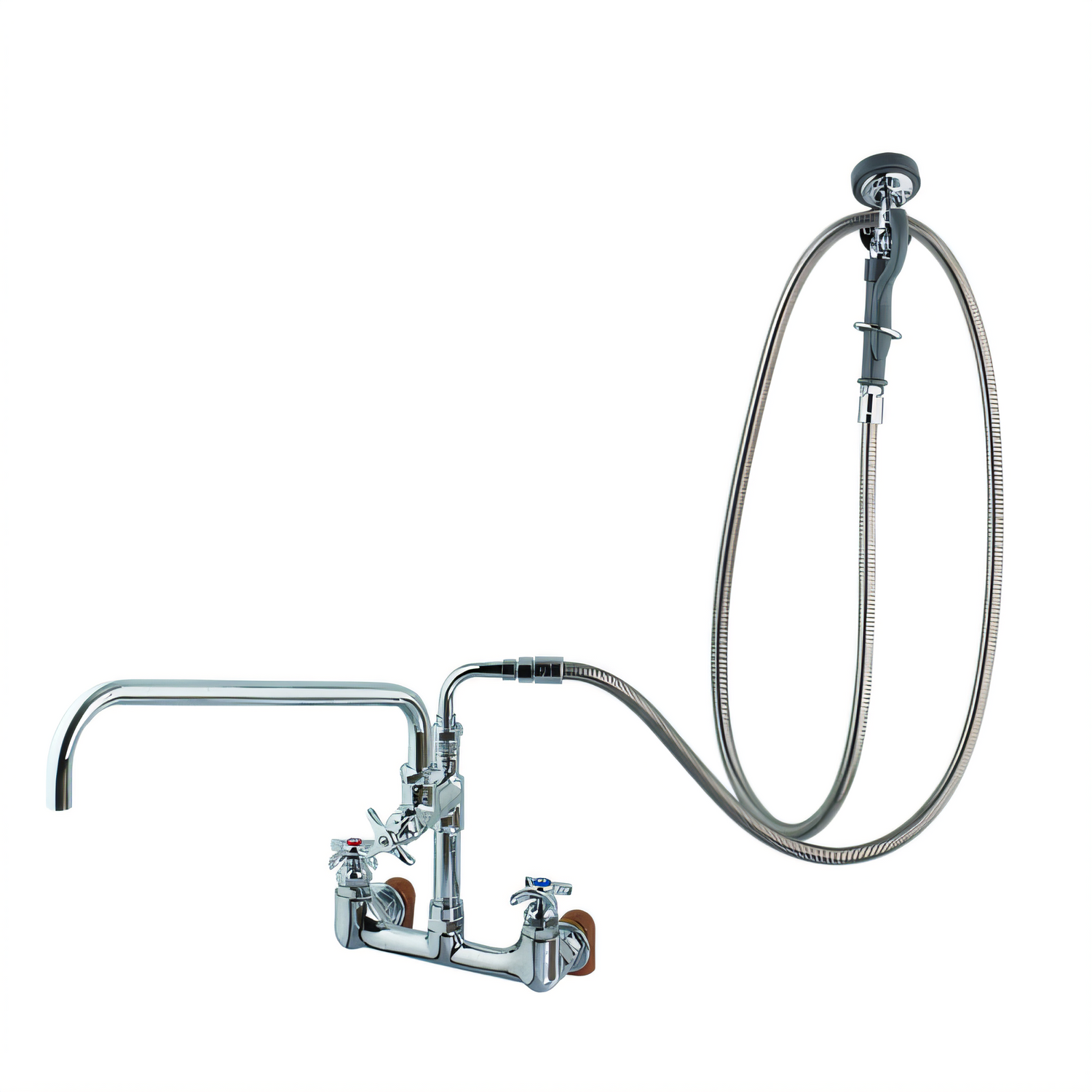

Big-Flo 8-Inch Centers Wall Mount Pre-Rinse Add-On Faucet with 18-Inch Swing Nozzle

Polished chrome plated brass body, 104-inch stainless steel hose, 1.42 GPM angled spray valve

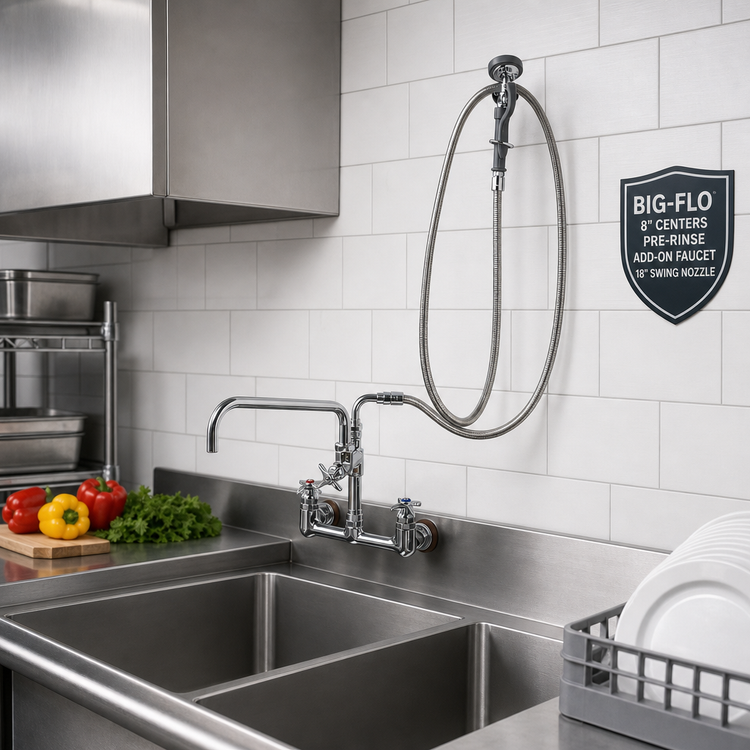

Built for busy kitchens, this wall-mounted pre-rinse add-on faucet combines an 18-inch swing nozzle, 104-inch stainless steel hose, and 1.42 GPM spray valve for fast, flexible rinsing.

  • 8-inch centers wall-mount pre-rinse assembly for commercial sink installations.
  • Add-on faucet design includes an 18-inch plain-end swing nozzle and 90° swivel adapter.
  • 104-inch flexible stainless steel hose extends reach and improves maneuverability.
  • Angled spray valve delivers 1.42 GPM for efficient rinsing performance.
  • Polished chrome plated brass body with compression spindles and 4-arm handles.
  • Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, and EPAct 2005 compliant.

Product Weight:

16.6 lb

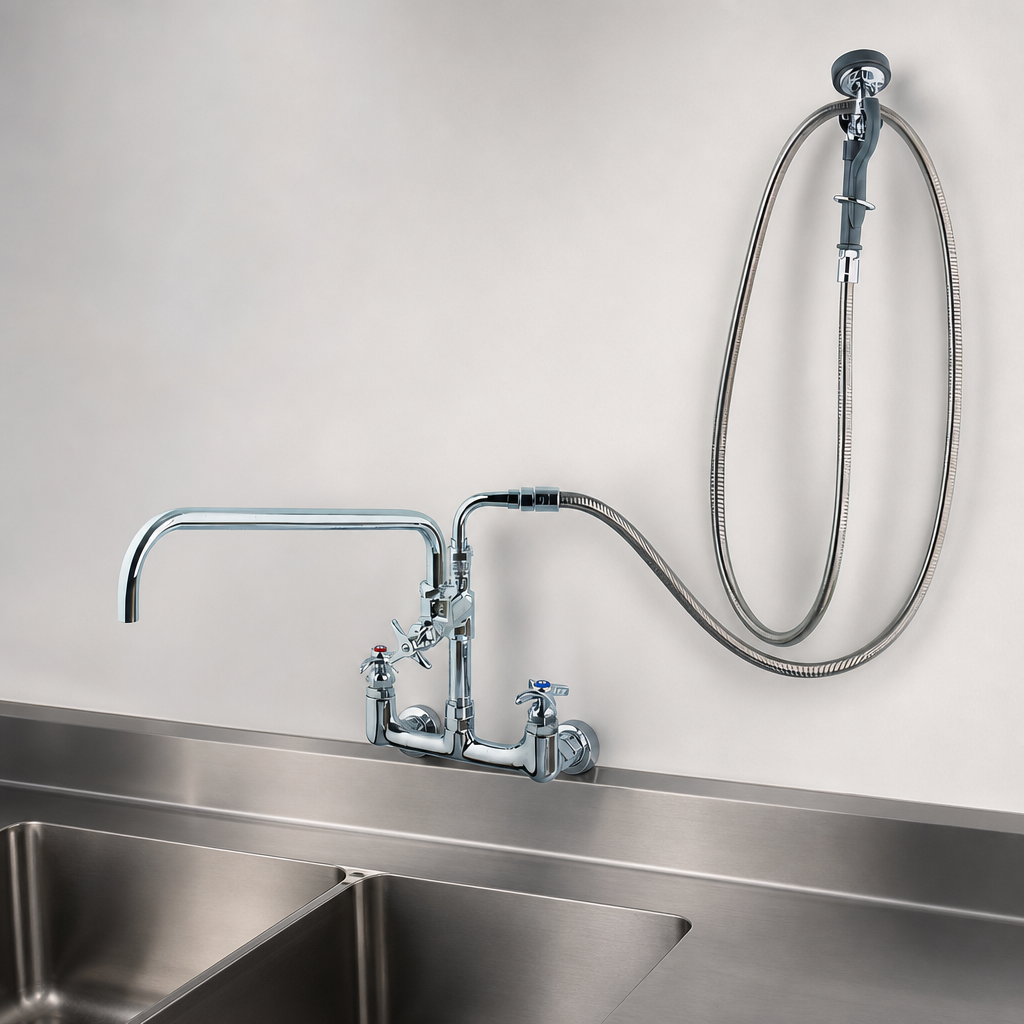

8-Inch Wall Mount Base Faucet

Large-flow mixing faucet designed for 8-inch wall-mount center installations.

Add-On Faucet Assembly

Includes a compression cartridge and 4-arm handle for manual water control.

18-Inch Swing Nozzle

Plain-end swing nozzle with a 90° swivel adapter for extended reach and flexibility.

Flexible Stainless Steel Hose

104-inch stainless steel hose with a heat-resistant handle for durability and easier handling.

Angled Spray Valve

Spray valve is rated at 1.42 GPM for effective rinse performance.

Chrome-Plated Brass Construction

Polished chrome plated brass body with compression spindles for dependable commercial use.

Installation Connections

Features a 3/4-inch female flange inlet and 3/4-inch NPT female inlet elbows.

Certified Compliance

Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372; EPAct 2005 compliant.

Type Pre-Rinse Unit
Style Add-On Faucet
Mounting Type Wall Mount
Material Brass
Finish Polished Chrome
Faucet Centers 8 Inches
Spout Length 18 Inches
Nozzle Type Plain End Swing Nozzle
Handle Type 4-Arm
Valve Type Compression
Flow Rate 1.42 GPM
Hose Length 104 Inches
Water Inlet Size 3/4 Inch
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

The unit includes the B-0290 wall mount base faucet, B-0286 add-on faucet, 18-inch swing nozzle, angled spray valve, stainless steel hose, and hose adapter.
The flexible stainless steel hose is 104 inches long.
The angled spray valve is rated at 1.42 GPM.
It is designed for an 8-inch wall mount installation.
It uses a 3/4-inch female flange inlet and 3/4-inch NPT female inlet elbows.
