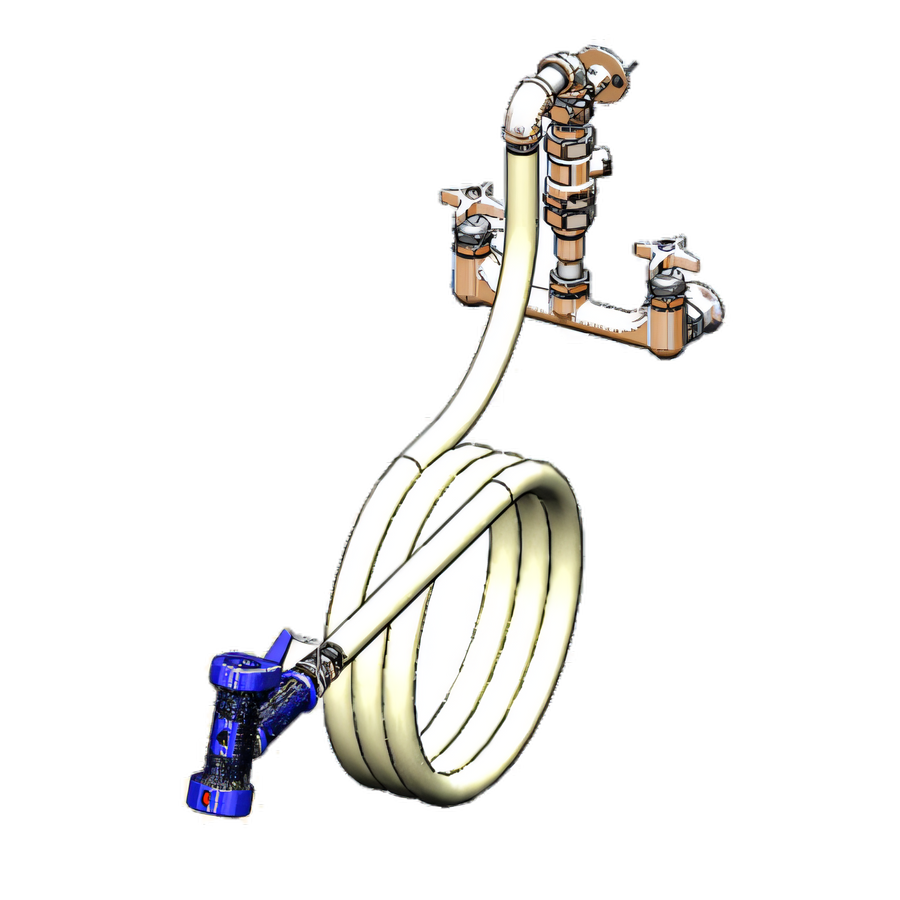

T&S Brass Wall-Mount Big-Flo Mixing Washdown Station with 10-Foot Creamery Hose and Rear Trigger Water Gun

Adjustable 7 3/4-Inch to 8 1/4-Inch Centers, Polished Chrome Brass Body

A complete wall-mounted washdown solution with backflow protection, adjustable centers, and the hose-and-gun assembly needed for fast cleaning and bucket fill-up.

  • Wall-mounted Big-Flo mixing faucet designed for washdown and decontamination applications.
  • Adjustable 7 3/4-inch to 8 1/4-inch centers for installation flexibility.
  • Includes a 10-foot white creamery hose, 360° swivel quick disconnect, and rear trigger water gun.
  • Continuous pressure backflow preventer and integral check valves help protect the water supply.
  • 4-arm handles with color-coded indexes make hot and cold control easy to identify.
  • 3/4-inch NPT female inlets and wall bracket are included.

Product Weight:

24.0 lb

Polished Chrome Plated Brass Body

Durable brass construction with a polished chrome finish for a clean, professional appearance.

Adjustable Centers

Fits mounting centers from 7 3/4 inches to 8 1/4 inches for easier installation.

10-Foot Creamery Hose

Includes a 3/4 inch I.D. x 10 foot white creamery hose for extended reach.

360° Swivel Quick Disconnect

Quick disconnect lets the water gun be removed for full-flow mop bucket fill-up and easier handling.

Rear Trigger Water Gun

Stainless steel rear trigger water gun with a 5/16 inch orifice.

Backflow Protection

Continuous pressure backflow preventer and integral check valves help guard against backflow.

4-Arm Handles With Color-Coded Indexes

Easy-to-grip handles with red and blue indexes for clear hot and cold identification.

3/4 Inch NPT Female Inlets

2 inch flanges with 3/4 inch NPT female inlets for plumbing connection.

Wall Bracket Included

Includes a wall bracket for secure wall-mounted installation.

Type Washdown Station
Style Mixing Faucet
Installation Type Wall Mounted
Mounting Type Wall Mount
Material Brass
Finish Polished Chrome
Water Inlet Size 3/4 Inch NPT Female
Handle Type 4-Arm
Hose Length 10 Feet
Hose Diameter 3/4 Inch I.D.
Center Spacing 7 3/4 Inches to 8 1/4 Inches
Operating Pressure 20 PSI to 125 PSI
Temperature Range 40 Degrees F to 140 Degrees F
Flow Rate 6.03 GPM at 60 PSI
Shipping Weight 24 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year limited

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 10-foot white creamery hose, 360° swivel quick disconnect, stainless steel rear trigger water gun, continuous pressure backflow preventer, integral check valves, and a wall bracket.
Yes. The faucet adjusts from 7 3/4 inches to 8 1/4 inches between centers.
The documented flow rate is 6.03 GPM at 60 psi.
It is specified for 20 to 125 psi and 40 degrees F to 140 degrees F.
The faucet uses 3/4 inch NPT female inlets.
The submittal lists a one-year limited warranty.
