T&S Brass B-0236-M Commercial Faucets & Plumbing
Description

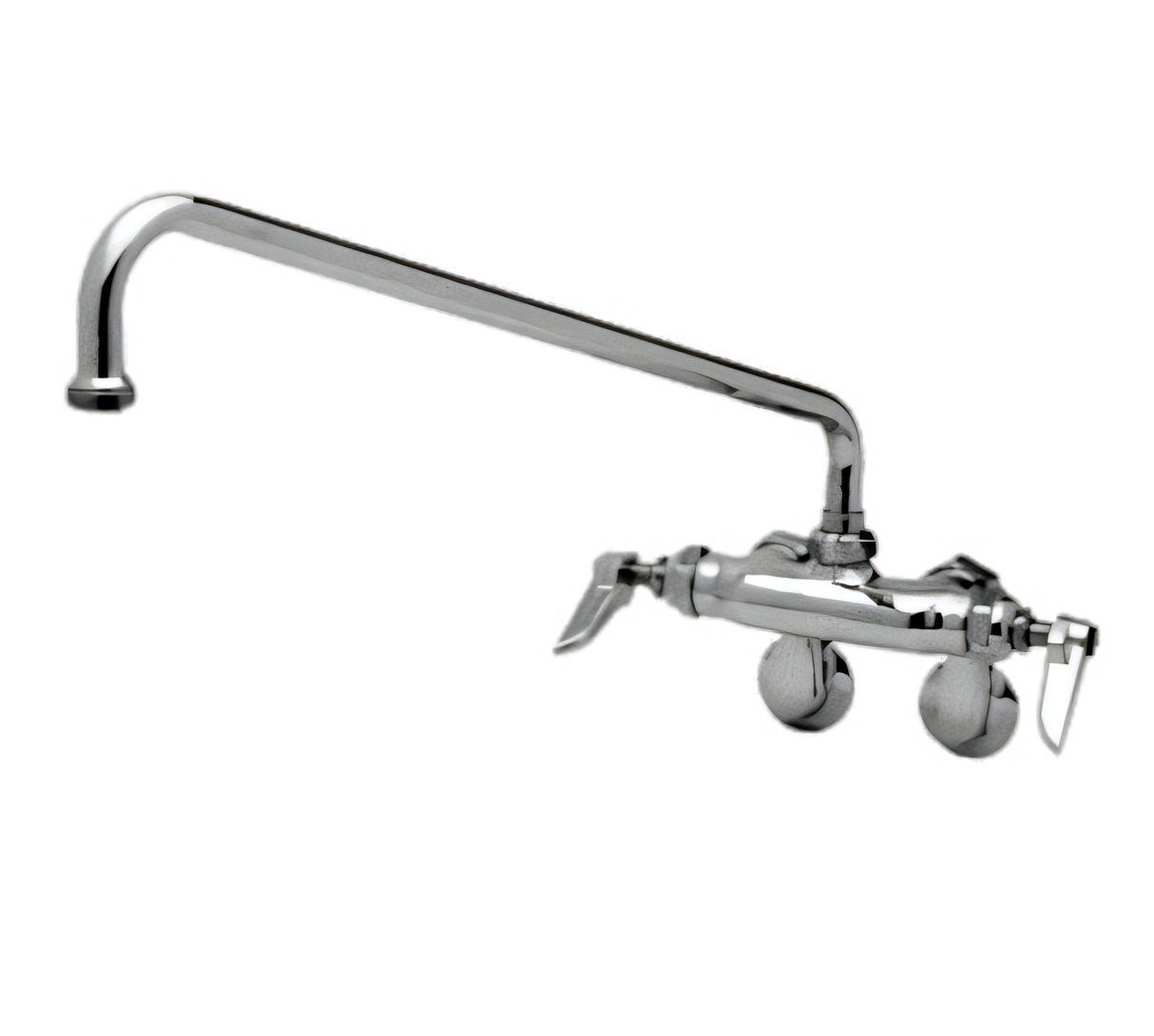

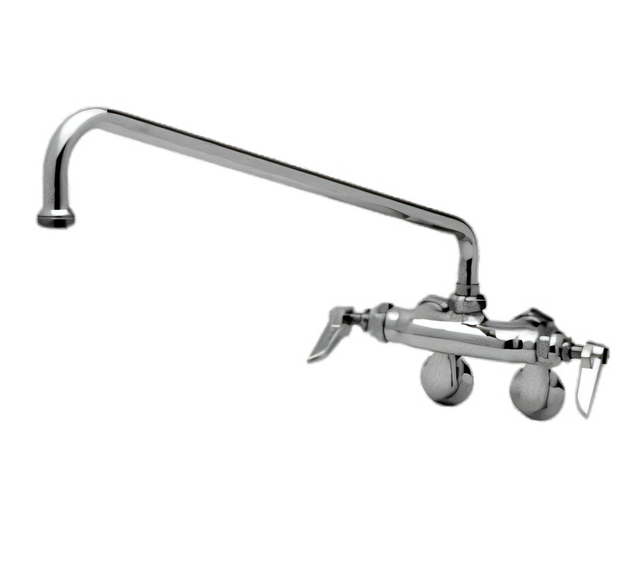

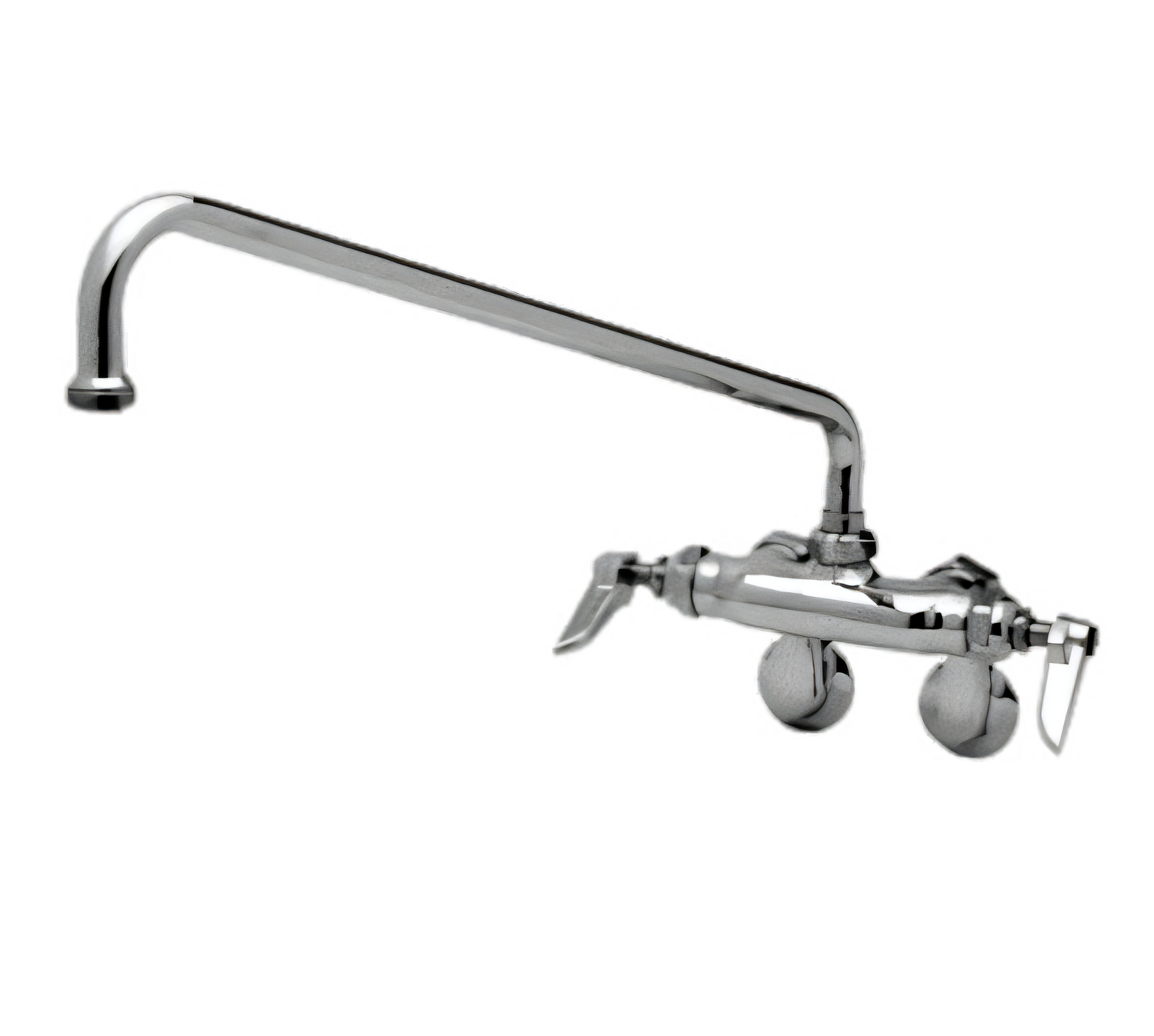

T&S Brass B-0236 Wall-Mount Mixing Faucet – 12" Swing Nozzle
Adjustable 2¼"–8¼" Centers | Eterna Cartridges | Low-Lead & ADA CompliantEngineered for demanding commercial sinks, the T&S Brass B-0236 pairs rock-solid durability with unbeatable installation flexibility. A 12" swing spout reaches multiple compartments with ease, while color-coded lever handles and long-life Eterna cartridges deliver smooth, drip-free performance shift after shift.
Why You’ll Love It
- Universal fit – adjustable wall inlets span 2¼" to 8¼" (57–210 mm) for quick retrofit or new builds.
- 12" (305 mm) swing nozzle with Series 1 stream regulator supplies an even, high-volume flow pattern.

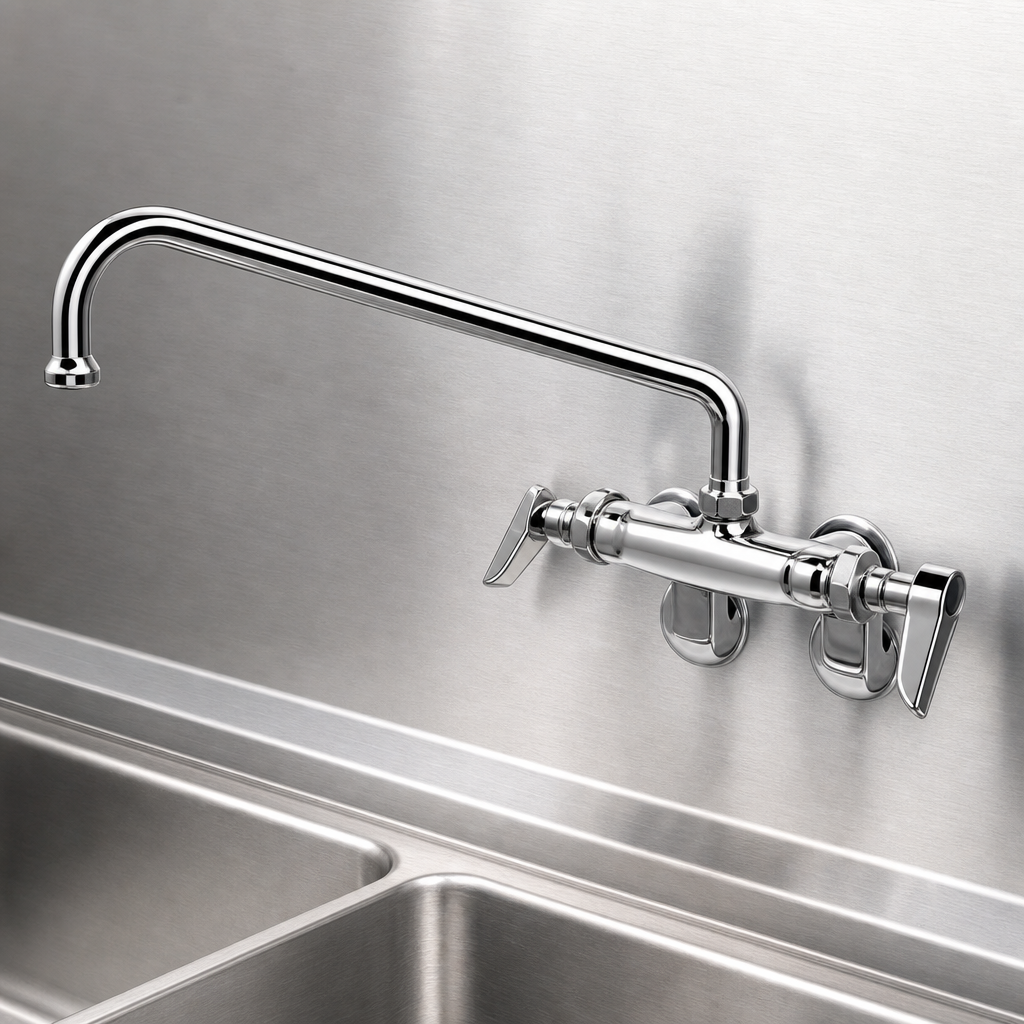

- Polished chrome plated brass body resists corrosion and daily abuse in busy kitchens.
- Low-lead compliant to NSF/ANSI 372 for potable water safety.
- ADA/ANSI A117.1 lever handles with red/blue indexes provide effortless, accessible operation.
- Field-proven Eterna compression cartridges rated for millions of on/off cycles.
- High-flow design: up to 17 GPM @ 60 psi to fill large sinks fast.
- ½" NPT female adjustable arm inlets with 2" wall flanges create a secure, professional-grade mount.
Performance & Technical Specs
| Body Material | Polished chrome plated brass |
|---|---|
| Nozzle Length | 12" (305 mm) swing spout |
| Flow Rate | 17.0 GPM @ 60 psi (stream regulator outlet) |
| Working Pressure | 20 – 125 psi (1.38 – 8.62 bar) |
| Temperature Range | 40 °F – 140 °F (4 °C – 60 °C) |
| Inlet Connection | ½" NPT female adjustable arms, 2" dia. flanges |
| Center-to-Center Range | 2¼" – 8¼" above or below centerline |
| Cartridge Type | Eterna compression (LTC & RTC) |
| Handle Type | Metal lever, color-coded indexes |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61-9, NSF 372, ANSI A117.1 |
| Package Quantity | 6 faucets per master pack |
| Warranty | One-year limited manufacturer warranty |
Looking for alternative outlets, cartridges, or handle styles? T&S offers a full range of interchangeable components — contact us for details.
