T&S Brass B-0235-LNM Commercial Faucets & Plumbing
Description

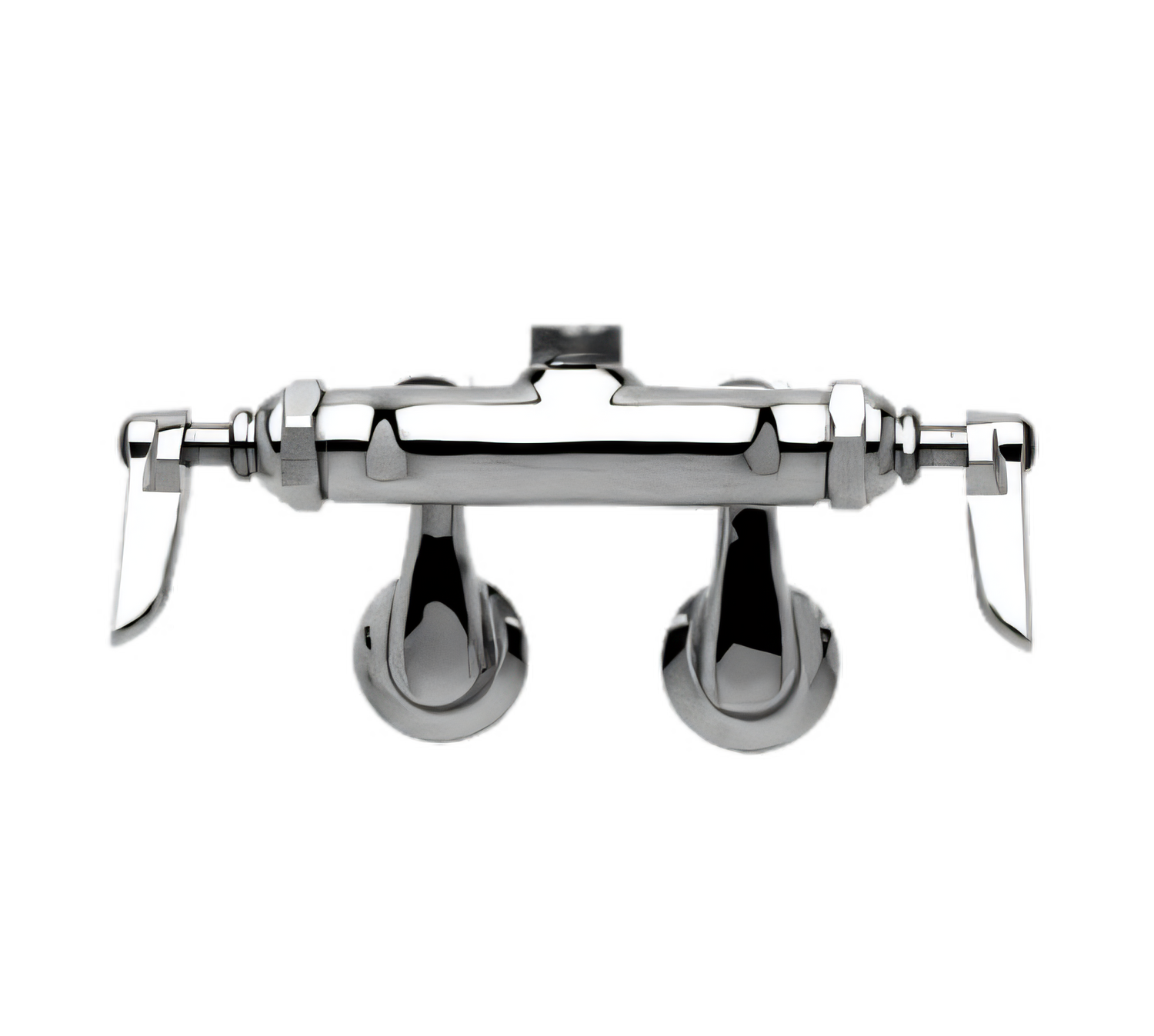

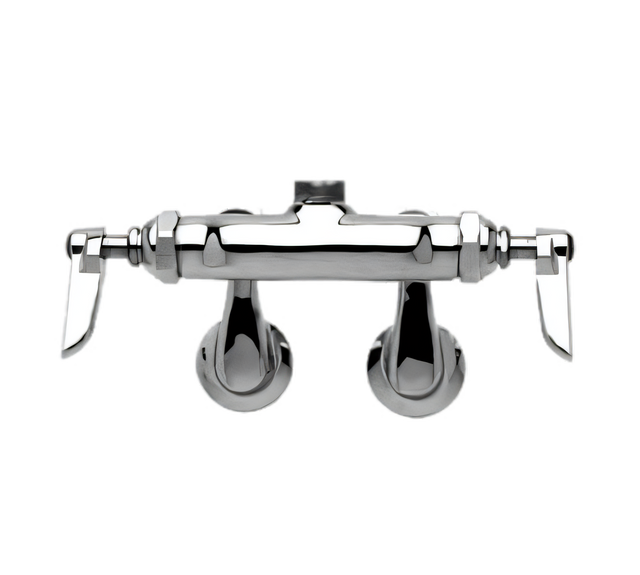

T&S Brass B-0235-LN Wall-Mount Sink Mixing Faucet
2 ¼"–8 ¼" Adjustable Centers • Eterna Cartridges • Less Nozzle • Master Pack (6/ctn)Built for everyday reliability in commercial kitchens, laboratories, and prep areas, the B-0235-LN delivers the legendary durability of T&S Brass in a compact, highly adaptable wall-mount design. Adjustable inlets let you retrofit 2 ¼"–8 ¼" rough-ins with ease, while low-lead, ADA-compliant lever handles provide smooth, color-coded control of hot and cold water.
Key Features
- Polished chrome-plated brass body resists corrosion and tarnish.
- Swivel outlet accepts all standard T&S swing nozzles (sold separately).
- 1/2" NPT female eccentric inlets with 2" flanges—centers adjust from 2 ¼" to 8 ¼" above or below centerline.
- Long-life Eterna compression cartridges with check valves.
- Lever handles with red/blue indexes meet ADA ANSI A117.1 requirements.
- Low-lead compliant to NSF 372.
Performance Data
| Flow Rate | 15.70 GPM @ 60 psi (outlet device may reduce flow) |
|---|---|
| Pressure Range | 20 – 125 psi |
| Temperature Range | 40 °F – 140 °F |
| Cartridges | Compression-type Eterna (hot & cold) |
| Warranty | 1-Year Limited |
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 – Section 9 (Drinking Water System Components)
- NSF 372 (Low Lead Content)
- ANSI/ICC A117.1 (ADA Accessibility)
Popular Compatible Nozzles & Options
Select the outlet that matches your workflow—swap in seconds with no special tools.
- Swing Nozzles: 6", 8", 10", 12", 14", 16", 18" (models 059X – 065X)
- Double-Joint Swing Nozzles: 12", 15", 18", 24" (models 066X – 069X)
- Swivel Goosenecks: 2 13/16", 2 5/8", 5 11/16", 8 3/4" rise (models 131X, 132X, 133X, 135X)
- Optional Handles: 4" wrist-action, 4-arm
- Optional Cartridges: Quarter-turn Cerama
All accessories sold separately. See T&S catalog for complete list.
Technical Specifications
| Model | B-0235-LN |
|---|---|
| Mounting Type | Wall, two-hole |
| Inlet Size / Type | 1/2" IPS NPT female, adjustable arms |
| Center Range | 2 ¼" – 8 ¼" |
| Body Material | Chrome-plated brass |
| Handle Type | Lever, color-coded red (hot) & blue (cold) |
| Finish | Polished chrome |
| Nozzle | Not included – swivel outlet ready for T&S nozzles |
| Master Pack Qty | 6 faucets per carton |
Whether you’re updating an existing sink or outfitting new construction, the B-0235-LN installs quickly, dials in to almost any rough-in, and stands up to years of heavy-duty use. Pair it with the right T&S nozzle today and keep water exactly where you need it—every single shift.
