T&S Brass B-0231-M Commercial Faucets & Plumbing
Description

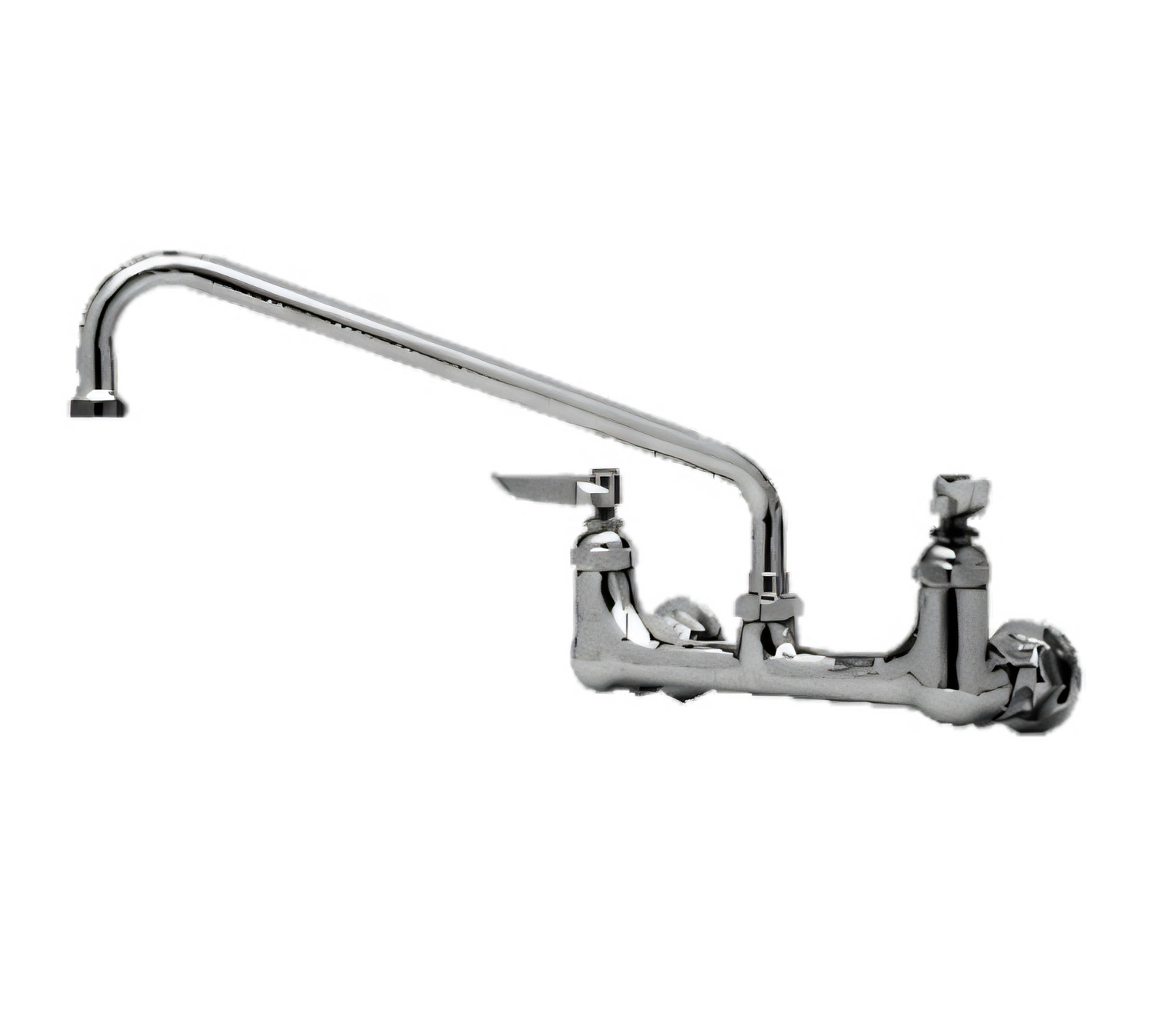

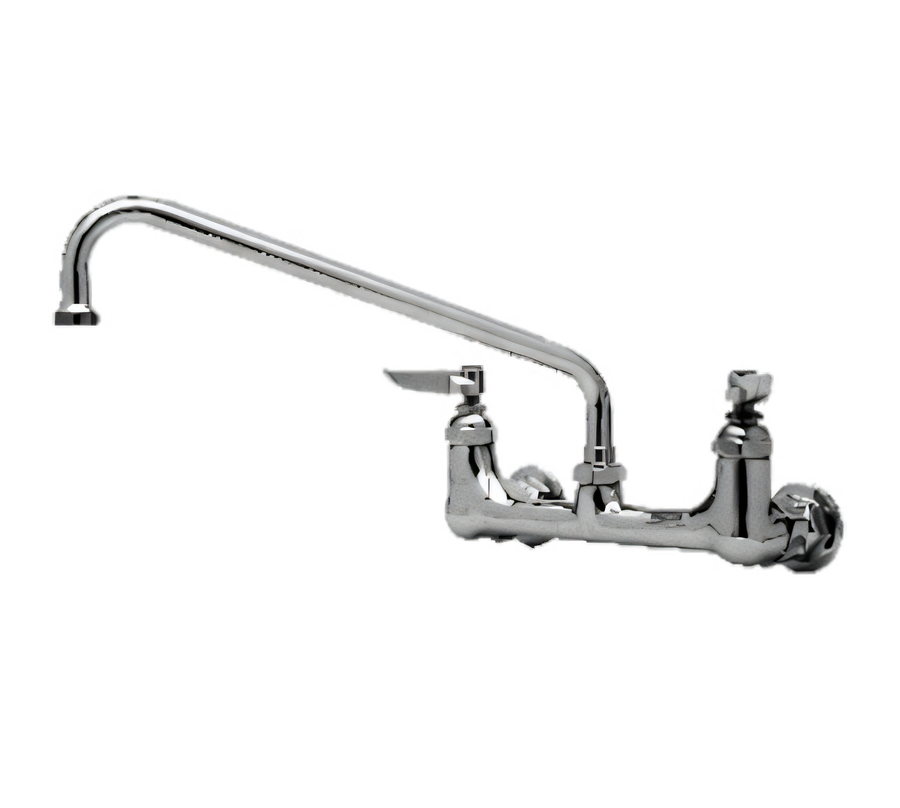

T&S Brass B-0231 8" Wall-Mount Mixing Faucet
12" swing nozzle • lever handles • polished chrome plated brassBuilt for demanding food-service, commercial kitchen and laboratory environments, the T&S Brass B-0231 delivers reliable mixing performance, exceptional flow and long-term durability—all in a compact, ADA-compliant package.
Key features & benefits
- 8" wall-mount mixing faucet with heavy-duty polished chrome plated brass body
- 12" (305 mm) swing nozzle with factory-installed full-flow stream regulator outlet
- Lock washer included—convert the swing nozzle to a rigid spout in seconds
- Quarter-turn Eterna compression cartridges with integrated spring checks to prevent cross-flow
- Lever handles with color-coded indexes meet ADA ANSI/ICC A117.1 requirements
- 1/2" NPT female eccentric inlets with Ø2" flanges; adjustable centers 7 3/4"–8 1/4"
- High flow rate: up to 23.09 GPM @ 60 psi—ideal for fast pot-filling and cleanup
- One-year limited manufacturer’s warranty
Technical specifications
| Model | B-0231 (Swivel Pantry Faucet) |
|---|---|
| Mounting type | 8" wall mount, adjustable 7 3/4"–8 1/4" centers |
| Body material / finish | Polished chrome plated brass |
| Spout | 12" swing nozzle, converts to rigid with included lock washer |
| Outlet | Full-flow stream regulator, Series 1 |
| Cartridges | Quarter-turn Eterna compression cartridges with spring checks |
| Handles | Lever style, chrome plated metal, red/blue indexes (ADA compliant) |
| Inlet connections | 1/2" NPT female eccentric, Ø2" flanges |
| Flow rate | 23.09 GPM (87.4 L/min) @ 60 psi |
| Operating pressure | 20 – 125 psi (1.4 – 8.6 bar) |
| Water temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Pack quantity | 6 units per master carton |
| Warranty | 1-year limited |
Certifications & compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 – Section 9 (drinking water system components)
- NSF 372 (low-lead compliance)
- ADA ANSI/ICC A117.1 (lever handles)
Ideal for
- Restaurant and commercial kitchen prep sinks
- Food-service pot-filling and cleanup stations
- Pantries, utility rooms and janitorial sinks
- Laboratories requiring high-volume water delivery
Optional outlets & handles (sold separately)
Swap the factory stream regulator for aerated, laminar, vandal-resistant or low-flow outlets, or upgrade handles to wrist-action or 4-arm styles. See the T&S Series 1 & VR Series 6 outlet chart for details.
Flow rate and pressure data based on laboratory testing. Actual performance may vary with site conditions. Images may show optional accessories that are not included.
