Description

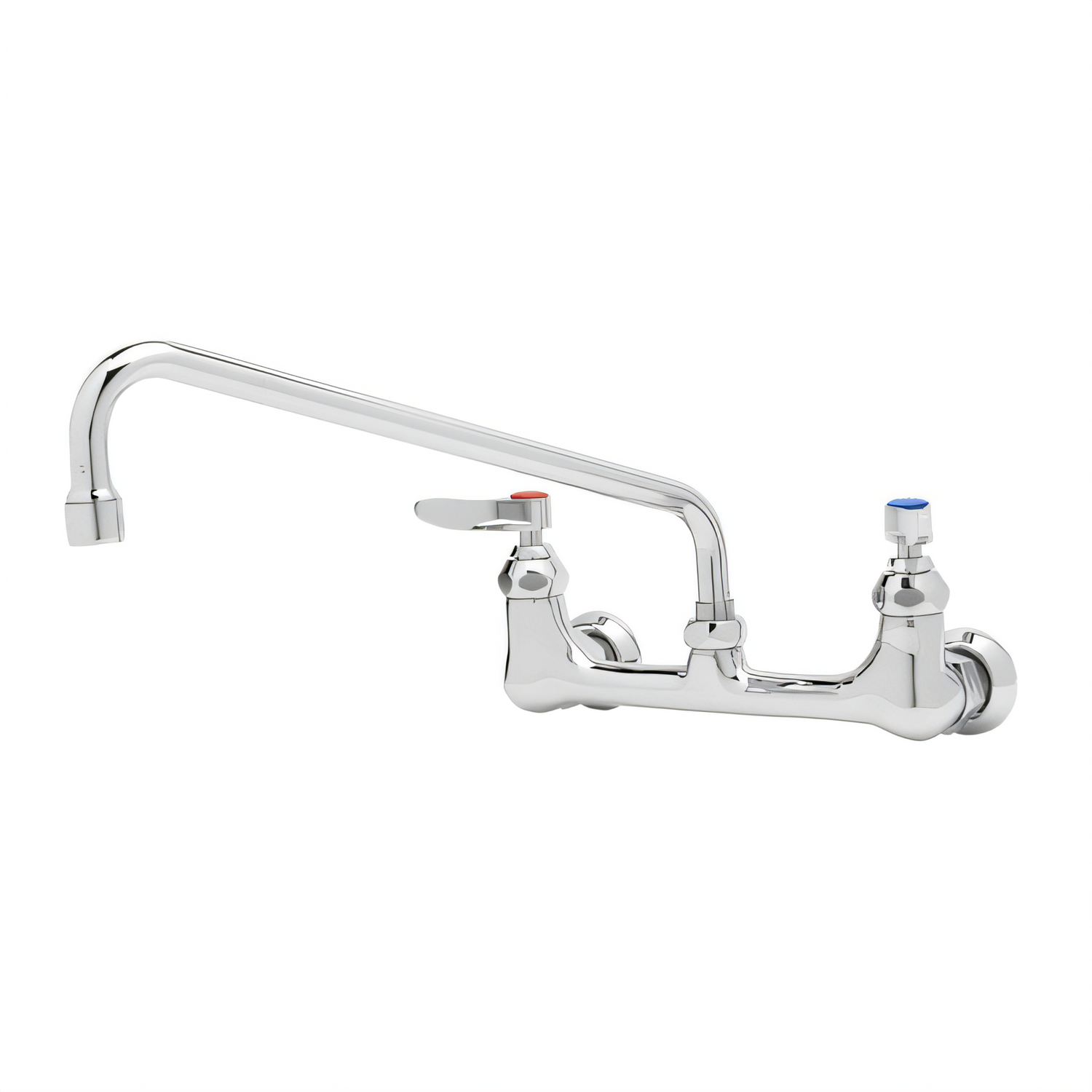

T&S Brass B-0231-EE Wall-Mount Pantry Faucet
8" centers • 12" swing nozzle • Low-lead & ADA compliantBuilt for the rigors of commercial kitchens, labs and food-service pantries, the T&S Brass B-0231-EE delivers high-flow performance, simple quarter-turn operation and legendary T&S reliability in one polished-chrome package.
Why You’ll Love It
- 12" (305 mm) swing nozzle with Series 1 stream-regulator outlet for controlled, splash-free flow
- Quarter-turn Eterna compression cartridges with integrated spring checks stop cross-flow
- 8" (203 mm) adjustable wall centers with ½" NPT male inlets – installation in minutes
- Lever handles with red/blue color-coded indexes meet ADA ANSI A117.1 requirements
- Polished chrome plated brass body and tubular spout withstand daily abuse in high-use environments
- Lock washer included – convert the nozzle from swivel to rigid when local code requires
- Certified low-lead (NSF 372) and compliant with ASME A112.18.1 / CSA B125.1
Technical Specifications
| Model | B-0231-EE |
|---|---|
| Mounting type | Wall mount, 8" adjustable centers (rough-in: two 1" Ø mounting holes) |
| Inlet connections | ½" NPT male, Ø 2" adjustable flanges (EE inlets) |
| Nozzle | 12" swing spout (062X) with stream-regulator outlet; converts to rigid with included lock washer |
| Cartridges | Quarter-turn Eterna compression w/ spring checks (hot & cold) |
| Flow rate | 23.09 GPM @ 60 psi (standard outlet) |
| Operating pressure | 20 – 125 psi (1.38 – 8.62 bar) |
| Operating temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Body & handles material | Polished chrome plated brass body & spout, chrome plated metal lever handles |
| Compliance | NSF 61 §9, NSF 372 (low lead), ASME A112.18.1 / CSA B125.1, ADA ANSI A117.1 |
| Warranty | 1-year limited manufacturer warranty |
| Master pack | 6 faucets per carton |
Performance Options (sold separately)
- Series 1 & VR Series 6 outlets from 0.35 GPM laminar to 2.2 GPM aerated
- Alternative handle styles – 4" wrist-action or 4-arm
- Cerama cartridges with integral check valves
Need help choosing outlets or accessories? Contact our team and we’ll get you the perfect configuration.
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Certifications
ADA Compliant
Shipping Weight
34.0lbs
Lead Compliance
low lead
Mounting
wall mount
Valve Type
compression valves
Spout / Nozzle Type
double joint spout
Specifications
Pantry Faucet, double, 12" swing nozzle (062X), wall mount, 8" centers, EE inlets, quarter-turn Eterna cartridges, low lead, ADA Compliant (6 each per master pack)
