T&S Brass B-0231-CR-M Commercial Faucets & Plumbing
Description

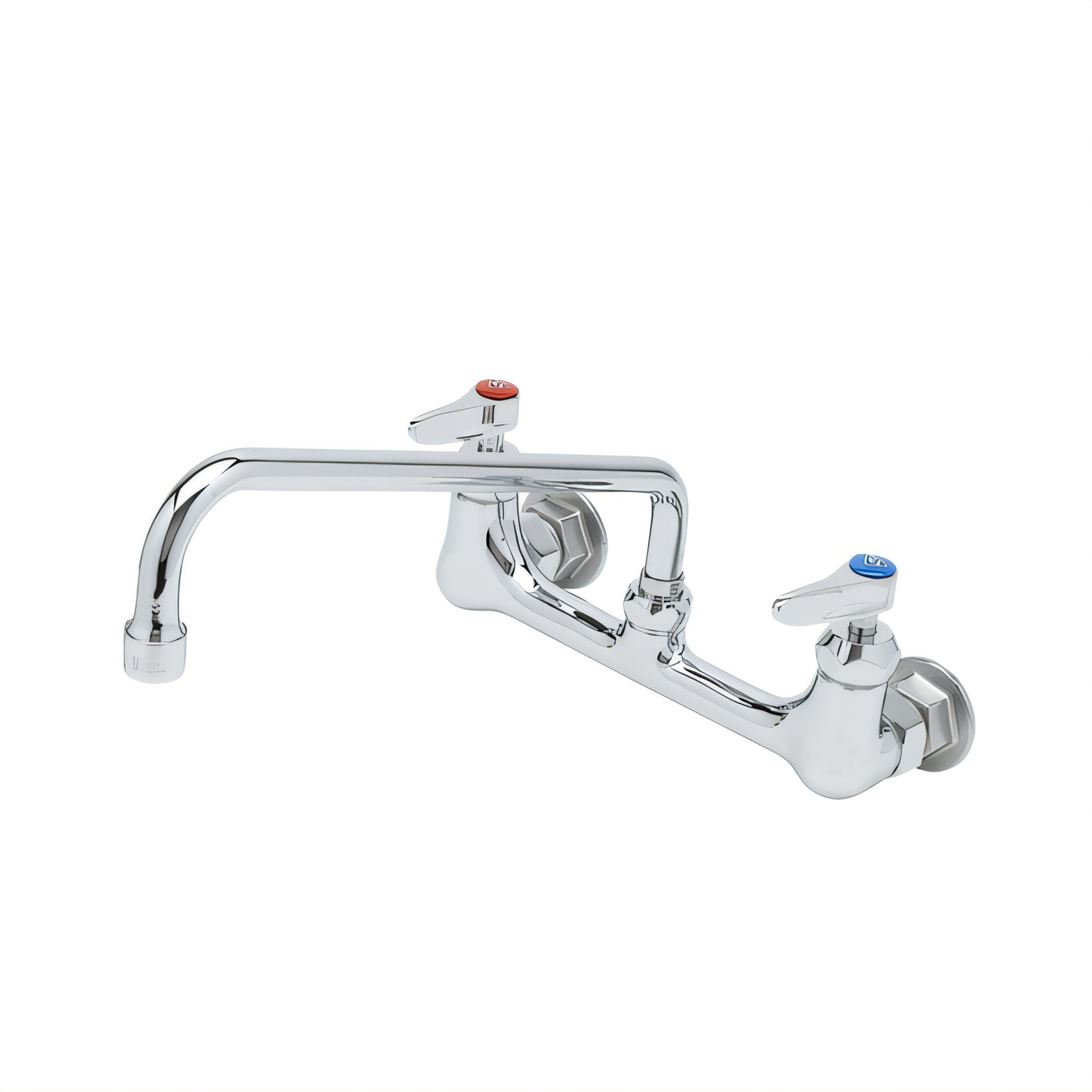

T&S Brass B-0231-CR Double Pantry Faucet
8" wall-mount • 12" swing nozzle • low-lead & ADA compliantEngineered for demanding food-service, laboratory and institutional settings, the B-0231-CR couples a rugged chrome-plated brass body with smooth quarter-turn Cerama cartridges to deliver years of trouble-free service. Each master pack contains six (6) faucets, ready to install straight out of the box.
Key features
- 8" wall-mount mixing faucet with polished chrome plated brass body
- 12" swing nozzle with Series 1 stream-regulator outlet (lock washer included for rigid installation)
- Quarter-turn Cerama cartridges with integrated check valves prevent cross-flow
- Lever handles with red & blue index buttons – ADA approved
- 1/2" NPT female eccentric inlets; centers adjustable 7 3/4"–8 1/4" for easy retrofit
- Polished chrome plated metal handles and body resist corrosion and simplify cleaning
- Certified low-lead (NSF 372) for potable water applications
- Ships in master cartons of six for streamlined stocking and project roll-outs
Technical specifications
| Model / SKU | B-0231-CR |
|---|---|
| Mounting | 8" (203 mm) wall centres, 1" (25 mm) mounting holes required |
| Inlet connection | 1/2" NPT female eccentric flanges |
| Nozzle | 12" (305 mm) swing, convertible to rigid |
| Flow rate | 14.58 GPM @ 60 psi (standard outlet) |
| Operating pressure | 20 – 125 psi (138 – 862 kPa) |
| Water temperature | 40 °F – 180 °F (4 °C – 82 °C) |
| Body material | Polished chrome plated brass |
| Cartridges | Quarter-turn ceramic (Cerama) with check valves |
| Compliance |
ASME A112.18.1 / CSA B125.1 NSF 61 Sect. 9 | NSF 372 (low lead) ANSI A117.1 / ICC (ADA) |
| Warranty | 1-Year limited (faucet) | Lifetime limited (Cerama cartridges) |
| Pack quantity | 6 faucets per master carton |
Optional upgrades (sold separately)
- Low-flow, laminar & vandal-resistant outlets (Series 1 & VR Series 6)
- 4" wrist-action or 4-arm handles
- Quarter-turn Eterna cartridges with spring checks

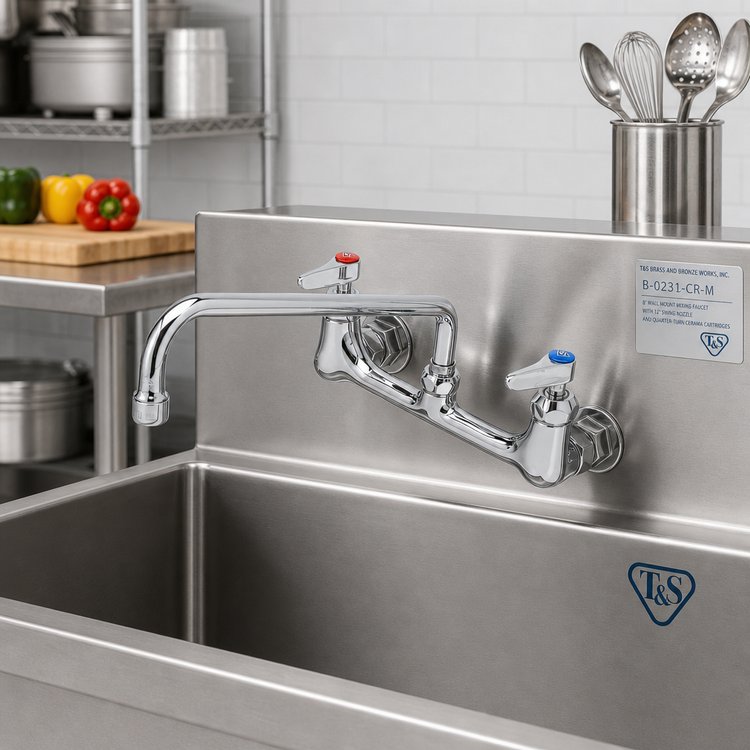

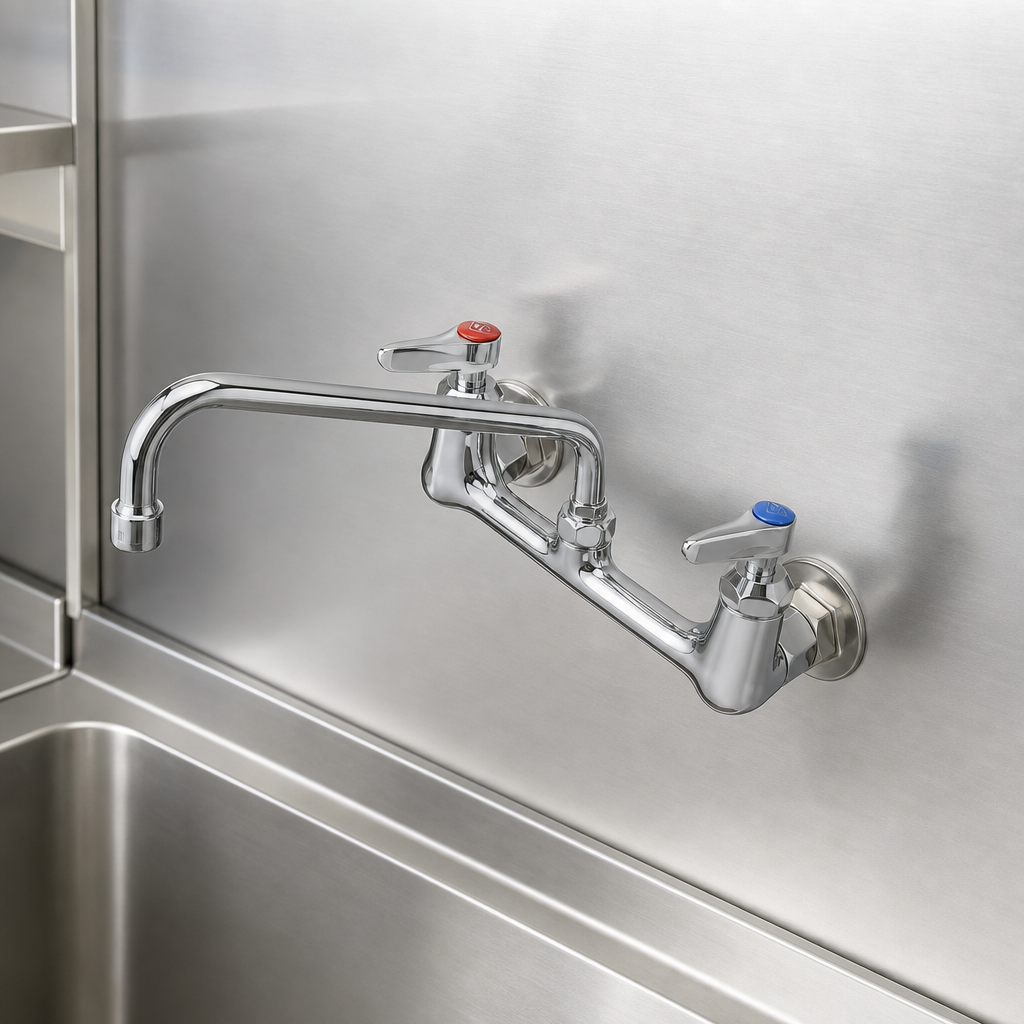

Images may show optional accessories. Sink, supply lines and other components are not included.
