T&S Brass B-0231-CCM Commercial Faucets & Plumbing
Description

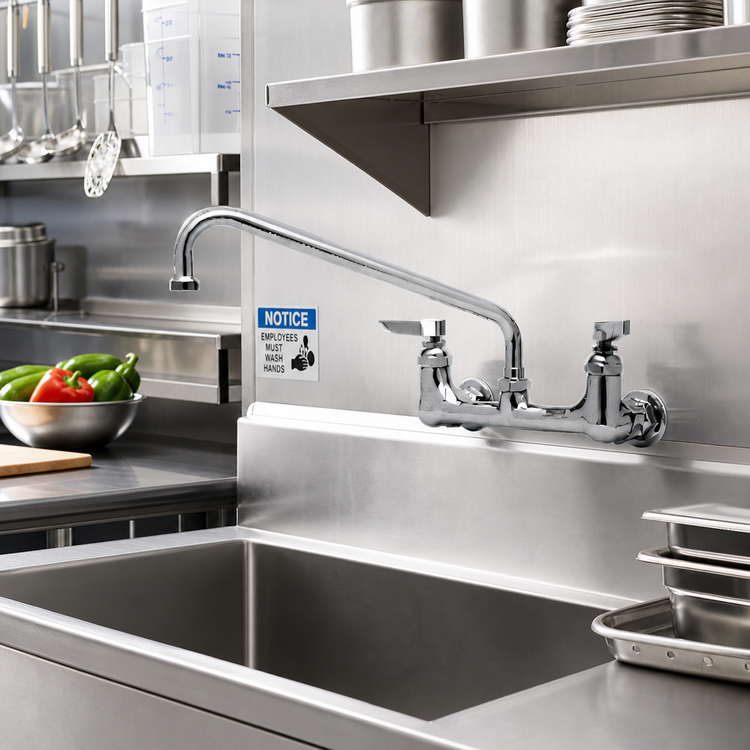

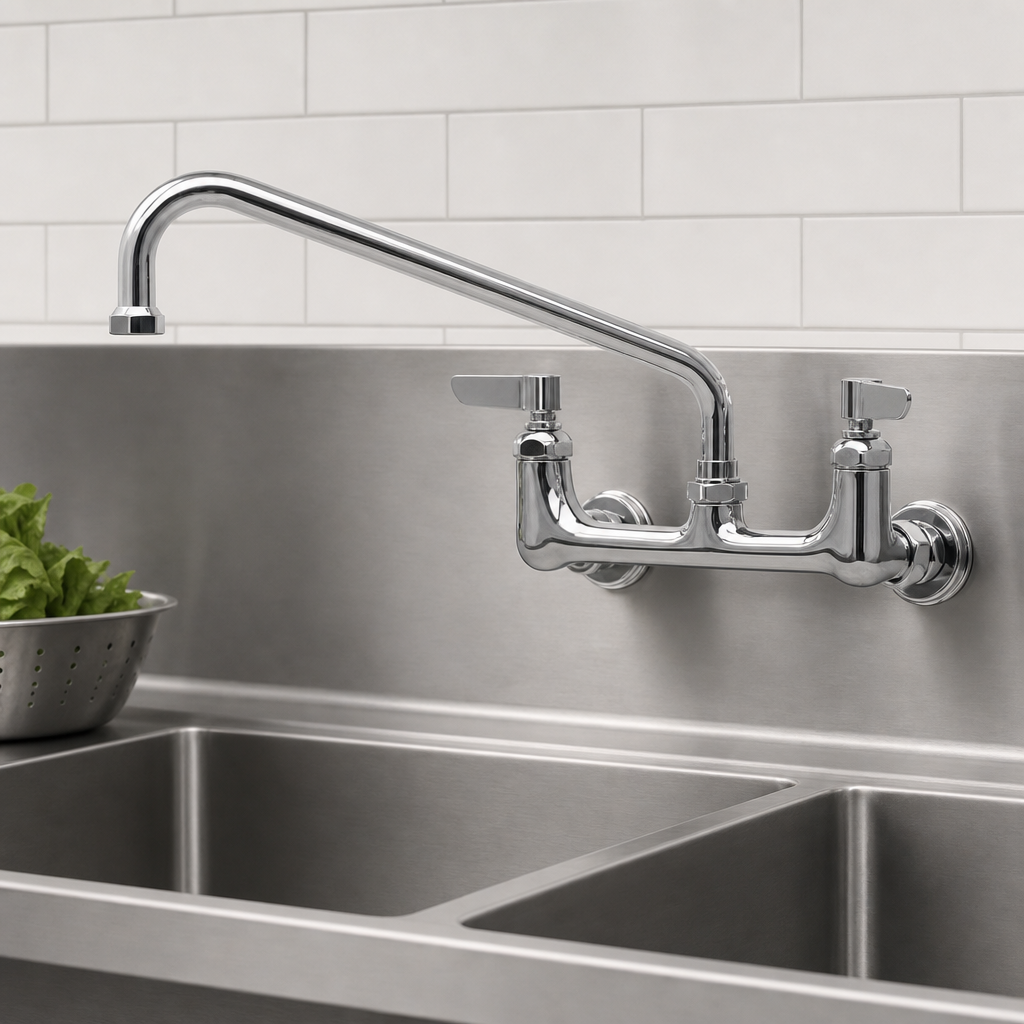

T&S Brass B-0231-CC 8" Wall-Mount Sink Mixing Faucet
12" swing nozzle • lever handles • quarter-turn Eterna cartridgesEngineered for demanding commercial applications, the B-0231-CC combines rugged brass construction with the everyday convenience of a full-flow 12" swing spout. Quarter-turn Eterna cartridges with integral spring checks stop cross-flow the instant you shut the water off, while color-coded lever handles provide smooth, ADA-compliant operation. Certified low-lead and built to deliver up to 23 GPM, this faucet is the reliable workhorse your sink bank deserves.
Features & benefits
- 8" (203 mm) wall-mount centers with 1/2" NPT male inlets & 1 ⅜" hex flanges
- Polished chrome-plated brass body for maximum corrosion resistance
- 12" (305 mm) swing nozzle with Series 1 stream-regulator outlet (55/64-27 thread)
- Quarter-turn Eterna compression cartridges with integral spring checks
- Lever handles with red/blue index buttons — easy, ADA-compliant control
- Lock washer included for optional rigid-spout installation
- High-flow performance: 23.09 GPM @ 60 psi
- Low-lead compliant (NSF 372) & fully certified for potable water service
Technical specifications
| Manufacturer / Model | T&S Brass & Bronze Works • B-0231-CC |
|---|---|
| Mounting style | 8" wall mount, 1" (25 mm) mounting holes |
| Inlet connection | 1/2" NPT male |
| Nozzle | 12" swing spout with stream-regulator outlet (converts to rigid with supplied lock washer) |
| Cartridges | Quarter-turn Eterna compression, hot & cold, with spring checks |
| Handles | Chrome-plated metal lever handles, color-coded indexes (ADA compliant) |
| Body material | Polished chrome-plated brass |
| Flow rate | 23.09 GPM @ 60 psi (full flow) |
| Operating pressure | 20 – 125 psi |
| Operating temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Certifications |
ASME A112.18.1 / CSA B125.1 NSF 61 Section 9 • NSF 372 (low lead) ANSI A117.1 / ICC ADA compliant |
| Warranty | One-year limited manufacturer warranty |
| Master pack | 6 faucets per carton |
Lead-content certified to NSF/ANSI Standard 372. ADA compliance verified to ANSI A117.1 for accessible design.
