Description

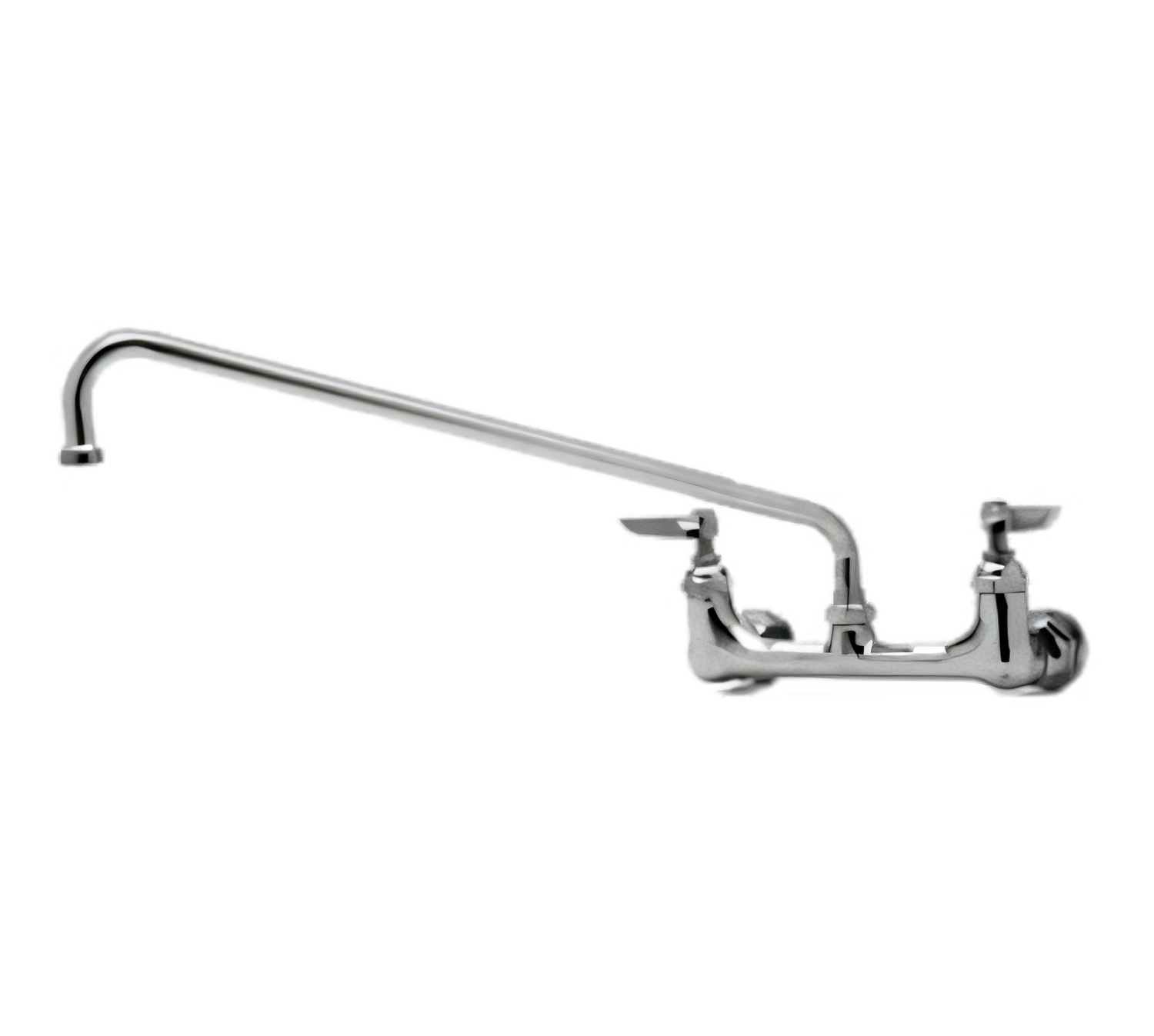

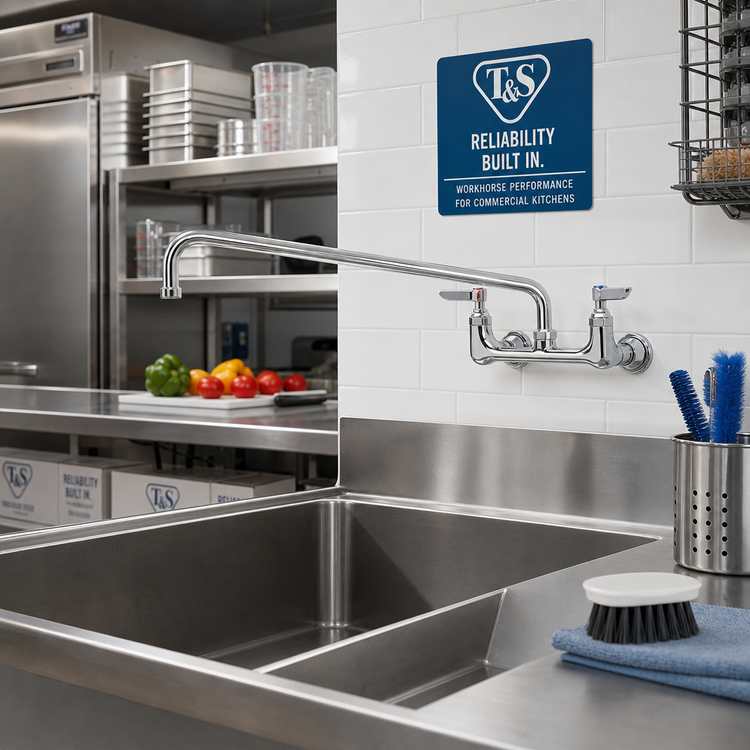

T&S Brass B-0230 8" Wall-Mount Mixing Faucet | 18" Swing Nozzle
Low-Lead • ADA Compliant • Master Carton (6 pcs)Built for demanding commercial kitchens, prep sinks, and utility areas, the T&S Brass B-0230 delivers high flow, rock-solid durability, and worry-free code compliance in one polished-chrome package.
Why Choose the B-0230

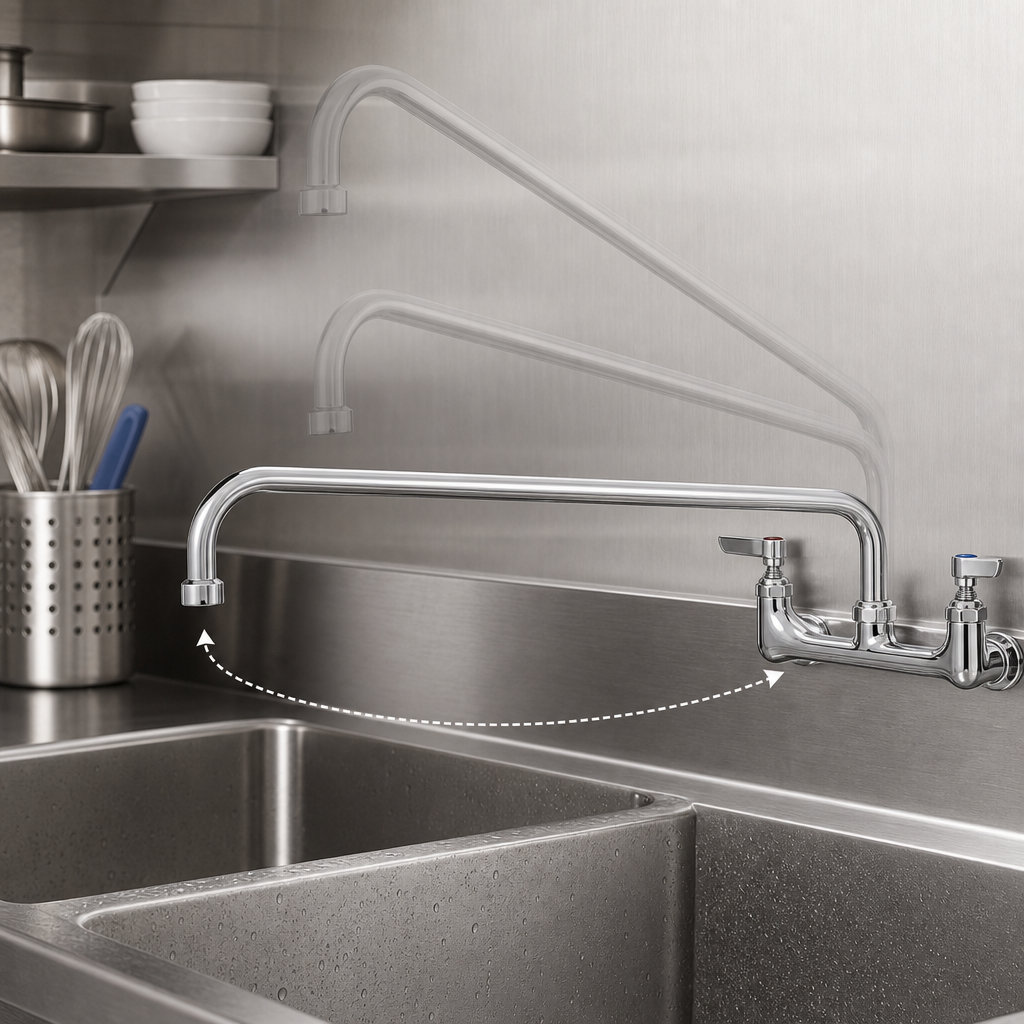

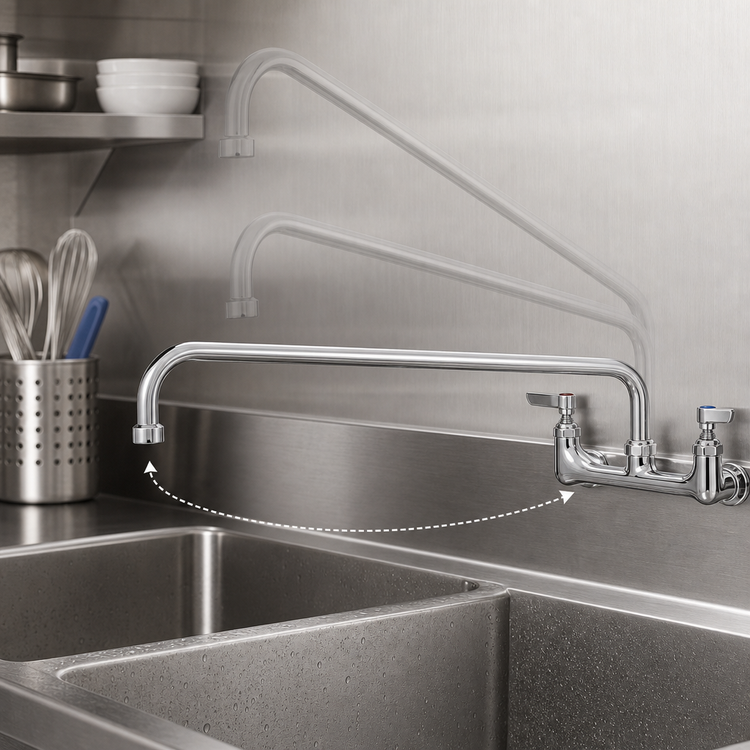

- 18" (458 mm) swing nozzle with Series 1 stream regulator outlet for fast, controlled fill-ups.
- Quarter-turn Eterna cartridges with built-in spring checks stop cross-flow between hot & cold lines.
- 8" (203 mm) wall-mount centers—adjustable 7 3/4" to 8 1/4"—for easy retrofit installs.
- 1/2" IPS female eccentric inlets with Ø 2" flanges simplify rough-in and alignment.
- Lever handles with red/blue color indexes meet ANSI/ICC A117.1 (ADA) grasp-force requirements.
- Polished chrome-plated brass body & tubular spout resist corrosion and daily wear.
- Lock washer included for optional rigid-nozzle conversion.
- Certified low-lead brass—NSF 61 & NSF 372 compliant.
Technical Specs
| Manufacturer / Model | T&S Brass B-0230 |
|---|---|
| Installation | Wall mount, 8" centers (7 3/4" – 8 1/4" adjustable) |
| Inlet Connections | 1/2" NPT female eccentric flanges |
| Nozzle | 18" swivel swing nozzle with stream regulator outlet |
| Cartridges | Quarter-turn Eterna compression, spring checks |
| Handles | Lever, chrome-plated metal, color-coded indexes |
| Flow Rate | 23.09 GPM @ 60 psi |
| Operating Pressure | 20 – 125 psi |
| Water Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Construction | Polished chrome-plated brass body & spout |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61 Sec 9, NSF 372, ANSI A117.1 (ADA) |
| Warranty | 1-year limited |
| Pack Quantity | Master carton – 6 units |
Important: This SKU ships as a master carton containing six (6) complete faucets.
Individual faucets are not repackaged for resale.
Specifications and compliance data are provided by T&S Brass and are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Certifications
ADA Compliant
Shipping Weight
42.0lbs
Valve Type
compression valves
Faucet Centers
8" centers
Mounting
wall mount
Lead Compliance
low lead
Spout / Nozzle Type
standard swing / swivel spout
Spout Length (overall)
17 - 19" spout
Specifications
Sink Mixing Faucet, 18" swing nozzle, wall mounted, 8" centers on sink faucet with 1/2" IPS eccentric flanged female inlets, lever handles, quarter-turn Eterna cartridges, low lead, ADA Compliant (master carton of 6 units)
