T&S Brass

T&S Brass 8-Inch Wall-Mounted Double Pantry Sink Mixing Faucet, Less Nozzle

SKU: B-0230-CCLNM
GTIN: 671262153096
$946.19
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies Equipment New Arrivals Plumbing & Water Treatment Pre-rinse Faucets Restaurant Equipment Sinks & Handwashing Stations T&S Brass

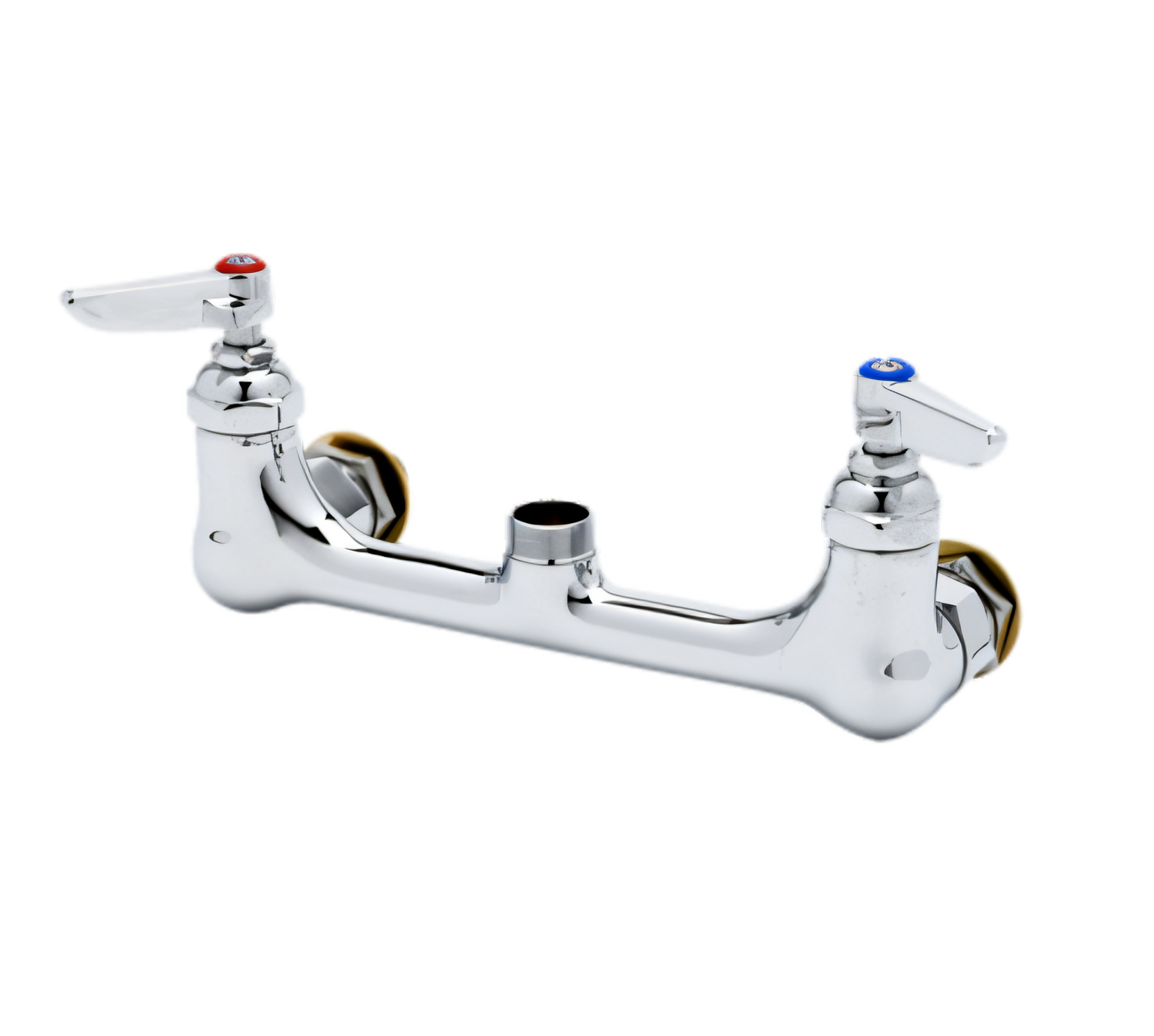

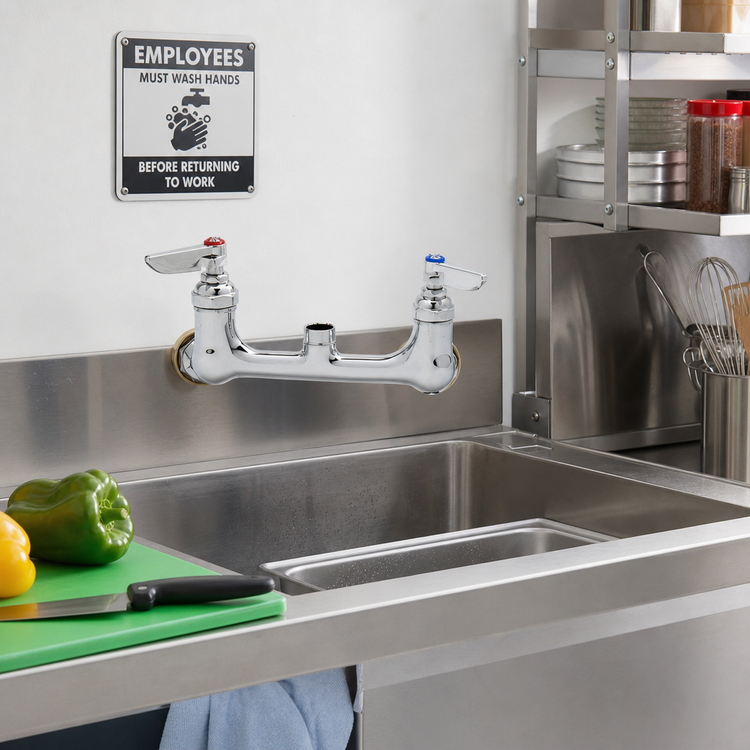

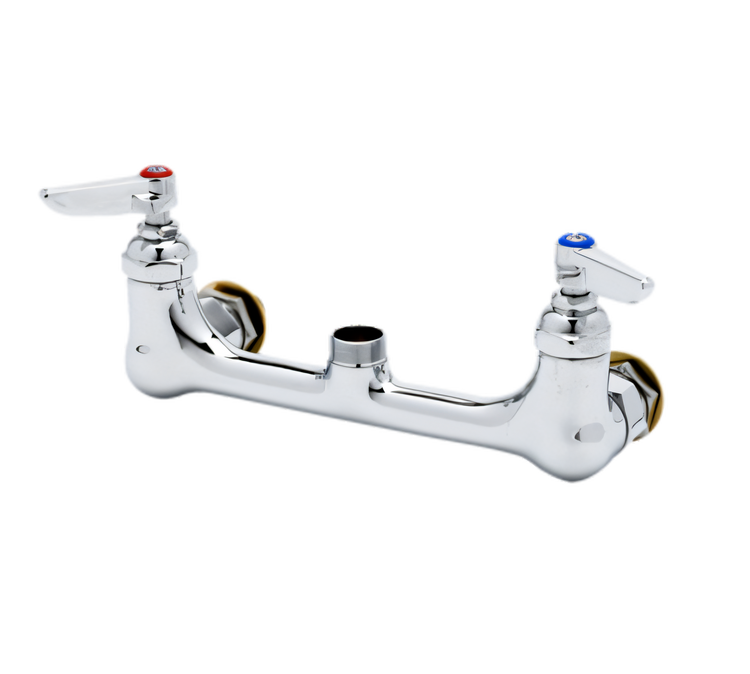

T&S Brass 8-Inch Wall-Mounted Double Pantry Sink Mixing Faucet, Less Nozzle

Polished Chrome Brass, Lever Handles, Quarter-Turn Eterna Cartridges

A rugged wall-mounted commercial faucet with low-lead construction, easy lever operation, and a swivel outlet ready for standard T&S nozzles.

  • 8-inch wall-mount mixing faucet for sink and pantry applications.
  • Supplied less nozzle; swivel outlet accepts standard T&S swing nozzles.
  • Quarter-turn Eterna cartridges with spring checks help prevent cross flow.
  • Lever handles with color-coded indexes simplify hot and cold identification.
  • 1/2-inch NPT male inlets with hex flanges support a rigid installation.
  • Chrome plated brass construction meets ADA and low-lead requirements.

Product Weight:

42.0 lb

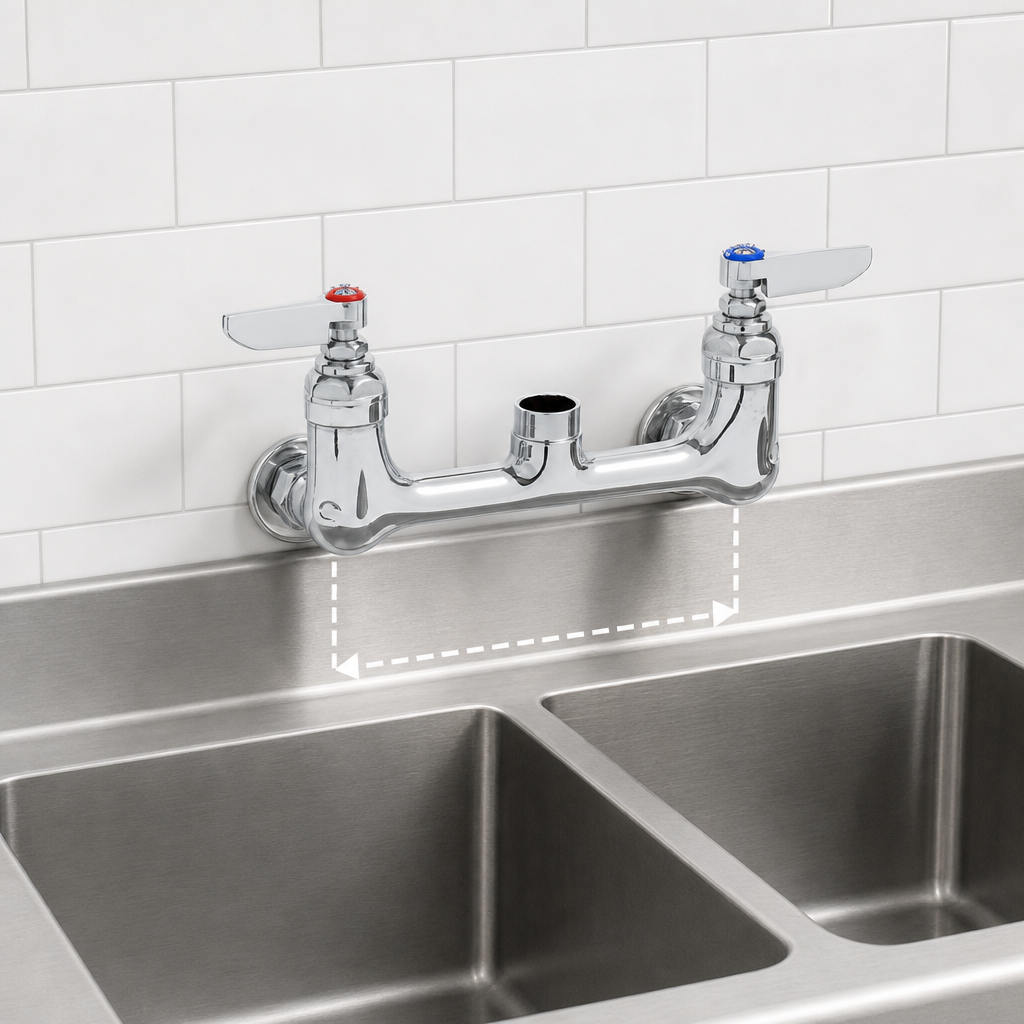

8-Inch Wall Mount Centers

Designed for 8-inch center-to-center wall mounting on sink and pantry applications.

8-Inch Wall Mount Centers

Less Nozzle Design

Supplied without a nozzle; the swivel outlet accepts standard T&S swing nozzles.

Quarter-Turn Eterna Cartridges

Quarter-turn cartridges with spring checks help reduce cross flow of hot and cold water.

Lever Handles

Lever-style handles include color-coded indexes for quick hot and cold identification.

1/2-Inch NPT Male Inlets

Male inlet connections with 1 5/16-inch hex flanges help support a secure, rigid installation.

Chrome Plated Brass Body

Polished chrome plated brass construction is built for commercial durability.

Low-Lead and ADA Compliant

Meets NSF 372 low lead content requirements and ANSI A117.1 ADA requirements.

Installation Clearance

Designed for mounting surfaces up to 1/8 inch thick.

Type Sink Mixing Faucet
Style Double Pantry Faucet
Installation Type Wall Mounted
Faucet Centers 8 Inches
Material Brass
Finish Polished Chrome
Water Inlet Size 1/2 Inch NPT Male Inlets
Cartridge Type Quarter-Turn Eterna Cartridges with Spring Checks
Handle Type Lever Handles
Lead Compliance Low Lead
Flow Rate 28.63 GPM @ 60 PSI
Pressure Range 20 to 125 PSI
Temperature Range 40 to 140 Degrees F
Shipping Weight 42 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

No. It is supplied less nozzle, and the swivel outlet accepts standard T&S swing nozzles.
It is an 8-inch wall mount faucet.
It uses 1/2-inch NPT male inlets with 1 5/16-inch hex flanges.
Yes. It meets ANSI A117.1 ADA requirements and NSF 372 low lead content requirements.
The faucet is rated for 20 to 125 psi, 40 to 140 degrees F, and 28.63 GPM at 60 psi; final outlet configuration may reduce flow rate.
