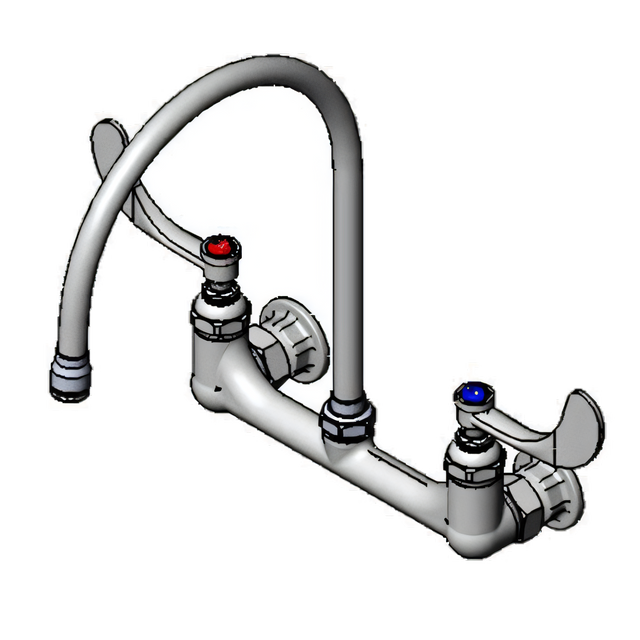

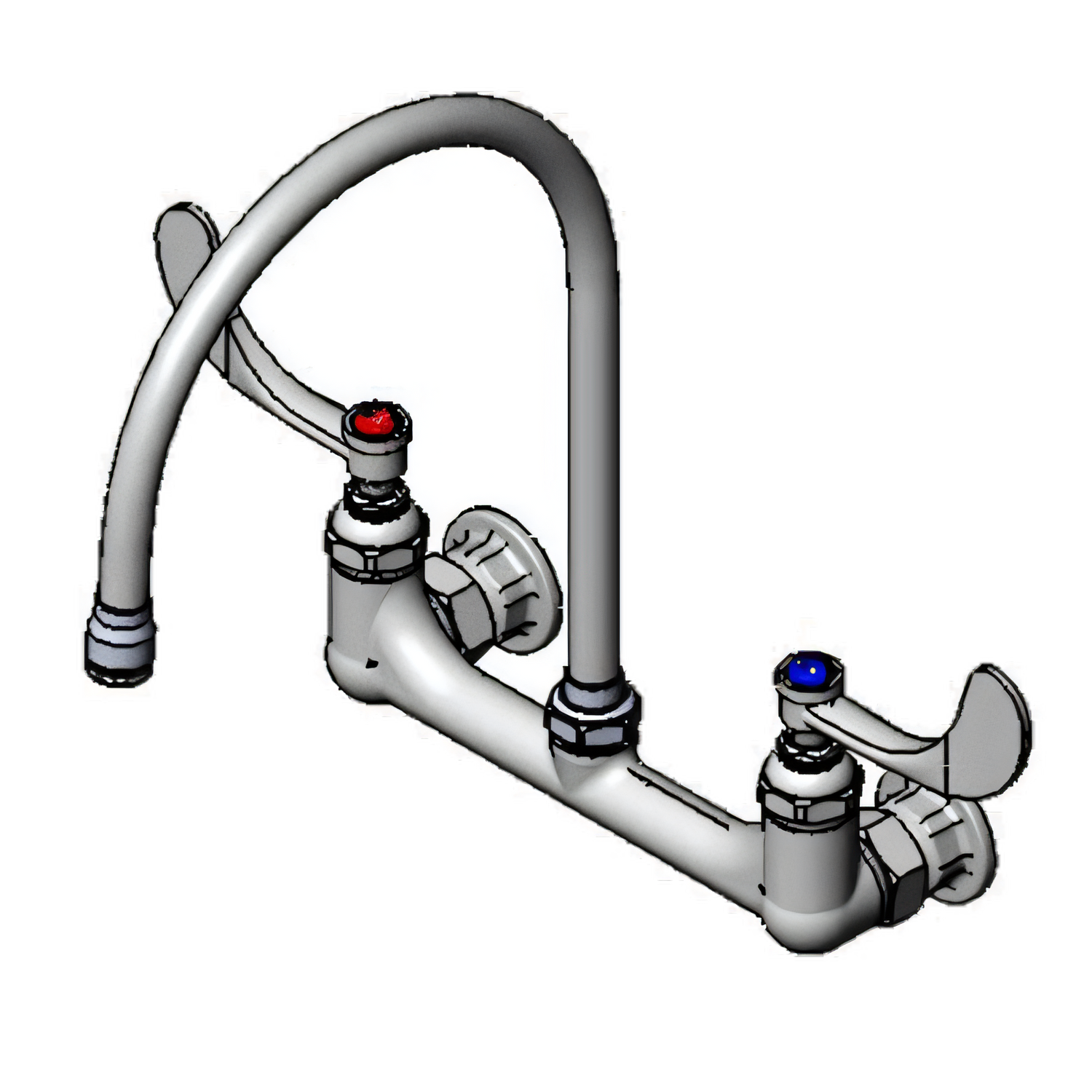

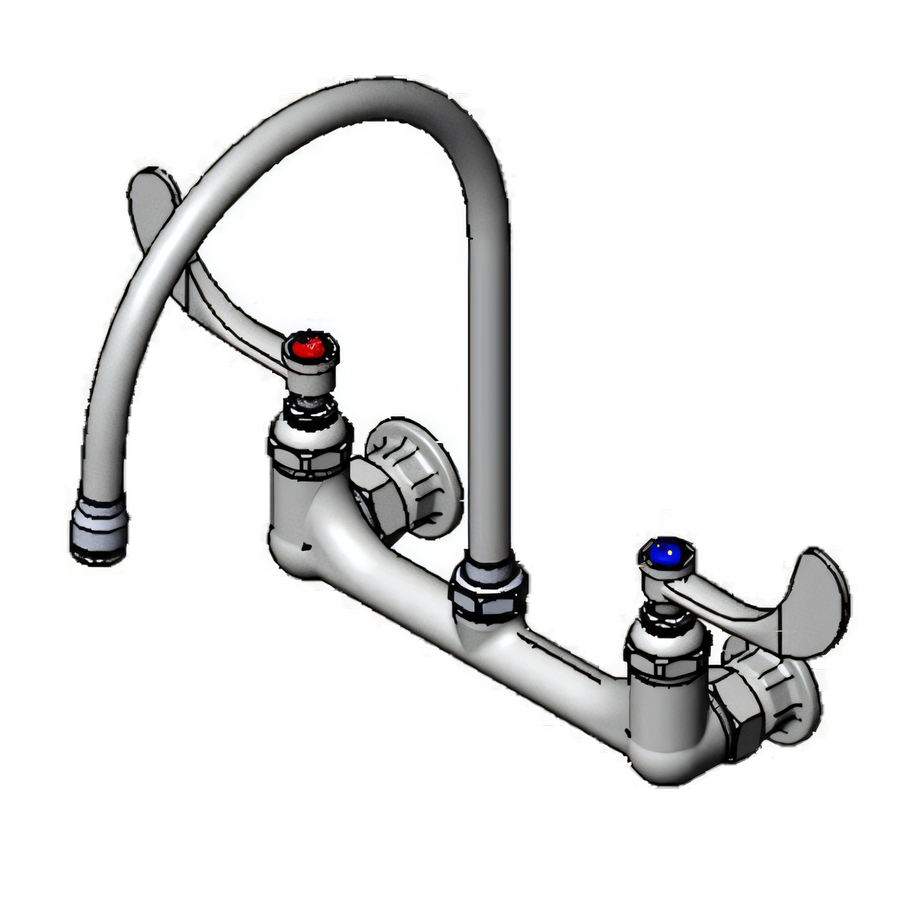

T&S Brass Double Pantry Mixing Faucet, Wall Mount, 8 Inch Centers, 8 3/4-Inch Swivel Gooseneck

Low Lead, ADA Compliant, 4-Inch Wrist Handles

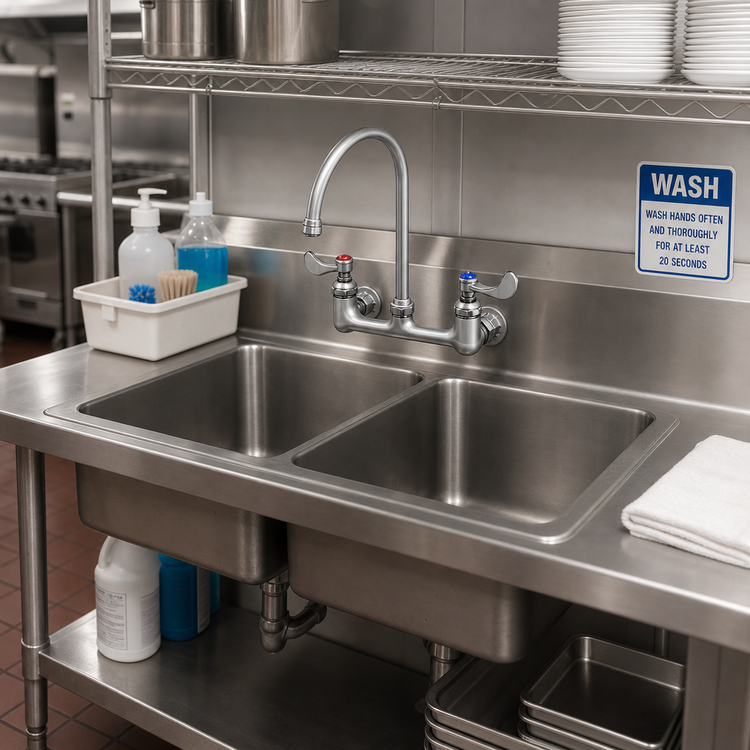

Built for commercial sink and pantry stations, this wall-mount mixing faucet combines durable chrome-plated brass construction with smooth quarter-turn operation and an adjustable gooseneck.

  • Double wall-mount pantry mixing faucet for commercial sink stations
  • Adjustable 8-inch centers with a 7 3/4-inch to 8 1/4-inch installation range
  • 8 3/4-inch swivel/rigid gooseneck with stream regulator outlet for controlled flow
  • Quarter-turn Eterna compression cartridges with spring checks help prevent cross flow
  • 4-inch wrist action handles with color-coded indexes for easy temperature and flow control
  • Polished chrome plated brass body with 1/2-inch NPT female inlets
  • Low lead and ADA compliant for code-conscious installations

Product Weight:

6.25 lb

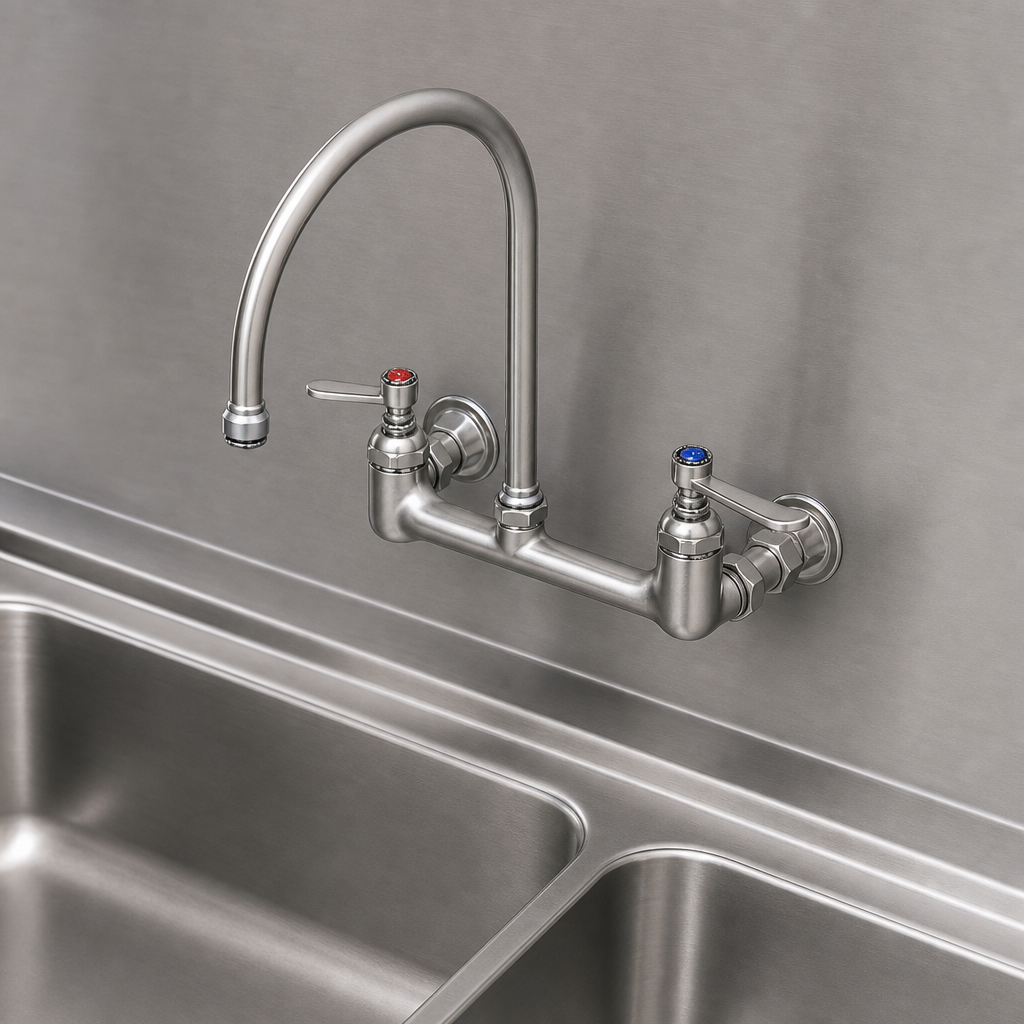

Wall-Mount Mixing Design

8-inch wall-mount faucet designed for pantry and sink applications.

Chrome-Plated Brass Body

Polished chrome plated brass construction offers durability and an easy-to-clean finish.

Swivel/Rigid Gooseneck Spout

8 3/4-inch gooseneck includes a stream regulator outlet for controlled water flow.

Quarter-Turn Eterna Cartridges

Compression cartridges with spring checks help prevent cross flow of water.

4-Inch Wrist Action Handles

Color-coded wrist handles provide quick, intuitive hot and cold operation.

Adjustable Center Spacing

Fits installations from 7 3/4 inches to 8 1/4 inches center-to-center.

1/2-Inch NPT Female Inlets

Standard female inlet connection simplifies installation.

Low Lead and ADA Compliant

Meets NSF 372 low-lead requirements and ADA ANSI/ICC A117.1 requirements.

Rigid Application Support

Lock washer is provided for rigid installation applications.

Type Pantry Mixing Faucet
Style Double
Installation Type Wall Mounted
Mounting Type Wall Mount
Spout Length 8 3/4 Inches
Nozzle Type Stream Regulator
Handle Type 4-Inch Wrist Action
Material Brass
Finish Polished Chrome Plated
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 2.09 GPM @ 60 PSI
Operating Pressure 20 PSI to 125 PSI
Operating Temperature Range 40 °F to 140 °F
Center Adjustment Range 7 3/4 Inches to 8 1/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Weight 6.25 Pounds

Certifications & Compliance

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. It is an 8-inch wall mount mixing faucet with adjustable centers from 7 3/4 inches to 8 1/4 inches.
It has an 8 3/4-inch swivel/rigid gooseneck with a stream regulator outlet.
The standard configuration uses quarter-turn Eterna compression cartridges with spring checks.
Yes. The faucet meets ADA ANSI/ICC A117.1 requirements.
The listed flow rate is 2.09 GPM at 60 psi.
It includes a one-year limited warranty.
