T&S Brass B-0222-M Commercial Faucets & Plumbing
Description

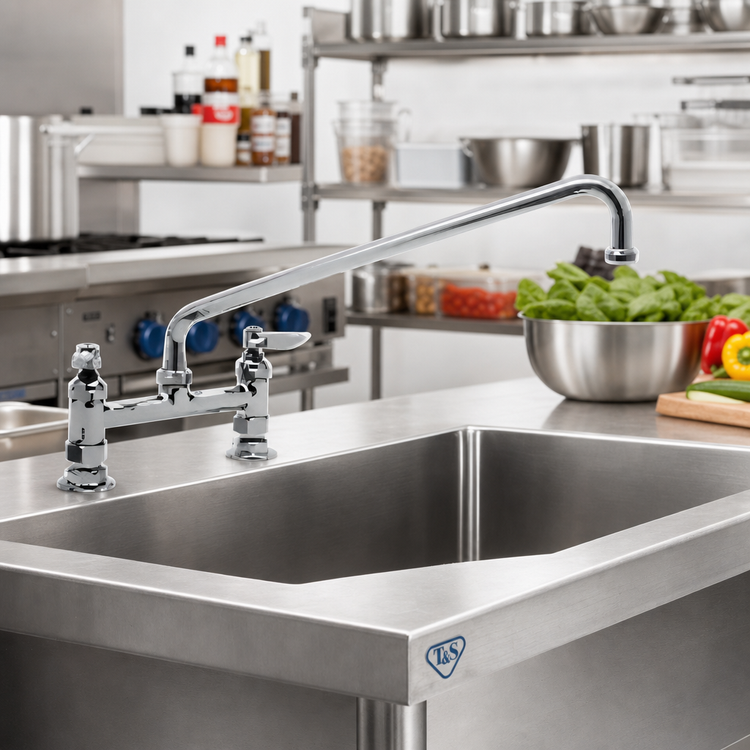

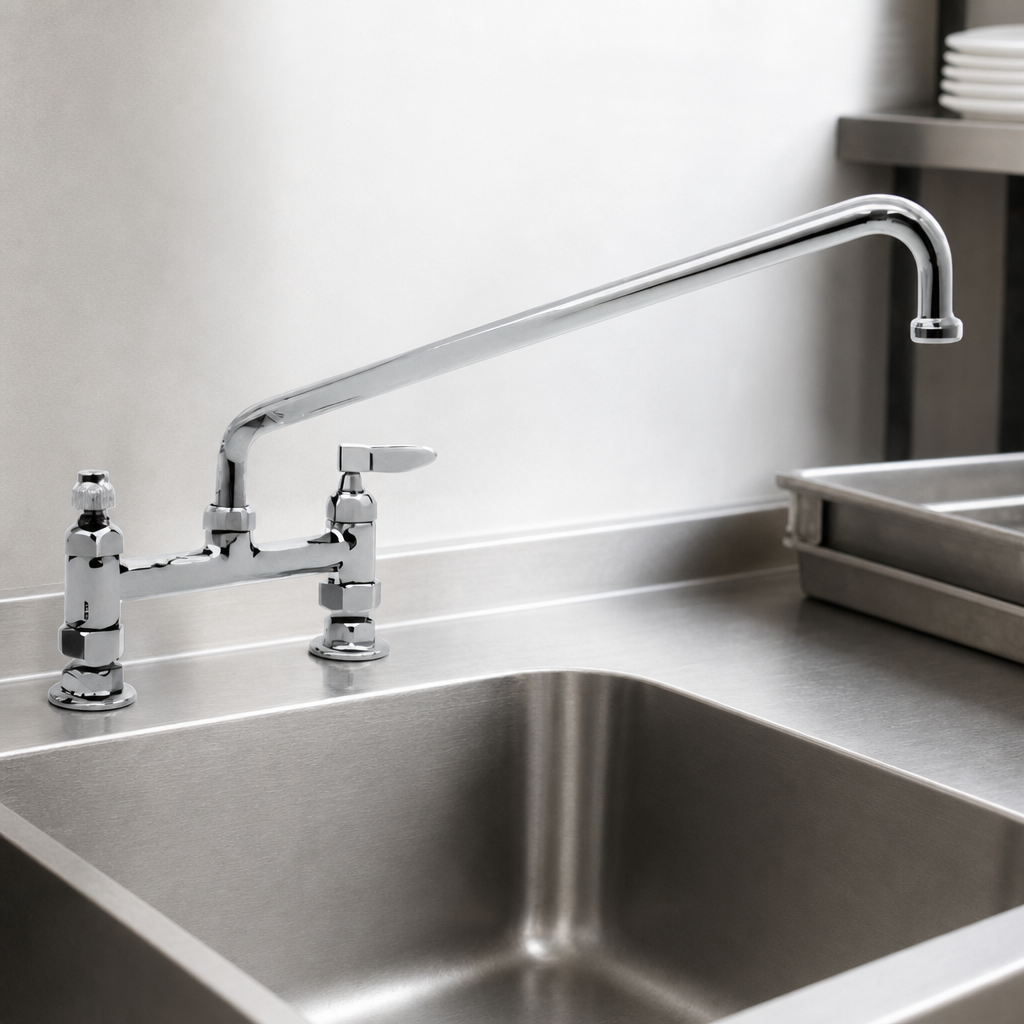

T&S Brass B-0222 8" Deck-Mount Mixing Faucet
6" swing nozzle • Quarter-turn Eterna cartridges • Low-lead & ADA compliantEngineered for heavy-duty food-service use, the T&S Brass B-0222 delivers the durability professionals demand with the smooth, quarter-turn action they love. Its high-capacity 6" swing nozzle fills large pots fast while built-in spring checks stop cross-flow between hot and cold lines—keeping your water supply safe and code-compliant.
Key Features
- 8" (203 mm) deck centers – adjustable 7 ¾"–8 ¼" for easy retrofits
- 6" (152 mm) swing nozzle with Series 1 stream-regulator outlet
Lock washer included for optional rigid setup - Quarter-turn Eterna compression cartridges with spring checks to prevent cross-flow
- Color-coded lever handles meet ANSI A117.1 (ADA) requirements
- 1/2" NPT female eccentric inlets with Ø2" flanges for secure mounting
- Polished chrome-plated brass body and tubular spout resist corrosion
- Certified low-lead construction – safe for potable water applications
Performance Data
| Flow rate | 23.09 GPM @ 60 psi (standard outlet) |
|---|---|
| Pressure range | 20 – 125 psi |
| Temperature range | 40 °F – 140 °F |
Technical Specifications
| Nozzle length / style | 6" swing (converts to rigid) |
|---|---|
| Cartridges | Quarter-turn Eterna w/ spring checks (hot & cold) |
| Inlet size / type | 1/2" IPS (NPT) eccentric female |
| Center distance | 8" nominal (7 ¾"–8 ¼" adjustable) |
| Body material / finish | Chrome-plated brass |
| Handle type | Metal lever, color-indexed |
| Warranty | 1-year limited manufacturer warranty |
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 – Section 9
- NSF 372 (Low Lead Content)
- ANSI/ICC A117.1 – ADA Compliant
Packed 6 faucets per master carton. Optional outlet devices, handles, and Cerama cartridges are available separately from T&S Brass.
