T&S Brass B-0221-M Commercial Faucets & Plumbing
Description
T&S Brass B-0221 Deck-Mounted Mixing Faucet – 12" Swing Nozzle
8" adjustable centers | 1/2" IPS female inlets | Low-lead & ADA compliantBuilt for demanding food-service, hospitality and institutional kitchens, the T&S Brass B-0221 delivers exceptional durability, effortless maintenance and industry-leading certifications in a compact, deck-mounted package. Quarter-turn Eterna cartridges with integral spring checks guard against cross-flow, while a generous 12" swing nozzle maximizes reach across large compartment sinks or prep tables.
Key Features & Benefits

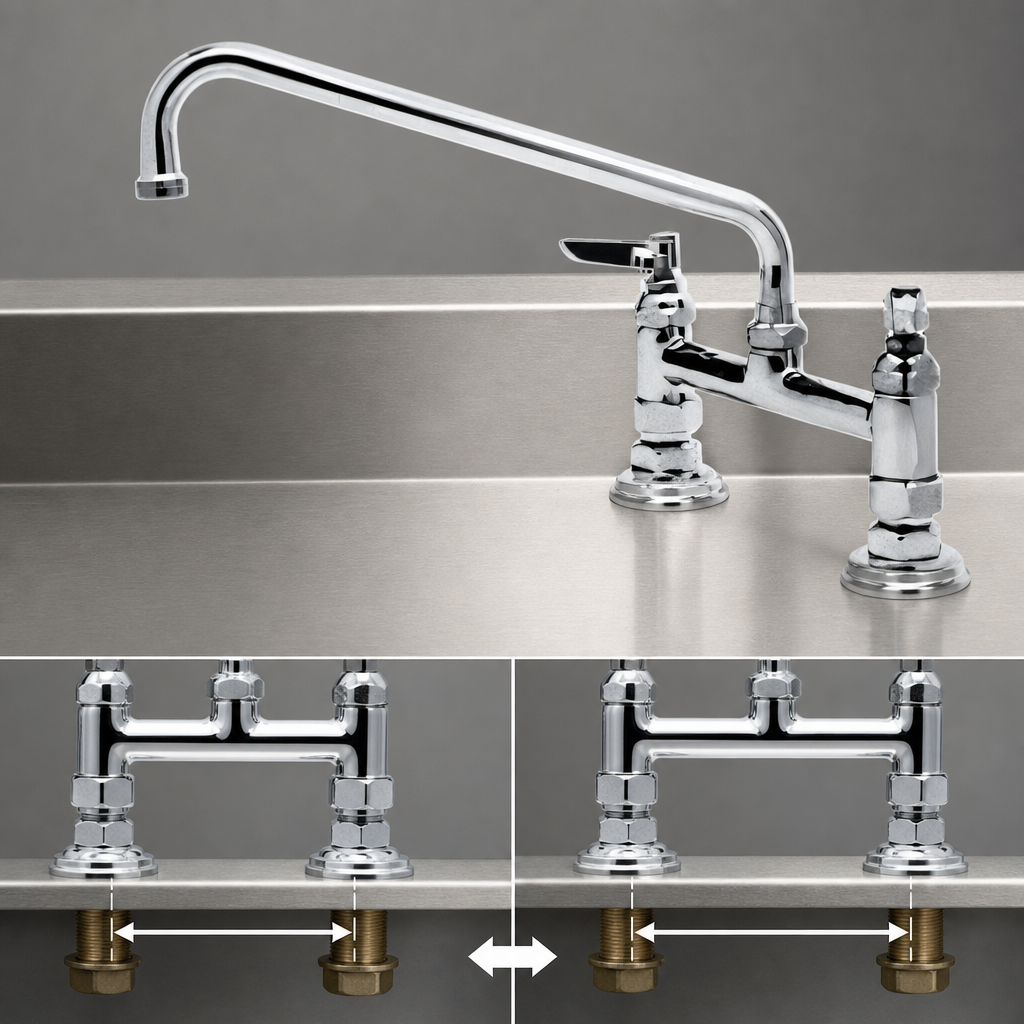

- 8" deck-mount design with adjustable centers (7 3/4"–8 1/4").
- Polished chrome-plated brass body resists corrosion and cleans up fast.
- 12" (305 mm) swing nozzle with factory-installed stream regulator for a smooth, full-flow rinse.
- Quarter-turn Eterna compression cartridges with spring checks prevent unwanted hot/cold cross-flow.
- Color-coded lever handles provide quick, positive operation and meet ADA/ANSI A117.1 requirements.
- 1/2" IPS eccentric female inlets with 2" flanges simplify retrofit installations.
- Lock washer included to convert the swivel nozzle to a rigid setup when required.
- Low-lead construction; certified to NSF 372 and all applicable U.S. & Canadian standards.
Technical Specifications
| Manufacturer / Model | T&S Brass & Bronze Works – B-0221 |
|---|---|
| Mounting Style | Deck mount, 8" centers (adjustable 7 3/4"–8 1/4") |
| Nozzle Type | 12" swing, full-flow stream regulator outlet; converts to rigid with supplied lock washer |
| Inlet Connections | 1/2" IPS female, eccentric, with 2" round flanges |
| Cartridges | Quarter-turn Eterna compression cartridges with integral spring checks (hot & cold) |
| Flow Rate | 18.39 GPM @ 60 psi (stream regulator) |
| Operating Pressure | 20 – 125 psi |
| Operating Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Body / Handle Material | Polished chrome-plated brass body & tubular spout; chrome-plated metal lever handles |
| Overall Width | 12 5/8" (321 mm) |
| Warranty | One-year limited manufacturer warranty |
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 – Section 9 (Drinking Water System Components)
- NSF/ANSI 372 – Low Lead Content
- ANSI/ICC A117.1 – ADA Accessibility (lever handles)
What’s in the Box
- B-0221 polished chrome faucet body
- 12" swing nozzle with stream regulator (062X)
- Hot & cold Eterna cartridges with spring checks
- (2) Lever handles with red & blue index buttons
- (2) 1/2" IPS eccentric flanges w/ coupling nuts & washers
- Anti-rotation lock washer (for rigid nozzle option)
Master pack quantity: 6 faucets. Product sold individually unless otherwise specified.
