T&S Brass B-0220-M Commercial Faucets & Plumbing
Description

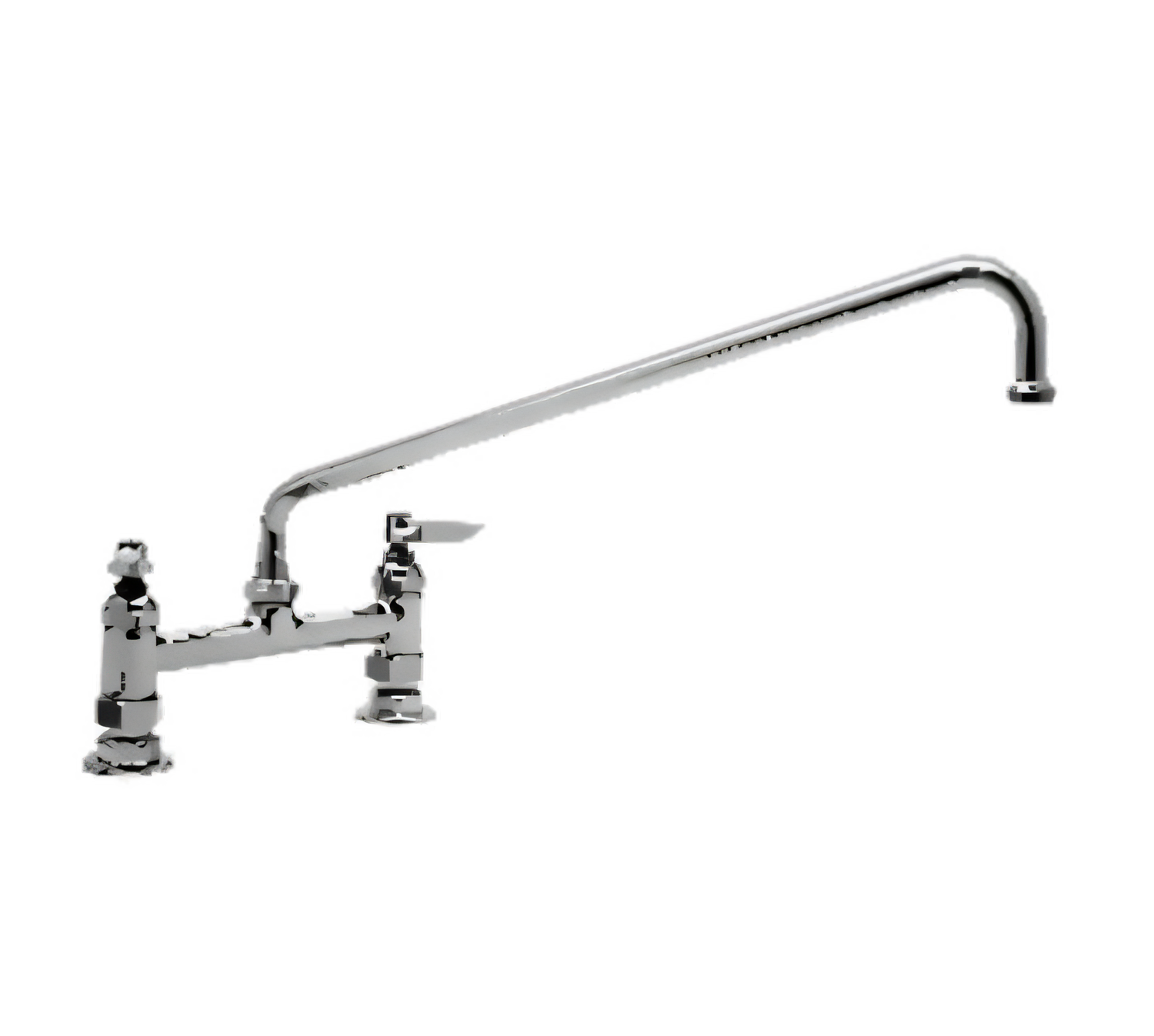

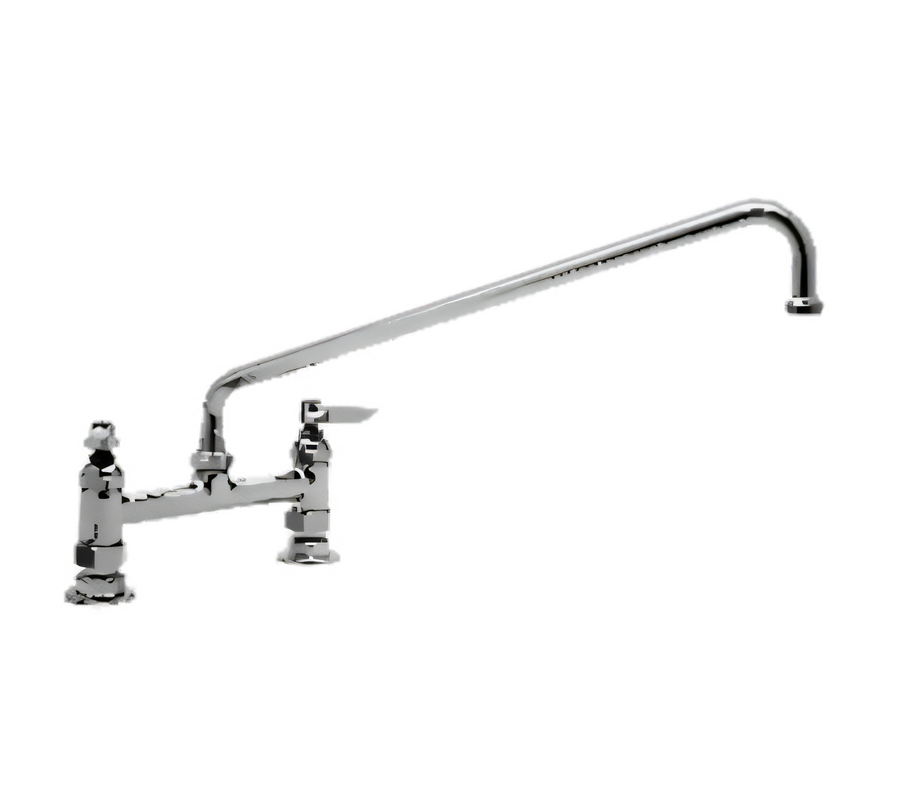

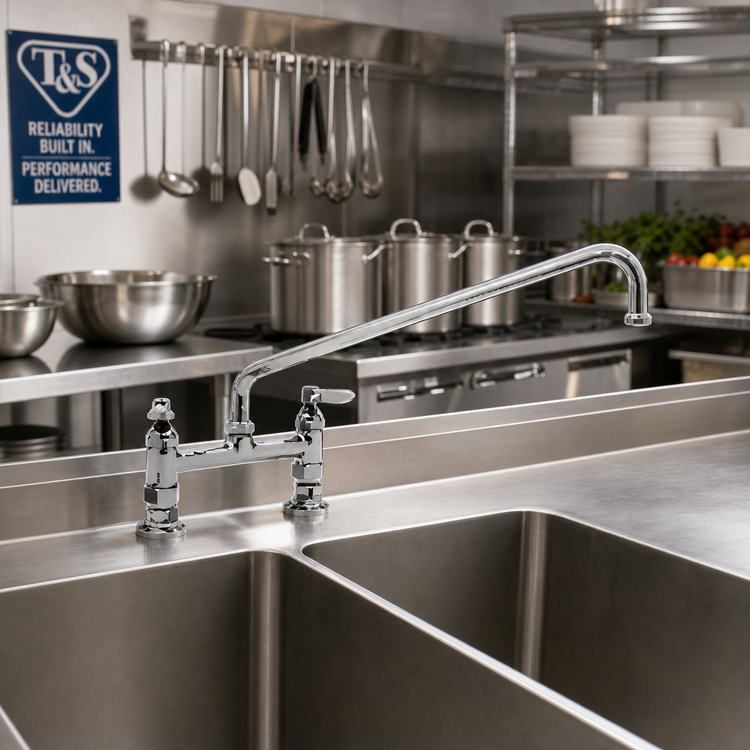

T&S Brass B-0220 Deck-Mount Mixing Faucet – 18" Swing Nozzle
Low-Lead • ADA Compliant • 6 units per master packBuilt for high-volume commercial kitchens and prep areas, the T&S Brass B-0220 combines a heavy-duty chrome-plated brass body, quarter-turn Eterna cartridges with spring checks, and an extra-long 18" swing nozzle to deliver years of trouble-free service while meeting today’s strict safety and accessibility standards.
Why You’ll Love It

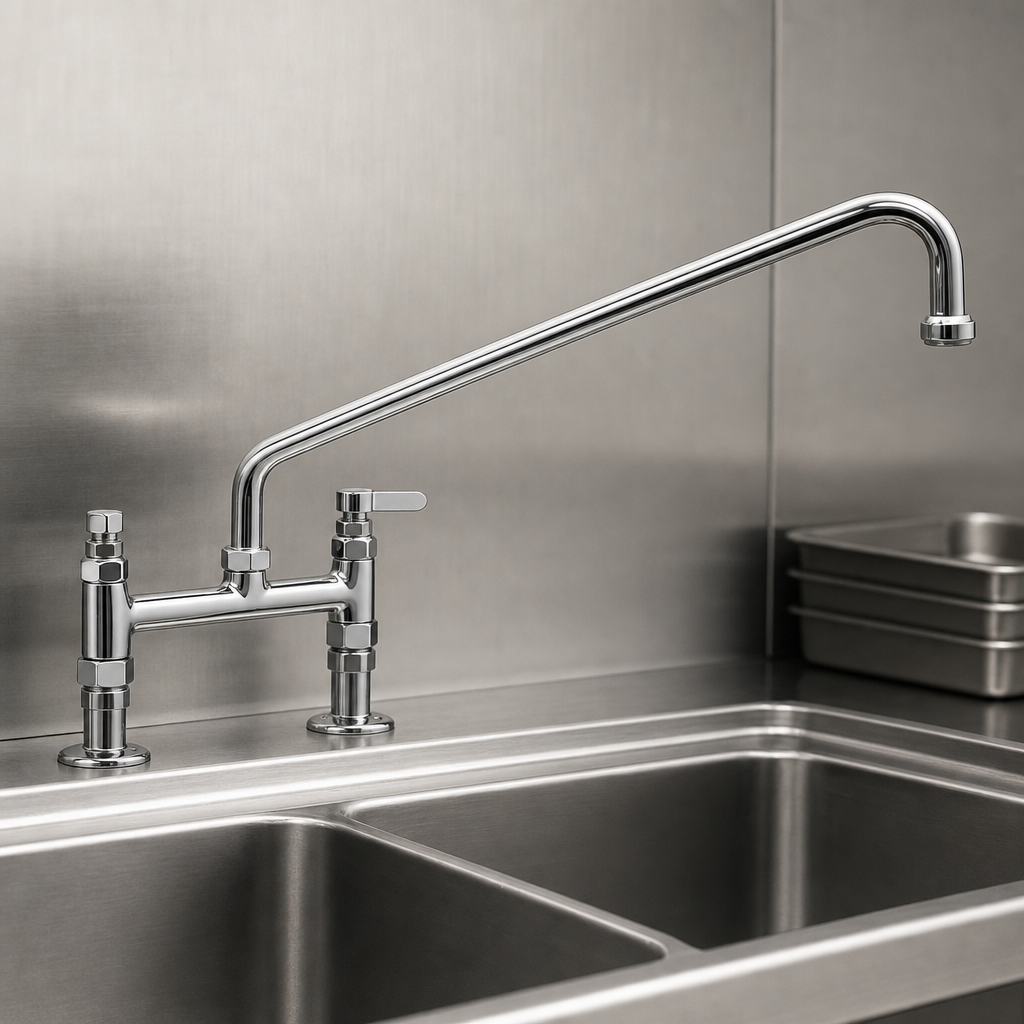

- 18" swing nozzle with Series 1 stream-regulator outlet for powerful rinsing and filling.
- Deck-mount body on 8" centers – adjustable from 7 3/4" to 8 1/4" for easy retrofit installs.
- Quarter-turn Eterna compression cartridges with built-in spring checks stop cross-flow and make service fast.
- Rugged polished chrome-plated brass construction withstands daily commercial abuse.
- Color-coded ADA lever handles provide intuitive, low-force operation.
- 1/2" NPT female eccentric inlets with 2" flanges; lock washer included to convert nozzle to rigid mount.
- Complies with ASME A112.18.1/CSA B125.1, NSF 61-9 & NSF 372 for low lead, and ANSI/ICC A117.1 for ADA.
- One-year limited warranty backed by T&S Brass.
Technical Specifications
| Model | B-0220 |
|---|---|
| Mounting Style | Deck mount, 8" centers (7 3/4"–8 1/4" adjustable) |
| Body Material | Polished chrome-plated brass |
| Nozzle | 18" swing spout, converts to rigid with supplied lock washer |
| Outlet | Stream regulator, Series 1 (standard) |
| Supply Inlets | 1/2" NPT female eccentric, 2" flanges |
| Cartridges | Quarter-turn Eterna compression with spring checks (hot & cold) |
| Handles | Lever, chrome plated metal, color-coded indexes |
| Flow Rate | 18.39 GPM @ 60 psi (with standard outlet) |
| Pressure Range | 20 – 125 psi |
| Temperature Range | 40 °F – 140 °F (4 °C – 60 °C) |
| Compliance | ASME A112.18.1 / CSA B125.1, NSF 61-9, NSF 372, ANSI/ICC A117.1 (ADA) |
| Warranty | 1 Year Limited |
| Master Pack | 6 faucets per case |
Popular Factory Options
- Alternate Series 1 / VR Series 6 outlets from 0.35 GPM to 2.2 GPM (laminar, aerated or vandal-resistant).
- Handle upgrades – 4" wrist-action or 4-arm styles.
- Cerama cartridges with integrated check valves.
Contact your T&S Brass dealer for part numbers, lead times, and minimum order quantities on optional components.
