T&S Brass B-0201-M Commercial Faucets & Plumbing
Description

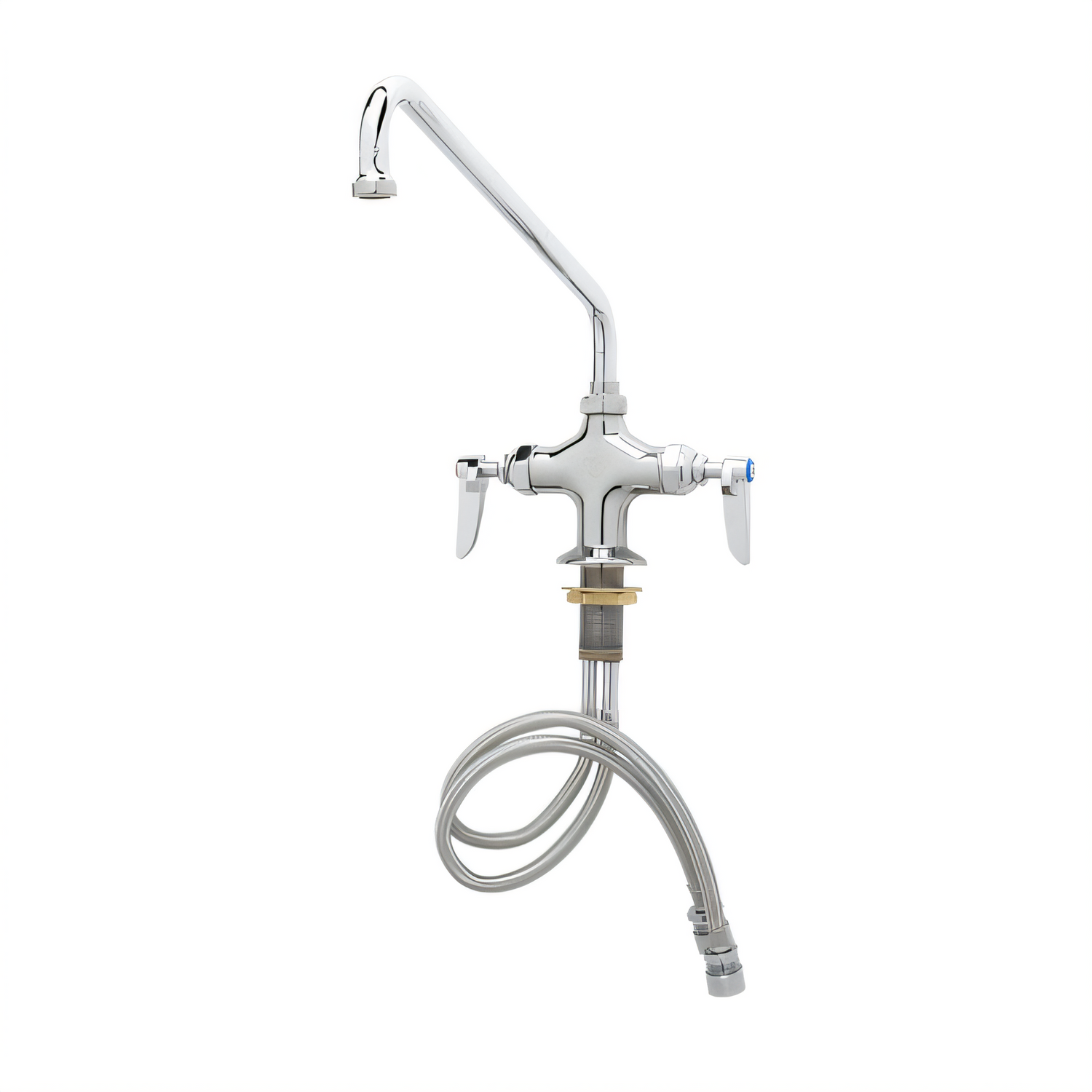

T&S Brass B-0201 Mixing Faucet
Single-hole deck mount • 12" swing nozzle • Lever handlesBuilt for demanding commercial kitchens, labs and prep areas, the T&S Brass B-0201 delivers high flow, dependable performance and true ADA accessibility in a compact, single-hole footprint. Quarter-turn Eterna cartridges with spring checks guard against cross-flow while the polished chrome brass body stands up to years of daily abuse.
Key features
- 12" (305 mm) swing nozzle with stream-regulator outlet for a steady, aeration-free flow

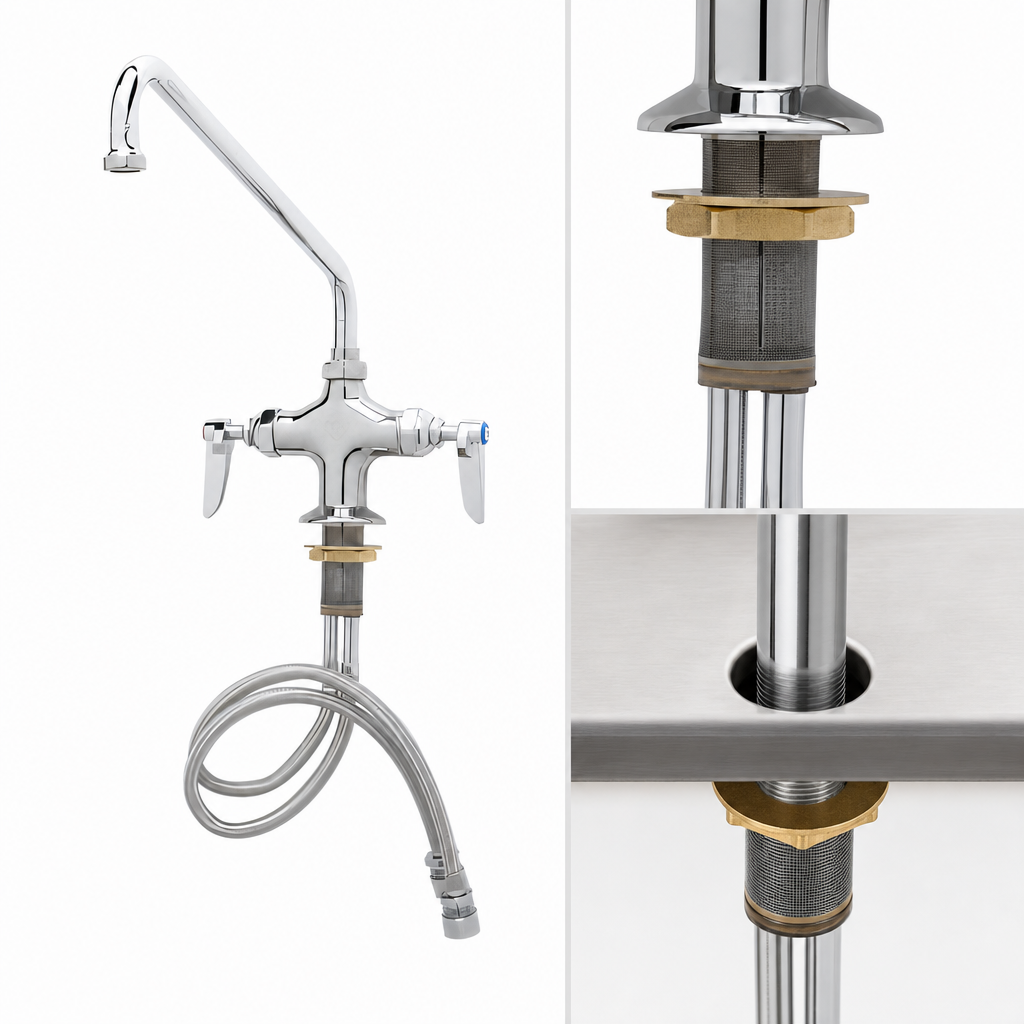

- Single-hole deck mount with factory-installed lock washer for a rock-solid installation
- Quarter-turn Eterna compression cartridges with built-in spring checks to prevent cross-flow
- Lever handles with red / blue color-coded indexes – fully ADA compliant
- 18" (457 mm) flexible stainless-steel supply hoses, 1/2" NPSM male & 5/8" O.D. compression ends
- Polished chrome plated brass body & tubular spout; chrome plated metal handles
- High output: up to 8.67 GPM @ 60 psi – perfect for rapid pot-filling and clean-up
- Certified lead-free (NSF 372) and compliant with ASME A112.18.1 / CSA B125.1
Specifications
| Model | B-0201 |
|---|---|
| Mounting style | Single hole, deck mount |
| Spout type | 12" swing nozzle — stream-regulator outlet (Series 1) |
| Flow rate | 8.67 GPM (32.8 L/min) @ 60 psi |
| Cartridges | Quarter-turn Eterna compression w/ spring checks (hot & cold) |
| Handles | Lever, metal, red/blue indexes (ADA) |
| Inlet connections | 18" SS braided hoses, 1/2" NPSM male / 5/8" O.D. compression |
| Pressure range | 20 – 125 psi (1.38 – 8.62 bar) |
| Temperature range | 40 °F – 140 °F (4 °C – 60 °C) |
| Certifications | NSF 61 sec. 9, NSF 372 (low lead), ASME A112.18.1 / CSA B125.1, ANSI/ICC A117.1 (ADA) |
| Finish | Polished chrome plated brass |
| Warranty | One-year limited warranty, factory-serviceable |
Looking for a different outlet, handle style, or cartridge? T&S Series 1 quick-change outlets and optional Cerama cartridges are available — contact our team for details.
