T&S Brass B-0167-02 Wall Mount Mixing Pre-Rinse Spray Assembly, 8-Inch Adjustable Centers, 72-Inch Hose

SKU: B-0167-02
GTIN: 671262725460
$536.03
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Pre-rinse Faucets Restaurant Equipment Sinks & Handwashing Stations T&S Brass

T&S Brass B-0167-02 Wall Mount Mixing Pre-Rinse Spray Assembly, 8-Inch Adjustable Centers, 72-Inch Hose

Polished Chrome-Plated Brass Body, High-Flow Angled Spray Valve, Quarter-Turn Eterna Cartridges

A durable wall-mount pre-rinse spray assembly with a 72-inch hose, adjustable 8-inch centers, and a high-flow spray valve for fast, reliable rinsing.

  • 8-inch wall-mount mixing faucet with adjustable centers from 7 3/4 inches to 8 1/4 inches.
  • 72-inch flexible stainless steel hose with heat-resistant blue handle and hold-down ring.
  • High-flow angled spray valve supports efficient rinsing in busy prep areas.
  • Quarter-turn Eterna compression cartridges with spring checks help prevent crossflow.
  • Polished chrome-plated brass body with lever handles and color-coded indexes.
  • Vacuum breaker, wall hook, and 1/2-inch NPT female inlets support safer, more convenient installation.

Product Weight:

9.75 lb

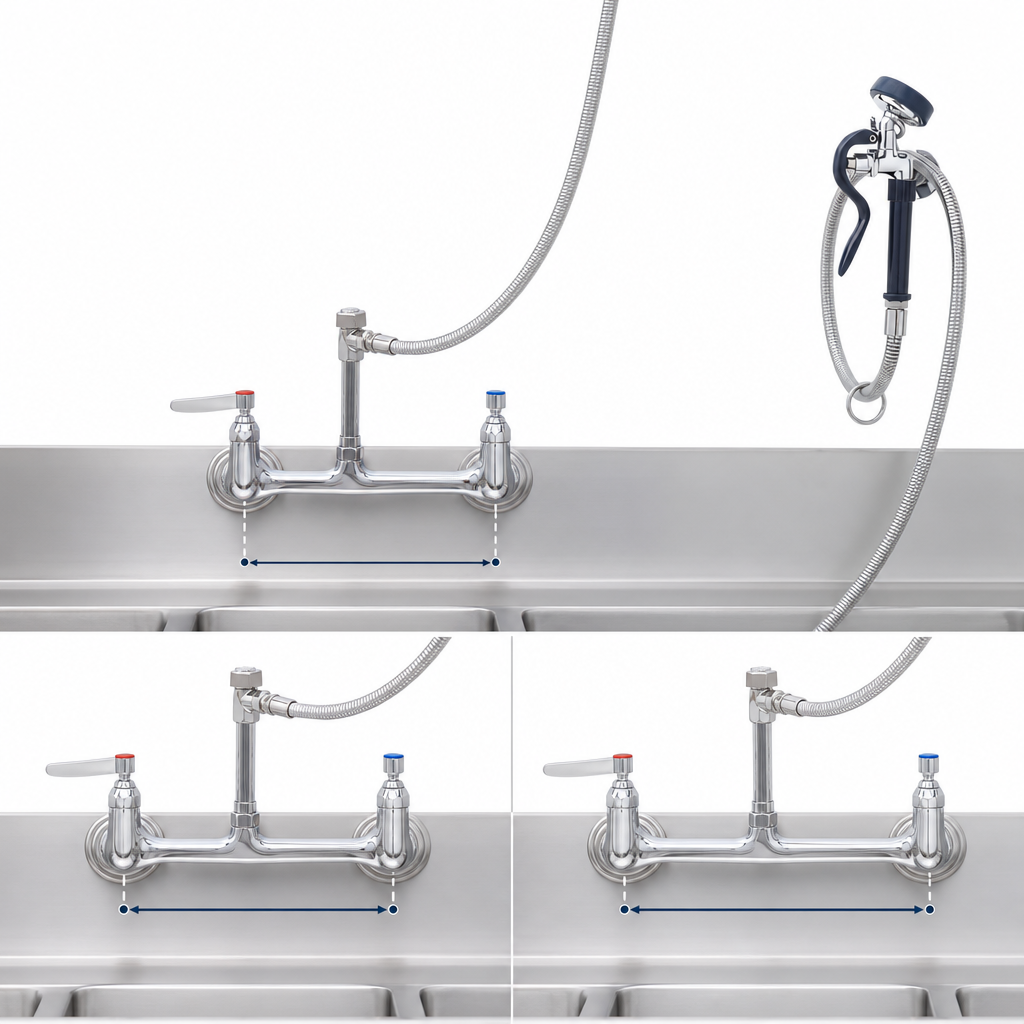

Adjustable 8-Inch Wall-Mount Centers

Centers adjust from 7 3/4 inches to 8 1/4 inches for flexible installation.

Polished Chrome-Plated Brass Body

Durable brass construction with a polished chrome finish.

Quarter-Turn Eterna Compression Cartridges

Spring checks help prevent crossflow of water.

72-Inch Flexible Stainless Steel Hose

Heat-resistant blue handle and hold-down ring improve handling and durability.

High-Flow Blue Angled Spray Valve (EB-0107-035)

Included spray valve delivers strong rinse performance.

Vacuum Breaker with EasyInstall Riser

Helps protect against backflow and simplifies setup.

Lever Handles with Color-Coded Indexes

Easy hot/cold identification and smooth manual control.

1/2-Inch NPT Female Eccentric Inlets

Supports a secure water connection with 2-inch flanges.

Wall Hook

Provides a convenient storage point for the spray hose when not in use.

Type Pre-Rinse Spray Assembly
Style Mixing
Installation Type Wall Mounted
Mounting Type Wall Mount
Material Brass
Finish Polished Chrome
Faucet Centers 8 Inches Adjustable (7 3/4 Inches to 8 1/4 Inches)
Hose Length 72 Inches
Water Inlet Size 1/2 Inch NPT Female
Vacuum Breaker Connection Size 3/8 Inch NPT
Nozzle Type Angled
Flow Rate 3.93 GPM @ 60 PSI
Pressure Range 20 PSI to 125 PSI
Temperature Range 40°F to 140°F
Shipping Weight 9.75 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-Year Limited

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. It is an 8-inch wall-mount mixing faucet with adjustable centers from 7 3/4 inches to 8 1/4 inches.
It includes a 72-inch flexible stainless steel hose with a heat-resistant blue handle and hold-down ring.
The included spray valve is a high-flow blue angled spray valve, model EB-0107-035.
The unit is rated for 20 to 125 psi, 3.93 GPM at 60 psi, and 40°F to 140°F.
It uses 1/2-inch NPT female inlets and a 3/8-inch NPT vacuum breaker connection.
Yes. Optional spray valves listed in the documentation include B-0107, B-0107-C, B-0107-J, B-0108, and B-0108-C.
