T&S Brass Pre-Rinse Washdown Hose Unit Add-On Faucet with 68-Inch Flexible Hose and 0.65 GPM Low-Flow Spray Valve

SKU: B-0165-C35-68H
GTIN: 671262755467
$373.71
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Pre-rinse Faucets Restaurant Equipment Sinks & Handwashing Stations T&S Brass

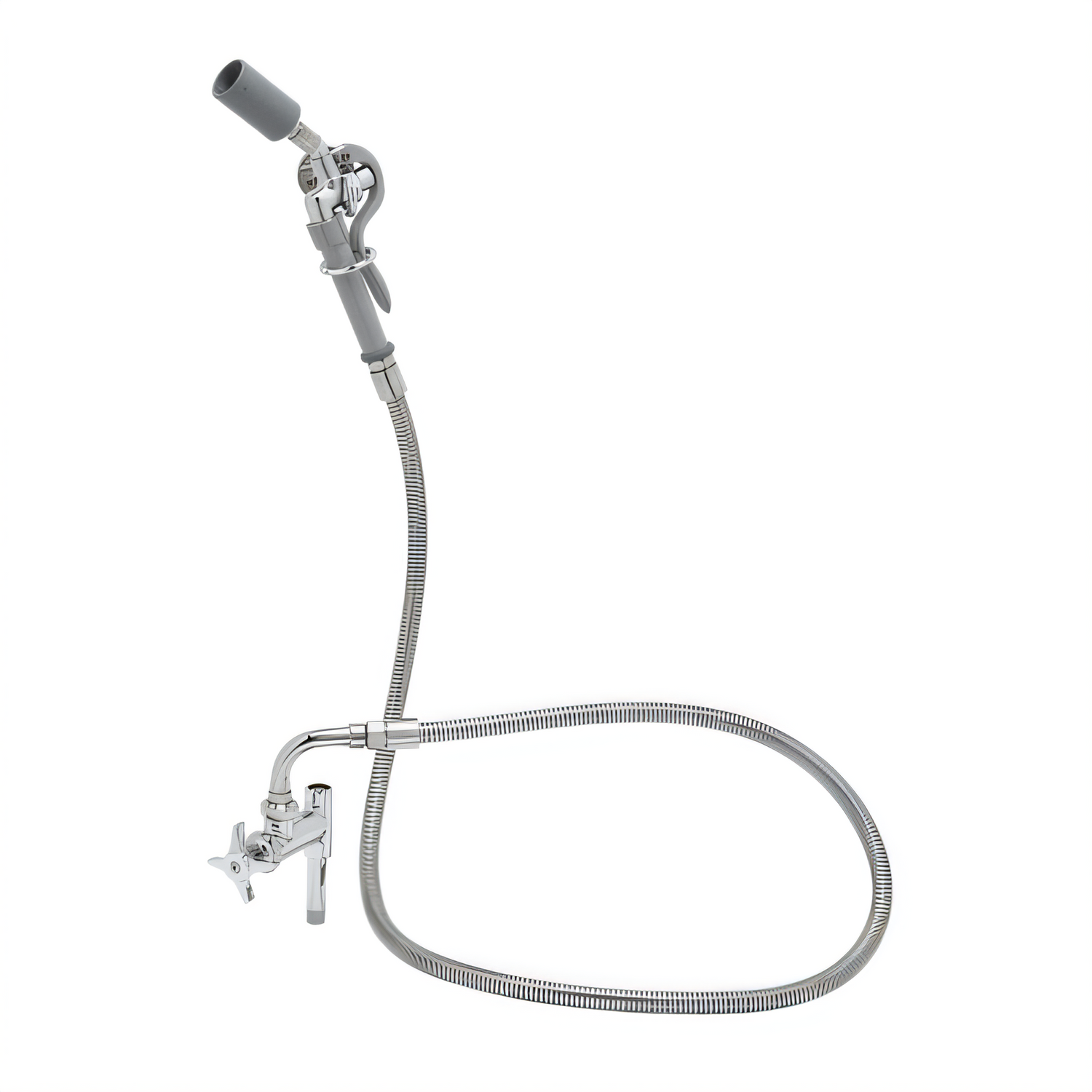

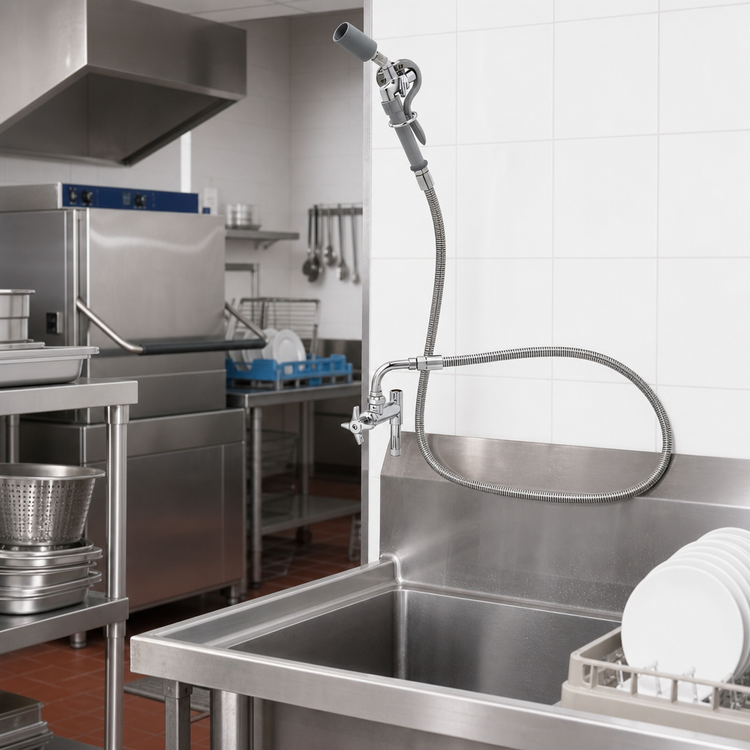

T&S Brass Pre-Rinse Washdown Hose Unit Add-On Faucet with 68-Inch Flexible Hose and 0.65 GPM Low-Flow Spray Valve

Chrome Plated Brass Body, Quarter-Turn Eterna Cartridge, 4-Arm Handle

Designed for pre-rinse systems, this washdown hose unit combines a 68-inch flexible hose, low-flow spray valve, and durable quarter-turn control for efficient sink-side cleaning.

  • Add-on faucet design integrates with pre-rinse units and installs in base mixing faucet outlets before the riser pipe.
  • 68-inch flexible stainless steel hose gives extended reach and easier maneuvering.
  • 0.65 GPM low-flow angled spray valve helps conserve water during washdown tasks.
  • Quarter-turn Eterna cartridge with spring check supports reliable on/off control.
  • 4-arm handle with color-coded index makes operation straightforward.
  • Polished chrome plated brass body with swivel adapter arm and hanger hook for durability and storage.

Product Weight:

7.0 lb

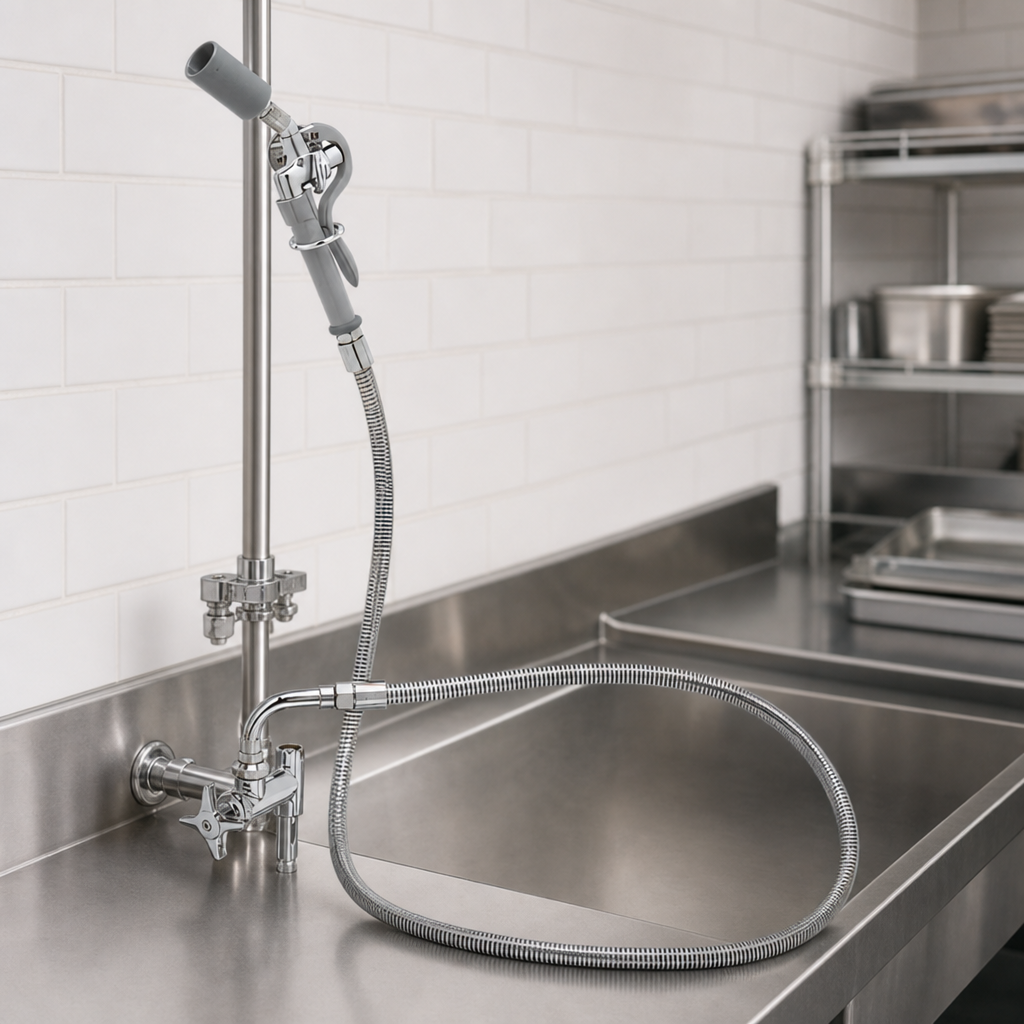

Add-On Faucet Integration

Designed as an addition to pre-rinse units and installed in the outlets of base mixing faucets before fitting riser pipes.

Flexible 68-Inch Hose

Includes a 68-inch flexible stainless steel hose for added reach and easier movement during cleaning.

Low-Flow Angled Spray Valve

The included B-0107-C35 spray valve delivers 0.65 GPM for controlled rinse performance.

Quarter-Turn Cartridge

Eterna compression cartridge with spring check provides dependable water control and a positive shutoff.

4-Arm Handle

Manual 4-arm handle with color-coded index makes operation easy and intuitive.

Swivel Adapter and Hanger Hook

A 90-degree swivel adapter arm and hanger hook help position the hose and keep it stored when not in use.

Chrome Plated Brass Construction

Polished chrome plated brass body with stainless steel hose and chrome plated metal handles for durability.

Plumbing Connections

Uses a 3/8 Inch NPT male inlet and 3/8 Inch NPT female outlet for installation.

Type Washdown Hose Unit
Style Add-On Faucet
Controls Manual
Material Brass
Finish Chrome Plated
Hose Length 68 Inches
Nozzle Type Angled Spray Valve
Flow Rate 0.65 GPM @ 60 PSI
Temperature Range 40 °F to 140 °F
Pressure Range 20 PSI to 125 PSI
Cartridge Type Quarter-Turn Eterna Compression w/ Spring Check
Handle Type 4-Arm
Inlet Connection Size 3/8 Inch NPT Male
Outlet Connection Size 3/8 Inch NPT Female
Selling Unit Each
Units Per Case 1
Shipping Weight 7 lb.

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

No. It is an add-on faucet for pre-rinse units that installs in the outlets of base mixing faucets before the riser pipes.
It includes a 68-inch flexible stainless steel hose.
The included angled spray valve is rated at 0.65 GPM.
It uses a quarter-turn Eterna cartridge with spring check and a 4-arm handle. The handle controls water on and off through the washdown hose only.
It uses a 3/8 Inch NPT male inlet and a 3/8 Inch NPT female outlet.
The unit has a polished chrome plated brass body with a stainless steel hose and chrome plated metal handles.
