T&S Brass B-0140 EasyInstall Commercial Faucets & Plumbing
Description

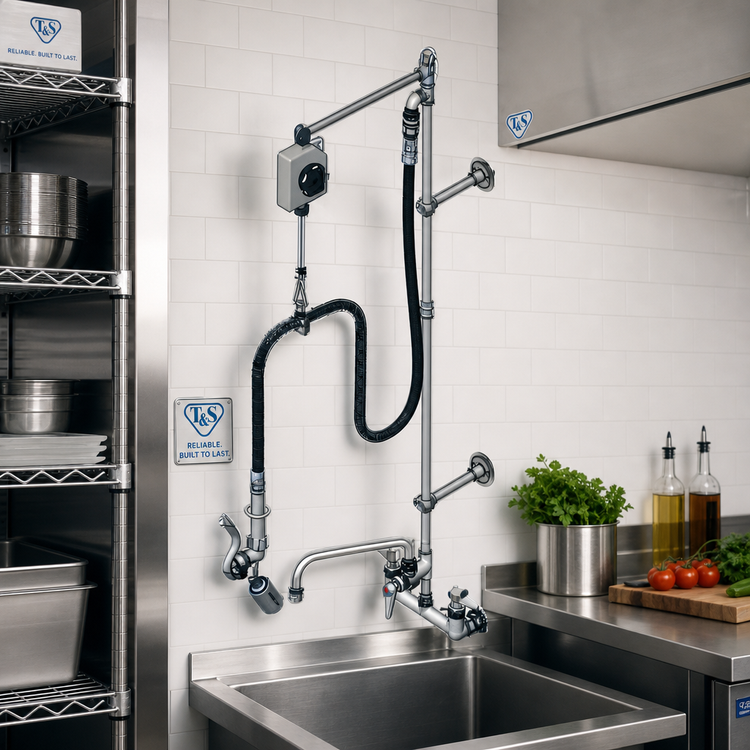

T&S EasyInstall B-0140 Pre-Rinse Unit
8" wall-mount mixing faucet with add-on swing nozzle & 0.65 GPM low-flow spray valveEngineered for busy commercial kitchens, the EasyInstall B-0140 combines a rugged polished-chrome faucet body with a quick-install add-on faucet, dual rigid risers, and an overhead extension arm that keeps the 68" stainless-steel hose perfectly balanced. Quarter-turn Cerama cartridges with check valves deliver dependable, long-life performance while the 0.65 GPM angled spray valve helps you meet today’s toughest water-saving mandates.
Why You’ll Love It
- EasyInstall add-on faucet slashes installation time—no special tools required.

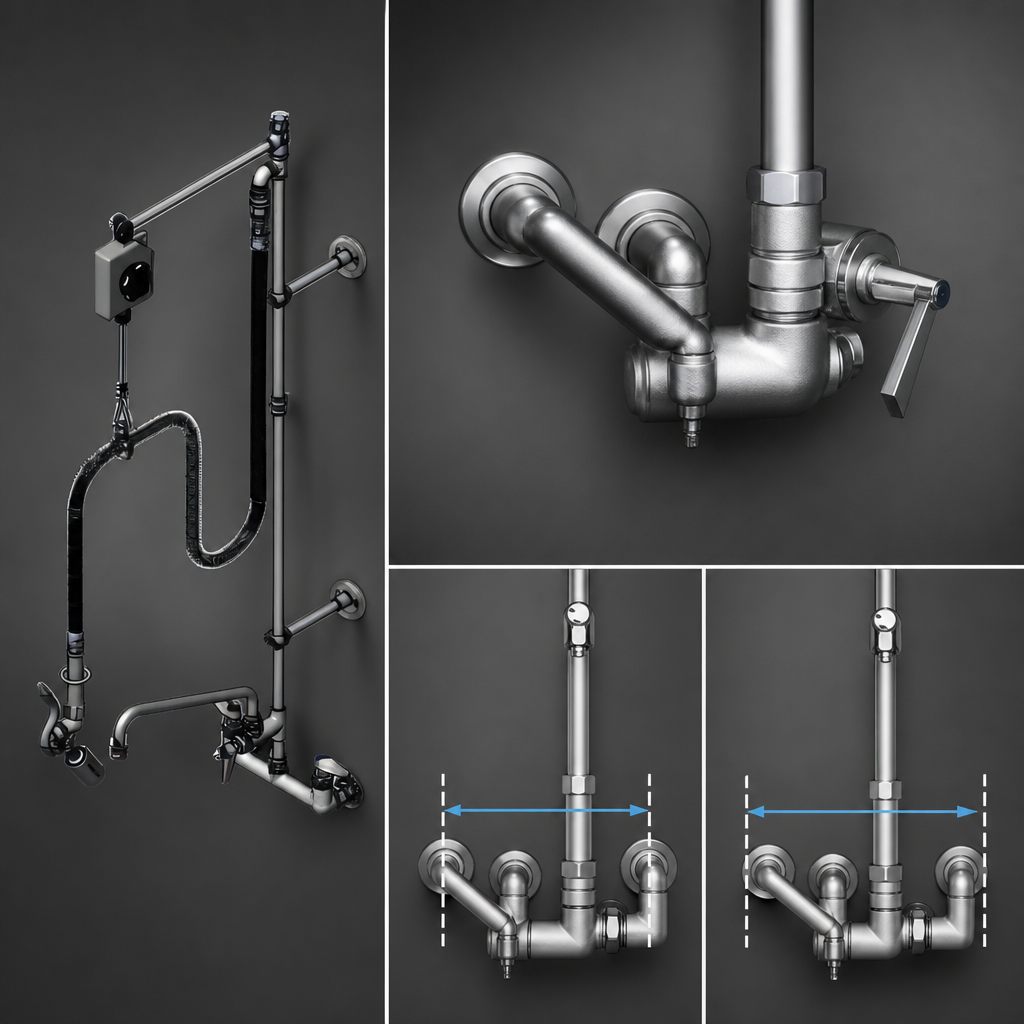

- 8" adjustable centers (7 3⁄4" – 8 1⁄4") with oversized 2" flanges for rock-solid mounting.
- Quarter-turn Cerama cartridges with integral check valves prevent cross-flow and carry a limited lifetime warranty.
- Lever handles with red/blue color-coded indexes for instant identification.
- 12" swing nozzle (062X) with full-flow stream regulator; perfect for pot-filling between rinse cycles.
- Dual riser kit – 24" & 18" rigid 3⁄8" NPT risers with pipe coupling.
- 14" overhead swivel extension arm with adjustable tension balancer for smooth, effortless hose return.
- 68" flexible stainless-steel hose with heat-resistant gray handle & hold-down ring.
- Water-saving B-0107-C35 angled spray valve delivers just 0.65 GPM @ 60 psi (DOE PRSV Class I).
- (2) 6" adjustable wall brackets steady the risers and protect piping.
- Polished chrome plated brass body and nozzle; stainless-steel hose for maximum corrosion resistance.
- 1⁄2" NPT female eccentric inlets for quick hook-up to existing supply lines.
Technical Specs
| Model / Part No. | EasyInstall B-0140 |
|---|---|
| Mounting | Wall-mount, 8" adjustable centers |
| Body Material | Polished chrome plated brass |
| Cartridges | Quarter-turn Cerama w/ check valves – hot & cold |
| Handles | Lever, color-coded red/blue indexes |
| Add-On Nozzle | 12" swing, full-flow stream regulator (Series 1) |
| Spray Valve | B-0107-C35 angled, 0.65 GPM @ 60 psi |
| Hose Length | 68" (1.73 m) stainless-steel, heat-resistant handle |
| Extension Arm | 14" overhead swivel arm w/ adjustable tension balancer |
| Risers Supplied | 24" & 18" rigid 3⁄8" NPT |
| Inlet Connections | 1⁄2" NPT female eccentric, 2" flanges |
| Operating Pressure | 20 – 125 psi (138 – 862 kPa) |
| Water Temp. Range | 40 °F – 140 °F (4 °C – 60 °C) |
| Flow Rates | Spray valve 0.65 GPM; add-on faucet 5.35 GPM @ 60 psi |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61 & 372 (low lead), CSA B64.8 (VB), DOE PRSV Class I, EPAct 2005 |
| Warranty | 3-year limited (unit); lifetime limited (Cerama cartridges) |
Meets or exceeds current federal & state low-lead and water-efficiency requirements. Always verify local plumbing codes before installation.
