T&S Brass B-0140-08 EasyInstall Commercial Faucets & Plumbing
$1,043.35
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
T&S Brass B-0140-08 EasyInstall Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-0140-08 EasyInstall Commercial Faucets & Plumbing
$1,043.35
Unit price
/
Unavailable
Description

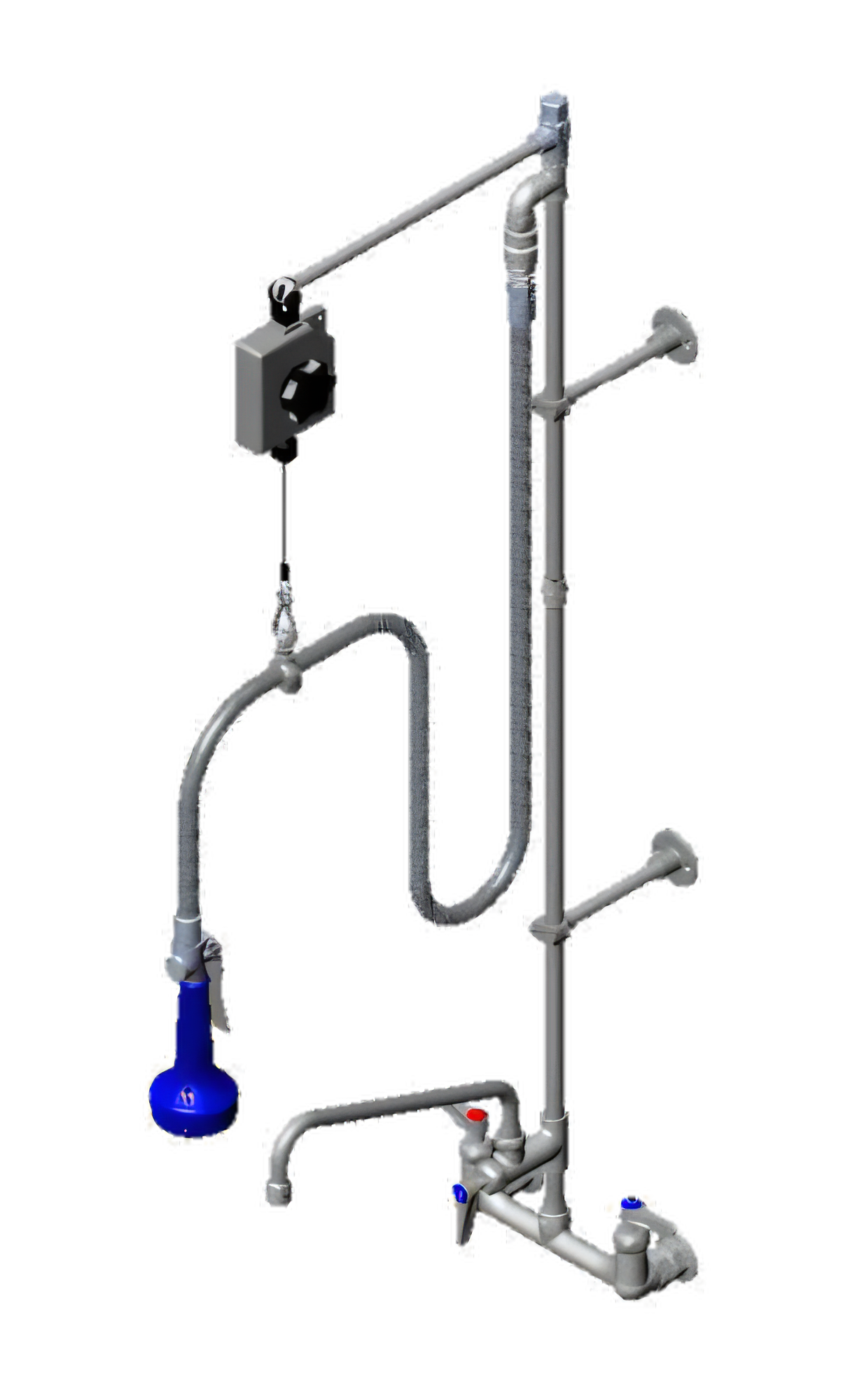

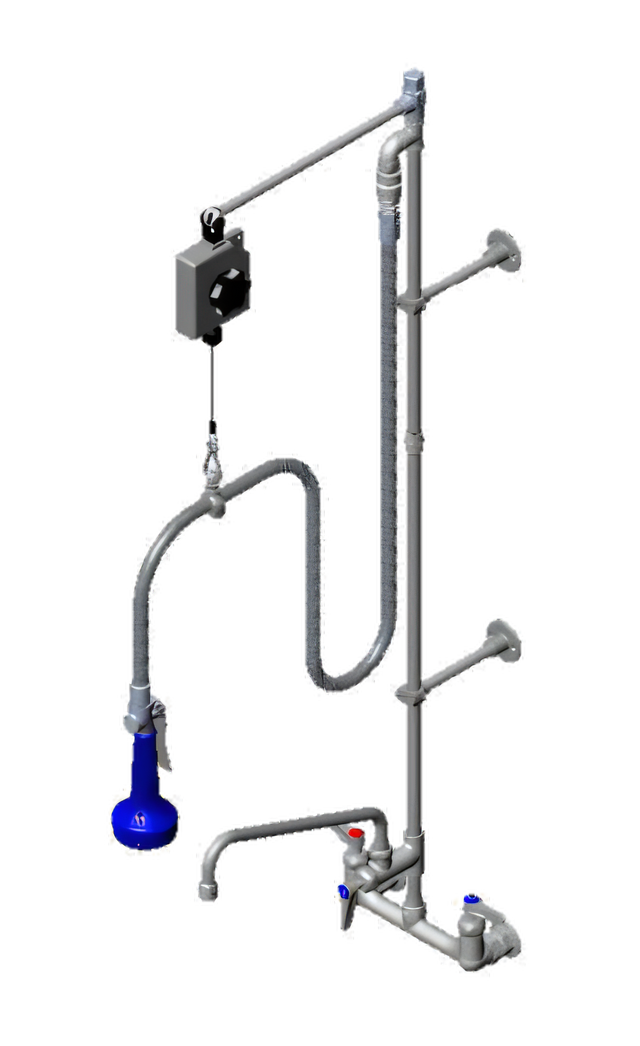

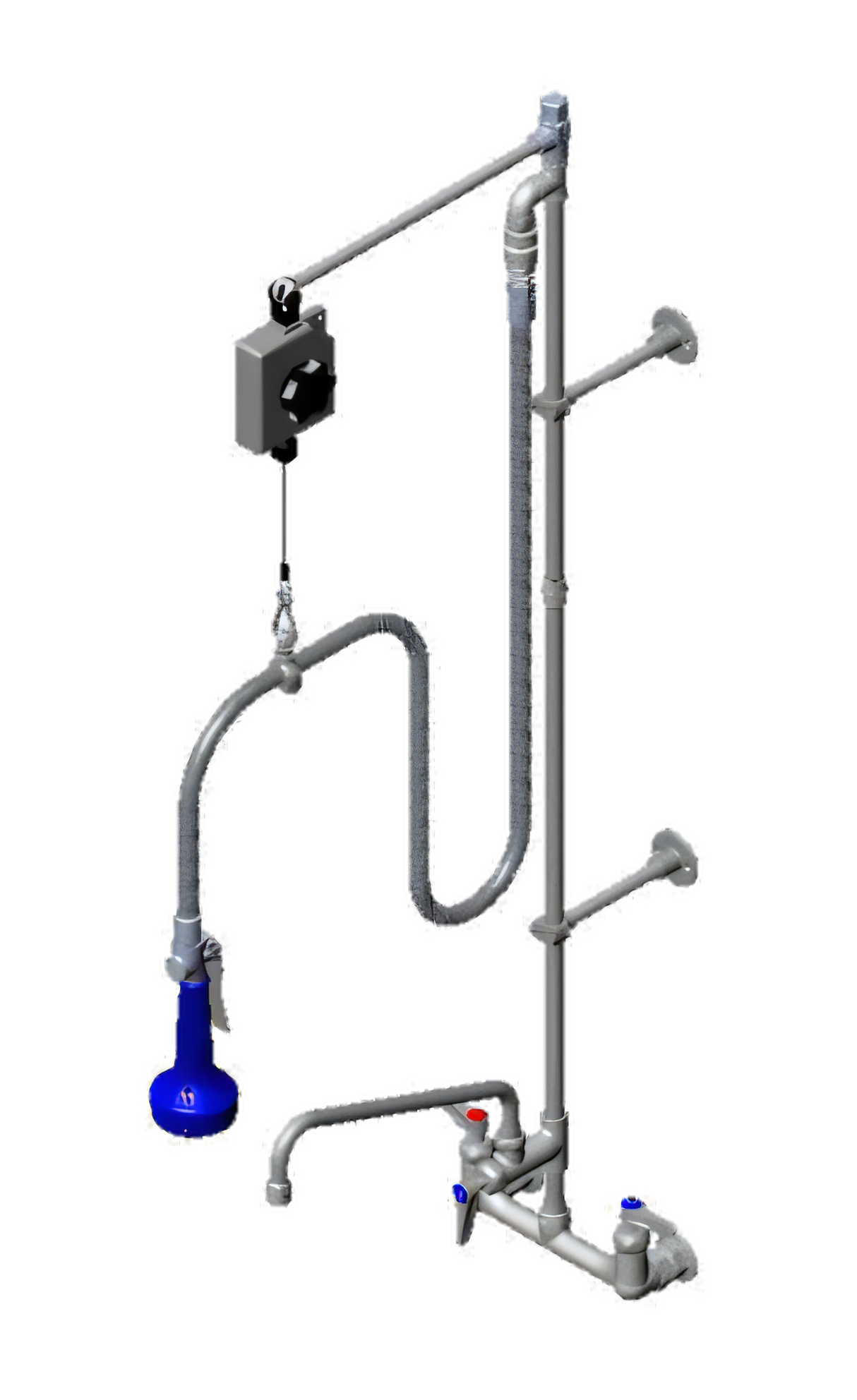

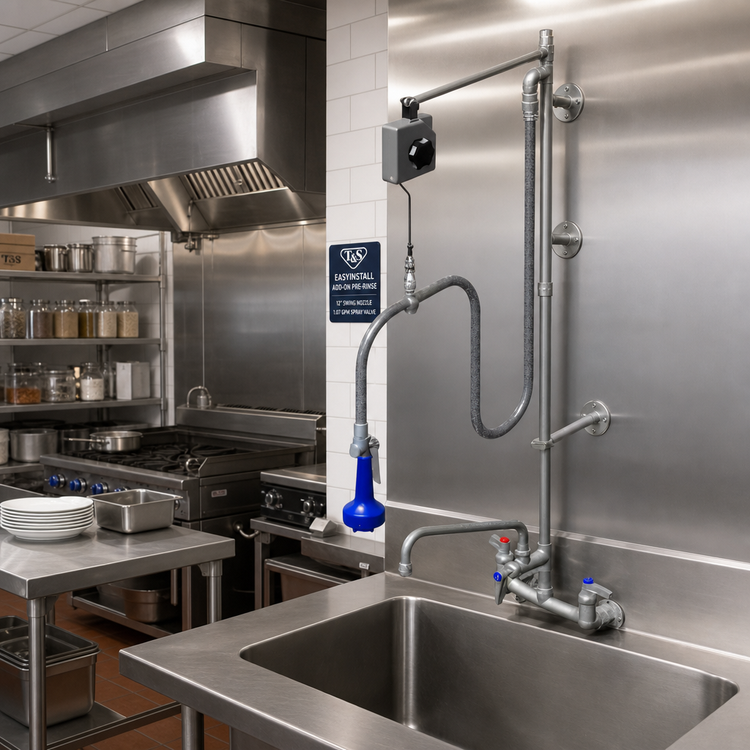

T&S Brass EasyInstall B-0140-08 Pre-Rinse Unit
8" wall-mount | 1.07 GPM spray | Polished chrome-plated brassCut installation time and keep your dishroom running smoother. The EasyInstall B-0140-08 combines T&S Brass’ legendary durability with a factory-preassembled add-on faucet, hose, risers and brackets—so you can unbox, mount, connect and rinse in minutes, not hours.
Why You’ll Love It
- True plug-and-spray convenience – EasyInstall kit arrives pre-assembled to speed up installation.
- 8" wall-mount mixing faucet with adjustable centers (7 3⁄4"–8 1⁄4") for retrofit flexibility.
- Quarter-turn Cerama cartridges with integral check valves stop cross-flow and are backed by a lifetime limited warranty.
- Lever handles with red/blue color-coded indexes for instant hot/cold ID.
- EasyInstall add-on faucet featuring a 12" swing nozzle (062X) with stream regulator—perfect for filling stock pots or sinks.
- Dual rigid risers (24" & 18") feed a 14" overhead swivel arm with adjustable tension balancer for smooth, ergonomic use.
- 68" flexible stainless-steel hose with heat-resistant gray handle, hold-down ring and 1.07 GPM JeTSpray valve (B-0108) for water-saving, high-impact rinsing.

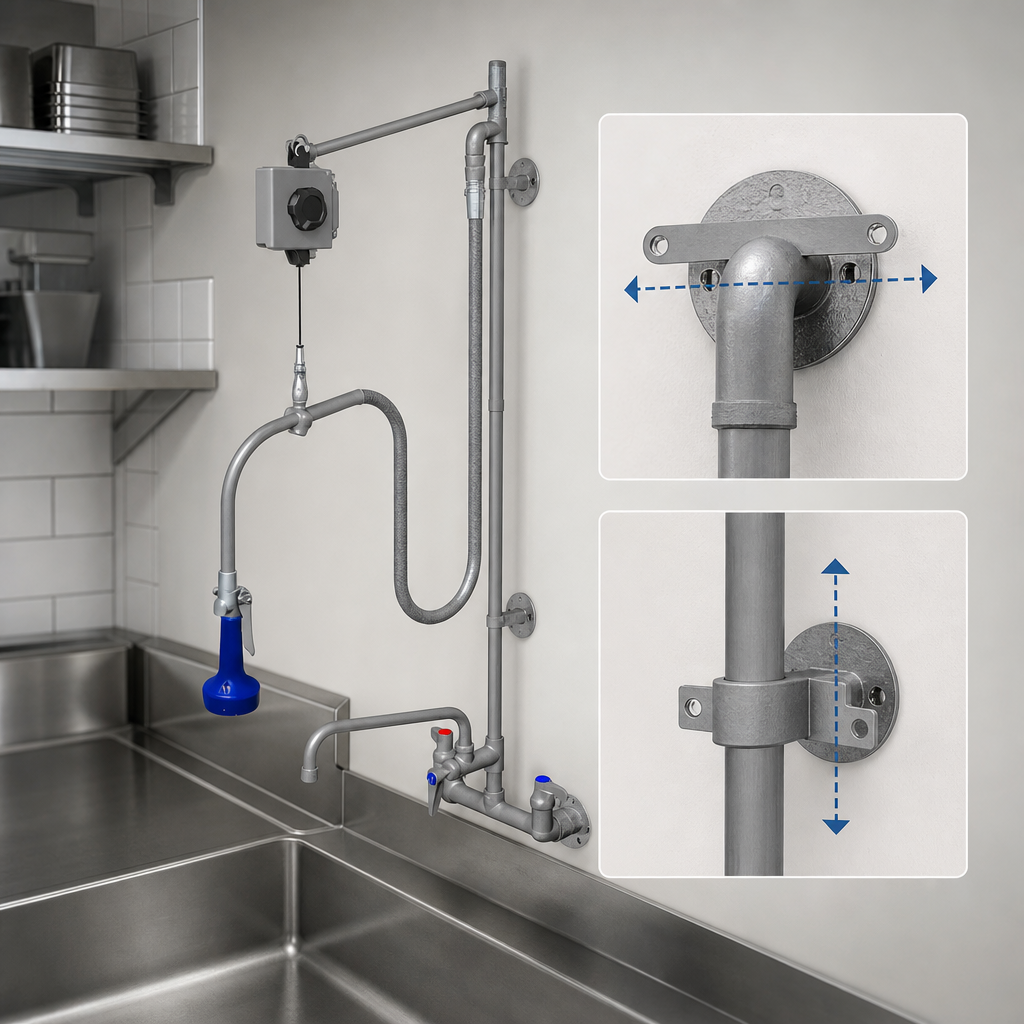

- (2) 6" adjustable wall brackets steady the assembly and protect plumbing connections.
- Polished chrome-plated brass & stainless-steel wet-end components resist corrosion and daily abuse.
What’s Included
- Wall-mount mixing faucet body w/ 8" adjustable centers & ½" NPT female eccentric inlets
- EasyInstall add-on faucet w/ 12" swing nozzle & full-flow stream regulator
- (1) 24" rigid riser & (1) 18" rigid riser with pipe coupling
- Swivel flow elbow assembly
- 14" overhead extension arm w/ adjustable tension balancer
- 68" stainless-steel hose & JeTSpray 1.07 GPM spray valve
- (2) 6" adjustable wall brackets
- Pre-installed quarter-turn Cerama cartridges & lever handles
Performance Data
| Operating Pressure | 20 – 125 psi (1.4 – 8.6 bar) |
|---|---|
| Operating Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Spray Valve Flow | 1.07 GPM @ 60 psi |
| Add-On Faucet Flow | 5.35 GPM @ 60 psi |
Technical Specifications
| Mounting Type | Wall, 8" adjustable centers |
|---|---|
| Inlet Size / Connection | ½" NPT female eccentric flanges |
| Body Material & Finish | Polished chrome-plated brass |
| Spray Valve | B-0108 JeTSpray, 1.07 GPM |
| Hose Length | 68" (stainless-steel, heat-resistant handle) |
| Nozzle | 12" swing nozzle w/ stream regulator (062X) |
| Cartridges | Quarter-turn Cerama w/ check valves |
| Handles | Lever, red/blue indexes |
| Risers | 24" & 18" rigid brass risers |
| Extension Arm | 14" swivel arm w/ adjustable balancer |
| Wall Brackets | (2) 6" adjustable, chrome-plated |
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 Section 9 – Low-lead compliant
- NSF 372 – Lead-content verified
- EPAct 2005 (1.07 GPM PRSV)
Warranty
Three-year limited warranty on the complete unit. Lifetime limited warranty on Cerama cartridges.
Perfect For
- Commercial kitchens & dishrooms
- Hotels, resorts & banquet facilities
- Food trucks & pop-up kitchens needing quick installs
- Institutional cafeterias & school kitchens
Install Tip: Unit ships partially pre-assembled. Verify wall bracket spacing and supply line alignment before final tightening to avoid putting stress on the riser assemblies.
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Brand_name
EasyInstall
Certifications
CSA
Shipping Weight
17.25lbs
Spout Length (overall)
10 - 12 inches
Faucet Centers
8" adjustable centers
Spout / Nozzle Type
standard swing / swivel spout
Valve Type
ceramic valves
Wall or Deck Mount
splash / wall mount
Specifications
EasyInstall Pre-Rinse Unit, wall mount mixing faucet with 8" adjustable centers, EasyInstall add-on faucet, 12" swing nozzle with stream regulator outlet (062X), quarter-turn Cerama cartridges with check valves, lever handles with color coded indexes, (1) 24" riser & (1) 18" riser, 14" overhead swivel extension arm with adjustable tension balancer, swivel flow assembly, 68" flexible stainless steel hose with heat-resistant gray handle & hold down ring, 1.07 GPM spray valve (B-0108), (2) 6" adjustable wall brackets, polished chrome stainless steel faucet body, 1/2" NPT female inlets, CSA
