T&S Brass B-0140-01 EasyInstall Commercial Faucets & Plumbing
Description

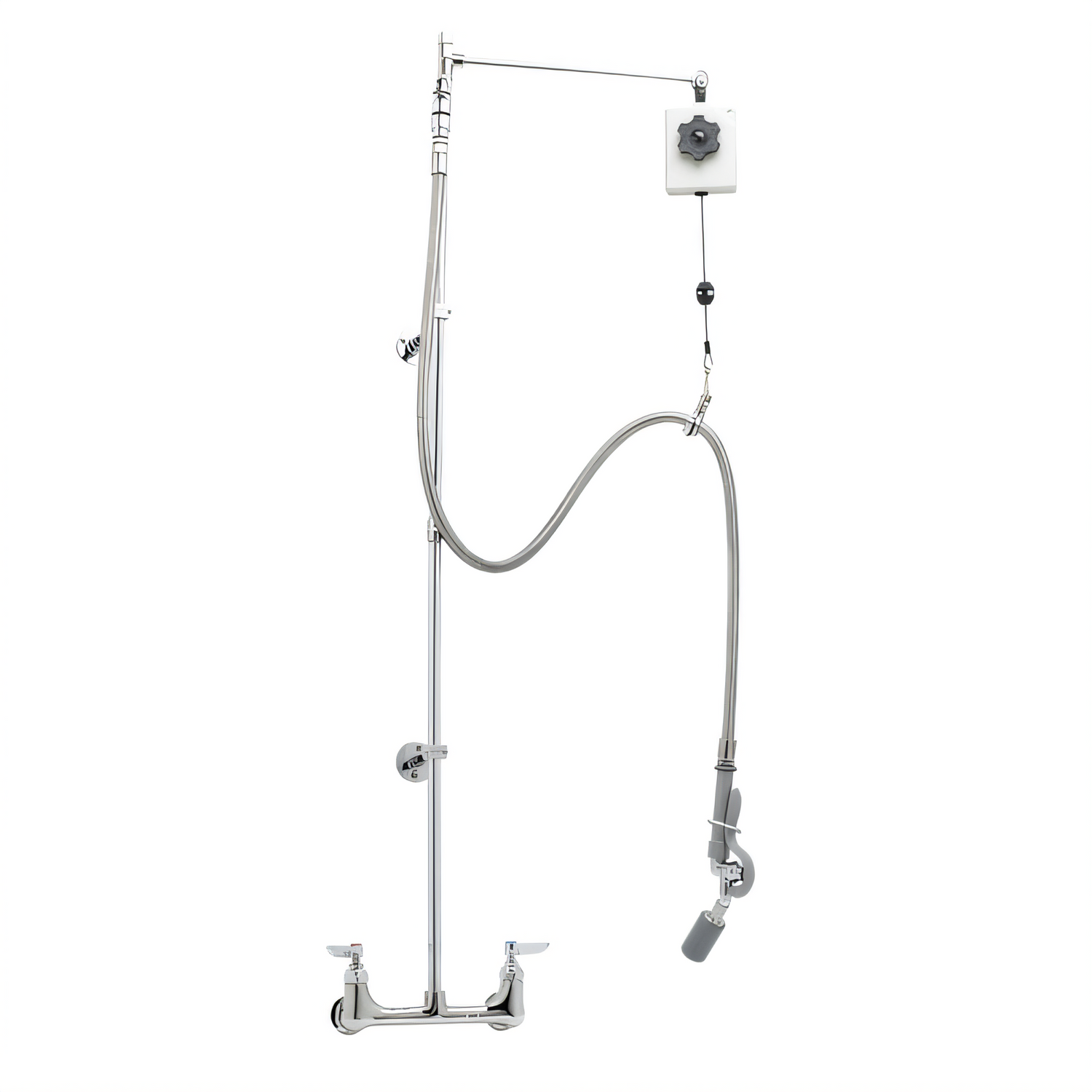

T&S Brass EasyInstall Pre-Rinse Unit – 8" Wall Mount (Model B-0140-01)
Fast-install, low-flow spray station for high-volume commercial kitchensThe EasyInstall B-0140-01 trims installation time while delivering the legendary durability chefs expect from T&S Brass. Its water-saving 0.65 GPM spray valve, stainless-steel hose and lifetime Cerama cartridges make it the smart choice for restaurants, schools and food-service operations that won’t compromise on performance or compliance.
Key Features
- EasyInstall kit lets you mount and connect in minutes—no special tools needed.
- 8" wall-mount mixing faucet with polished chrome plated brass body.
- Quarter-turn Cerama cartridges with integrated check valves prevent cross-flow.
- Lever handles with red/blue color-coded indexes for instant temperature ID.
- Rigid 18" and EasyInstall 24" risers give plenty of clearance for deep sinks.
- 14" overhead swivel extension arm with adjustable tension balancer keeps the spray head exactly where you want it.
- 68" flexible stainless-steel hose with heat-resistant gray handle & hold-down ring.
- 0.65 GPM angled low-flow spray valve (B-0107-C35) meets the latest DOE PRSV & EPAct standards.
- (2) 6" adjustable wall brackets steady the riser during heavy use.
- 1/2" NPT female eccentric inlets with 2" flanges; centers adjust from 7 3/4" to 8 1/4".
Performance & Specs
| Model | B-0140-01 |
|---|---|
| Flow Rate | 0.65 GPM (2.46 L/min) @ 60 psi |
| Operating Pressure | 20 – 125 psi (1.38 – 8.62 bar) |
| Operating Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Overall Height | 47 1/16" (1196 mm) |
| Overhead Arm Length | 14" (356 mm) |
| Faucet Body Width | 12 5/8" (321 mm) |
| Inlet Size / Type | 1/2" NPT female eccentric |
| Hose Length | 68" (1727 mm) stainless-steel |
| Spray Valve | B-0107-C35 angled low-flow |
| Cartridges | Quarter-turn Cerama with check valves |
| Primary Materials | Polished chrome plated brass body & risers; stainless-steel hose; chrome plated metal handles |
Certifications
- ASME A112.18.1 / CSA B125.1
- NSF/ANSI 61, Section 9 – Drinking Water System Components
- NSF/ANSI 372 – Low-Lead compliant
- CSA B64.8 (Vacuum Breaker)
- 2019 DOE PRSV – Class I
- EPAct 2005 compliant
Warranty
Three-year limited warranty on the complete unit; lifetime limited warranty on all Cerama cartridges.
Looking for alternate spray valves or handles? Contact us for additional T&S Brass options and accessories.
