Description

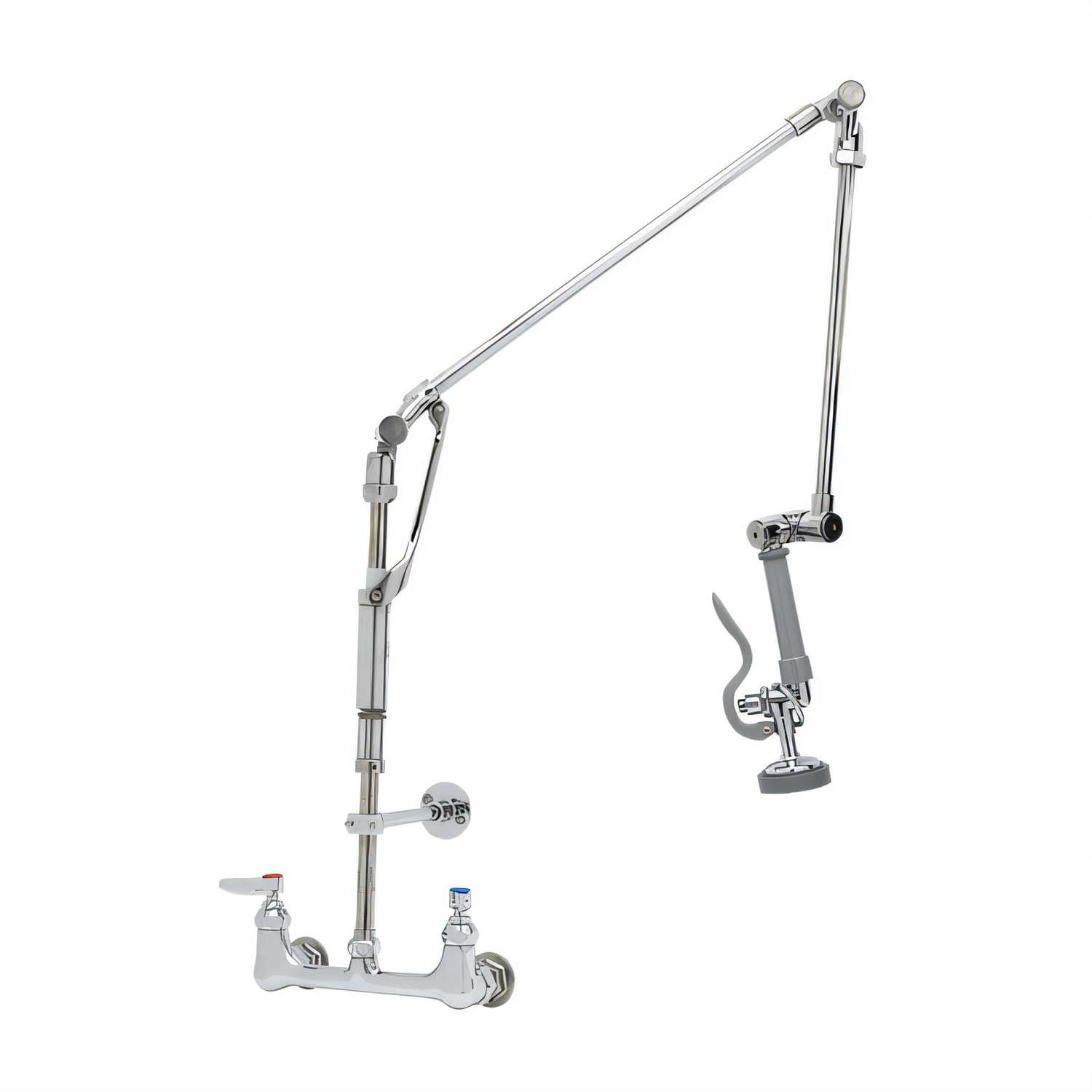

EasyInstall™ Wall-Mount Pre-Rinse Unit

T&S Brass Model B-0134-B • 8" Adjustable Centers • 1.15 GPM

Engineered for fast installs, long service life, and water-saving performance, the EasyInstall™ pre-rinse unit combines T&S Brass reliability with an installer-friendly design. From its factory-assembled swivel arm to the industry-leading Eterna cartridges, every component is built to withstand the daily demands of busy commercial kitchens.

Key Features

  • 8" wall-mount mixing faucet with adjustable centers 7 ¾" – 8 ¼"
  • Polished chrome-plated brass body for superior corrosion resistance
  • Quarter-turn Eterna cartridges with integrated spring checks to prevent cross-flow
  • Lever handles with red/blue color-coded indexes for quick ID
  • Retractable swing arm assembly:
    • 33 ½" (850 mm) overall height at normal hang
    • 19 5⁄8" (499 mm) reach at maximum pull-down
  • Down pipe with heat-resistant gray grip & hold-down ring
  • Low-flow B-0107 spray valve – 1.15 GPM for DOE Class II compliance
  • 6" adjustable wall bracket stabilizes the riser and protects plumbing
  • ½" NPT male inlets for quick tie-in to existing supply lines

At-a-Glance Specifications

Mounting Wall, 8" adjustable centers (7 ¾" – 8 ¼")
Inlet Size / Type ½" NPT male
Spray Valve B-0107, 1.15 GPM @ 60 psi
Cartridges Quarter-turn Eterna w/ spring checks
Handles Lever, color-coded indexes
Overall Height 33 ½" (850 mm)
Maximum Overhang 19 5⁄8" (499 mm)
Operating Pressure 20 – 125 psi (138 – 862 kPa)
Water Temperature 40 °F – 140 °F (4 °C – 60 °C)
Body Material Chrome-plated brass
Certifications ASME A112.18.1 / CSA B125.1, NSF 61-9 & NSF 372 (Low Lead), 2019 DOE PRSV-Class II
Warranty 1 year (limited)

Why Choose EasyInstall™?

  • Time-saver: Factory-assembled swivel arm and EZ-K lock-nut system slash installation time.
  • Water-saver: 1.15 GPM spray valve cuts consumption without sacrificing cleaning power.
  • Service-saver: Quarter-turn cartridges are field-serviceable in minutes—no special tools.
  • Uptime-saver: Heat-resistant handle stays cool to the touch, reducing operator fatigue and burn risk.
Installation Note: For proper performance, always flush supply lines before attaching the unit and support the riser with the included 6" wall bracket at the indicated height.

Looking for alternative flow rates, cartridges, or handle styles? Contact us—most options swap in minutes using the same EasyInstall platform.

Features & Specs

Manufacturer

T&S Brass

Brand_name

EasyInstall

Certifications

CSA

Shipping Weight

15.6lbs

Wall or Deck Mount

splash / wall mount

Valve Type

compression valves

Faucet Centers

8" centers

Specifications

EasyInstall Pre-Rinse Unit, wall mount mixing faucet with 8" adjustable centers, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, retractable arm assembly (33-1/2" high at normal hanging position, 19-5/8" overhang at maximum pull down), down pipe with heat-resistant gray handle & hold down ring, 1.15 GPM spray valve (B-0107), 6" adjustable wall bracket, polished chrome-plated brass faucet body, 1/2" NPT male inlets, CSA
