T&S Brass B-0133-M EasyInstall Commercial Faucets & Plumbing
$2,345.20
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
T&S Brass B-0133-M EasyInstall Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-0133-M EasyInstall Commercial Faucets & Plumbing
$2,345.20
Unit price
/
Unavailable
Description

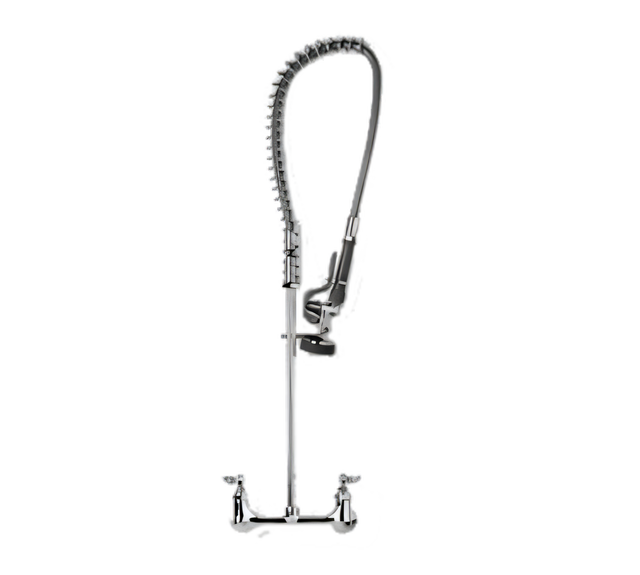

EasyInstall™ Wall-Mount Pre-Rinse Unit
T&S Brass | Model B-0133-EI | 8" Centers • 1.42 GPMEngineered for lightning-fast installs and years of punishing kitchen duty, the EasyInstall™ pre-rinse unit drops into place, locks with a single nut, and gets you rinsing in minutes— no cutting, threading, or guesswork required.
Key Features
- EasyInstall 18" riser — press-fit quick-connect with locking nut for sub-5-minute setup
- 8" wall-mount mixing faucet in polished chrome-plated brass
- Quarter-turn Eterna compression cartridges with integrated spring checks (no cross-flow)
- Lever handles with red/blue indexes
- Overhead spring & 44" flexible stainless-steel hose with heat-resistant handle
- 1.42 GPM spray valve for EPACT-compliant efficiency and powerful rinse performance
- 1/2" NPT female eccentric inlets with Ø 2" flanges – centers adjust 7 ¾" – 8 ¼"
- Overall height 35 ½", 15" overhang, 8 ¼" clearance beneath holder
- Certified lead-free (NSF 61/372) and ASME A112.18.1/CSA B125.1 compliant
- Backed by a 3-year limited manufacturer’s warranty
Technical Specifications
| Mounting style | Wall mount, 8" centers (7 ¾" – 8 ¼" adjustable) |
|---|---|
| Inlet connections | 1/2" NPT female eccentric, Ø 2" flanges |
| Overall height | 35 ½" (902 mm) |
| Riser height | 18" EasyInstall quick-connect |
| Hose length | 44" flexible stainless steel |
| Spray valve flow | 1.42 GPM @ 60 psi |
| Operating pressure | 20 – 125 psi |
| Operating temperature | 40 °F – 140 °F |
| Cartridges | Quarter-turn Eterna with spring checks |
| Handle type | Lever (standard) – optional wrist-action or 4-arm |
| Materials | Polished chrome-plated brass body & riser, stainless-steel hose |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61-9, NSF 372 (Low Lead), EPAct 2005 |
| Warranty | 3-year limited |
| Master pack | 6 units |
What’s in the Box
- Base faucet with lever handles & spring-check cartridges
- 18" EasyInstall riser & overhead spring
- 44" stainless-steel hose with heat-resistant handle
- 1.42 GPM spray valve & hold-down ring
- Finger hook with set screws
- EasyInstall locking washer & nut
- Installation & maintenance instructions
5-Step Installation
- Apply plumber’s putty to the faucet body and secure the body to the wall.
- Wrap riser threads with plumber’s tape and attach the spring assembly.
- Check that the EasyInstall locking washer is seated inside the faucet body.
- Insert the riser assembly into the faucet body until it “pops” into place.
- Tighten the EasyInstall locking nut—installation complete!
Typical installation time for experienced technicians: under 5 minutes.
California Prop 65 Warning:
This product can expose you to chemicals including lead, which is known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Brand_name
EasyInstall
Shipping Weight
72.0lbs
Faucet Centers
8" centers
Wall or Deck Mount
splash / wall mount
Specifications
EasyInstall Pre-Rinse Unit, wall mount. base faucet with spring check cartridges & lever handles, 2" dia. flanges with 1/2" NPT female eccentric flanged inlets, 35-1/2"H, 15" overhang, 8-1/4" clearance, 18" riser, spray valve, flex stainless steel hose (6 each per master pack)
