T&S Brass B-0133-CR-B-M EasyInstall Commercial Faucets & Plumbing
T&S Brass B-0133-CR-B-M EasyInstall Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-0133-CR-B-M EasyInstall Commercial Faucets & Pl...
Description

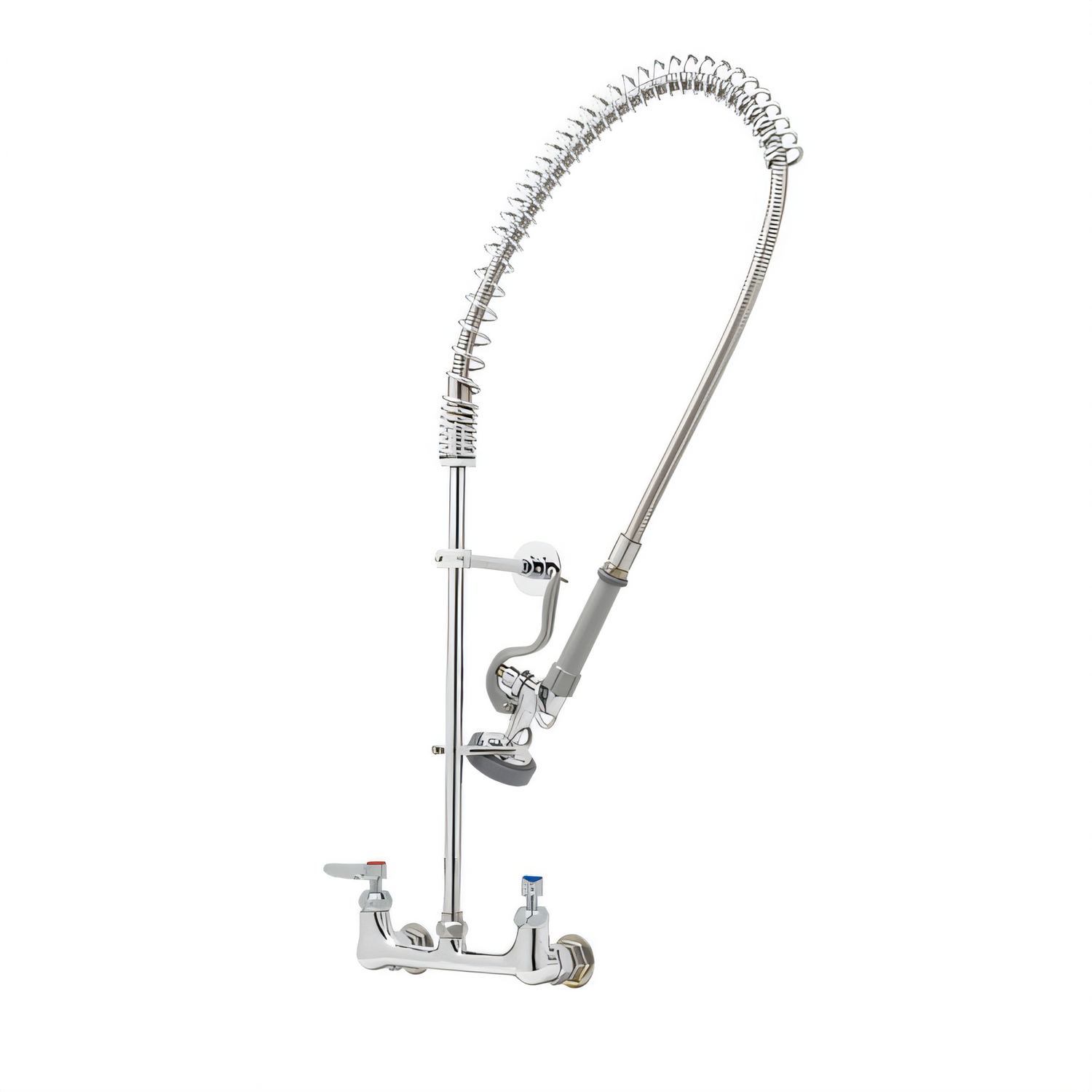

EasyInstall™ Pre-Rinse Unit
Model B-0133-CR-B | Cerama Cartridges | 6 units per master packSlash install times and upgrade your rinse station with the EasyInstall™ pre-rinse unit from T&S Brass. The patented locking washer and riser design lets you drop a fully-featured, code-compliant pre-rinse into place in under a minute—no threading headaches, no guesswork.
Highlights
- 8" wall-mount mixing faucet with polished chrome-plated brass body (adjustable 7-3/4"–8-1/4" centers).
- EasyInstall™ 18" riser—tool-less, 60-second connection to faucet body.
- 44" flexible stainless-steel hose with heat-resistant gray handle and hold-down ring.
- Low-flow 1.42 GPM B-0107 spray valve balances power and water savings.
- Quarter-turn Cerama cartridges with integral check valves—rated for 1 million cycles.
- Lever handles with red/blue indexes for quick ID.
- Heavy-duty overhead spring plus 6" adjustable wall bracket for rock-solid stability.
- 1/2" NPT female eccentric inlets with 2" flanges for fast retrofits.
- Certified to ASME A112.18.1/CSA B125.1, NSF 61-§9, NSF 372 & EPAct 2005.
Specification Sheet
| Manufacturer | T&S Brass & Bronze Works, Inc. |
|---|---|
| Series / Model | EasyInstall™ B-0133-CR-B |
| Flow Rate | 1.42 GPM @ 60 psi (5.4 L/min) |
| Operating Pressure | 20 – 125 psi (1.4 – 8.6 bar) |
| Operating Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Inlet Size | 1/2" NPT Female |
| Riser Height | 18" (457 mm) |
| Hose Length | 44" (1.12 m) stainless steel |
| Spray Valve | B-0107, hold-down ring, 1.42 GPM |
| Cartridges | Quarter-turn Cerama w/ check valves |
| Finish | Polished chrome-plated brass |
| Mounting Centers | 7-3/4" – 8-1/4" adjustable |
| Pack Quantity | 6 complete units / master pack |
| Warranty | 3-year limited (unit) / Lifetime limited (Cerama cartridges) |
What’s Included
- Pre-assembled faucet body with Cerama cartridges and lever handles
- EasyInstall™ 18" riser with overhead spring
- 44" stainless-steel hose & B-0107 spray valve
- 6" adjustable wall bracket with hardware
- Seals, washers and EasyInstall™ locking hardware
5-Step Installation
- Apply plumber’s putty to faucet body and secure to wall-mount inlets.
- Wrap riser threads with plumber’s tape and attach to spring assembly.
- Verify EasyInstall™ locking washer is seated inside the faucet body.
- Lower riser assembly into the body until it “pops” in place.
- Tighten the locking nut—ready for service.
Looking for different flow rates or handle styles? Ask about optional spray valves (0.65–1.07 GPM) and wrist-action or 4-arm handles.
