T&S Brass B-0133-CCB-M EasyInstall Commercial Faucets & Plumbing
T&S Brass B-0133-CCB-M EasyInstall Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-0133-CCB-M EasyInstall Commercial Faucets & Plu...
Description

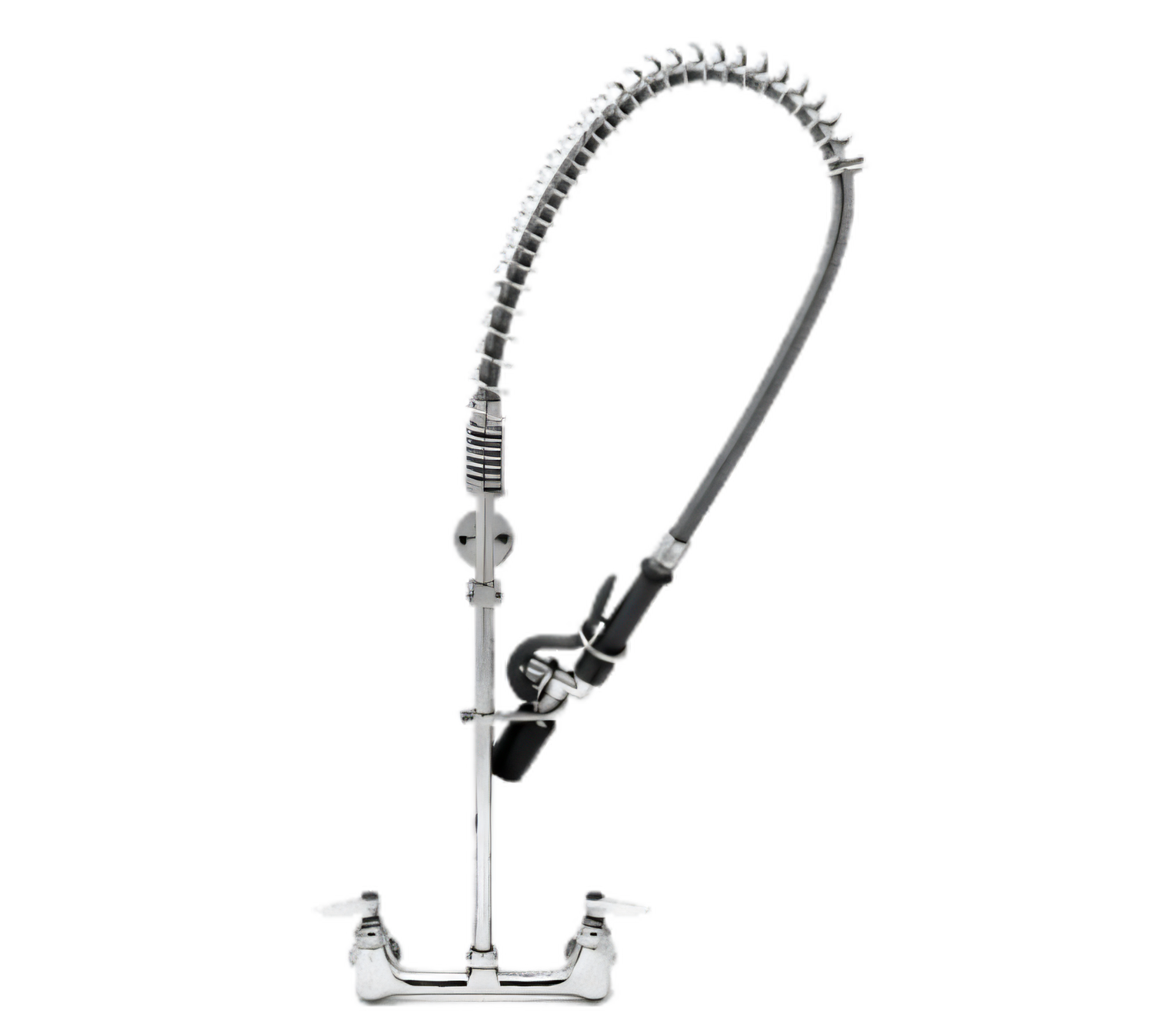

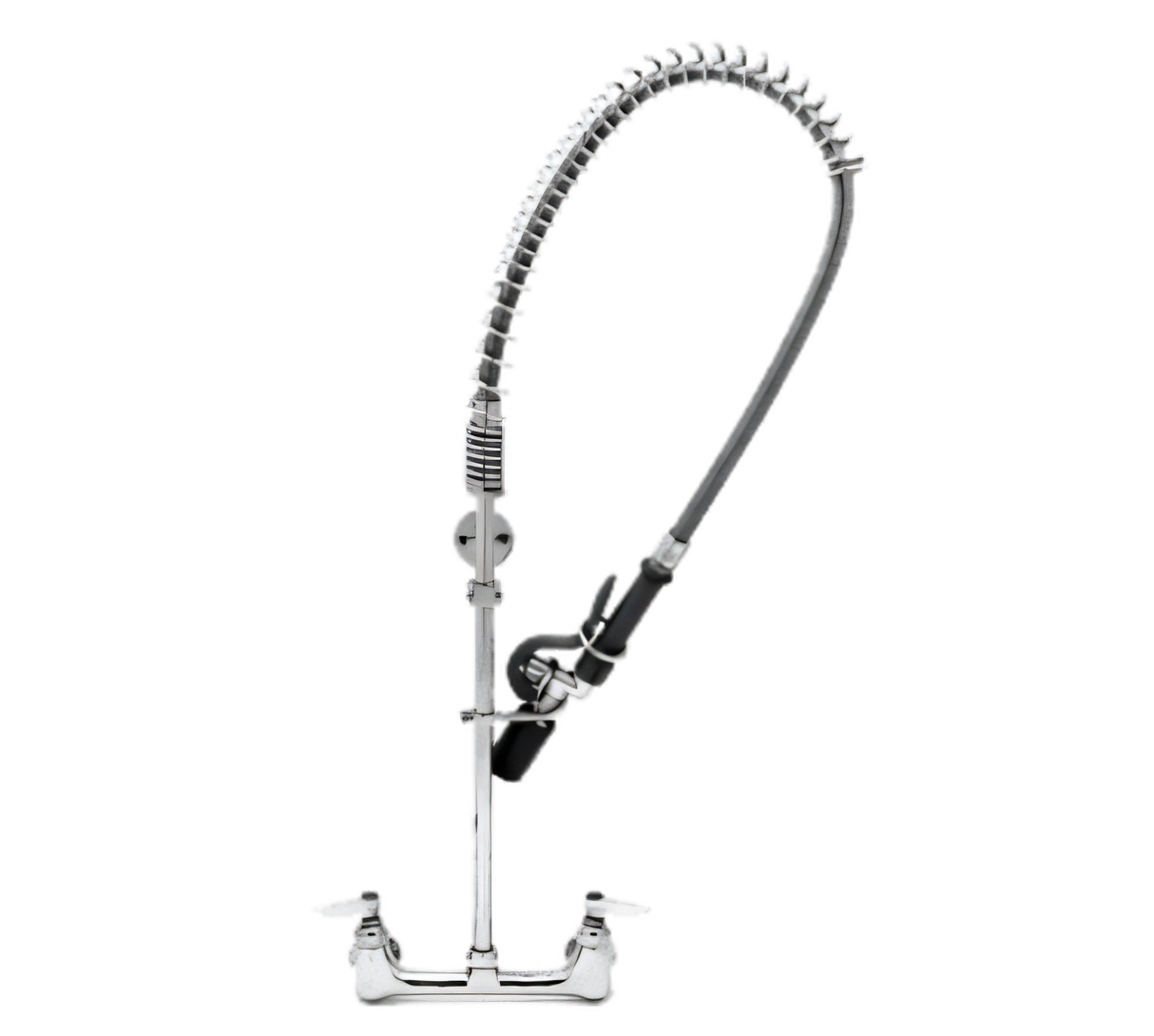

EasyInstall® Pre-Rinse Unit
8" Center Wall-Mount • Cerama Cartridges • Low-Lead CompliantFinish dishes faster—and install even faster. The T&S Brass EasyInstall® pre-rinse unit drops straight onto any 8 inch on-center wall connection, locks with a single nut, and is rinse-ready in minutes. Built from heavy-duty chrome-plated brass and stainless steel, this commercial workhorse delivers a 1.42 GPM spray while meeting today’s strict low-lead and efficiency standards.
- Quick-connect EasyInstall 18" riser cuts typical install time in half.
- Polished chrome-plated brass 8" wall-mount mixing faucet—built for years of abuse.
- 44" flexible stainless-steel hose with heat-resistant gray handle & hold-down ring.
- Water-saving 1.42 GPM B-0107 spray valve powers through food soil.
- Quarter-turn Cerama compression cartridges with integral check valves prevent cross-flow and outlast rubber seats.
- Color-coded lever handles for intuitive operation.
- 1/2" NPT male inlets with 1 5/16" hex flanges for a rock-solid seal.
- 6" adjustable wall bracket and spray-valve holder included—no add-ons required.
- Certified low-lead (NSF 372) & EPAct 2005 compliant.
| Mounting | 8" (203 mm) center wall-mount |
|---|---|
| Inlet Connections | 1/2" NPT male |
| Riser | 18" EasyInstall, chrome-plated brass |
| Spray Hose | 44" (1118 mm) flexible stainless steel |
| Spray Valve | B-0107, 1.42 GPM @ 60 psi |
| Cartridges | Quarter-turn Cerama with check valves |
| Operating Pressure | 20 – 125 psi (1.4 – 8.6 bar) |
| Operating Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Body & Handles | Polished chrome-plated brass |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61-9, NSF 372, EPAct 2005 |
| Warranty | 3-year limited manufacturer warranty |
| Packaging | 6 units per master pack (price shown per unit) |
- Apply plumber’s putty to the faucet body and position on wall.
- Tape riser threads, attach to overhead spring assembly, and tighten.
- Confirm EasyInstall locking washer is properly seated inside faucet body.
- Insert the riser assembly; press down until the end fitting “pops” into place.
- Lock the EasyInstall nut and tighten—done!
Detailed installation & maintenance guide ships with every unit.
- Low-Lead compliant to NSF 372 for all 50 states.
- NSF 61-Section 9 certified for potable water contact.
- Meets ASME A112.18.1 / CSA B125.1 performance standards.
PROP 65 WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
