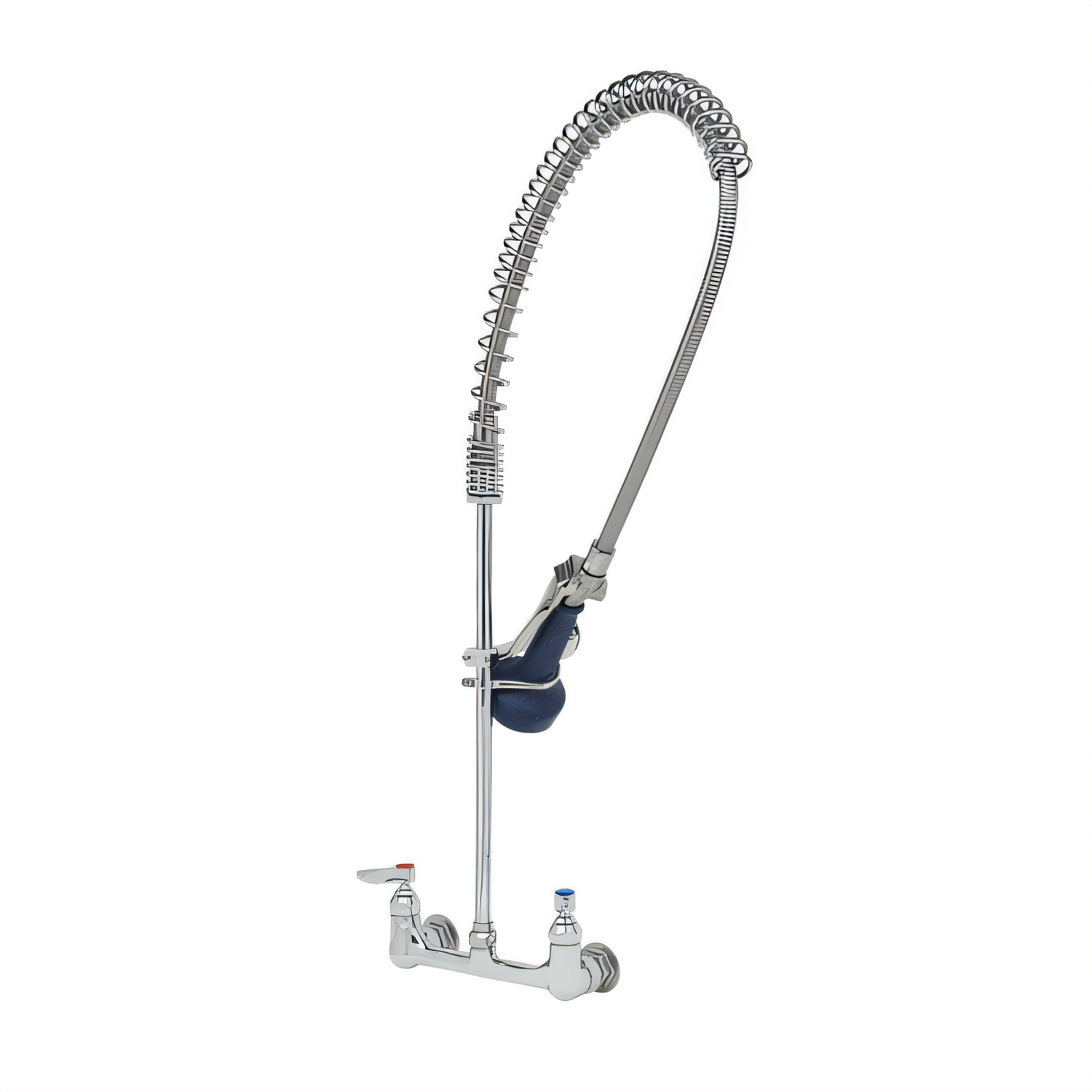

T&S Brass EasyInstall Spring-Action Wall-Mount Pre-Rinse Unit with 18-Inch Riser, 44-Inch Hose, and Wall Bracket

SKU: B-0133-B08-M
GTIN: 671262690201
$2,617.63
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets & Plumbing Faucet Components New Arrivals Pre-rinse Faucet Parts Restaurant Equipment Restaurant Equipment Parts Sinks & Handwashing Stations T&S Brass

T&S Brass EasyInstall Spring-Action Wall-Mount Pre-Rinse Unit with 18-Inch Riser, 44-Inch Hose, and Wall Bracket

8-inch centers, 1.07 GPM spray valve, polished chrome plated brass

Built for fast installation and dependable rinse performance, this EasyInstall pre-rinse unit combines a spring-action riser, 44-inch hose, and 1.07 GPM spray valve in a wall-mount design.

  • 8-inch wall-mount pre-rinse unit with adjustable centers for common wall installations.
  • EasyInstall design helps reduce install time with a pop-in end-fitting, locking washer, and locking nut.
  • Includes an 18-inch riser, 44-inch flexible stainless steel hose, and 6-inch wall bracket.
  • 1.07 GPM JETSpray valve with insulated grip handle and trigger lock for controlled rinsing.
  • Quarter-turn Eterna compression cartridges with spring checks help prevent cross-flow.
  • Chrome-plated brass construction with lever handles and color-coded hot/cold indexes.

Product Weight:

74.28 lb

EasyInstall Mounting System

End-fitting, locking washer, and locking nut simplify installation and help the assembly seat securely in the faucet body.

Spring-Action Wall-Mount Design

8-inch wall-mount pre-rinse unit with an overhead spring for flexible sink coverage.

18-Inch Riser And 44-Inch Hose

Provides reach and movement for fast rinsing across the sink area.

1.07 GPM JETSpray Valve

Includes an insulated grip handle, stainless steel trigger, and trigger lock for controlled rinsing.

Quarter-Turn Eterna Cartridges

Compression cartridges with spring checks help prevent cross-flow of water.

6-Inch Adjustable Wall Bracket

Supports the riser assembly and helps stabilize the wall-mounted installation.

Chrome-Plated Brass Construction

Polished chrome plated brass body and riser with a stainless steel hose and chrome plated metal handles.

Color-Coded Lever Handles

Lever handles with red and blue indexes make hot and cold selection easy.

Type Pre-Rinse Unit
Style Spring Action
Installation Type Wall Mounted
Faucet Centers 8 Inches
Material Brass
Finish Polished Chrome Plated
Water Inlet Size 1/2 Inch NPT Female
Riser Length 18 Inches
Hose Length 44 Inches
Flow Rate 1.07 GPM at 60 PSI
Temperature Range 40 °F to 140 °F
Pressure 20 to 125 PSI
Handle Type Lever
Shipping Weight 74.28 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

3-Year Limited

Documents

PDF Instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It is designed for 8-inch wall mount centers and adjusts from 7 3/4 inches to 8 1/4 inches.
The unit includes an 18-inch riser, 44-inch flexible stainless steel hose, 1.07 GPM spray valve, overhead spring, and 6-inch wall bracket.
Quarter-turn Eterna compression cartridges with spring checks are standard; quarter-turn Cerama cartridges with check valves are also available.
Lever handles are standard, with 4-inch wrist action and 4-arm handles also listed as options.
Optional spray valves include B-0107, B-0107-C, B-0107-J, B-0108, and B-0108-C.
The submittal lists a three-year limited warranty.
