T&S Brass B-0133-ADF14-BM EasyInstall Commercial Faucets & ...
Description

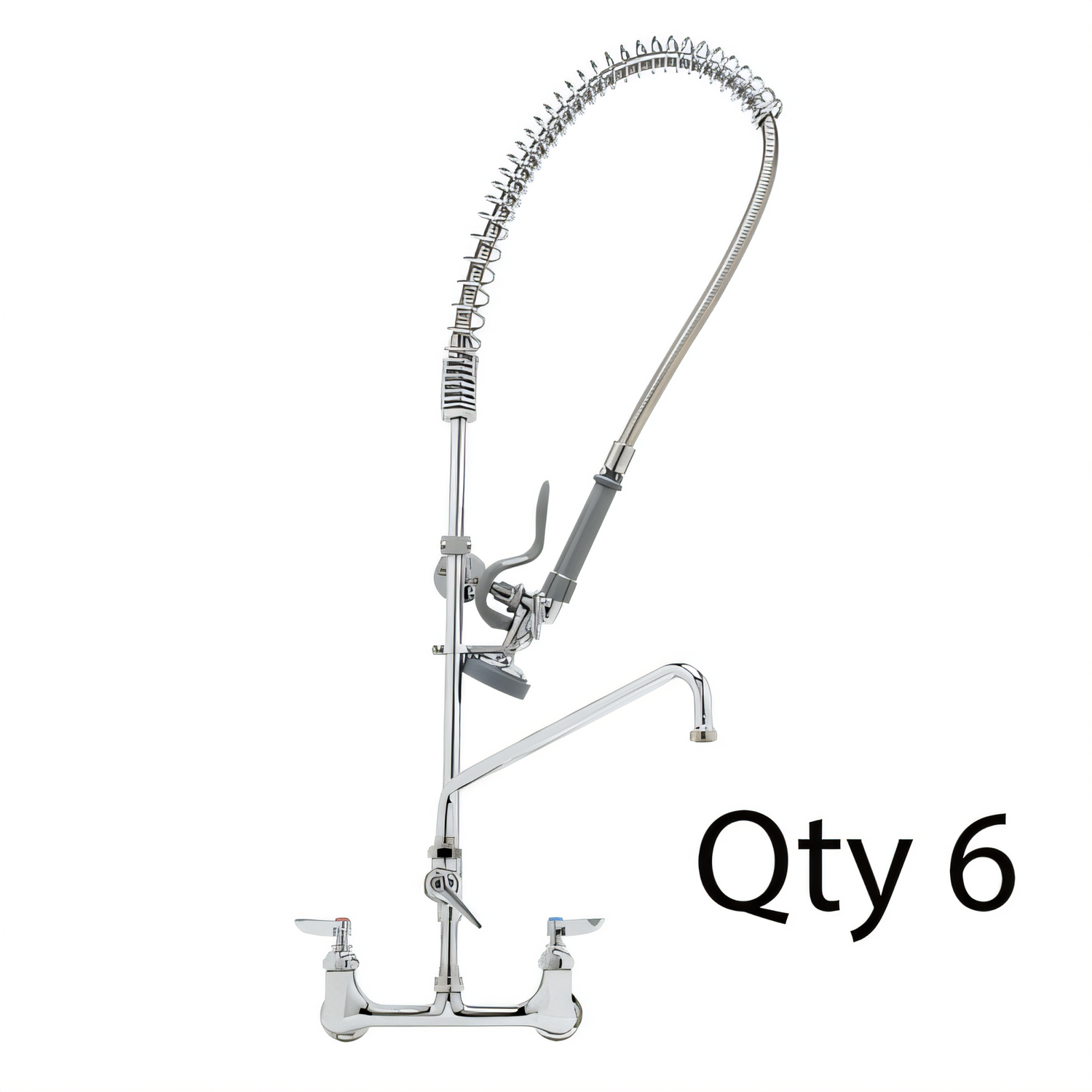

T&S Brass EasyInstall® 8" Wall-Mount Pre-Rinse Unit
with 14" Swing Nozzle • 18" Riser • 44" Stainless Hose • 1.42 GPM Spray ValveBuilt for high-volume kitchens that can’t afford downtime, the EasyInstall® pre-rinse unit drops installation time from minutes to seconds, while delivering the rugged reliability you expect from T&S Brass. From its chrome-plated brass body to its stainless steel hose and EPAct-compliant spray valve, every component is engineered to slash prep time, conserve water and survive years of abuse.
Why You’ll Love It
- Rapid EasyInstall® locking washer & nut—simply “push & pop” the riser into place.
- 8" adjustable centers (7 ¾"–8 ¼") wall-mount mixing faucet, polished chrome plated brass.
- Add-on faucet with 14" swing nozzle (063X) and Series-1 stream regulator outlet.
- 18" rigid riser topped with an overhead spring body for smooth hose recoil.
- 44" B-0044-H stainless steel flex hose with heat-resistant handle & polyurethane inner tube.
- B-0107 spray valve delivers 1.42 GPM at 60 psi (EPAct 2005 compliant).
- Quarter-turn Eterna cartridges with integral spring checks prevent cross-flow.
- Color-coded lever handles for fast, intuitive operation.
- 1/2" NPT female eccentric inlets with 2" flanges for simple hook-ups.
- Includes 6" adjustable wall bracket for rock-solid support.
- Certified lead-free: NSF 61, NSF 372 • ASME A112.18.1/CSA B125.1.
- Backed by a 3-Year Limited Warranty.
Technical Specs
| Manufacturer / Model | T&S Brass EasyInstall® Pre-Rinse Unit (B-0133-ADF14-B or equal) |
|---|---|
| Mounting Style | 8" wall mount, adjustable 7 ¾" – 8 ¼" |
| Inlet Connections | 1/2" NPT female eccentric |
| Spray Valve Flow | 1.42 GPM @ 60 psi |
| Add-On Faucet Flow | 9.73 GPM @ 60 psi |
| Operating Pressure | 20 – 125 psi |
| Water Temperature | 40 °F – 140 °F |
| Materials | Chrome-plated brass body & nozzle, stainless hose, polyurethane liner, metal handles |
| Included Components | Mixing faucet, 18" riser, overhead spring, 44" hose, B-0107 spray valve, add-on faucet with 14" swing nozzle, 6" wall bracket |
| Certifications | ASME A112.18.1/CSA B125.1, NSF 61 §9, NSF 372 (Lead-Free), EPAct 2005 |
| Warranty | 3 Years Limited (commercial) |
| Master Pack | 6 units per case |

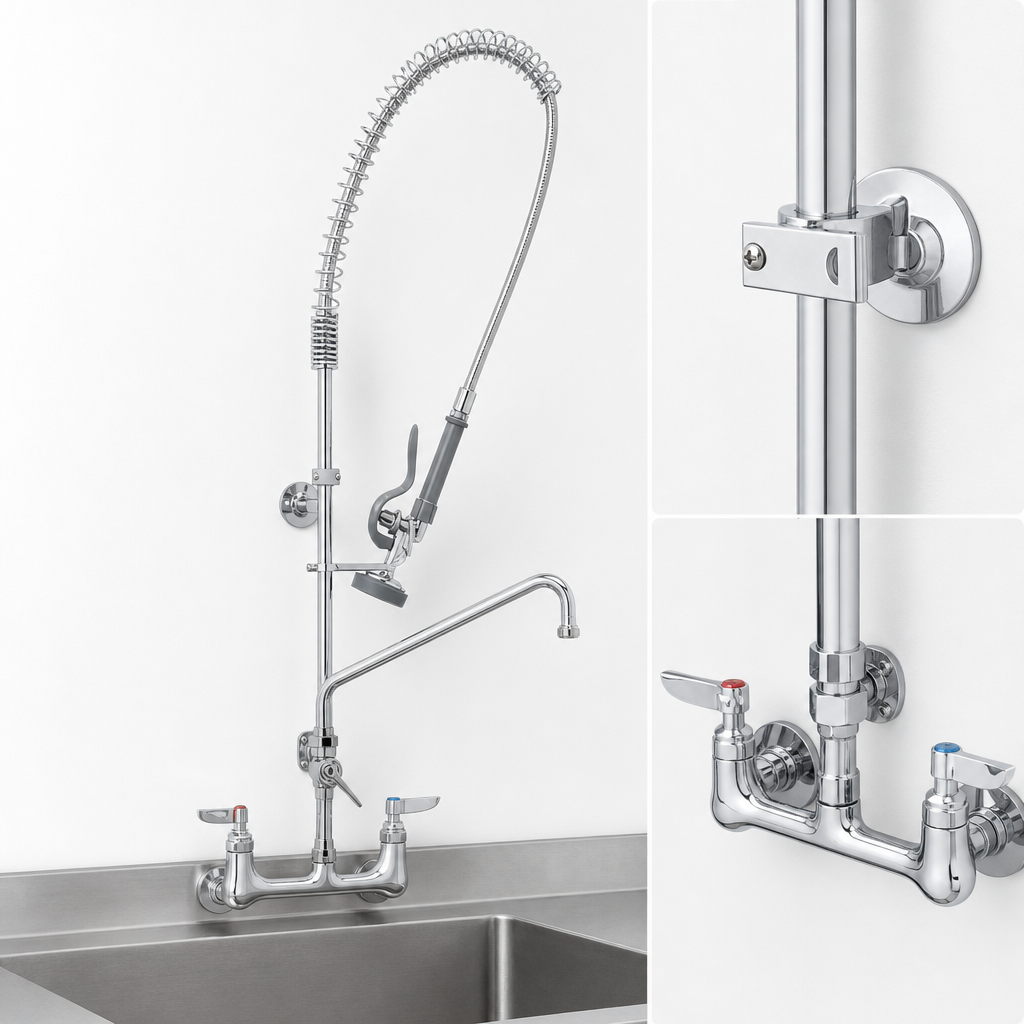

Fast, Fail-Safe Installation
The patented EasyInstall® system eliminates tedious threading and alignment:
- Apply plumber’s putty to the faucet body and secure to the wall.
- Tape the riser threads and attach to the overhead spring.
- Ensure the EasyInstall® locking washer is seated in the faucet body.
- Press the riser assembly straight down until it “pops” into place.
- Tighten the locking nut—done!
Full installation & maintenance instructions ship with each unit.
