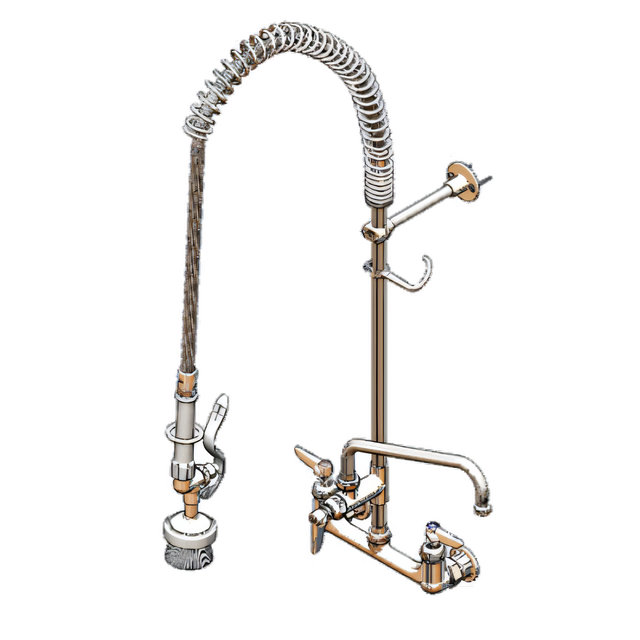

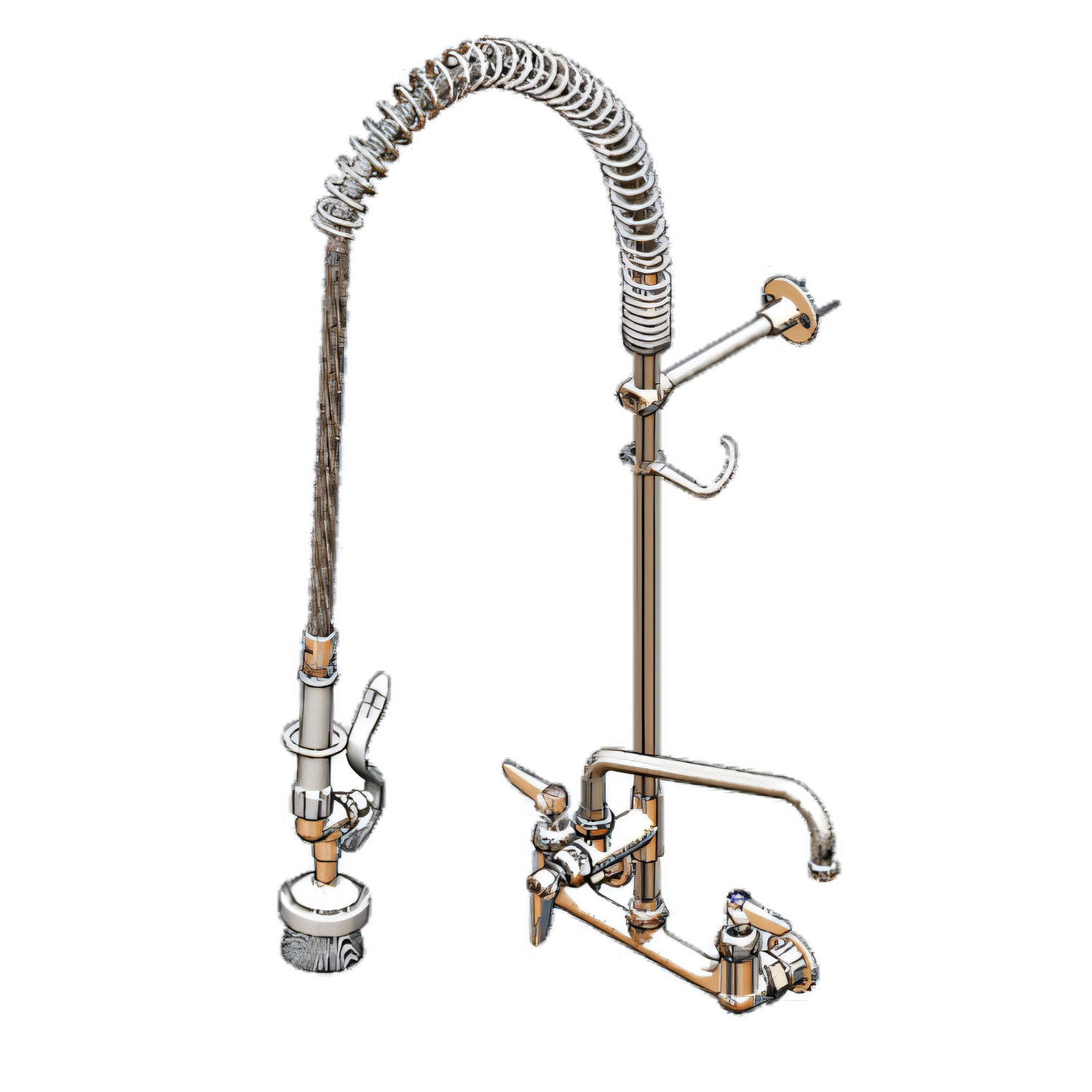

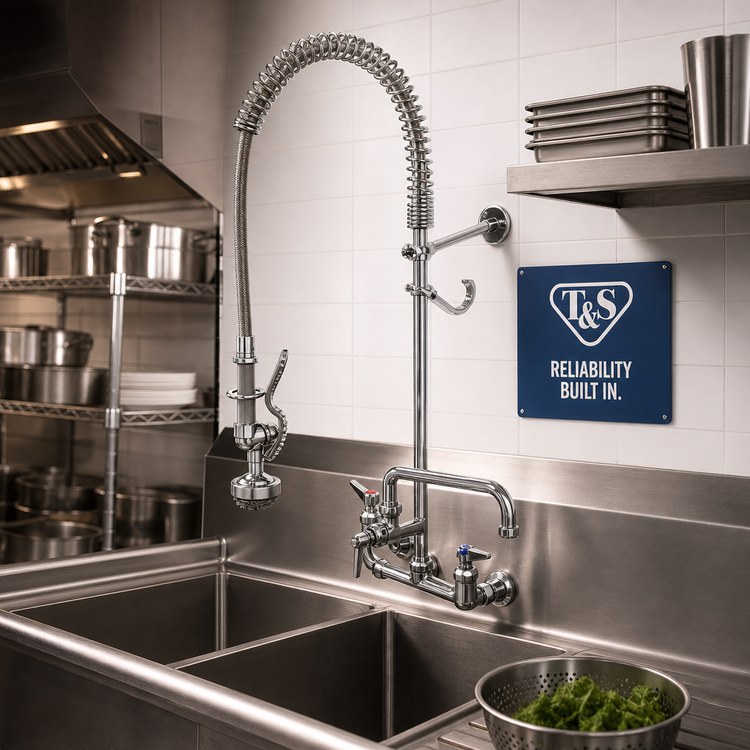

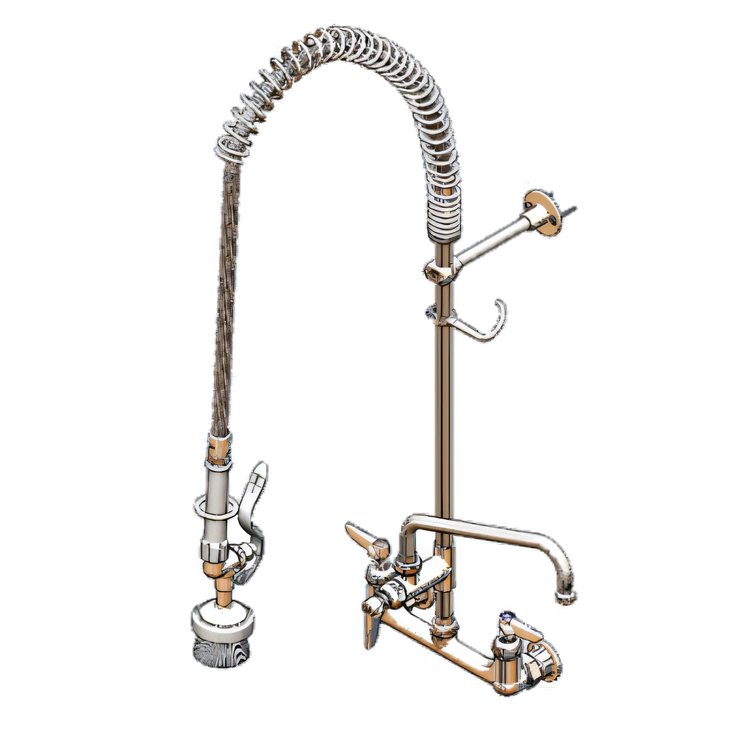

T&S Brass EasyInstall Wall-Mount Pre-Rinse Unit with Add-On Faucet, 8-Inch Centers, and 12-Inch Swing Nozzle

Polished Chrome Brass, Adjustable Wall Bracket, 36-Inch Flexible Hose

Built for fast sink turnaround, this EasyInstall pre-rinse unit combines a 12-inch swing nozzle and add-on faucet in a durable wall-mount package.

  • Commercial pre-rinse unit with integrated add-on faucet for rinsing, filling, and cleanup at the sink.
  • 8-inch wall-mount layout with an adjustable wall bracket that fits centers from 7 3/4 to 8 1/4 inches.
  • 12-inch swing nozzle, 18-inch riser, and 36-inch flexible stainless steel hose for extended reach.
  • 1.42 GPM spray valve and quarter-turn Eterna cartridges support reliable daily operation.
  • Includes supply stops, supply hoses, and a brush attachment for installation and use.
  • Polished chrome plated brass construction with a low-lead design and lever handles.

Product Weight:

16.8 lb

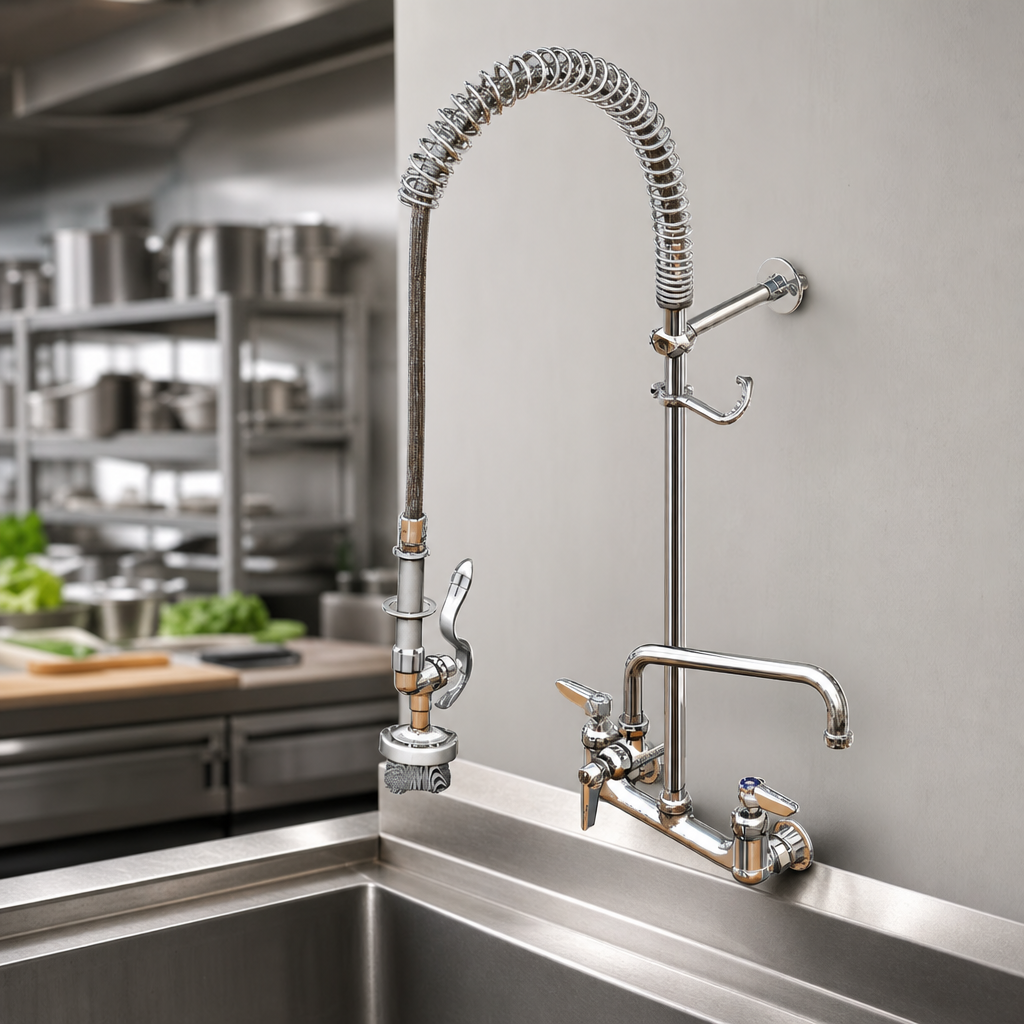

EasyInstall Add-On Faucet

Integrated add-on faucet is designed for quicker installation and added sink utility.

Adjustable Wall Bracket

Wall bracket supports 8-inch centers and adjusts from 7 3/4 to 8 1/4 inches.

12-Inch Swing Nozzle

Swing nozzle with stream regulator outlet provides reach for rinsing and filling.

36-Inch Flexible Hose

Flexible stainless steel hose and spring body give the user more range of motion at the sink.

Quarter-Turn Eterna Cartridges

Compression cartridges with spring checks help prevent cross-flow between hot and cold water.

Included Installation Components

Includes two 36-inch supply hoses, two inlet supply stops, and an installation kit for setup.

1.42 GPM Spray Valve

Standard spray valve provides efficient pre-rinse performance.

Low-Lead Construction

Polished chrome plated brass body and metal handles are built for commercial water applications.

Type Pre-Rinse Unit
Style EasyInstall
Installation Type Wall Mounted
Faucet Centers 8 Inches
Spout Length 12 Inches
Nozzle Type Standard Swing
Handle Type Lever
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 1.42 GPM
Temperature Range 40 °F to 140 °F
Material Brass
Finish Polished Chrome
Shipping Weight 16.8 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Three Year (Limited)

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The documentation lists the spray assembly, 18-inch riser, 36-inch flexible hose, brush attachment, supply hoses, supply stops, and installation hardware.
Yes. The wall bracket adjusts from 7 3/4 to 8 1/4 inches.
The unit uses an 18-inch riser and a 36-inch flexible stainless steel hose.
The standard spray valve is rated at 1.42 GPM at 60 psi, and the add-on faucet is rated at 8.91 GPM at 60 psi.
The product submittal lists a three-year limited warranty.
The performance data lists a temperature range of 40 °F to 140 °F.
