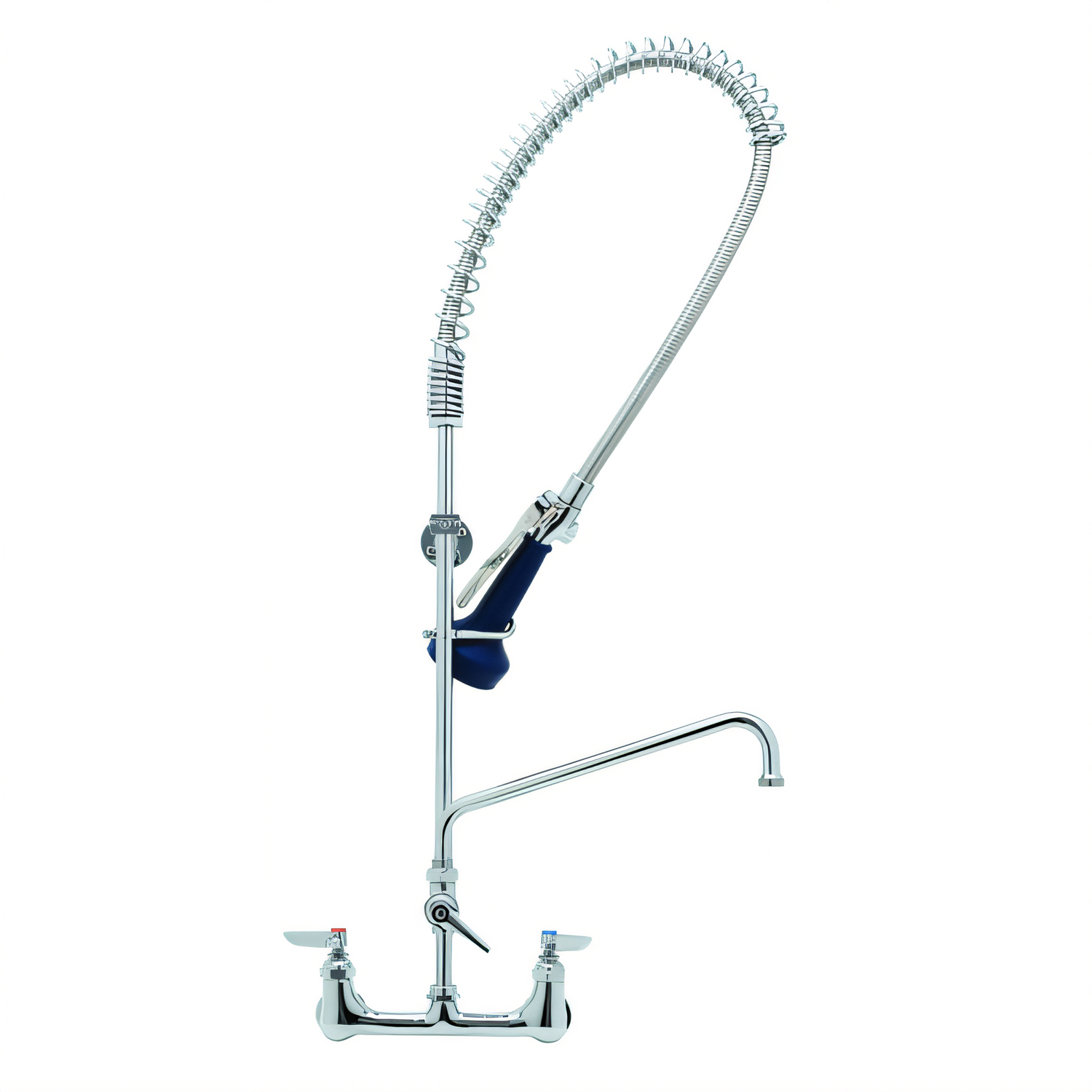

EasyInstall 8-Inch Wall-Mount Pre-Rinse Unit with 6-Inch Add-On Faucet and 1.07 GPM JETSpray Valve

Adjustable Centers, Overhead Spring, 18-Inch Riser

Built for busy commercial sinks, this wall-mounted pre-rinse unit combines an add-on faucet, long-reach hose, and quarter-turn controls for fast, precise rinsing.

  • 8-inch wall-mount pre-rinse unit with EasyInstall add-on faucet
  • 6-inch swing nozzle with stream regulator outlet
  • 18-inch rigid riser and 44-inch flexible stainless steel hose
  • 1.07 GPM JETSpray spray valve with insulated grip and trigger lock
  • Quarter-turn Eterna cartridges with spring checks help prevent cross flow
  • Lever handles with color-coded indexes for quick hot/cold identification
  • Adjustable 7 3/4 Inches to 8 1/4 Inches centers with 1/2 Inch NPT female inlets
  • Low-lead commercial brass construction with polished chrome plated finish

Product Weight:

12.75 lb

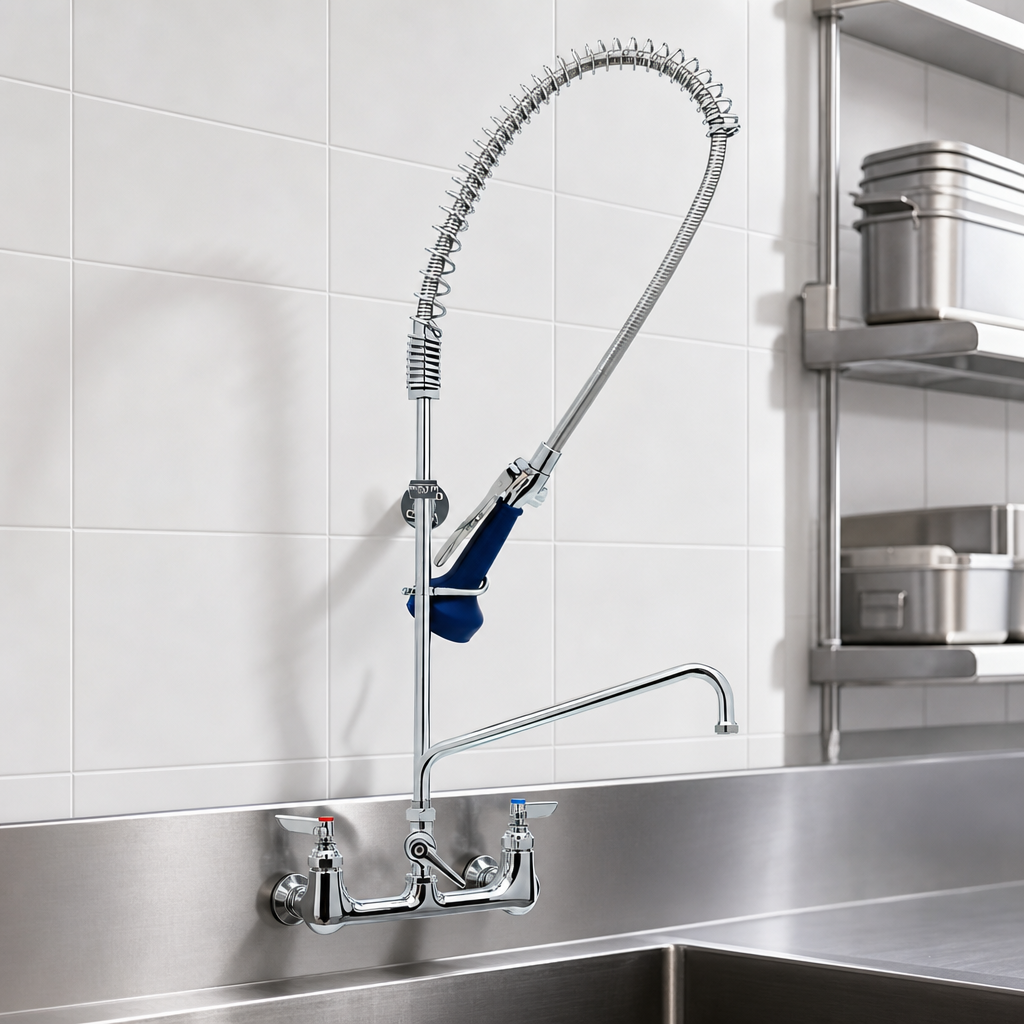

Wall-Mount Mixing Faucet Body

8-inch wall-mount mixing faucet body designed for commercial sink stations with polished chrome plated brass construction.

6-Inch Swing Nozzle

The add-on faucet includes a 6-inch swing nozzle with stream regulator outlet for controlled water direction.

Quarter-Turn Eterna Cartridges

Spring checks help reduce cross flow while the quarter-turn design supports smooth operation.

1.07 GPM JETSpray Valve

Includes an insulated grip handle, stainless steel trigger, and trigger lock for controlled rinsing.

Extended Reach Hose Assembly

A 18-inch rigid riser and 44-inch flexible stainless steel hose improve reach across the sink.

Lever Handles with Color-Coded Indexes

Red and blue indexes make hot and cold identification quick and easy.

High-Flow Add-On Faucet

The add-on faucet is rated at 9.73 GPM at 60 psi for fast filling and rinse support.

Adjustable Center Spacing

Fits 7 3/4 Inches to 8 1/4 Inches center spacing with 1/2 Inch NPT female inlets.

Type Pre-Rinse Unit
Installation Type Wall Mounted
Material Brass
Finish Polished Chrome Plated
Controls Quarter-Turn
Spout Length 6 Inches
Nozzle Type Swing Nozzle
Handle Type Lever
Flow Rate 1.07 GPM
Water Inlet Size 1/2 Inch NPT Female
Selling Unit Each
Units Per Case 1
Shipping Weight 12.75 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Three-Year Limited

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download PDF Instructions PDF Download

Frequently Asked Questions

No. Model B-0133-A06-08 is the standard wall-mount version; the 6-inch wall bracket is optional and sold separately as B-0109-01.
The included spray valve is rated at 1.07 GPM.
The faucet centers adjust from 7 3/4 Inches to 8 1/4 Inches.
It uses 1/2 Inch NPT female inlets.
The documented operating range is 20 to 125 psi and 40°F to 140°F.
The submittal lists a three-year limited warranty.
