Description

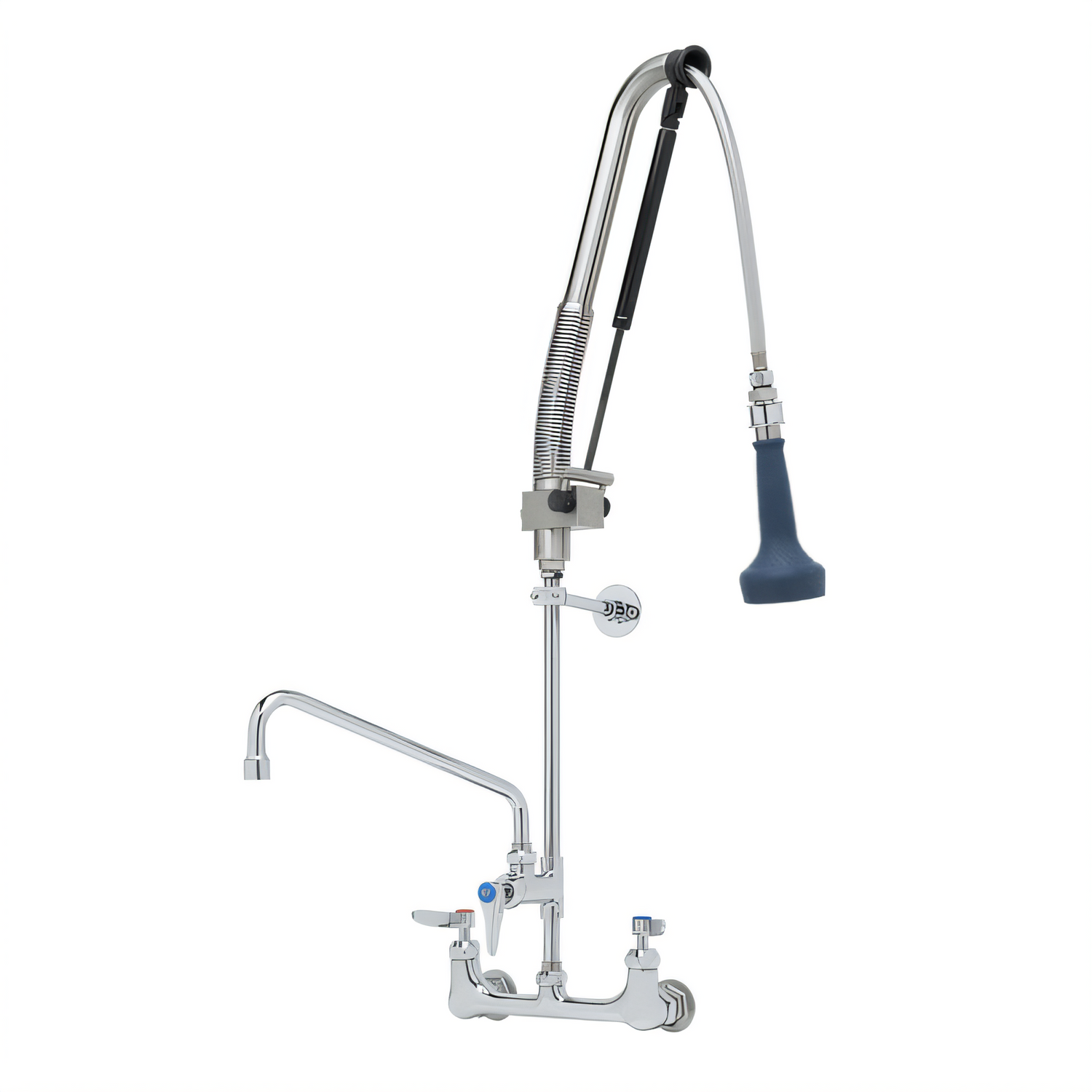

EasyInstall DuraPull™ Pre-Rinse Unit
Model B-0133-12-CRB8P | 8″ Wall-Mount • 1.07 GPM Low-Lead Spray ValveEngineered for demanding commercial kitchens, the T&S Brass EasyInstall DuraPull delivers powerful cleaning performance while slashing installation time. A rugged chrome-plated brass body, stainless-steel pull-down assembly and industry-best Cerama cartridges make this pre-rinse the worry-free choice for restaurants, cafés and food-service operations that run 24/7.
Key Features

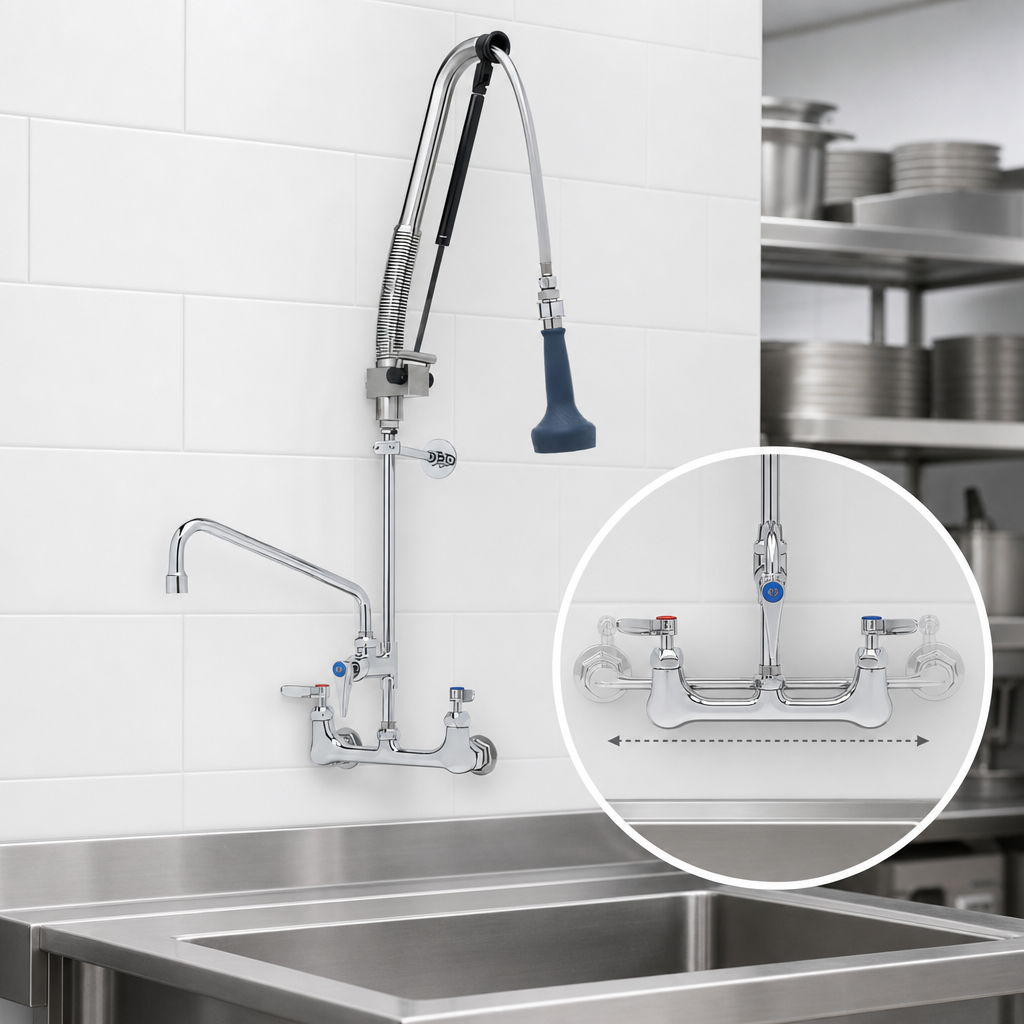

- 8″ adjustable wall-mount mixing faucet (7 ¾″ – 8 ¼″ centers) with polished chrome finish
- EasyInstall add-on faucet with 12″ swing nozzle & Series 1 stream regulator – 5.35 GPM @ 60 psi
- Stainless-steel pull-down valve unit with insulated blue 1.07 GPM spray valve & auto shut-off
- 30″ flexible stainless-steel hose, protective spring & air-cylinder for smooth retraction
- Quarter-turn Cerama cartridges with integral check valves (lifetime limited warranty)
- Lever handles with color-coded (blue/red) press-in indexes
- 12″ rigid riser & 6″ adjustable wall bracket for rock-solid support
- ½″ NPT female eccentric inlets with 2″ flanges – cCSAus certified
- Certified low-lead brass & stainless construction – NSF 61/372 compliant
Performance Data
| Spray Valve Flow | 1.07 GPM (4.05 L/min) @ 60 psi |
|---|---|
| Add-On Nozzle Flow | 5.35 GPM (20.3 L/min) @ 60 psi |
| Working Pressure | 20 – 125 psi (1.4 – 8.6 bar) |
| Water Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
Dimensional Highlights
| Overall Height | 38 7⁄16″ (976 mm) to top of spray valve |
|---|---|
| Spout Reach | 12 5⁄8″ (321 mm) from wall |
| Nozzle Length | 12″ (305 mm) swing nozzle |
| Riser Height | 12″ (305 mm) rigid riser |
| Hose Length | 30″ (762 mm) stainless-steel braided |
Certifications & Warranty
- ASME A112.18.1 / CSA B125.1
- NSF 61 Section 9 & NSF 372 (Low Lead Content)
- 2019 DOE PRSV – Class II
- cCSAus listed
- Warranty: 7-year limited (lifetime on Cerama cartridges)
Looking for a different flow or handle style? Optional aerated or laminar outlets and wrist-action or 4-arm handles are available – contact us for custom configurations.
