T&S Brass

EasyInstall Wall-Mount Pre-Rinse Unit with Add-On Faucet and 14-Inch Swing Nozzle

SKU: B-0131-ADF14-B
GTIN: 671262738354
$559.86
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Add-on Faucets Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Restaurant Equipment Sinks & Handwashing Stations T&S Brass

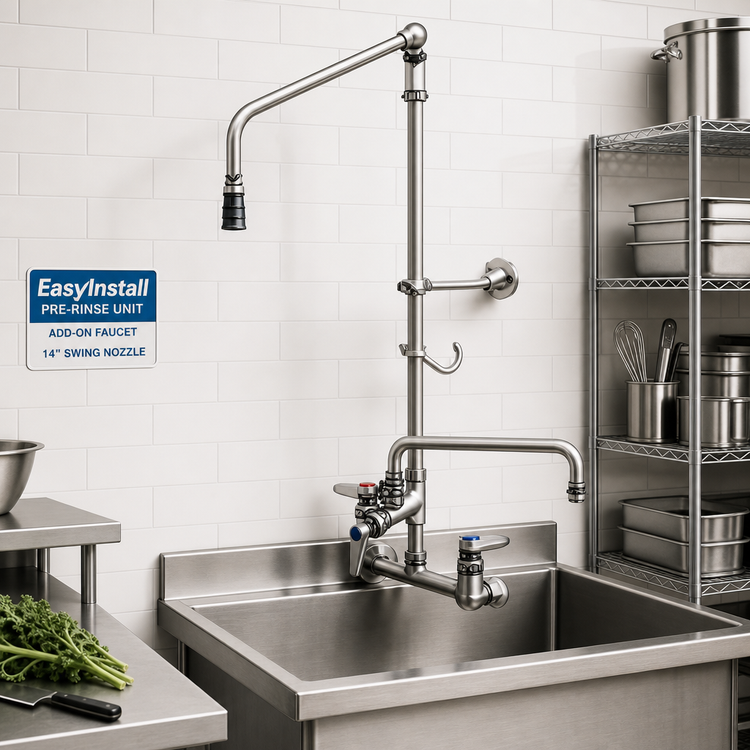

EasyInstall Wall-Mount Pre-Rinse Unit with Add-On Faucet and 14-Inch Swing Nozzle

8-Inch Adjustable Centers, Chrome-Plated Brass Body, 20-Inch Stainless Hose

Built for busy dish stations, this wall-mount pre-rinse unit combines a long-reach swing nozzle, flexible hose, and add-on faucet for efficient cleanup.

  • Wall-mount EasyInstall assembly with an add-on faucet for added sink coverage.
  • Adjustable faucet centers and a 6-inch wall bracket help simplify installation.
  • 14-inch swing nozzle with stream regulator outlet reaches more of the sink area.
  • 20-inch flexible stainless steel hose includes a heat-resistant gray handle and hold-down ring.
  • Quarter-turn Eterna compression cartridges with spring checks help reduce cross-flow.
  • Chrome-plated brass body, riser, overhead swivel arm, and spray valve holder provide a durable build.

Product Weight:

13.2 lb

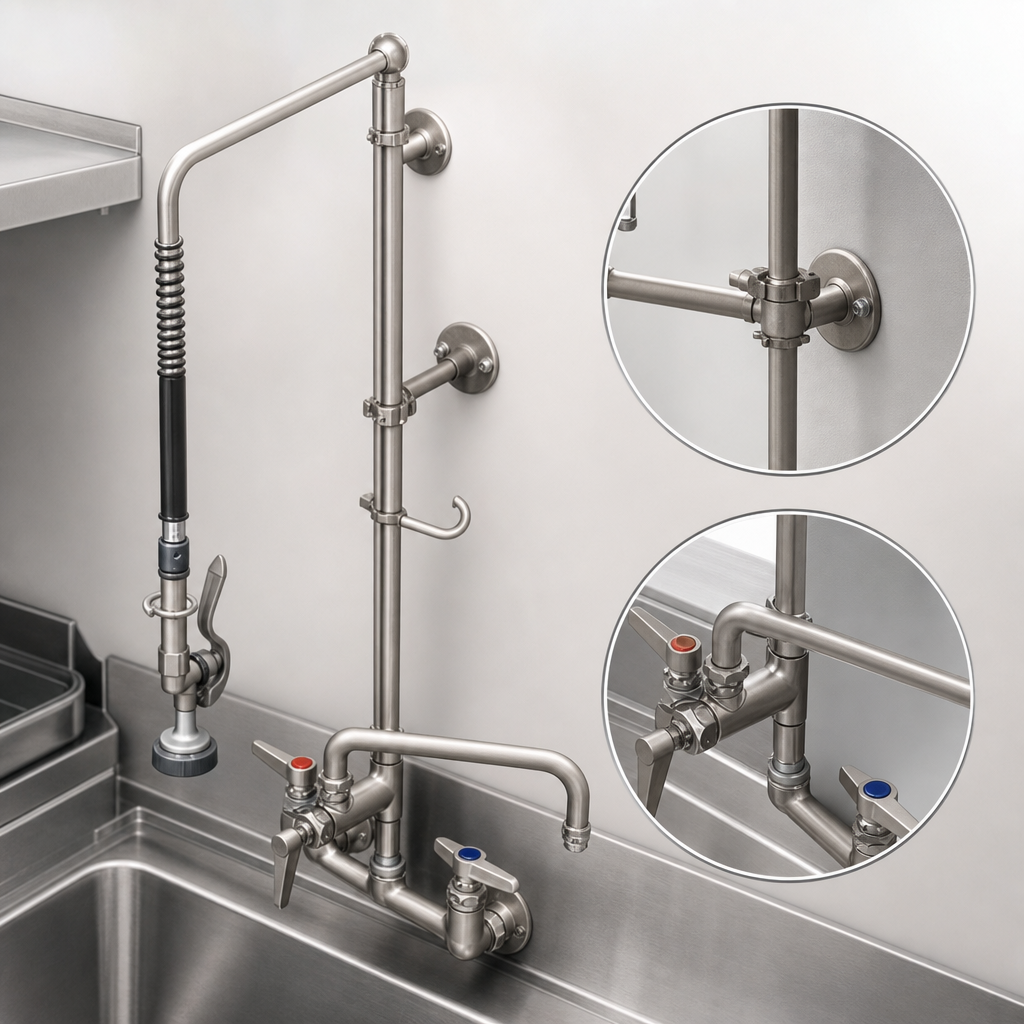

EasyInstall Add-On Faucet

Integrated add-on faucet design expands the functionality of the pre-rinse assembly.

Adjustable Faucet Centers

Centers adjust from 7 3/4 inches to 8 1/4 inches for more flexible installation.

14-Inch Swing Nozzle

Long-reach swing nozzle includes a stream regulator outlet for broad sink coverage.

20-Inch Flexible Hose

Flexible stainless steel hose includes a heat-resistant gray handle and hold-down ring.

Quarter-Turn Compression Cartridges

Eterna cartridges with spring checks are designed to help prevent cross-flow of water.

Lever Handles with Color-Coded Indexes

Lever handles make operation easier and help distinguish hot and cold sides.

Chrome-Plated Brass Construction

Polished chrome-plated brass body, nozzle, riser, overhead swivel arm, and spray valve body provide a durable finish.

Documented Operating Range

Listed for 20 to 125 psi pressure and 40 F to 140 F temperature service conditions.

Type Pre-Rinse Unit
Style Mixing Faucet
Installation Type Wall Mounted
Mounting Type Wall Mount
Faucet Centers 7 3/4 to 8 1/4 Inches
Spout Length 14 Inches
Nozzle Type Swing/Swivel
Valve Type Quarter-Turn Compression
Controls Lever
Material Brass
Finish Chrome-Plated
Color Chrome
Water Inlet Size 1/2 Inch NPT Female
Temperature Range 40 F to 140 F
Pressure Range 20 to 125 PSI
Hose Length 20 Inches
Riser Height 26 Inches
Wall Bracket Length 6 Inches Adjustable
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Three-year limited

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It is an 8-inch wall mount mixing faucet assembly with a 6-inch adjustable wall bracket and 1/2-inch NPT female inlets.
The unit includes a 14-inch swing nozzle with a stream regulator outlet and a 20-inch flexible stainless steel hose.
It uses quarter-turn Eterna compression cartridges with spring checks.
The documentation lists a 20 to 125 psi pressure range and a 40 F to 140 F temperature range.
The product is covered by a three-year limited warranty.
