T&S Brass B-0130 Commercial Faucets & Plumbing
Description

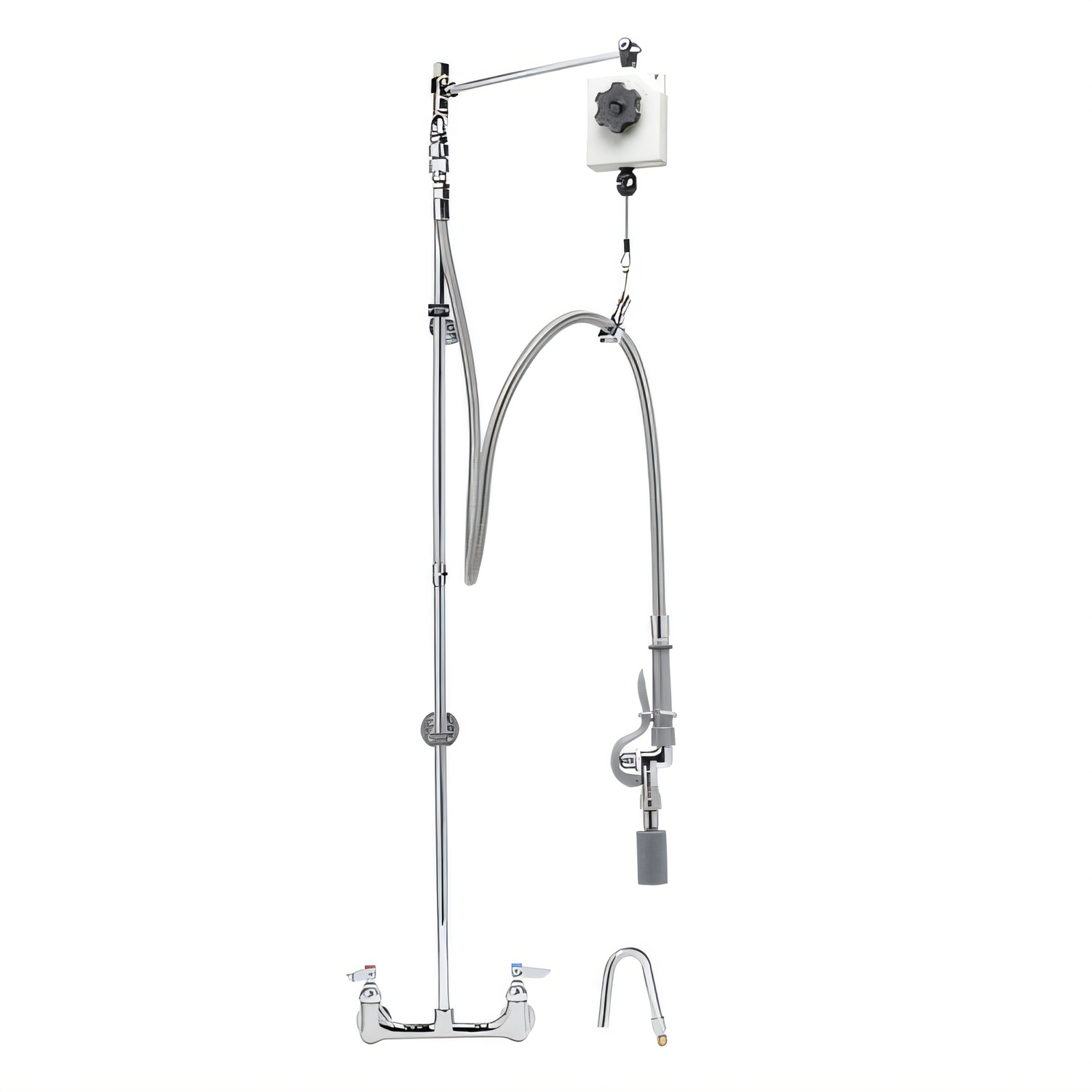

T&S Brass B-0130 Pre-Rinse Unit with Balancer
8" wall-mount • quick-disconnect fan-jet & hook nozzle • low-lead compliantBuilt for demanding commercial kitchens, the B-0130 pairs T&S Brass durability with water-saving performance. A smooth overhead balancer keeps the hose exactly where you need it, while interchangeable quick-disconnect nozzles swap out in seconds to tackle every rinsing task from delicate produce to baked-on pans.
Key Features
- 8" (203 mm) wall-mount mixing faucet; centers adjust 7 3/4"–8 1/4" for retrofit ease
- Overhead swivel extension arm with adjustable tension balancer reduces operator fatigue
- Quick-disconnect spray attachments:
- 0.65 GPM fan-jet spray valve (EPAct 2005 compliant)
- High-volume hook nozzle – 2.71 GPM for pots & sheet pans
- 68" heat-resistant stainless-steel hose with hold-down ring
- Quarter-turn Eterna cartridges with built-in spring checks stop cross-flow
- Lever handles with color-coded indexes for quick ID
- 3/8" NPT vacuum breaker protects potable supply
- Pair of 6" adjustable wall brackets steady the riser in the harshest environments
- Polished chrome-plated brass body & riser for long-term corrosion resistance
- Low-lead design meets NSF 372 requirements
Technical Specifications
| Model | B-0130 |
|---|---|
| Mounting | 8" wall-mount, 1/2" NPT female eccentric inlets (2" flanges) |
| Centers | Adjustable 7 3/4"–8 1/4" (197–210 mm) |
| Risers | Two 24" risers (1 EasyInstall & 1 rigid) with 3/8" NPT pipe coupling |
| Hose Length | 68" (1727 mm) stainless-steel |
| Flow Rates @ 60 psi | Fan-Jet: 0.65 GPM • Hook Nozzle: 2.71 GPM |
| Pressure Range | 20 – 125 psi |
| Temperature Range | 40 °F – 140 °F (4 °C – 60 °C) |
| Cartridges | Quarter-turn Eterna with spring checks (hot & cold) |
| Materials | Chrome-plated brass body, riser & spray valve • stainless-steel hose • metal handles |
| Warranty | 3-year limited |
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61, Section 9
- NSF 372 (low-lead)
- CSA B64.8 (vacuum breaker)
- EPAct 2005 (fan-jet nozzle)
Need different handles or spray valves? T&S Brass offers factory-approved options—contact us for details.
