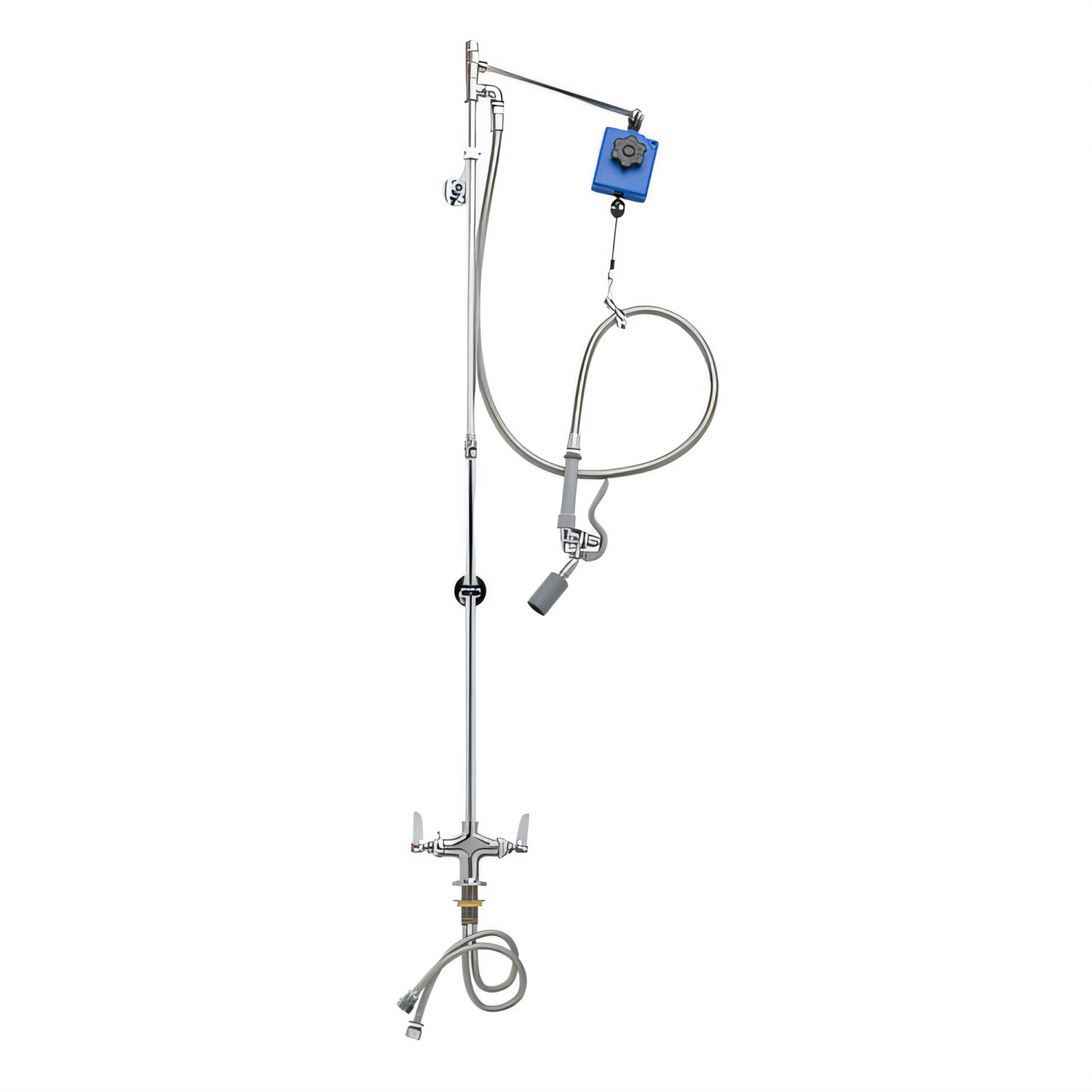

T&S Brass B-0126-CR Single-Hole Deck-Mount Pre-Rinse Unit — 68-inch Hose & 0.65 GPM Low-Flow Spray Valve

SKU: B-0126-CR
GTIN: 671262759373
$702.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets & Plumbing Faucet Components New Arrivals Pre-rinse Faucet Parts Restaurant Equipment Restaurant Equipment Parts Sinks & Handwashing Stations T&S Brass

T&S Brass B-0126-CR Single-Hole Deck-Mount Pre-Rinse Unit — 68-inch Hose & 0.65 GPM Low-Flow Spray Valve

Polished Chrome-Plated Brass Body; Two 24-inch Risers; 14-inch Extension Arm with Balancer

Commercial single-hole pre-rinse unit with durable chrome-plated brass construction, water-saving 0.65 GPM spray valve, and included balancer and wall brackets for reliable, serviceable performance.

  • Low water use: 0.65 GPM angled low-flow spray valve (B-0107-C35) for reduced water consumption
  • Durable polished chrome-plated brass body, swivel arm and spray valve with stainless steel hose
  • Includes 68-inch flexible stainless steel hose with heat-resistant handle and hold-down ring
  • Two 24-inch risers (one EasyInstall), 14-inch overhead extension arm with adjustable tension balancer, and (2) 6-inch adjustable wall brackets included
  • Quarter-turn Cerama cartridges with check valves and lever handles with color-coded indexes for easy operation and cross-flow prevention
  • Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9 and NSF 372 (Low Lead); EPAct 2005 PRSV compliant

Product Weight:

15.65 lb

Construction

Polished chrome-plated brass body, risers, swivel arm and spray valve body with chrome-plated metal handles and stainless steel hose for commercial durability.

Low-Flow Spray Valve

Includes B-0107-C35 low-flow angled spray valve rated 0.65 GPM (performance: 0.65 GPM @ 60 psi) to conserve water without sacrificing cleaning performance.

Hose & Handle

68-inch flexible stainless steel hose with heat-resistant gray handle and hold-down ring for comfortable, heat-safe operation.

Risers & Mounting

Two 24-inch risers (one EasyInstall and one rigid) with 3/8" NPT couplings; single-hole deck mount with Ø1 1/2" mounting hole requirement and up to 1 7/8" maximum deck thickness.

Extension Arm & Balancer

14-inch swivel extension arm with adjustable tension balancer and two 6-inch adjustable wall brackets for stable overhead operation.

Valves & Handles

Quarter-turn Cerama cartridges with check valves to prevent cross-flow; lever handles with red/blue color-coded indexes; optional cartridge and handle styles available.

Supply Connections

Includes (2) 18-inch flexible stainless steel supply hoses with 1/2" NPSM male inlets and 5/8" O.D. compression fittings (remove compression nut for 1/2" NPSM male thread).

Certifications & Compliance

Meets ASME A112.18.1 / CSA B125.1, NSF 61 - Section 9, NSF 372 (Low Lead) and EPAct 2005 PRSV requirements.

Type Pre-Rinse Unit
Material Brass
Finish Polished Chrome
Installation Type Countertop
Water Inlet Size 1/2 Inch NPSM
Water Connection Required
Flow Rate 0.65 GPM
Operating Pressure Range 20 - 125 psi
Temperature Range 40 - 140 °F
Riser Length 24 Inches
Flexible Hose Length 68 Inches
Supply Hose Length 18 Inches
Spray Valve Model B-0107-C35 (0.65 GPM)
Inlet Connection 3/8 Inch NPT x 24 Inch Riser
Mounting Hole Diameter 1.5 Inches
Maximum Deck Thickness 1.88 Inches
Selling Unit Each
Units Per Case 1
Shipping Weight 15.65 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Three Year (Limited)

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

Includes single-hole deck-mount mixing faucet assembly, (2) 24-inch risers (one EasyInstall), 68-inch flexible stainless steel hose with heat-resistant handle and B-0107-C35 0.65 GPM spray valve, 14-inch extension arm with balancer, (2) 6-inch adjustable wall brackets, and (2) 18-inch flexible stainless steel supply hoses with 1/2" NPSM male inlets.
Supply hoses are 18 inches long with 1/2" NPSM male inlets and 5/8" O.D. compression fittings (remove compression nut for 1/2" NPSM male thread). Risers use 3/8" NPT connections.
Standard spray valve is B-0107-C35 rated at 0.65 GPM. Performance listed as 0.65 GPM @ 60 psi. Optional spray valve models with different flows are available.
Operating pressure range is 20 - 125 psi; recommended temperature range is 40 - 140 °F.
Unit has a Three Year limited warranty. Cerama cartridges carry a lifetime limited warranty.
