Description

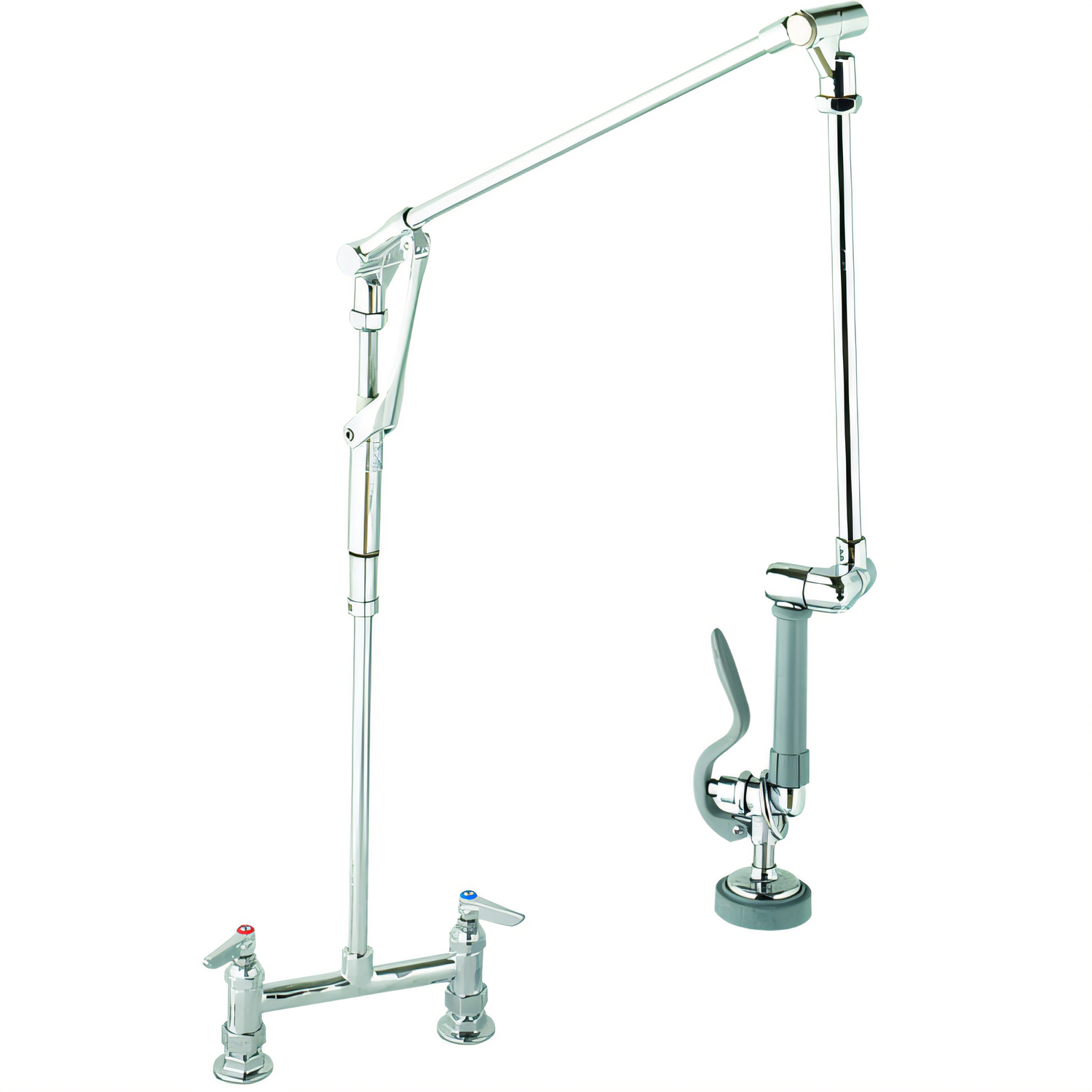

8" Deck-Mount Pre-Rinse Unit w/ B-0107 Spray Valve

T&S Brass Model B-0124

Built for the rigors of commercial kitchens, the T&S Brass B-0124 combines a rugged polished-chrome body with a smooth roto-flex swivel arm and energy-saving B-0107 spray valve. From heavy pre-rinse loads to quick pot wash-downs, this unit delivers reliable performance shift after shift.

Why You’ll Love It

  • 8" deck-mount, polished chrome-plated brass faucet body for maximum durability.
  • Roto-flex multi-point swivel arm offers 360° coverage and a 29" (737 mm) pull-down reach.
  • B-0107 spray valve delivers a low-flow 1.15 GPM stream that meets 2019 DOE PRSV Class II requirements.
  • Quarter-turn Eterna compression cartridges with built-in spring checks prevent cross-flow.
  • Heat-resistant gray grip handle and hold-down ring reduce operator fatigue.
  • Lever handles with color-coded indexes for fast, intuitive temperature adjustment.
  • 1/2" IPS (NPT) female eccentric inlets with 2" flanges; centers adjust from 7 3/4" to 8 1/4".
  • EasyInstall union coupling kit speeds up installation and future service.
  • Lead-free certified & fully compliant with NSF 61/372 and ASME A112.18.1 / CSA B125.1.
  • Backed by a 3-year limited factory warranty.

Technical Specifications

Model B-0124
Mounting Style 8" deck-mount, adjustable centers (7 3/4" – 8 1/4")
Overall Height 42 9/16" (1081 mm)
Maximum Pull-Down Reach 29" (737 mm)
Spray Valve B-0107, 1.15 GPM @ 60 psi
Flow Rate 1.15 GPM (4.35 L/min)
Water Pressure Range 20 – 125 psi (1.4 – 8.6 bar)
Temperature Range 40 °F – 140 °F (4 °C – 60 °C)
Inlet Connections 1/2" IPS (NPT) female, eccentric flanges
Cartridges Quarter-turn Eterna compression, spring checks
Body & Arm Material Polished chrome-plated brass
Hose Material Stainless-steel clad
Certifications ASME A112.18.1 / CSA B125.1, NSF 61-9, NSF 372, 2019 DOE PRSV Class II, EPAct 2005
Warranty 3-year limited

Flow rate listed reflects 2019 DOE compliance. For legacy flow options or alternative spray valves, please contact our sales team.

Important: Unit must be installed by a qualified professional. Supply lines and vacuum breakers (if required by local code) are sold separately.

Features & Specs

Manufacturer

T&S Brass

Shipping Weight

14.27lbs

Wall or Deck Mount

deck mount

Faucet Centers

8" centers

Specifications

Pre-Rinse Unit, 8" center deck faucet, union coupling connections, 1/2" IPS female eccentric flanged inlets, roto-flex swivel design, B-0107 spray valve
