T&S Brass B-0123-BM EasyInstall Commercial Faucets & Plumbing
Description

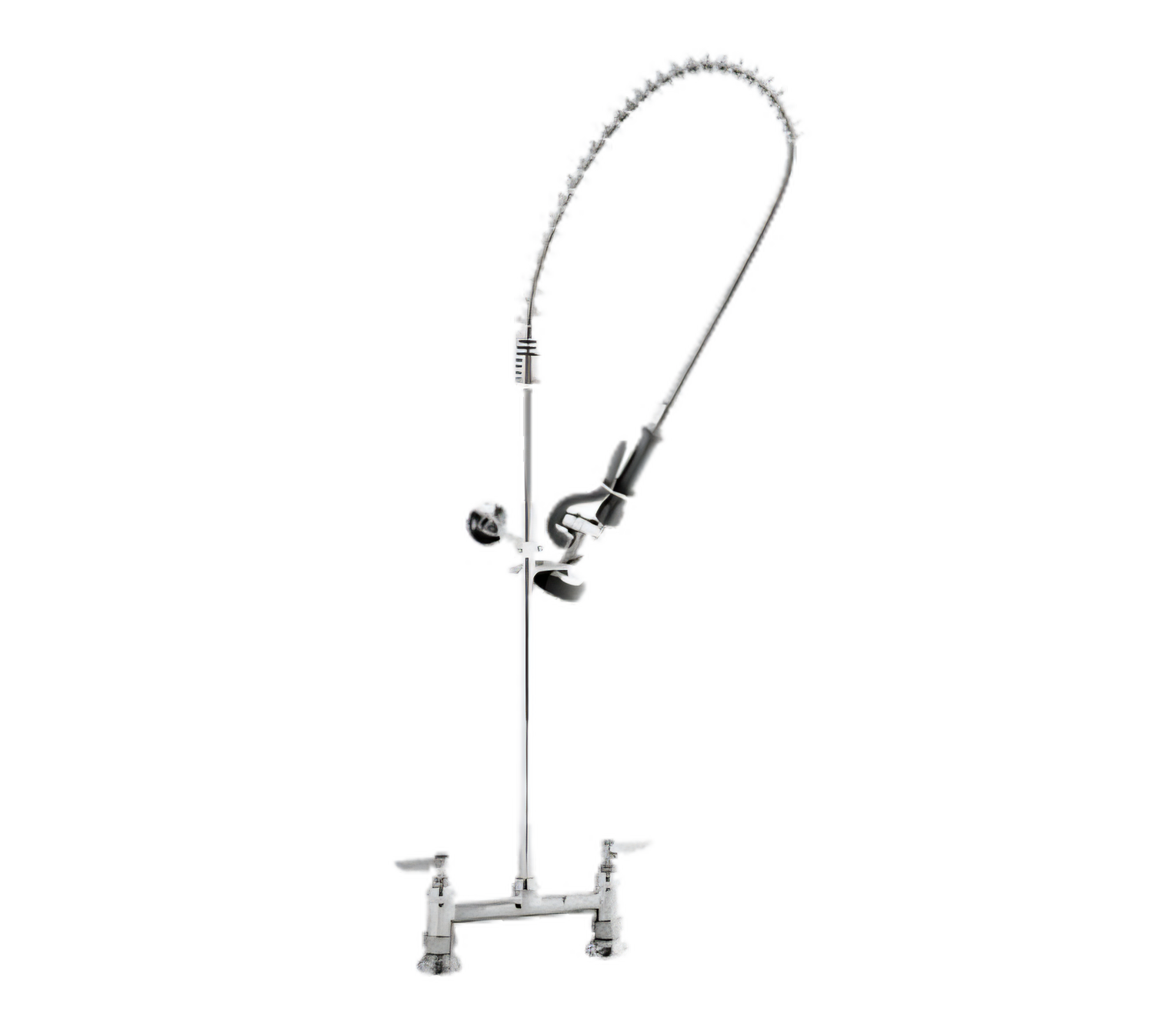

EasyInstall™ Pre-Rinse Unit – 1.15 GPM
Deck-mount | 8" adjustable centers | T&S BrassEngineered for fast installation and years of worry-free service, the T&S Brass EasyInstall™ pre-rinse unit pairs a low-flow 1.15 GPM spray valve with heavy-duty chrome-plated brass construction. From farm-to-table cafés to high-volume commissaries, it delivers the cleaning power you need while slashing water and energy costs.
Why you’ll love it
- True “plug-and-play” install – EasyInstall riser ships pre-assembled with hose, overhead spring and spray valve.
- Water-saving B-0107 spray valve – DOE 2019 PRSV Class II certified at just 1.15 GPM (4.35 L/min).
- 44" flexible stainless-steel hose with heat-resistant gray handle and hold-down ring.
- Quarter-turn Eterna cartridges with built-in spring checks protect against cross-flow.
- Lever handles with red/blue indexes for instant temperature identification.
- 24" rigid riser and spring-action gooseneck for smooth, full-range articulation.
- 6" adjustable wall bracket for extra stability on any sink line.
- Low-lead compliant polished chrome-plated brass body resists corrosion and daily wear.
In the box
- Pre-assembled 24" riser with overhead spring & finger hook
- B-0107 1.15 GPM spray valve with hold-down ring
- 44" stainless-steel flex hose
- (2) 2" Ø deck flanges with 1/2" NPT female inlets (adjust 7 ¾"–8 ¼")
- 6" wall bracket & mounting hardware
- Lever handles with quarter-turn Eterna cartridges
- Installation manual & parts breakdown
Technical specifications
| Flow rate | 1.15 GPM @ 60 psi (4.35 L/min) |
|---|---|
| Operating pressure | 20 – 125 psi (1.4 – 8.6 bar) |
| Water temperature | 40 – 140 °F (4 – 60 °C) |
| Overall height | 41 7/8" (1065 mm) from deck to top of spring |
| Deck to spray-valve hook | 17 3/8" (441 mm) |
| Center-to-center | 8" nominal, adjustable 7 ¾"–8 ¼" |
| Inlet connections | 1/2" NPT female, flanged |
| Body material | Polished chrome-plated brass |
| Hose material | Stainless steel with heat-resistant grip |
| Warranty | 3-year limited, parts & labor |
| Master pack | 6 units per case |
Certifications & approvals
- ASME A112.18.1 / CSA B125.1
- NSF/ANSI 61 & NSF/ANSI 372 (Low Lead)
- EPAct 2005
- DOE 2019 PRSV Class II (≤1.20 GPM)
- ANSI/ICC A117.1 ADA compliant handles
Looking for a different flow rate, handle style, or spray valve? Ask about optional B-0107-J (1.07 GPM) or B-0107-C (0.65 GPM) valves and Cerama cartridges.
